Edelbrock 71163 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_71163
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Sold out
Original price
$579.48
-
Original price
$579.48
Original price
$579.48
$579.48
$579.48
-
$579.48
Current price
$579.48
Description

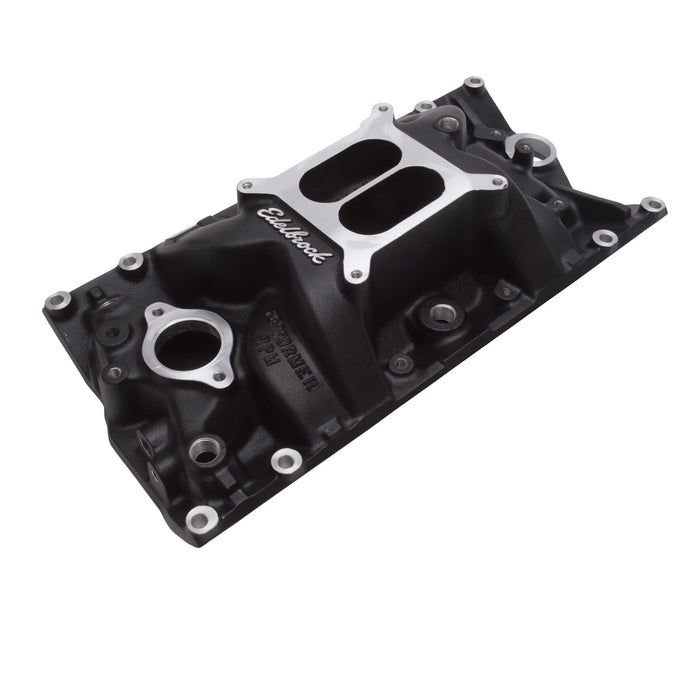

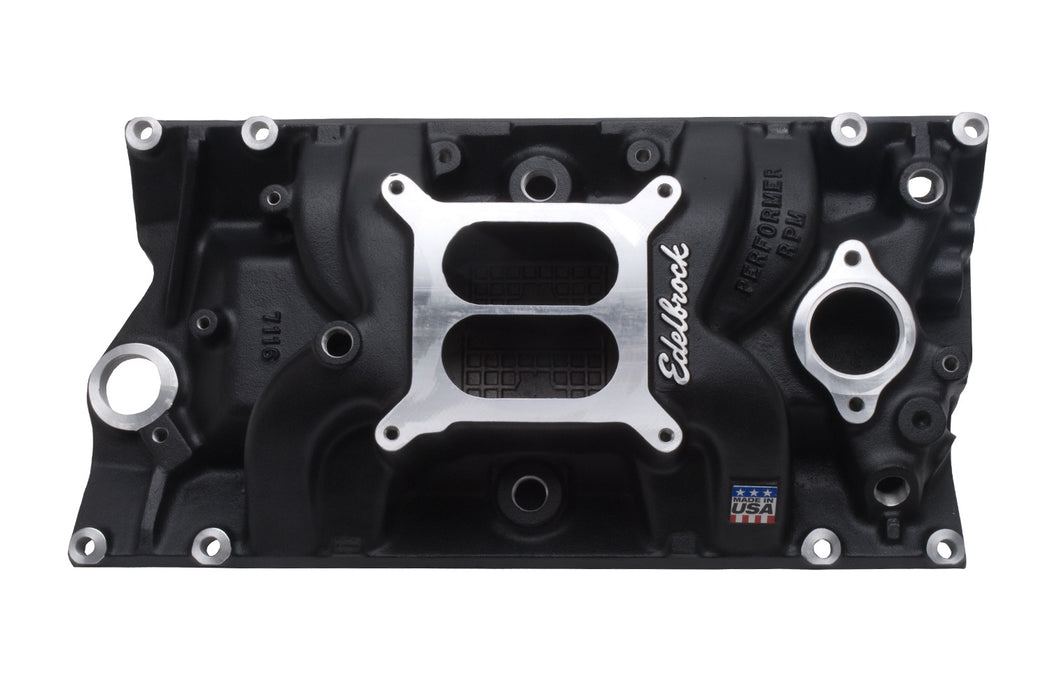

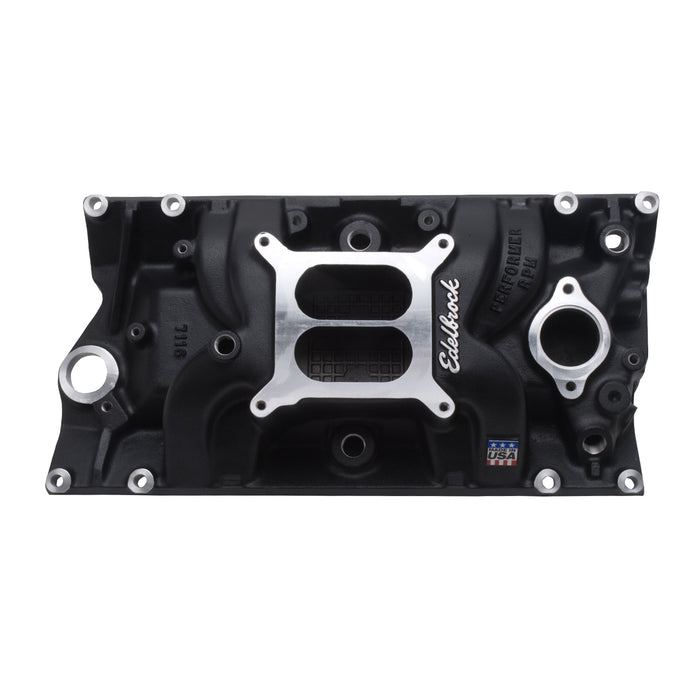

Edelbrock part #71163 Performer RPM Vortec intake manifold is Based on the powerful Edelbrock #7101, this single four-barrel intake is designed for the street rod, marine and engine swap market utilizing 262-400 c.i.d. Chevy V8's with 1996 and later Vortec (L31) cast iron or Edelbrock E-Tec aluminum heads. An external water bypass boss is machined into the front of the water crossover for use on 1996 and later Vortec production engines. Manifold accepts square-bore carbs only. For street and marine engines operating from 1500-6500 RPM, see the Performer Vortec manifold or Performer Vortec EPS. Will not fit under stock Corvette hood. This manifold offers a durable black power coated finish for long lasting protection and a distinctive look.
Specifications
| Cylinder Head Type | GM Vortec/Edelbrock E-TEC |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block Gen I:302 (4.9L)/305 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer RPM Vortec Intake Manifold For Chevrolet 262-400 Small-Block V8 |
| Description_FAB | Accepts Square Bore Carburetors Only |
| Description_FAB | Best for the Ultimate in Street High-Performance |
| Description_FAB | Designed for 1500 to 6500 RPM Street-Driven Power |
| Description_FAB | For 1996+ GM Vortec or Edelbrock E-Tech Heads |
| Description_FAB | Larger Plenum and Runners Maximizes Other Upgrades |
| Description_FAB | Produces Incredible Top-End Horsepower |
| Description_FAB | Retains Good Throttle Response and Acceleration |
| Description_INV | BK RPM Vortec SBC Intake Manifold |
| Description_KEY | 71163; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer RPM; Black Powder Coated |
| Description_LAB | Performer RPM Small Block Chevy Vortec Black Intake Manifold |
| Description_MKT | Edelbrock part #71163 Performer RPM Vortec intake manifold is Based on the powerful Edelbrock #7101, this single four-barrel intake is designed for the street rod, marine and engine swap market utilizing 262-400 c.i.d. Chevy V8's with 1996 and later Vortec (L31) cast iron or Edelbrock E-Tec aluminum heads. An external water bypass boss is machined into the front of the water crossover for use on 1996 and later Vortec production engines. Manifold accepts square-bore carbs only. For street and marine engines operating from 1500-6500 RPM, see the Performer Vortec manifold or Performer Vortec EPS. Will not fit under stock Corvette hood. This manifold offers a durable black power coated finish for long lasting protection and a distinctive look. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 3in.} |
| Description_TRA | Carb pad height: 4.27" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket #8032 for 1972-78. |
| Description_TRA | DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_TRA | Edelbrock does not recommend the use of an economy type carburetor such as the Edelbrock Performer series 1406 or 1411 on Performer RPM Intake Manifolds. Economy type carburetors are calibrated lean for fuel economy and will not perform properly on this style of intake. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold ht: A-4.20", B-5.25" (.70" taller than #2101) |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | Port exit dimensions: 2.05" tall with slanted side walls |
| Description_TRA | Recommended intake gasket: Edelbrock #7235 or GM #89017465 |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | Stock brackets will require modification to fit the upright manifold bolt holes. Use Edelbrock Vortec throttle bracket #8032. |
| Description_TRA | Use #8516 Edelbrock bolt kit |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Will not fit under stock Corvette hood. |
| Description_TRA | • Manifold ht: A-4.20in.; B-5.25in. (.70in. taller than # 2101) • Carb pad height: 4.27in. • Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket # 8032 for 1972-78. • Port exit dimensions: 2.05in. tall with slanted side walls • Recommended intake gasket: Edelbrock # 7235 or GM # 89017465 • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Use # 8516 Edelbrock bolt kit • Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. • NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. • DO NOT OVERTIGHTEN NPT/Pipe fittings; this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. • Will not fit under stock Corvette hood. • Stock brackets will require modification to fit the upright manifold bolt holes. Use Edelbrock Vortec throttle bracket # 8032. • Edelbrock does not recommend the use of an economy type carburetor such as the Edelbrock Performer series 1406 or 1411 on Performer RPM Intake Manifolds. Economy type carburetors are calibrated lean for fuel economy and will not perform properly on this style of intake. |
| Emission | With EGR |
| Engine Make/Size | Chevy Small Block (262-400) |
| height | 6.75 |
| length | 23.75 |
| Number of Carbs | One |
| Position | N/A |
| RPM Range | 1500-6000 |
| Usage | Street/Hi-Performance |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 20.65 |
| width | 12.25 |
