Edelbrock 7123 Edelbrock Performer 5.0 RPM II Intake Manifold for Ford 5.0 Small-Block V8
by Edelbrock
SKU ds_BDVJ_7123
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Sold out
Original price
$1,507.30
-
Original price
$1,507.30
Original price
$1,507.30
$1,507.30
$1,507.30
-
$1,507.30
Current price
$1,507.30
Description

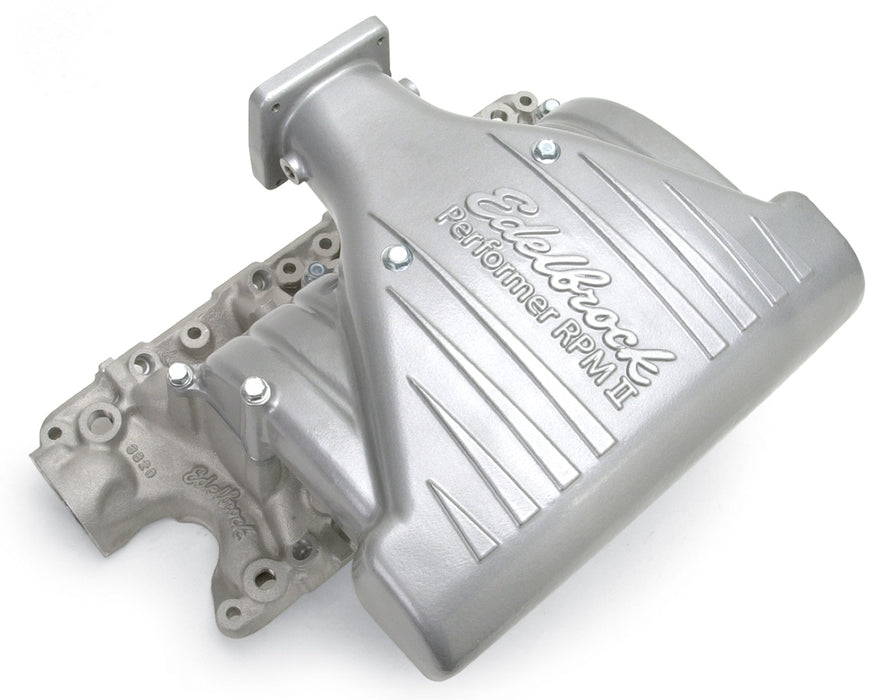

Edelbrock part #7123 Performer 5.0 RPM II intake manifold for 1986-95 5.0L Mustang engines has shown significant gains in horsepower over existing designs in the 1500 to 6500 rpm range, and is ideally suited for street and strip applications. This manifold consists of a V-shaped crossover with an increasing cross-sectional area, which passes over to eight large tapered runners. Our 70mm throttle body is recommended (75mm will require port matching). 1994-95 Mustang engines require Throttle Body Adapter #38353 and Adapter Kit #8025. May not fit with stock hood of 1994-95 Mustangs, aftermarket hood recommended.
Specifications
| Basic Operating RPM Range | 1500-6500 |
| Center Maximum Height | 11.130 |
| CNC Ported | No |
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_ASM | Ford:Small-Block Windsor:302 (5.0L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer 5.0 RPM II Intake Manifold for Ford 5.0 Small-Block V8 |
| Description_FAB | 50-State Street Legal For 1986 To 95 5.0L Engines |
| Description_FAB | Also Available In Polished - See PN[71231] |
| Description_FAB | Base Manifold is CNC Matched to Upper Manifold |
| Description_FAB | For 1994-95 Mustangs Adapter; Strut Brace Required |
| Description_FAB | Made For 1500 To 6500 RPM Street/Strip Power |
| Description_FAB | Produces Exceptional Horsepower |
| Description_FAB | Removable Plenum Cover for Runner Access |
| Description_FAB | Upper Manifold; Cover Powder-Coated Titanium Gray |
| Description_INV | Performer RPM 2 5.0L EFI Intake Manifold |
| Description_KEY | 7123; Ford; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer RPM 2; Satin |
| Description_LAB | Performer RPM II Intake Manifold #7123 For 5.0L Small-Block Ford, Satin Finish |
| Description_LAB | Performer Small Block Ford 5.0 RPM II Intake Manifold |
| Description_MKT | Edelbrock part #7123 Performer 5.0 RPM II intake manifold for 1986-95 5.0L Mustang engines has shown significant gains in horsepower over existing designs in the 1500 to 6500 rpm range, and is ideally suited for street and strip applications. This manifold consists of a V-shaped crossover with an increasing cross-sectional area, which passes over to eight large tapered runners. Our 70mm throttle body is recommended (75mm will require port matching). 1994-95 Mustang engines require Throttle Body Adapter #38353 and Adapter Kit #8025. May not fit with stock hood of 1994-95 Mustangs, aftermarket hood recommended. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 6in.} |
| Description_TRA | Air valve location is 0.30" higher and 0.50" forward from stock |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Overall height: 11.13" |

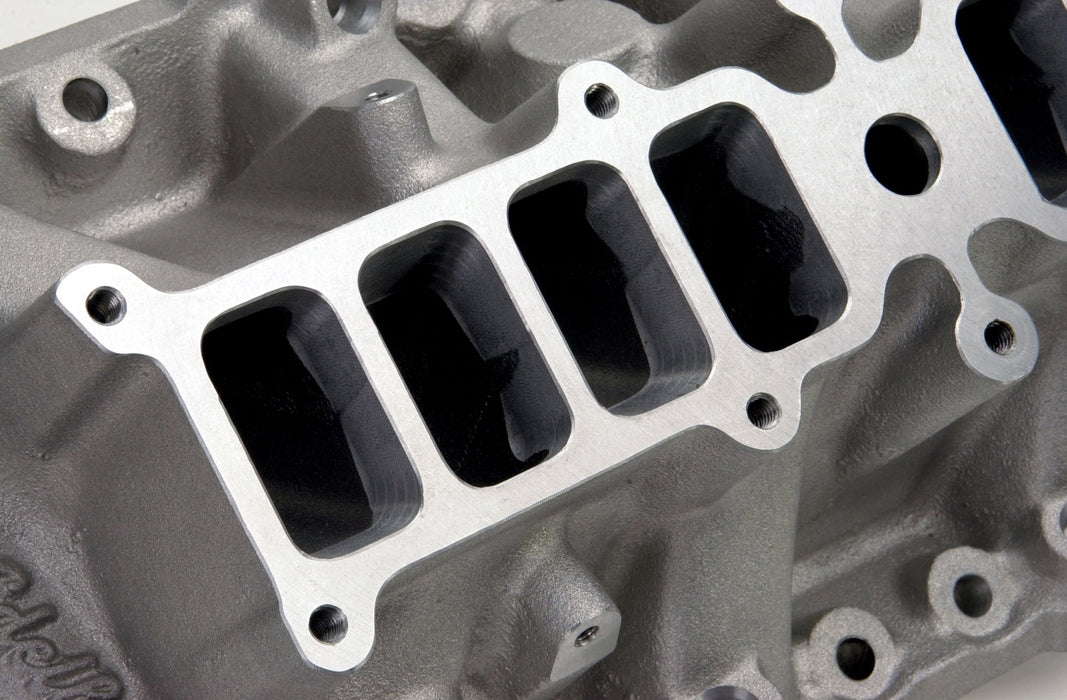

| Description_TRA | Port exit dimensions: 1.16" x 2.0" |
| Description_TRA | Recommended cams: Ford SVO X-303 or Z-303. |
| Description_TRA | Recommended intake gasket: Edelbrock #7220 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7220 • Air valve location is 0.30in. higher and 0.50in. forward from stock • Port exit dimensions: 1.16in. x 2.0in. • Recommended cams: Ford SVO X-303 or Z-303. • Overall height: 11.13in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| Emission | With EGR |
| Engine Make/Size | Ford 5.0L/302 |
| finish | Satin |
| Flange Type | Throttle Body |
| Front Maximum Height | 11.130 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 15.0 |
| length | 23.5 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | None; For Fuel Injection |
| Position | N/A |
| Rear Maximum Height | 11.130 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | 1500-6500 |
| Series | Performer RPM |
| Single Or Dual Plane Type | Dual |
| Usage | Street/Hi-Performance |
| Vehicle Model | Ford |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 45.65 |
| width | 13.25 |
