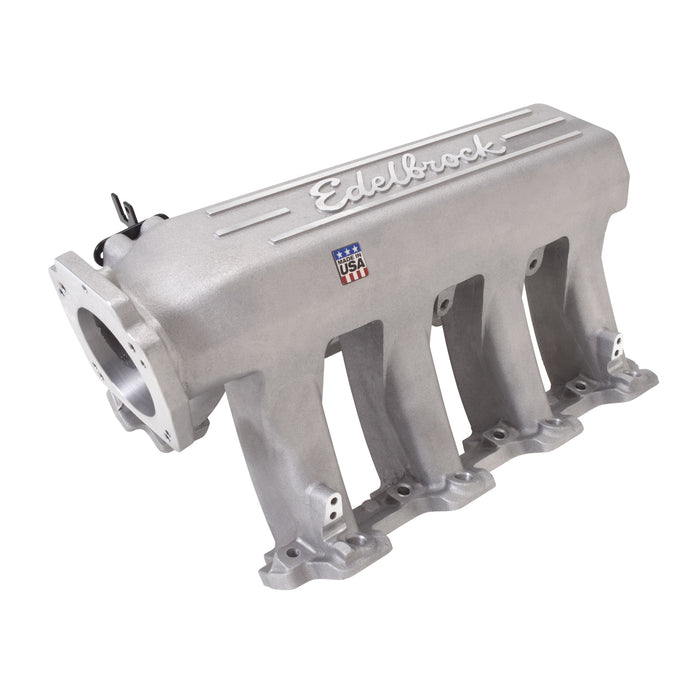

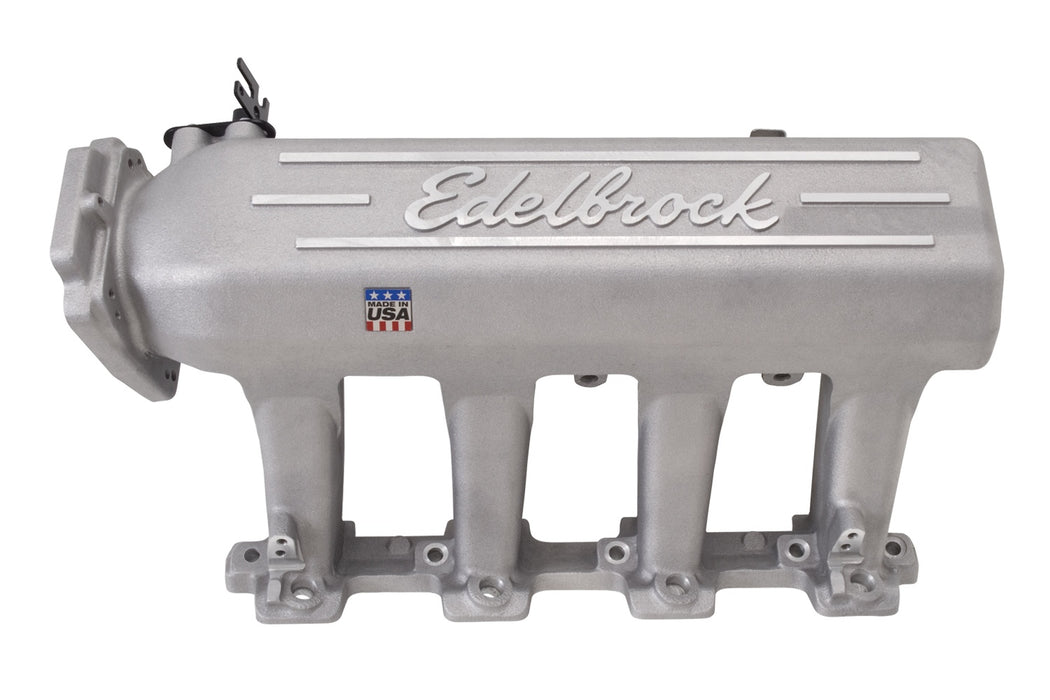

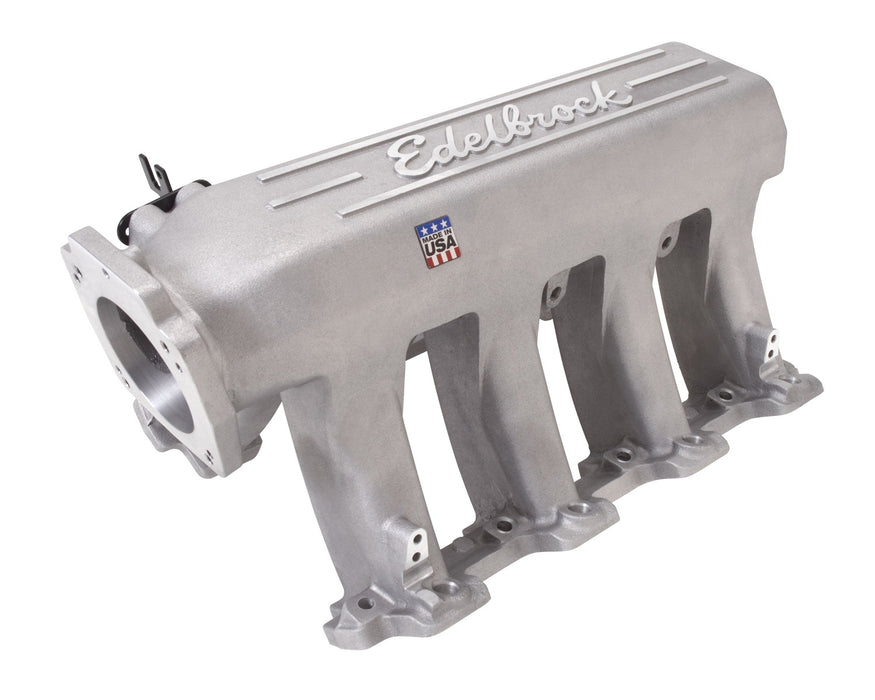

Edelbrock 7139 Edelbrock Pro-Flo XT LS1 EFI Intake Manifold For Chevrolet LS Gen III
by Edelbrock
SKU ds_BDVJ_7139
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Sold out
Original price
$1,011.95
-
Original price
$1,011.95
Original price
$1,011.95
$1,011.95
$1,011.95
-
$1,011.95
Current price
$1,011.95
Description

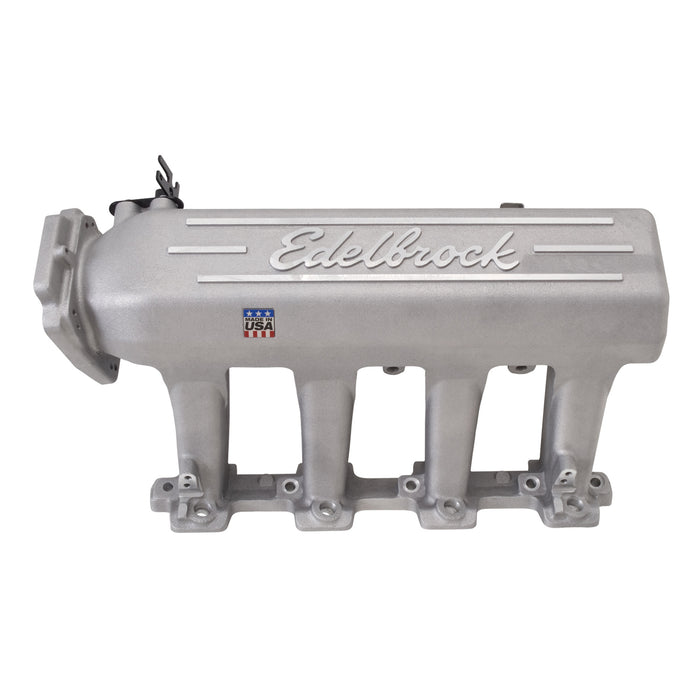

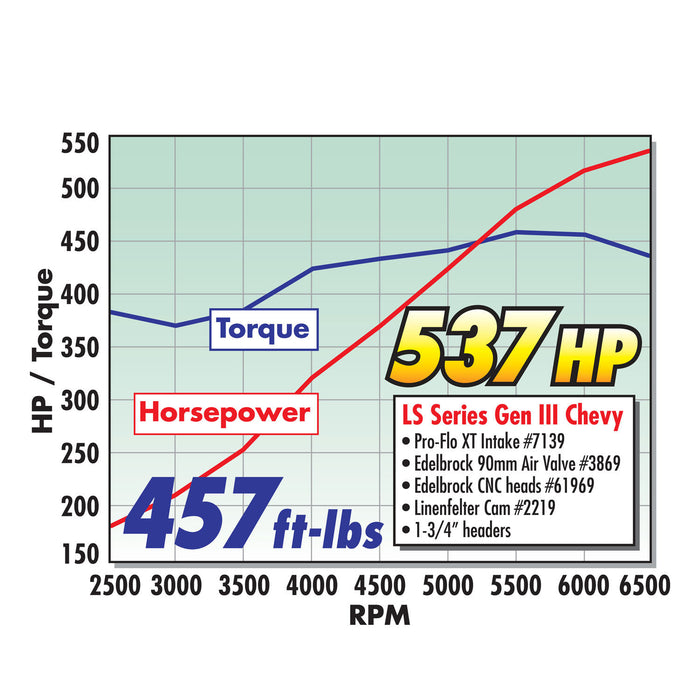

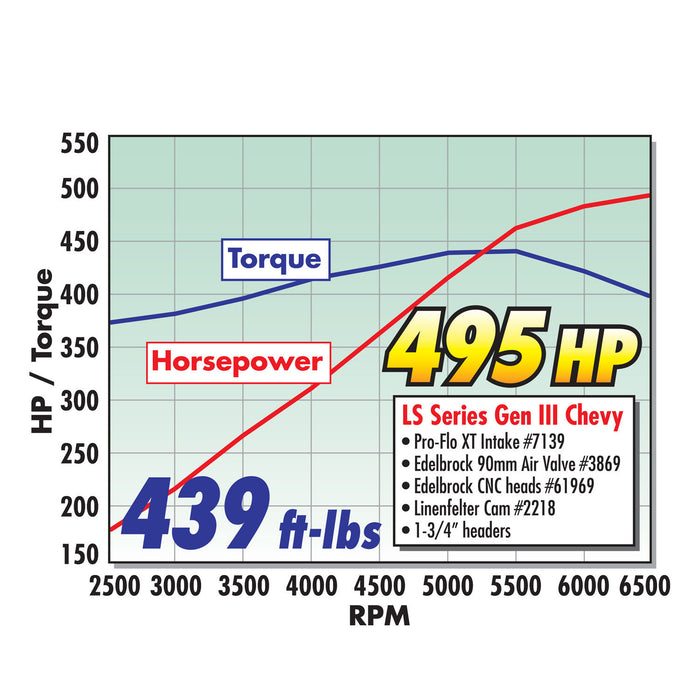

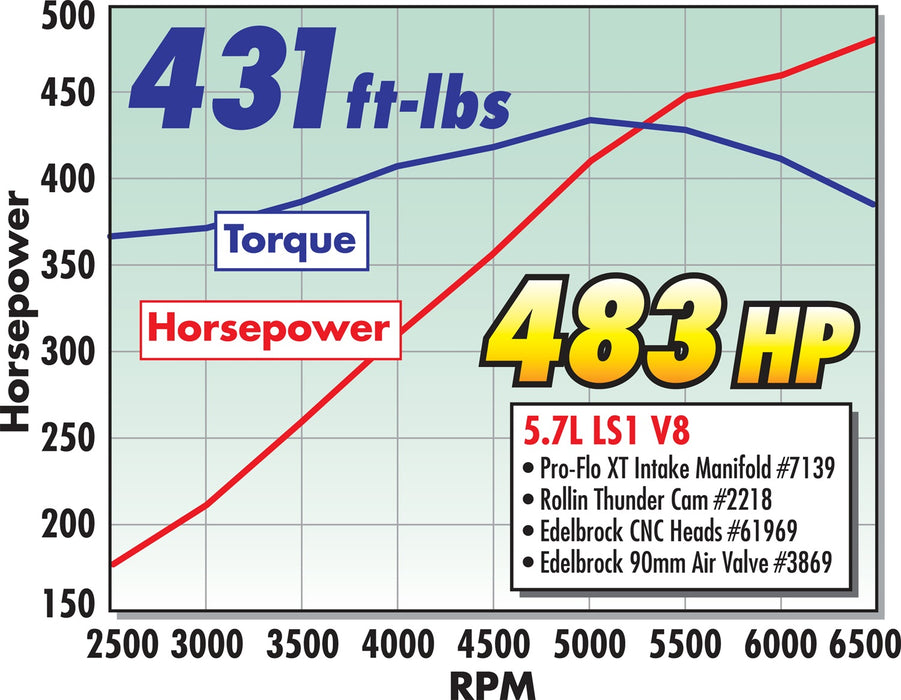

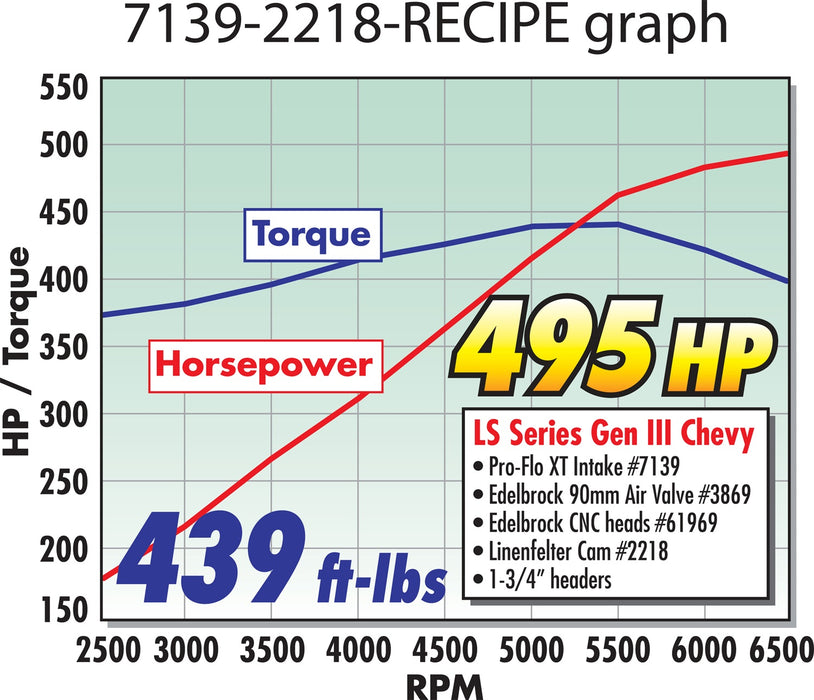

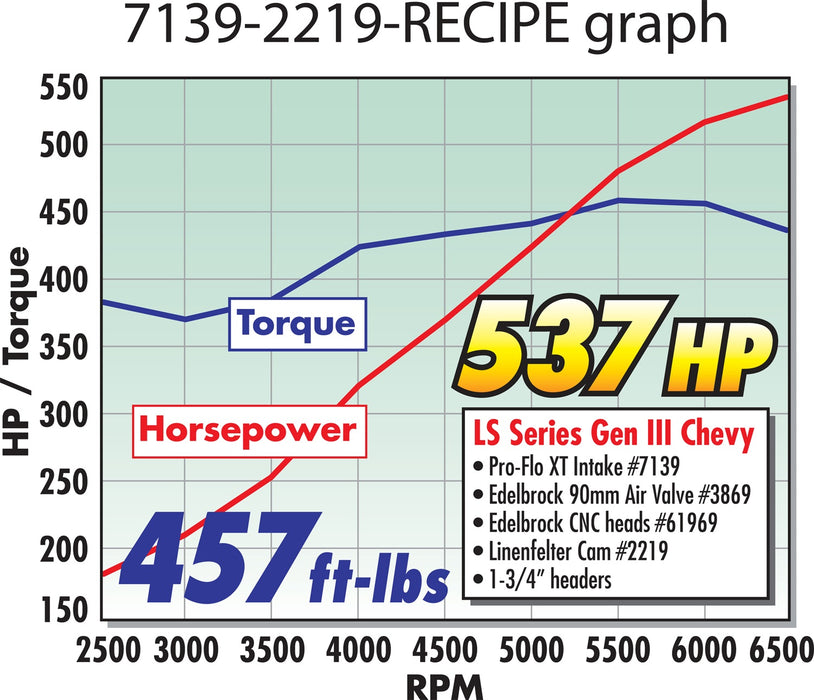

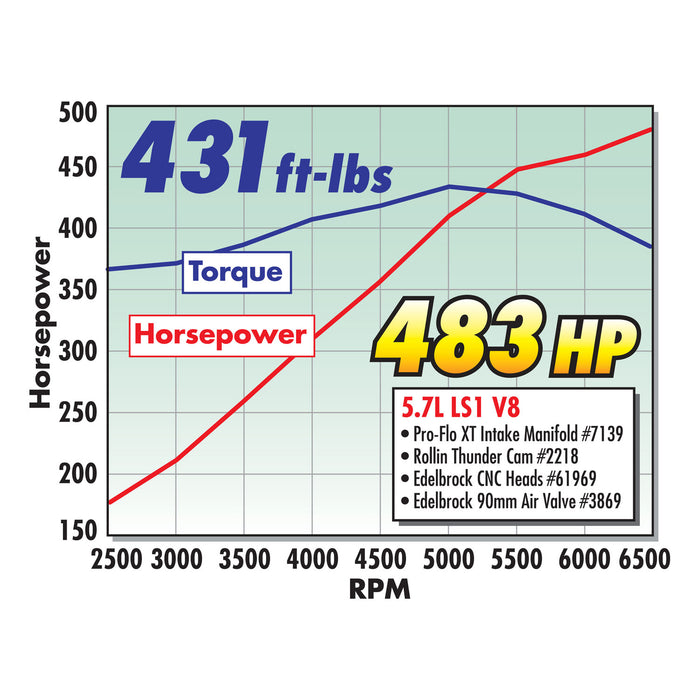

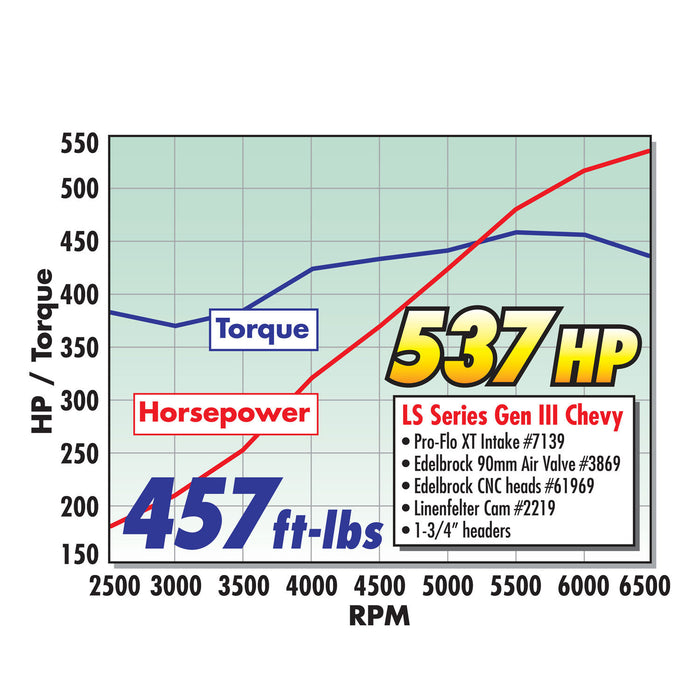

Edelbrock part #7139 Pro-Flo XT LS1 EFI intake manifold is engineered with a large plenum and tapered runners to deliver maximum horsepower and broad torque band throughout the rpm range (1500-7000 rpm). Features a 90mm throttle bore opening and 2.75" port exit height. This manifold produced 30 more horsepower over a stock LS6 manifold at 6500 rpm. The Edelbrock Pro-Flo XT LS1 #7139 EFI intake manifold Accepts Pro-Flo XT throttle body #3869 or adapter #2737 and standard LS1 throttle bodies. Compatible with LS1 Fuel Rail Kit #3629 (sold separately), which features -6 AN inlet and outlet.
Specifications
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block Gen III LM7:325 (5.3L) |
| Description_ASM | Chevrolet:Small-Block Gen III LM7:325 (5.3L);Chevrolet:Small-Block Gen III LS1:346 (5.7L);Chevrolet:Small-Block Gen IV LC9:325 (5.3L);Chevrolet:Small-Block Gen IV LH8:325 (5.3L);Chevrolet:Small-Block Gen IV LMF:325 (5.3L);Chevrolet:Small-Block Gen IV LMG: |
| Description_ASM | Chevrolet:Small-Block Gen III LS1:346 (5.7L) |
| Description_ASM | Chevrolet:Small-Block Gen IV LC9:325 (5.3L) |
| Description_ASM | Chevrolet:Small-Block Gen IV LH8:325 (5.3L) |
| Description_ASM | Chevrolet:Small-Block Gen IV LMF:325 (5.3L) |
| Description_ASM | Chevrolet:Small-Block Gen IV LMG:325 (5.3L) |
| Description_ASM | Chevrolet:Small-Block Gen IV LY5:325 (5.3L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Pro-Flo XT LS1 EFI Intake Manifold For Chevrolet LS Gen III |
| Description_FAB | Designed For 1500 To 7000 RPM Performance |
| Description_FAB | Large Plenum |
| Description_FAB | Long-Tapered Runners |
| Description_INV | Pro Flo XT LS1 Intake Manifold |
| Description_KEY | 7139; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; EFI; Pro-Flo XT; Satin |
| Description_LAB | Pro-Flo XT Small Block Chevy LS1 EFI Intake Manifold |
| Description_MKT | Edelbrock part #7139 Pro-Flo XT LS1 EFI intake manifold is engineered with a large plenum and tapered runners to deliver maximum horsepower and broad torque band throughout the rpm range (1500-7000 rpm). Features a 90mm throttle bore opening and 2.75" port exit height. This manifold produced 30 more horsepower over a stock LS6 manifold at 6500 rpm. The Edelbrock Pro-Flo XT LS1 #7139 EFI intake manifold Accepts Pro-Flo XT throttle body #3869 or adapter #2737 and standard LS1 throttle bodies. Compatible with LS1 Fuel Rail Kit #3629 (sold separately), which features -6 AN inlet and outlet. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 6in.} |
| Description_TRA | 90mm single throttle bore opening |
| Description_TRA | Accepts Edelbrock #3869 or #38693 90mm Pro-Flo XT Throttle body |
| Description_TRA | DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold Dimensions: A-10.20", B-10.00", C-16.90", D-3.2", E-15 Deg |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | PN 3629 LS1 XT Fuel Rail kit including provisions for either Pico or standard height injectors (available separately) |
| Description_TRA | Port exit dimensions: 1.04"x 2.74" |
| Description_TRA | Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Description_TRA | Recommended intake gasket: LS1/LS6 style individual port o-ring seals or Edelbrock #7386 |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | The throttle body centerline is located 6.75" above the valley plate and 2.5" forward of the first manifold hold-down bolt |
| Description_TRA | To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: LS1/LS6 style individual port o-ring seals or Edelbrock # 7386 • Port exit dimensions: 1.04in.x 2.74in. • Manifold Dimensions: A-10.20in.; B-10.00in.; C-16.90in.; D-3.2in.; E-15deg. • The throttle body centerline is located 6.75in. above the valley plate and 2.5in. forward of the first manifold hold-down bolt • 90mm single throttle bore opening • Accepts Edelbrock # 3869 or # 38693 90mm Pro-Flo XT Throttle body • PN 3629 LS1 XT Fuel Rail kit including provisions for either Pico or standard height injectors (available separately) • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. • Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. • NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. • DO NOT OVERTIGHTEN NPT/Pipe fittings; this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. • To ensure maximum performance and a proper seal; Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used. • Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Emission | Without EGR |
| Engine Make/Size | Chevy Small Block LS6 |
| height | 15.5 |
| length | 24.25 |
| LTL | N |
| Number of Carbs | None; For Fuel Injection |
| Position | N/A |
| RPM Range | 1500-7000 |
| Usage | Street/Strip |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 24.6 |
| width | 15.5 |
