Edelbrock 7144 Edelbrock Pro-Flo XT EFI Intake Manifold for Chrysler 413-426-440 Big-Block V8
by Edelbrock
SKU ds_BDVJ_7144
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Sold out
Original price
$880.67
-
Original price
$880.67
Original price
$880.67
$880.67
$880.67
-
$880.67
Current price
$880.67
Description

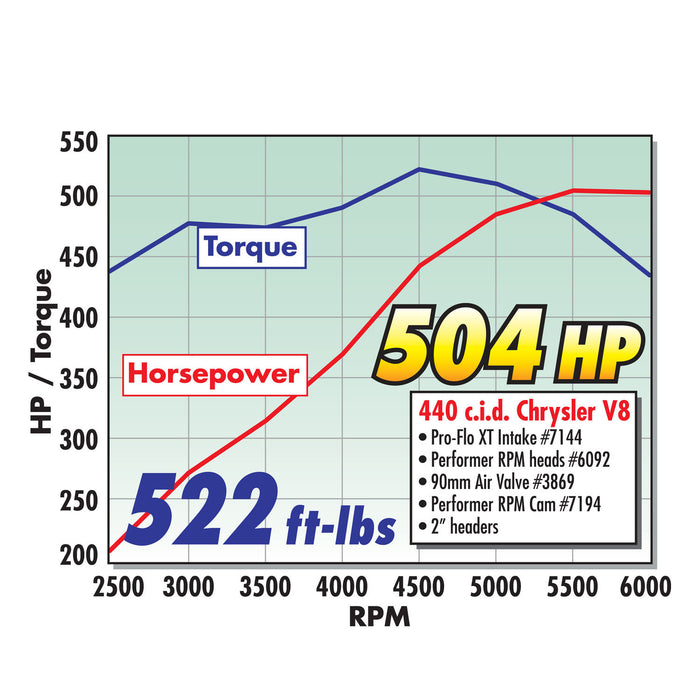

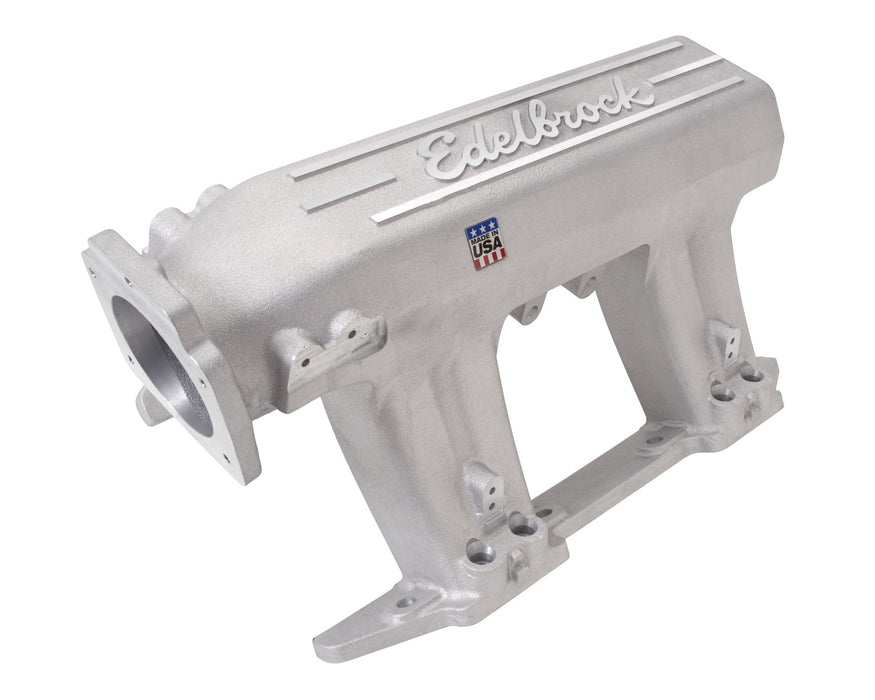

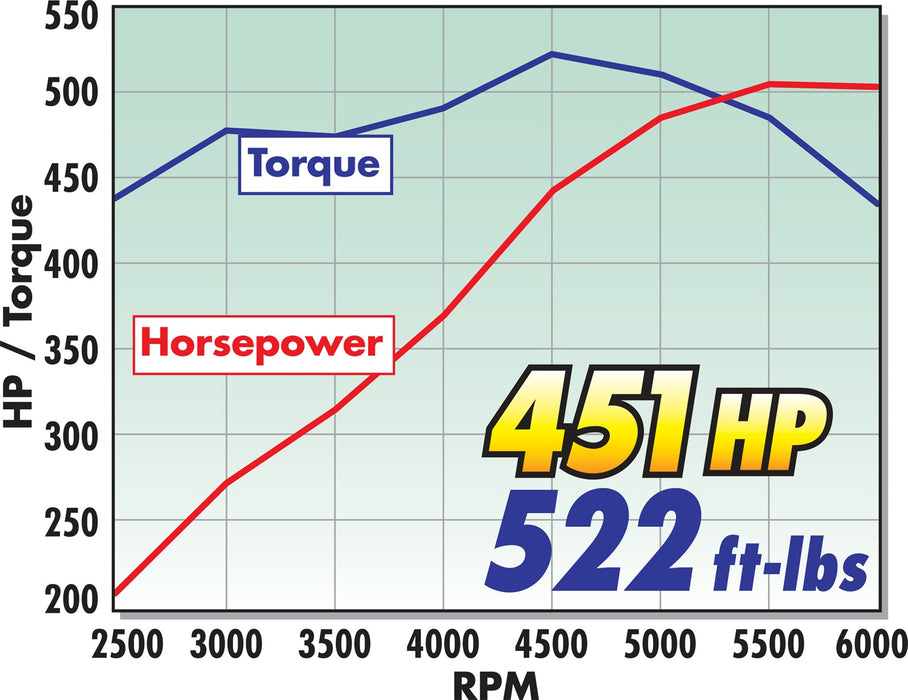

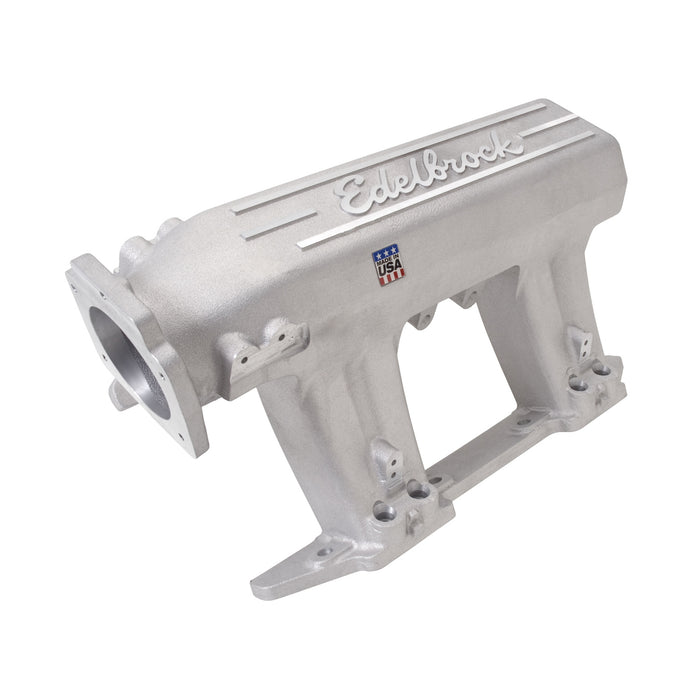

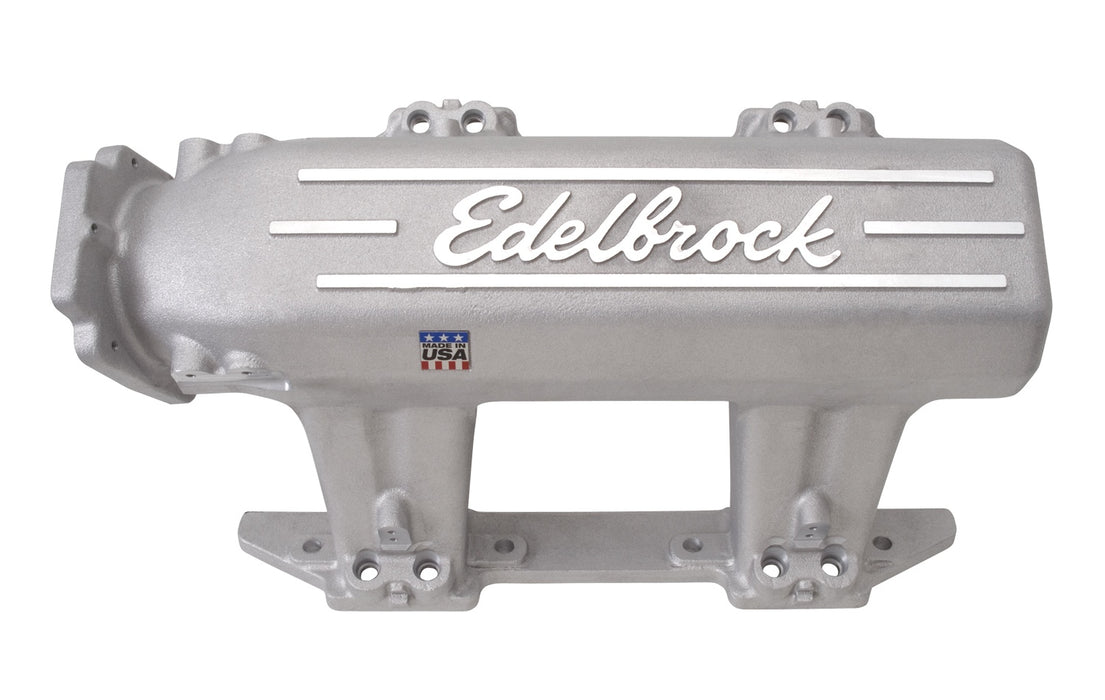

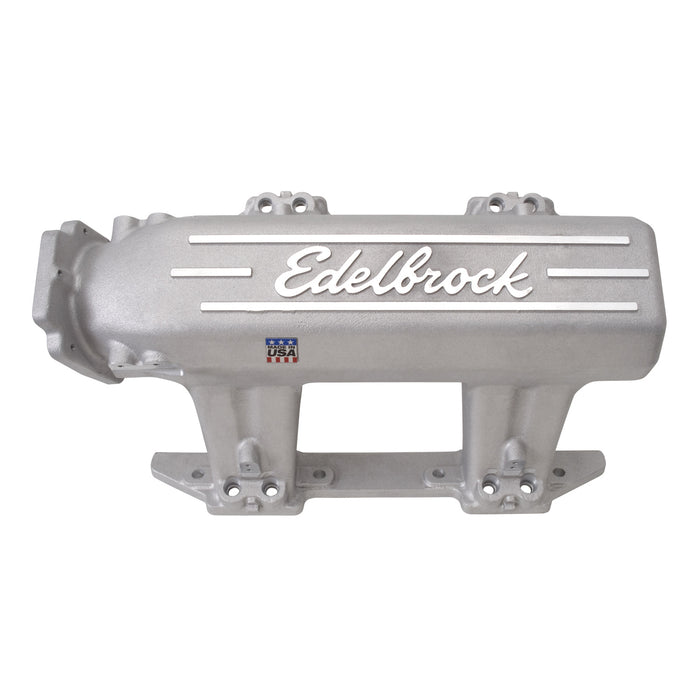

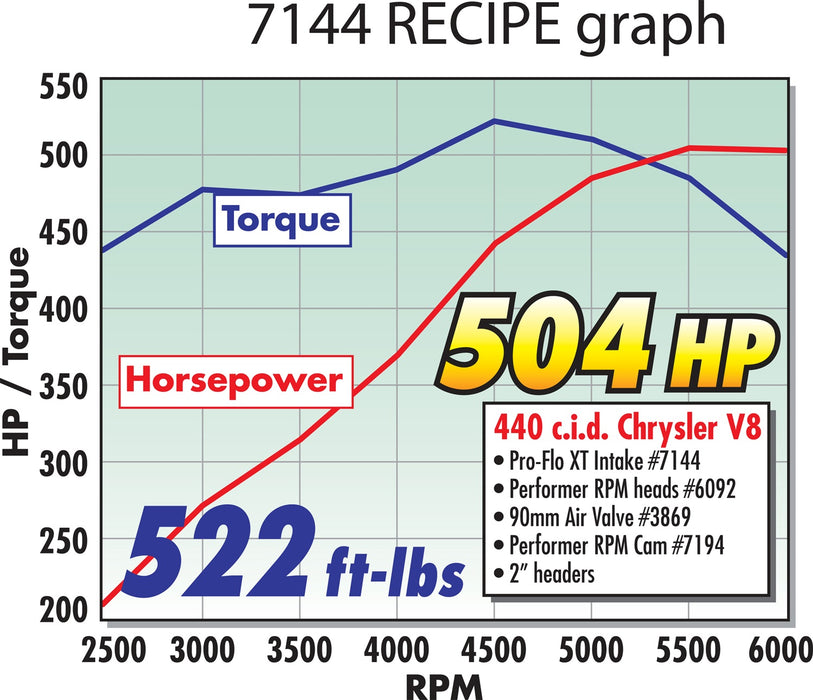

The Pro-Flo XT Chrysler 440 #7144 EFI intake manifold is engineered with a large plenum and long tapered runners to deliver maximum horsepower and broad torque band throughout the rpm range 1500-7000 rpm. Features include a 90mm throttle bore opening. This manifold produced 20 more horsepower over our #35090 manifold at 5500 rpm. Accepts Pro-Flo XT throttle body #3869 or Ford throttle body #3818. Compatible with B/B Chrysler XT Fuel Rail Kit #3644 (sold separately).
Specifications
| Basic Operating RPM Range | 1500-7000 |
| Center Maximum Height | 9.700 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chrysler:Big-Block RB Series:413 (6.8L)/426 (7.0L)/440 (7.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Pro-Flo XT EFI Intake Manifold for Chrysler 413-426-440 Big-Block V8 |
| Description_FAB | 90mm Throttle Body Opening |
| Description_FAB | As-Cast Finish |
| Description_FAB | Designed For 1500 To 7000 RPM Performance |
| Description_FAB | Large Plenum |
| Description_FAB | Long-Tapered Runners |
| Description_INV | Pro Flo XT Chrysler 440 Intake Manifold |
| Description_KEY | 7144; Chrysler; Edelbrock; Intake Manifold; Intake; Manifold; EFI; Pro-Flo XT; Satin |
| Description_LAB | Pro-Flo XT Chrysler Big Block RB EFI Intake Manifold |
| Description_MKT | The Pro-Flo XT Chrysler 440 #7144 EFI intake manifold is engineered with a large plenum and long tapered runners to deliver maximum horsepower and broad torque band throughout the rpm range 1500-7000 rpm. Features include a 90mm throttle bore opening. This manifold produced 20 more horsepower over our #35090 manifold at 5500 rpm. Accepts Pro-Flo XT throttle body #3869 or Ford throttle body #3818. Compatible with B/B Chrysler XT Fuel Rail Kit #3644 (sold separately). |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 6in.} |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold Dimensions: A-9.70", B-9.60", C-15.90", D-4.0", E-15 Deg |
| Description_TRA | Port exit dimensions: 1.12" x 2.12" |
| Description_TRA | Recommended gasket: Edelbrock #7255. |
| Description_TRA | Throttle body recommendations: Edelbrock #3869, #38693, #3818, or #38183 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended gasket: Edelbrock # 7255. • Throttle body recommendations: Edelbrock # 3869; # 38693; # 3818; or # 38183 • Manifold Dimensions: A-9.70in.; B-9.60in.; C-15.90in.; D-4.0in.; E-15deg. • Port exit dimensions: 1.12in. x 2.12in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Satin |
| Flange Type | Throttle Body XT |
| Front Maximum Height | 9.700 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 14.38 |
| length | 24.0 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 9.600 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Pro-Flo XT |
| Single Or Dual Plane Type | Single |
| Vehicle Model | Chrysler |
| weight | 23.0 |
| width | 14.75 |
