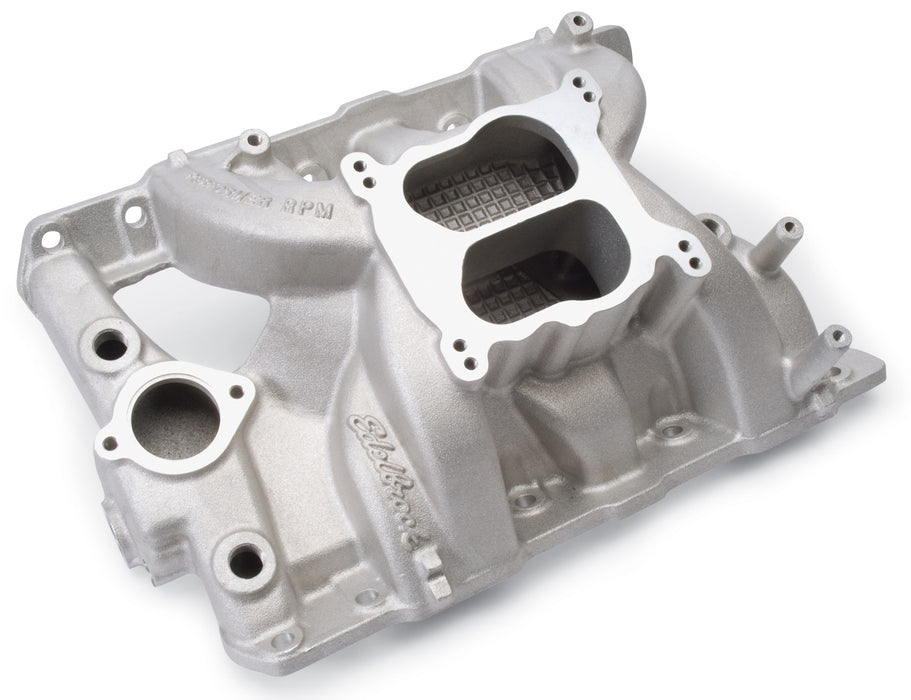

Edelbrock 7156 Edelbrock Performer RPM Pontiac Intake Manifold for Pontiac 326-455 V8
by Edelbrock
SKU ds_BDVJ_7156
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$618.53
-
Original price
$618.53
Original price
$618.53
$618.53
$618.53
-
$618.53
Current price
$618.53
Description
Edelbrock part #7156 Performer RPM Pontiac intake manifold is designed for 1965-79 street 326-455 c.i.d. Pontiac V8's (except Ram Air V and 265/301 V8's). Recommended for high-performance'street, strip and marine. Has clearance for HEI distributor. Will not fit under Trans Am Shaker hood without modifications
Specifications
| Basic Operating RPM Range | 1500-6500 |
| Center Maximum Height | 7.450 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Pontiac:-:326 (5.3L)/350 (5.7L)/389 (6.4L)/400 (6.6L)/421 (6.9L)/428 (7.0L)/455 (7.4) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer RPM Pontiac Intake Manifold for Pontiac 326-455 V8 |
| Description_FAB | Best for the Ultimate in Street High-Performance |
| Description_FAB | Designed for 1500 to 6500 RPM Street-Driven Power |
| Description_FAB | Dual-Plane High-Rise Intake w/180 Deg. Firing Order |
| Description_FAB | Edelbrock Total Power Package Maximizes Gains |
| Description_FAB | Larger Plenum and Runners Maximizes Other Upgrades |
| Description_FAB | Produces Incredible Top-End Horsepower |
| Description_FAB | Retains Good Throttle Response and Acceleration |
| Description_INV | RPM Pontiac 1965-79 Intake Manifold |
| Description_KEY | 7156; Pontiac; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer RPM; Satin |
| Description_LAB | Performer RPM Pontiac 326-455 Intake Manifold |
| Description_MKT | Edelbrock part #7156 Performer RPM Pontiac intake manifold is designed for 1965-79 street 326-455 c.i.d. Pontiac V8's (except Ram Air V and 265/301 V8's). Recommended for high-performance street, strip and marine. Has clearance for HEI distributor. Will not fit under Trans Am Shaker hood without modifications |
| Description_MKT | Edelbrock part #7156 Performer RPM Pontiac intake manifold is designed for 1965-79 street 326-455 c.i.d. Pontiac V8's (except Ram Air V and 265/301 V8's). Recommended for high-performance'street, strip and marine. Has clearance for HEI distributor. Will not fit under Trans Am Shaker hood without modifications |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 7in.} |
| Description_TRA | Carb pad height: 7.45" |
| Description_TRA | Carb recommendations: Edelbrock Thunder Series AVS, AVS2 or Performer Series 650-800 cfm. |
| Description_TRA | For 1968-71 use Edelbrock #8015 throttle bracket |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: 1-1/4" taller than stock, A-6.88", B-8.00" measured to engine block |
| Description_TRA | No provisions for OEM choke |
| Description_TRA | OEM carb requires conversion to electric/manual choke |
| Description_TRA | Port exit dimensions: 1.10" x 2.06" |
| Description_TRA | Recommended intake gasket: Edelbrock #7280 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7280 • No provisions for OEM choke • OEM carb requires conversion to electric/manual choke • Carb recommendations: Edelbrock Thunder Series AVS; AVS2 or Performer Series 650-800 cfm. • For 1968-71 use Edelbrock # 8015 throttle bracket • Manifold height: 1-1/4in. taller than stock; A-6.88in.; B-8.00in. measured to engine block • Carb pad height: 7.45in. • Port exit dimensions: 1.10in. x 2.06in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 6.880 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 8.000 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Performer RPM |
| Single Or Dual Plane Type | Dual |
| Vehicle Model | Pontiac |
| weight | 21.35 |
| width | 14.75 |
