Description

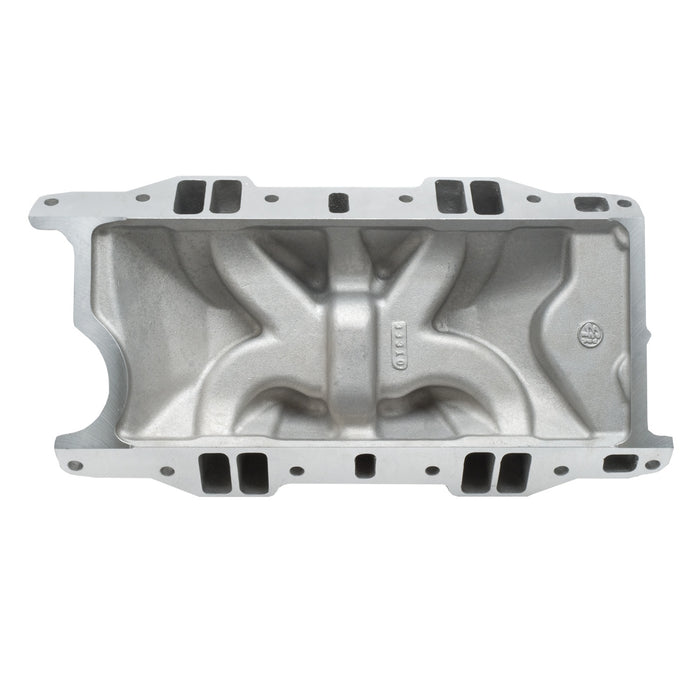

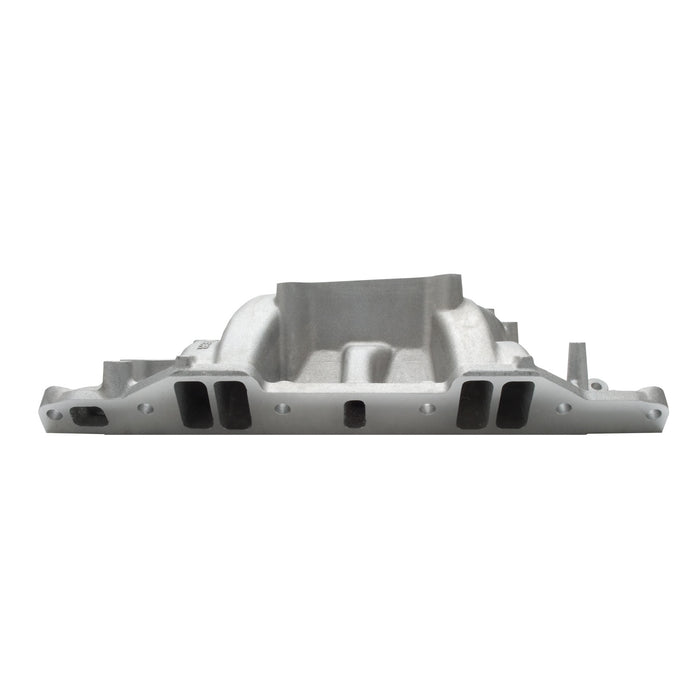

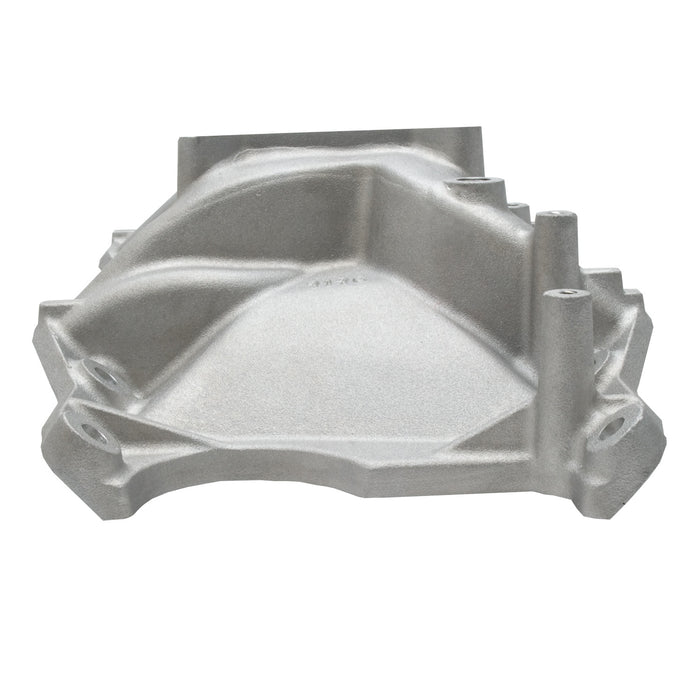

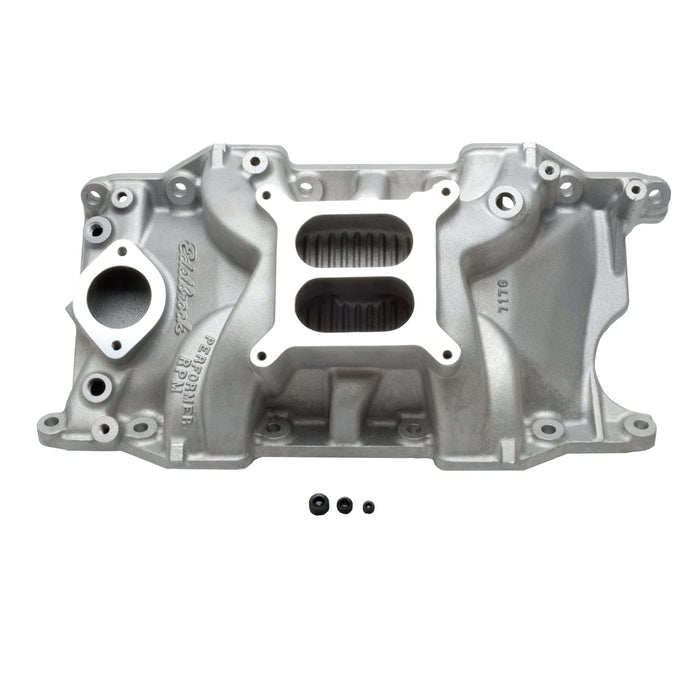

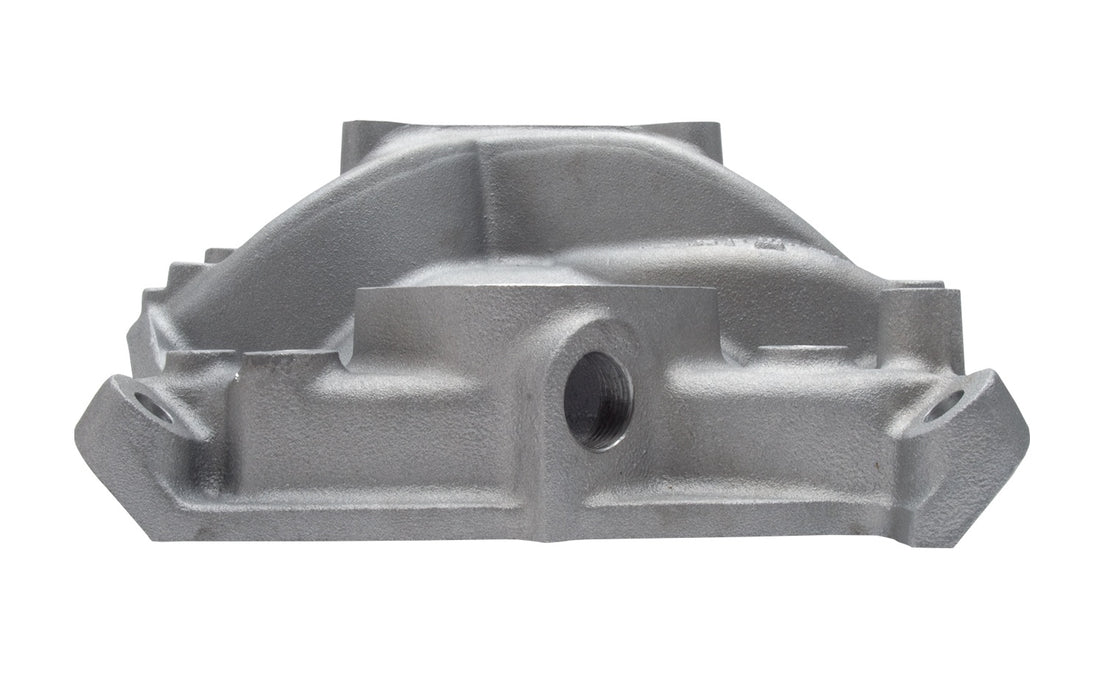

Edelbrock part #7176 Performer RPM intake manifold is designed for 340-360 c.i.d. Chrysler V8's and 318 c.i.d. engines with 340-360 cylinder heads. Latest technology in dual-plane design results in both excellent low-rpm torque and outstanding high rpm horsepower. Recommended for high-performance'street, strip and fresh water marine applications. Accepts 1975 and earlier waterneck only. Will not accept stock Thermo-Quad carburetor. Will not fit 1992 and later Magnum engines. Match with Performer RPM heads #60779 for maximum performance.
Specifications
| Basic Operating RPM Range | 1500-6500 |
| Center Maximum Height | 5.350 |
| CNC Ported | No |
| Cylinder Head Type | Mopar 340/360 |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer Intake Manifold for 318-340-360 Chrysler Small Block LA engines |
| Description_FAB | Best for the Ultimate in Street High-Performance |
| Description_FAB | Cast Finish |
| Description_FAB | Designed for 1500 to 6500 RPM Street-Driven Power |
| Description_FAB | Dual-Plane High-Rise Intake w/180 Deg. Firing Order |
| Description_FAB | Edelbrock Total Power Package Maximizes Gains |
| Description_FAB | Larger Plenum and Runners Maximizes Other Upgrades |
| Description_FAB | Produces Incredible Top-End Horsepower |
| Description_FAB | Retains Good Throttle Response and Acceleration |
| Description_INV | Performer RPM 360 Chrysler Intake Mnfld |
| Description_KEY | 7176; Chrysler; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer RPM; Satin |
| Description_LAB | Performer RPM Small Block Chrysler Intake Manifold |
| Description_MKT | Edelbrock part #7176 Performer RPM intake manifold is designed for 340-360 c.i.d. Chrysler V8's and 318 c.i.d. engines with 340-360 cylinder heads. Latest technology in dual-plane design results in both excellent low-rpm torque and outstanding high rpm horsepower. Recommended for high-performance street, strip and fresh water marine applications. Accepts 1975 and earlier waterneck only. Will not accept stock Thermo-Quad carburetor. Will not fit 1992 and later Magnum engines. Match with Performer RPM heads #60779 for maximum performance. |
| Description_MKT | Edelbrock part #7176 Performer RPM intake manifold is designed for 340-360 c.i.d. Chrysler V8's and 318 c.i.d. engines with 340-360 cylinder heads. Latest technology in dual-plane design results in both excellent low-rpm torque and outstanding high rpm horsepower. Recommended for high-performance'street, strip and fresh water marine applications. Accepts 1975 and earlier waterneck only. Will not accept stock Thermo-Quad carburetor. Will not fit 1992 and later Magnum engines. Match with Performer RPM heads #60779 for maximum performance. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | 1979 and later rotary A/C compressor will not clear waterneck |
| Description_TRA | Carb pad height: 5.35" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use #1481 or #1843 throttle/transmission lever kit. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-4.9", B-5.8" |
| Description_TRA | Port exit dimensions: 1.01" x 2.17" |
| Description_TRA | Recommended intake gasket: Edelbrock #7276, Fel-Pro #1213, Chrysler #4397642 (or equivalent) for 340 & 360. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7276; Fel-Pro # 1213; Chrysler # 4397642 (or equivalent) for 340 360. • Manifold height: A-4.9in.; B-5.8in. • Carb pad height: 5.35in. • Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use # 1481 or # 1843 throttle/transmission lever kit. • Port exit dimensions: 1.01in. x 2.17in. • 1979 and later rotary A/C compressor will not clear waterneck • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Mopar 318-360 |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 4.900 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.0 |
| length | 23.75 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | One |
| Position | N/A |
| Rear Maximum Height | 5.800 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | 1500-6500 |
| Series | Performer RPM |
| Single Or Dual Plane Type | Dual |
| Usage | Street/Hi-Performance |
| Vehicle Model | Chrysler |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 20.95 |
| width | 14.58 |
