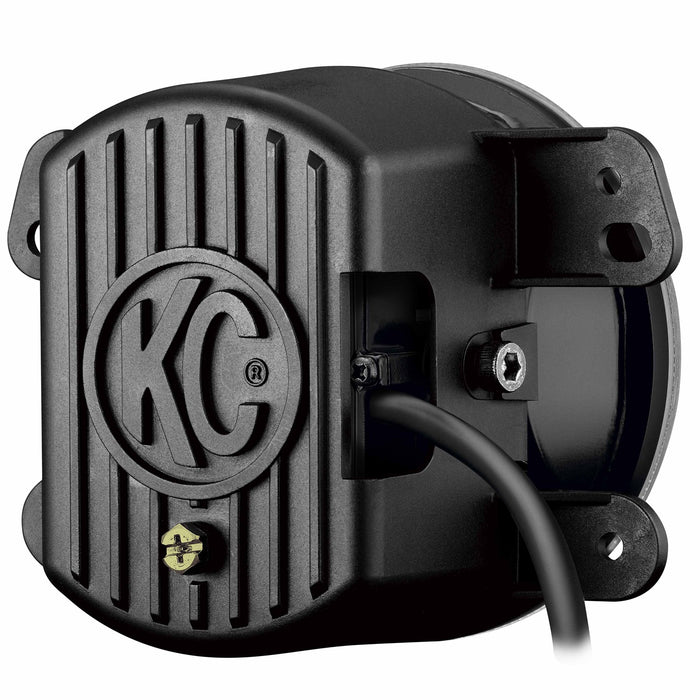

KC Hilites 1494 Jeep JK; Gravity LED G4 Clear Fog SAE/ECE 07-09 (ea)

FEATURES-2 x 10W 4" Gravity LED Fog Lights-Light Weight Magnesium Housing for Maximum Heat Dissipation-Bolt-On 07-09 Jeep JK Application-Shatter Resistant Polycarbonate Lens-Fog Beam Pattern (SAE & ECE Street Legal)LIGHT PERFORMANCE(PER LIGHT)-Raw Lumens: 866 lm-Compliance: SAE J583 & ECE-R19 Street Legal-Lux @ 10 Meters: 150 lx-Candela: 15,000 cd-Beam Distance (Meters): 245mSPECIFICATIONS(PER LIGHT)-Wattage: 10W-LED Source: CREE High Power LED-Amp Draw: .74A-Voltage: 9V-32V-IP Rating: IP68-Product Dimensions: W - 3.94" x H - 3.94" x D - 2.97"GravityEXTREME OUTPUT AND EFFICIENCY4" Gravity LED Fog Lights are powered by KC's patented Gravity Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx @10m using only .74A per light. KC's patented Gravity Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.AVAILABLE BEAM PATTERN AND ADVANTAGES Fog Beam- Provides a low, wide angle light pattern that increases short-range visibility in conditions like dust, fog, snow and rain.ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISIONKC's Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle. KC's OE mounting system bolts directly up to OE bumper and OE fog light harness on Jeep JK models.STRENGTH & DURABILITY Constructed from an IP68 rated lightweight Magnesium housing and polycarbonate lens creating a fully self contained LED light housing.

Add-On	N/A
Amp Draw	.74A
Beam Pattern	Fog
Description_ASC	FEATURES -2 x 10W 4in. Gravity LED Fog Lights -Light Weight Magnesium Housing for Maximum Heat Dissipation -Bolt-On 07-09 Jeep JK Application -Shatter Proof Polycarbonate Lens -Fog Beam Pattern (SAE/ECE Street Legal) LIGHT PERFORMANCE(PER LIGHT) -Raw Lumens: 866 lm -Compliance: SAE J583/ECE-R19 Street Legal -Lux @ 10 Meters: 150 lx -Candela: 15;000 cd -Beam Distance (Meters): 245m SPECIFICATIONS(PER LIGHT) -Wattage: 10W -LED Source: CREE High Power LED -Amp Draw: .74A -Voltage: 9V-32V -IP Rating: IP68 -Product Dimensions: W-3.94in. x H-3.94in. x D-2.97in. GravityEXTREME OUTPUT AND EFFICIENCY 4in. Gravity LED Fog Lights are powered by KC s patented Gravity Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx @10m using only .74A per light. KC s patented Gravity Reflective Diode system aims LEDs into precision reflectors; capturing all light to project it forward. AVAILABLE BEAM PATTERN AND ADVANTAGES Fog Beam-Provides a low; wide angle light pattern that increases short-range visibility in conditions like dust; fog; snow and rain. ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION KC s Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle. KC s OE mounting system bolts directly up to OE bumper and OE fog light harness on Jeep JK models. STRENGTH/DURABILITY Constructed from an IP68 rated lightweight Magnesium housing and polycarbonate lens creating a fully self contained LED light housing.
Description_ASM	2007-2009
Description_ASM	2007-2009 Jeep Wrangler JK
Description_DEF	Fog Light
Description_DES	Jeep JK; Gravity LED G4 Clear Fog SAE/ECE 07-09 (ea)
Description_DES	KC G4 Gravity LED 4in SAE ECE Fog 1-Light 2007-2009 Jeep Wrangler JK
Description_EXT	KC HiLiTES 4 in Gravity LED Replacement Fog Light feature powerful CREE LEDs in a Street Legal Fog Beam pattern. Lightweight magnesium housing and polycarbonate lens, with universal adjustable bracket for easy OE mounting on 07-09 Jeep JKs.
Description_EXT	KC HiLiTES 4in. Gravity LED Replacement Fog Light feature powerful CREE LEDs in a Street Legal Fog Beam pattern. Lightweight magnesium housing and polycarbonate lens; with universal adjustable bracket for easy OE mounting on 07-09 Jeep JKs.
Description_FAB	Bolt-On 07-09 Jeep JK Application
Description_FAB	Fog Beam Pattern (SAE ECE Street Legal)
Description_FAB	Gravity Series; LED Fog Light
Description_FAB	Light Weight Magnesium Housing for Maximum Heat Dissipation
Description_INV	KC Gravity LED
Description_INV	LED Fog Light
Description_MKT	4 in Gravity(R) LED Fog Lights are powered by KC's patented Gravity(R) Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx at 10m using only .74A per light. Our patented GRD (Gravity(R) Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward. This results in a more controlled and far reaching beam pattern than ever before.Dual Oversized Heat Sink Design for Cooler, Brighter and Longer Lasting LED PerformanceDuPont(TM) Zytel(R) Carbon Fiber Housing Constructed from an IP68 rated lightweight Magnesium housing and polycarbonate lens creating a fully self contained LED light housing. Fog Beam- Provides a low, wide angle light pattern that increases short-range visibility in conditions like dust, fog, snow and rain.Candela: 39,240 Cd KC's Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle. KC's OE mounting system bolts directly up to OE bumper and OE fog light harness on Jeep JK models.
Description_MKT	FEATURES-2 x 10W 4" Gravity LED Fog Lights-Light Weight Magnesium Housing for Maximum Heat Dissipation-Bolt-On 07-09 Jeep JK Application-Shatter Resistant Polycarbonate Lens-Fog Beam Pattern (SAE & ECE Street Legal)LIGHT PERFORMANCE(PER LIGHT)-Raw Lumens: 866 lm-Compliance: SAE J583 & ECE-R19 Street Legal-Lux @ 10 Meters: 150 lx-Candela: 15,000 cd-Beam Distance (Meters): 245mSPECIFICATIONS(PER LIGHT)-Wattage: 10W-LED Source: CREE High Power LED-Amp Draw: .74A-Voltage: 9V-32V-IP Rating: IP68-Product Dimensions: W - 3.94" x H - 3.94" x D - 2.97"GravityEXTREME OUTPUT AND EFFICIENCY4" Gravity LED Fog Lights are powered by KC's patented Gravity Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx @10m using only .74A per light. KC's patented Gravity Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.AVAILABLE BEAM PATTERN AND ADVANTAGES Fog Beam- Provides a low, wide angle light pattern that increases short-range visibility in conditions like dust, fog, snow and rain.ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISIONKC's Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle. KC's OE mounting system bolts directly up to OE bumper and OE fog light harness on Jeep JK models.STRENGTH & DURABILITY Constructed from an IP68 rated lightweight Magnesium housing and polycarbonate lens creating a fully self contained LED light housing.
Description_SHO	Fog Light
Description_SHO	Gravity LEDs
height	5.5
IP Rating	IP68
length	5.25
LTL	N
lumens	866
LUX	150
Prop 65 Yes/No	No
Raw Lumens	866 lm
Title	Gravity LED G4 07-09 Jeep JK Clear LED Fog Single - #1494
Title	KC Hilites 4 in Gravity LED G4 - Single Light - SAE/ECE - 10W Fog Beam - for 07-09 Jeep JK
Voltage	9V-32V
WARNING CA Proposition 65	No
Wattage	10W
weight	1.25
width	5.25
