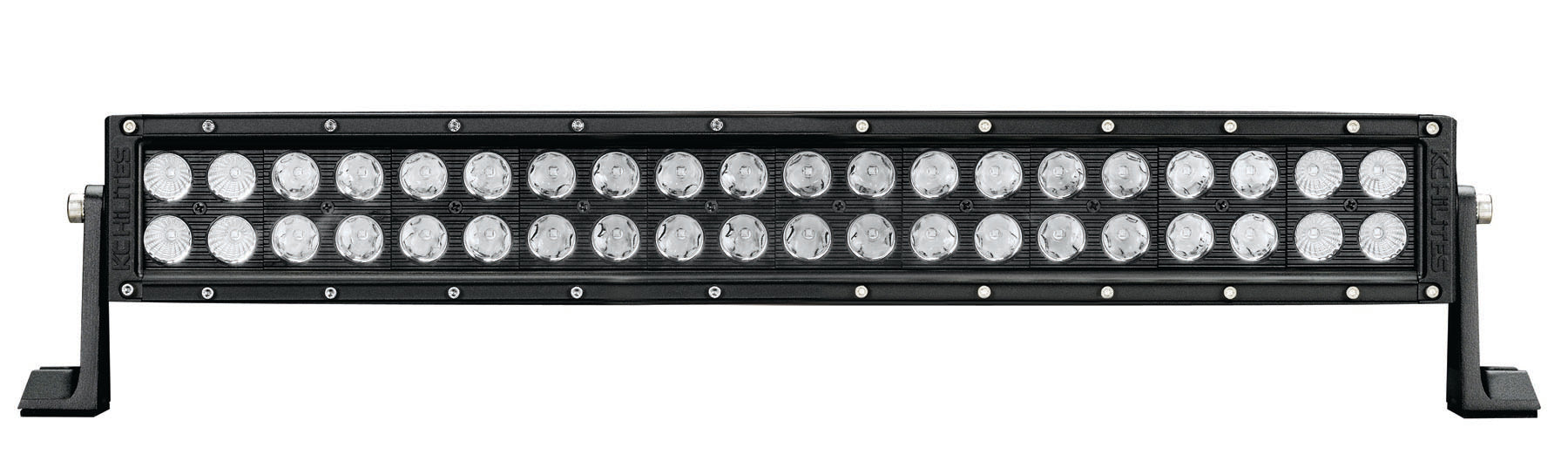

KC Hilites 335 C20 LED; 20in. Bar w/Harness Combo 120w (ea)

FEATURES-20" 120W C-SERIES LED Light Bar-Precision reflectors with forward facing LEDs-Combo Beam Pattern: 8 Spot & 90 Spread-Extruded Aluminum Housings-GORE Membrane BarrierLIGHT PERFORMANCE-Raw Lumens: 10,800 lm-Lux @ 10 Meters: 1,750 lx-Candela: 175,000 cd-Beam Distance (Meters): 837m SPECIFICATIONS-Wattage: 120W-LED Source: CREE LED-Color Temperature: 6000K-Amp Draw: 10.0A-Voltage: 9V-32V-IP Rating: IP67-Product Dimensions: L - 21.38" x H - 3.09" x D - 3.40" Parts Included with C-SERIES Light Bars-Wiring Harness w/ 2-Pin weather proof connectors-Die-Cast Mounting Brackets w/ hardwarePERFORMANCE OUTPUT AND CLARITYThe 20" C-Series uses an advanced dual row CREE LED design delivering 10,800 Lumens of output with maximum power efficiency. They are perfect for hood, front bumper, windshield and grille applications providing balanced and powerful light illumination. HIGH PERFORMANCE MEETS AFFORDABILITYC-Series light bar features an extruded aluminum housing, aluminum core PCBs with thermal management and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency. COMBO BEAM PATTERN AND ADVANTAGESWhen it comes to total road coverage the C-Series LED light bar features a combo beam with perfectly angled 8 Spot & 90 Spread reflectors, for maximum forward distance and increased peripheral illumination along road edges.DESIGNED FOR DURABILITYOff road race tested, the C-Series was designed to handle the harshest environments. Featuring a IP67 rated housing and GORE Membranes, the C-Series is resistant to moisture and dust.

Description_ASC	FEATURES -20in. 120W C-SERIES LED Light Bar -Precision reflectors with forward facing LEDs -Combo Beam Pattern: 12 Spot/30 Spread -Extruded Aluminum Housings -GORE Membrane Barrier LIGHT PERFORMANCE -Raw Lumens: 10;800 lm -Lux @ 10 Meters: 1;750 lx -Candela: 175;000 cd -Beam Distance (Meters): 837m SPECIFICATIONS -Wattage: 120W -LED Source: CREE LED -Color Temperature: 6000K -Amp Draw: 10.0A -Voltage: 9V-32V -IP Rating: IP67 -Product Dimensions: L-21.38in. x H-3.09in. x D-3.40in. Parts Included with C-SERIES Light Bars -Wiring Harness w/2-Pin weather proof connectors -Die-Cast Mounting Brackets w/hardware PERFORMANCE OUTPUT AND CLARITY The 20in. C-Series uses an advanced dual row CREE LED design delivering 10;800 Lumens of output with maximum power efficiency. They are perfect for hood; front bumper; windshield and grille applications providing balanced and powerful light illumination. HIGH PERFORMANCE MEETS AFFORDABILITY C-Series light bar features an extruded aluminum housing; aluminum core PCBs with thermal management and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency. COMBO BEAM PATTERN AND ADVANTAGES When it comes to total road coverage the C-Series LED light bar features a combo beam with perfectly angled 12 Spot/30 Spread reflectors; for maximum forward distance and increased peripheral illumination along road edges. DESIGNED FOR DURABILITY Off road race tested; the C-Series was designed to handle the harshest environments. Featuring a IP67 rated housing and GORE Membranes; the C-Series is resistant to moisture and dust.
Description_DEF	Off-Road Light
Description_DES	C20 LED; 20in. Bar w/Harness Combo 120w (ea)
Description_DES	KC C-Series C20 20in LED Light Bar Combo System Universal
Description_EXT	C20- 20 in LED LIGHT BAR provides 120w of Performance, featuring a versatile combo beam pattern, both 8° Spot and 90° Spread reflectors. Great for hood, front bumper, and grille applications on Jeeps, Trucks, UTVs and more.
Description_EXT	C20-20in. LED LIGHT BAR provides 120w of Performance; featuring a versatile combo beam pattern; both 8/deg; Spot and 90/deg; Spread reflectors. Great for hood; front bumper; and grille applications on Jeeps; Trucks; UTVs and more.
Description_FAB	12 Degree Spot/30 Degree Spread Beam Pattern
Description_FAB	4200 Lumens
Description_FAB	50 000 Hours LED Life
Description_FAB	Combo Beam Pattern: 8 degree Spot; 90 degree Spread
Description_FAB	Extruded Aluminum Housings
Description_FAB	GORE(R) Membrane Barrier
Description_FAB	IP 67 Rated
Description_FAB	On Board Thermal Management
Description_FAB	Precision reflectors with forward facing LEDs
Description_FAB	Protected Against RFI/EMC Interference
Description_FAB	Waterproof Connectors
Description_INV	KC C-Series LED
Description_INV	LED Light Bar
Description_MKT	C-Series light bar features an extruded aluminum housing, aluminum core PCBs with thermal management and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency. Off road race tested, the C-Series was designed to handle the harshest environments. Featuring a IP67 rated housing and GORE(R) Membranes, the C-Series is resistant to moisture and dust. The 20 in C-Series uses an advanced dual row CREE LED design delivering 10,800 Lumens of output with maximum power efficiency. They are perfect for hood, front bumper, windshield and grille applications providing balanced and powerful light illumination. When it comes to total road coverage the C-Series LED light bar features a combo beam with perfectly angled 8 degree Spot 90 degree Spread reflectors, for maximum forward distance and increased peripheral illumination along road edges.
Description_MKT	FEATURES-20" 120W C-SERIES LED Light Bar-Precision reflectors with forward facing LEDs-Combo Beam Pattern: 8 Spot & 90 Spread-Extruded Aluminum Housings-GORE Membrane BarrierLIGHT PERFORMANCE-Raw Lumens: 10,800 lm-Lux @ 10 Meters: 1,750 lx-Candela: 175,000 cd-Beam Distance (Meters): 837m SPECIFICATIONS-Wattage: 120W-LED Source: CREE LED-Color Temperature: 6000K-Amp Draw: 10.0A-Voltage: 9V-32V-IP Rating: IP67-Product Dimensions: L - 21.38" x H - 3.09" x D - 3.40" Parts Included with C-SERIES Light Bars-Wiring Harness w/ 2-Pin weather proof connectors-Die-Cast Mounting Brackets w/ hardwarePERFORMANCE OUTPUT AND CLARITYThe 20" C-Series uses an advanced dual row CREE LED design delivering 10,800 Lumens of output with maximum power efficiency. They are perfect for hood, front bumper, windshield and grille applications providing balanced and powerful light illumination. HIGH PERFORMANCE MEETS AFFORDABILITYC-Series light bar features an extruded aluminum housing, aluminum core PCBs with thermal management and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency. COMBO BEAM PATTERN AND ADVANTAGESWhen it comes to total road coverage the C-Series LED light bar features a combo beam with perfectly angled 8 Spot & 90 Spread reflectors, for maximum forward distance and increased peripheral illumination along road edges.DESIGNED FOR DURABILITYOff road race tested, the C-Series was designed to handle the harshest environments. Featuring a IP67 rated housing and GORE Membranes, the C-Series is resistant to moisture and dust.
Description_SHO	C-Series LEDs
Description_SHO	Off-Road Light
height	6.5
length	23.0
LTL	N
weight	8.5
width	6.5
