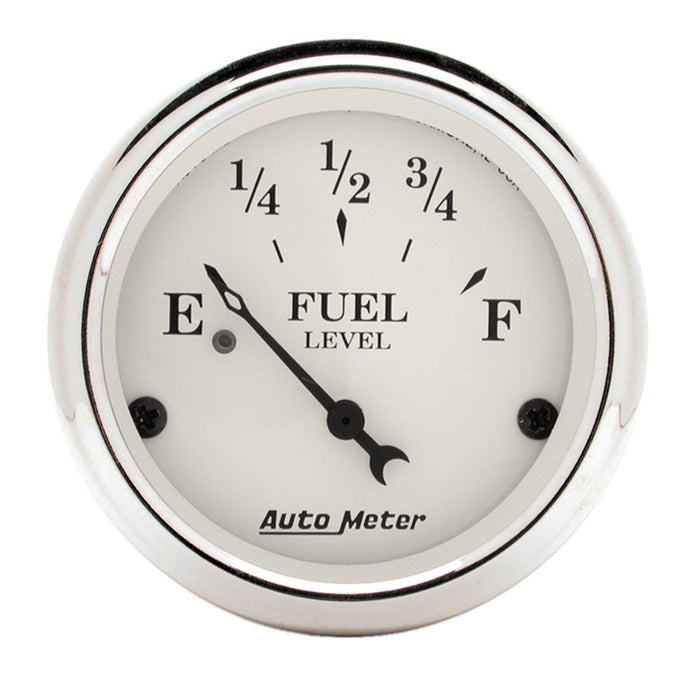

AutoMeter 1606 GAUGE; FUEL LEVEL; 2 1/16in.; 240OE TO 33OF; ELEC; OLD TYME WHITE
by AutoMeter
SKU ds_BDHZ_1606
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$126.44
-
Original price
$126.44
Original price
$126.44
$126.44
$126.44
-
$126.44
Current price
$126.44
Description
One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's), 0-30 ohm (early GM), 73-10 ohm (pre 90's Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
Resources
Installation InstructionsSpecifications
| Add-On | N/A |
| Analog Or Digital | Analog |
| Bezel Color | Chrome |
| Bezel Style | Street Rod |
| Block Adapter Included | No |
| Bulb and Socket Number | 3220 |
| Bulb Technology | Incandescent |
| Description_ASC | OLD-TYME WHITE |
| Description_DEF | Fuel Level Gauge |
| Description_DES | GAUGE, FUEL LEVEL, 2 1/16", 240OE TO 33OF, ELEC, OLD TYME WHITE |
| Description_DES | GAUGE; FUEL LEVEL; 2 1/16in.; 240OE TO 33OF; ELEC; OLD TYME WHITE |
| Description_EXT | 2-1/16in. FUEL LEVEL; 240-33 O OLD TYME WHITE |
| Description_EXT | Traditional incandescent lighting illuminates around the perimeter of the dial |
| Description_FAB | 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system |
| Description_FAB | 12 And 16V Compatible |
| Description_FAB | Air-Core Electric Instruments Provide Quick And Accurate Readings |
| Description_FAB | Autometers Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings |
| Description_FAB | Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation |
| Description_FAB | Incandescent Lighting Illuminates Around Perimeter Of Dial |
| Description_FAB | Incl. Bulb/Socket Assembly/Red And Green Bulb Covers |
| Description_FAB | Incl. Mounting Hardware/Instructions |
| Description_FAB | Traditional incandescent lighting illuminates around the perimeter of the dial |
| Description_FAB | Works w/240E/33F Ohm Senders Including PN[3262] |
| Description_FAB | Works with 240E/33F ohm senders, including AutoMeter 3262 |
| Description_INV | 2" FUEL LEVEL, 240 E/33F OLD TYME WHITE |
| Description_INV | 2in. FUEL LEVEL; 240 E/33F OLD TYME WHIT |
| Description_LAB | Made In Logo |
| Description_LAB | Proposition 65 |
| Description_MKT | One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's), 0-30 ohm (early GM), 73-10 ohm (pre 90's Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks. |
| Description_MKT | One Of The Most Necessary Gauges In A Dashboard, Autometer Makes It Easy By Offering 5 Different Resistance Range Configuration To Match Your Existing Fuel Sending Unit. Available In 0-90 Ohm (Gm Mid 60S To Mid 90S), 0-30 Ohm (Early Gm), 73-10 Ohm (Pre 90S Ford And Chrysler), 16-158 Ohm (Later Model Fords) And 240-33 Ohm (Aftermarket Senders Such As The Autometer 3262). Our Patented Air Core Meter Movement Receives Extra Dampening To Help Combat The Effects Fuel Slosh In Non-Baffled Tanks. |
| Description_SHO | 2" FUEL LEVEL, 240 E |
| Description_SHO | 2in. FUEL LEVEL; 240 |
| Electric Or Mechanical | Electric |
| Face Color | White |
| Fuel Line Adapter Included | No |
| Gauge Adapter Included | No |
| Gauge Size | 2.0625 in. |
| Gauge Size | 52.4mm |
| Gauge Type | Fuel Level |
| height | 4.5 |
| Hole Size | 0.0625 in. |
| Hole Size | 52.4mm |
| Illuminated | Yes |
| length | 4.75 |
| Lens | Domed Clear |
| Light Covers Number | 3244/3215 |
| Lighting Color | White Incandescent |
| Lighting Type | Incandescent |
| Liquid Filled | No |
| LTL | N |
| Mounting Bracket Included | Yes |
| Mounting Bracket Number | 2230 |
| Movement Type | Electric Air-Core |
| Number Color | Black |
| Outer Bezel Diameter | 2.234375 in. |
| Pointer Color | Black |
| Size | 2.3125 in. |
| Sweep | Short |
| Title | 2-1/16 in. FUEL LEVEL, 240-33 O OLD TYME WHITE |
| Voltage | 8-18 V |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov. |
| weight | 0.55 |
| width | 4.5 |
