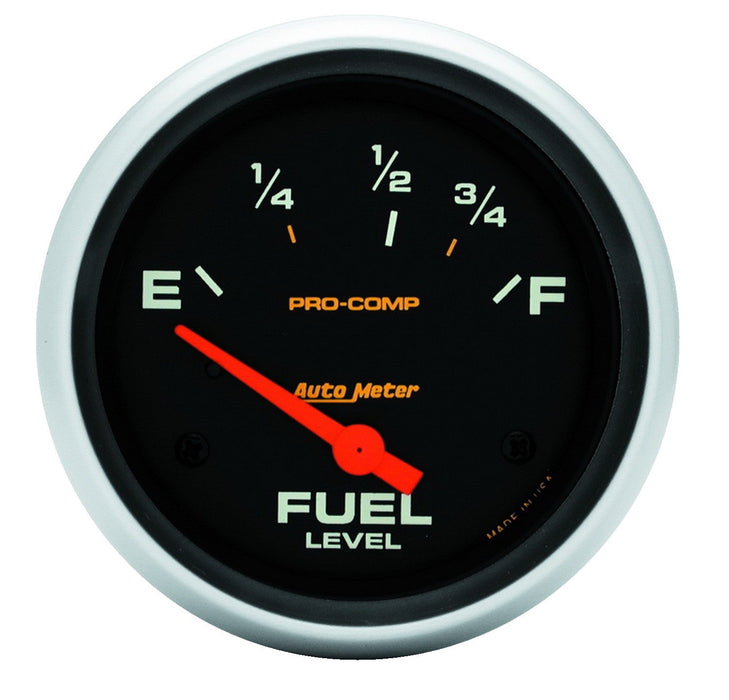

AutoMeter 5416 GAUGE; FUEL LEVEL; 2 5/8in.; 73OE TO 10OF; ELEC; PRO-COMP
by AutoMeter
SKU ds_BDHZ_5416
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$150.44
-
Original price
$150.44
Original price
$150.44
$150.44
$150.44
-
$150.44
Current price
$150.44
Description
One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's), 0-30 ohm (early GM), 73-10 ohm (pre 90's Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
Resources
Installation InstructionsSpecifications
| Analog Or Digital | Analog |
| Bezel Color | Brushed Aluminum |
| Bezel Style | Super Bezel |
| Block Adapter Included | No |
| Bulb and Socket Number | 3220 |
| Bulb Technology | Incandescent |
| Description_DES | GAUGE; FUEL LEVEL; 2 5/8in.; 73OE TO 10OF; ELEC; PRO-COMP |
| Description_EXT | 2-5/8in. FUEL LEVEL; 73-10 O; PRO-COMP |
| Description_FAB | 12 And 16V Compatible |
| Description_FAB | Air-Core Electric Instruments Provide Quick And Accurate Readings |
| Description_FAB | Incandescent Lighting Illuminates Around Perimeter Of Dial |
| Description_FAB | Incl. Bulb/Socket Assembly/Red And Green Bulb Covers |
| Description_FAB | Incl. Mounting Hardware/Instructions |
| Description_FAB | Works w/Most Pre-1989 Ford And Chrysler; Pre-1987 Mustang |
| Description_INV | 2-5/8in. FUEL LEVEL; 73 E/8-12 F; FORD; |
| Description_LAB | Made In Logo |
| Description_LAB | Proposition 65 |
| Description_MKT | One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's), 0-30 ohm (early GM), 73-10 ohm (pre 90's Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks. |
| Description_SHO | 2-5/8in. FUEL LEVEL; |
| Electric Or Mechanical | Electric |
| Face Color | Black |
| Fuel Line Adapter Included | No |
| Gauge Adapter Included | No |
| Gauge Size | 2.625 in. |
| Gauge Size | 66.7mm |
| Gauge Type | Fuel Level |
| height | 4.5 |
| Hole Size | 2.625 in. |
| Hole Size | 66.7mm |
| Illuminated | Yes |
| length | 4.5 |
| Lens | Flat Clear |
| Light Covers Number | 3244/3215 |
| Lighting Color | White Incandescent |
| Lighting Type | Incandescent |
| Liquid Filled | Yes |
| LTL | N |
| Mounting Bracket Number | 3245 |
| Movement Type | Electric Air-Core |
| Number Color | White |
| Outer Bezel Diameter | 2.875 in. |
| Pointer Color | Fluorescent Red |
| Size | 2.625 in. |
| Sweep | Short |
| Voltage | 8-18 V |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov. |
| weight | 0.71 |
| width | 4.5 |
