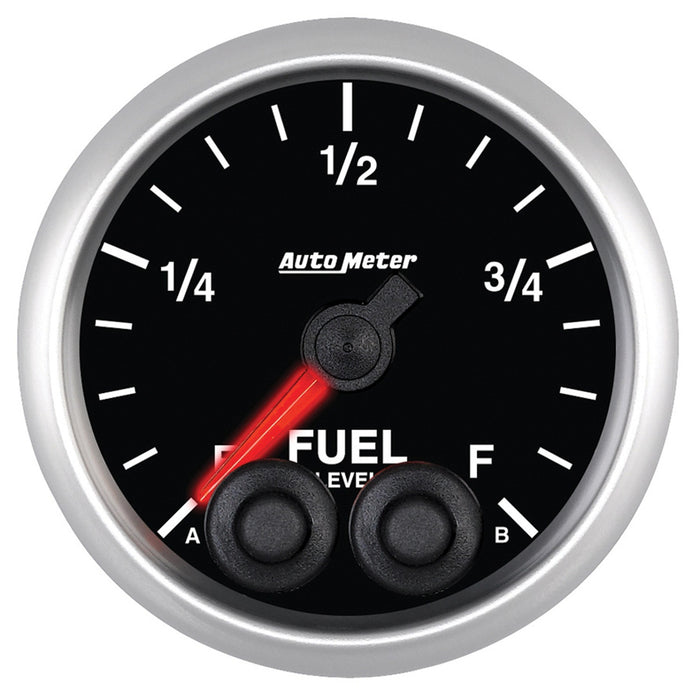

AutoMeter 5609 GAUGE; FUEL LEVEL; 2 1/16in.; 0-280O PROGRAMMABLE; ELITE
by AutoMeter
SKU ds_BDHZ_5609
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$329.95
-
Original price
$329.95
Original price
$329.95
$329.95
$329.95
-
$329.95
Current price
$329.95
Description
Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it's easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our "snapshot" programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn't an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.
Resources
Installation InstructionsSpecifications
| Description_ASC | ELITE |
| Description_DEF | Fuel Level Gauge |
| Description_DES | GAUGE, FUEL LEVEL, 2 1/16", 0-280O PROGRAMMABLE, ELITE |
| Description_DES | GAUGE; FUEL LEVEL; 2 1/16in.; 0-280O PROGRAMMABLE; ELITE |
| Description_EXT | 2-1/16in. FUEL LEVEL; PROGRAMMABLE 0-280 O; ELITE |
| Description_EXT | 7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions |
| Description_FAB | 7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions |
| Description_FAB | 7 User-Selectable Lighting Colors |
| Description_FAB | Adjustable Scale w/ 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F) |
| Description_FAB | Autometers Race Proven Digital Stepper Motor Electric Instruments Provide Unmatched Accuracy Which Is Further Increased By Utilizing A Self Calibration Sequence During Power Up |
| Description_FAB | Built-in Pro-Control circuits with custom programmable activation & deactivation points for key functions like lights, fans, switches, & pumps allow drivers to focus on the competition while the gauges control key vehicle systems |
| Description_FAB | Custom Programmable Activation And Deactivation Points |
| Description_FAB | Digital Stepper Motor Provides Unmatched Accuracy |
| Description_FAB | Gauge kit includes 20 ft. wiring harness, mounting hardware, and detailed instructions for installation |
| Description_FAB | Incl. 20 ft. Wiring Harness |
| Description_FAB | Incl. Mounting Hardware/Installation Instructions |
| Description_FAB | Set custom alert High and Low points specific to your vehicle & receive full dial warning notification to highlight the need for driver attention |
| Description_FAB | Set Custom High And Low Point Alerts |
| Description_FAB | User Definable Resistance Between 0-280 Ohms |
| Description_FAB | User definable resistance setting programmable anywhere between 0-280 ohms |
| Description_INV | 2-1/16" FUEL LEVEL, PROG ELITE |
| Description_INV | 2-1/16in. FUEL LEVEL; PROG ELITE |
| Description_LAB | Made In Logo |
| Description_LAB | Proposition 65 |
| Description_MKT | Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it's easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our "snapshot" programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn't an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation. |
| Description_MKT | Traditionally, Paring The Proper Fuel Level Level Gauge To The Application Could Be A More Difficult Task Than It Needed To Be. The Autometer Digital Stepper Motor Fuel Level Gauge Drastically Simplifies The Process With Its Easily Configurable Resistance Range. With 7 Common Configurations Stored In Memory From The Factory, The Vast Majority Of All Applications Are Covered. In The Instance Your Fuel Level Sender Is Not Included In These Preconfigured Ranges, An Innovative Custom Calibration Mode Allows Any Sending Unit That Operates Between 0 And 280 Ohms, Empty Or Full, To Be Easily Paired. Our Snapshot" Programming Method Will Allow You To Capture The Empty And Full Readings And The Gauge Does The Rest. No Matter Your Application, There Simply Isnt An Easier Solution For Fuel Level Monitoring Available On The Market. A Direct Plug In Wiring Harness Is Included For Ease Of Installation. |
| Description_SHO | GA 2" FU UNIV ELITE |
| Description_SHO | GA 2in. FU UNIV ELIT |
| height | 4.5 |
| length | 4.75 |
| LTL | N |
| weight | 0.6 |
| width | 4.5 |
