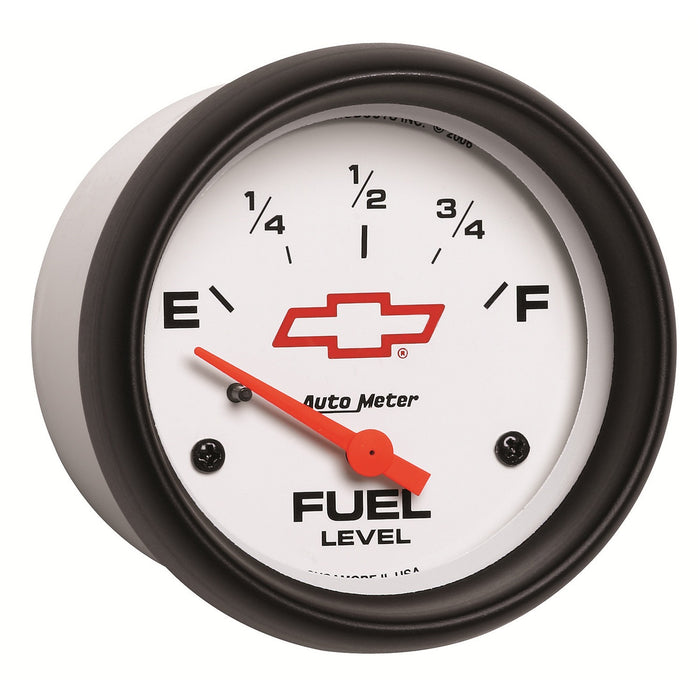

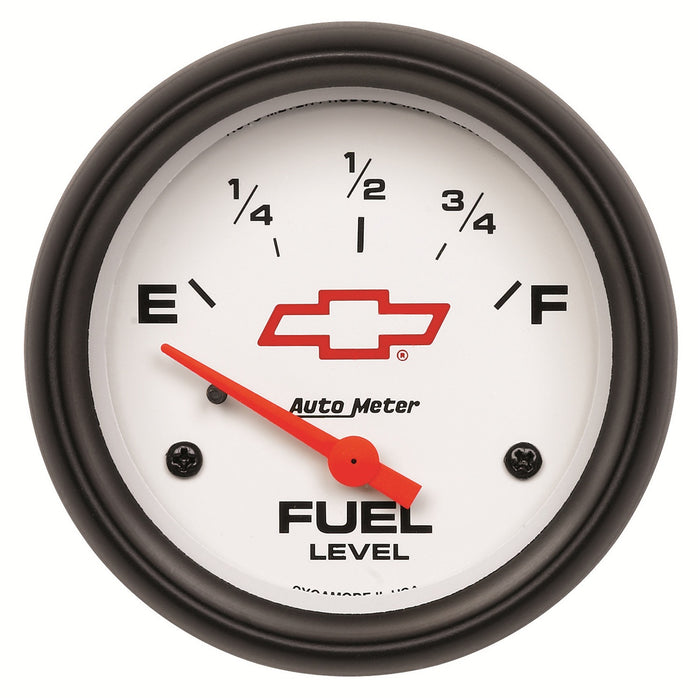

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's), 0-30 ohm (early GM), 73-10 ohm (pre 90's Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
Resources
Installation Instructions| Analog Or Digital | Analog |
| Bezel Color | Black |
| Bezel Style | Super Bezel |
| Block Adapter Included | No |
| Bulb Technology | Incandescent |
| Description_ASC | GM WHITE |
| Description_DEF | Fuel Level Gauge |
| Description_DES | GAUGE, FUEL LEVEL, 2 5/8" , 0OE TO 90OF, ELEC, GM BOWTIE WHITE |
| Description_DES | GAUGE; FUEL LEVEL; 2 5/8in.; 0OE TO 90OF; ELEC; CHEVY RED BOWTIE; WHITE |
| Description_EXT | 2-5/8in. FUEL LEVEL; 0-90 O; ELEC; GM |
| Description_EXT | Traditional incandescent lighting illuminates around the perimeter of the dial |
| Description_FAB | 12 And 16 Volt Compatible |
| Description_FAB | 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system |
| Description_FAB | AutoMeters Race Proven Air-Core Electric Instruments |
| Description_FAB | Autometers Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings |
| Description_FAB | Gauge Kit Incl. Bulb/Socket Assembly Red/Green Bulb Covers |
| Description_FAB | Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation |
| Description_FAB | Includes Mounting Hardware And Instructions For Installation |
| Description_FAB | Traditional Incandescent Lighting Illuminates |
| Description_FAB | Traditional incandescent lighting illuminates around the perimeter of the dial |
| Description_FAB | Works w/Most 1965 To 1997 Chevrolet/GM Senders |
| Description_FAB | Works with most 1965 to 1997 Chevrolet/GM senders |
| Description_INV | 2-5/8" FUEL LEVEL, 0 E/ 90 F, ELEC, GM |
| Description_INV | 2-5/8in. FUEL LEVEL; 0 E/90 F; ELEC; CV |
| Description_LAB | Made In Logo |
| Description_LAB | Proposition 65 |
| Description_MKT | One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's), 0-30 ohm (early GM), 73-10 ohm (pre 90's Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks. |
| Description_MKT | One Of The Most Necessary Gauges In A Dashboard, Autometer Makes It Easy By Offering 5 Different Resistance Range Configuration To Match Your Existing Fuel Sending Unit. Available In 0-90 Ohm (Gm Mid 60S To Mid 90S), 0-30 Ohm (Early Gm), 73-10 Ohm (Pre 90S Ford And Chrysler), 16-158 Ohm (Later Model Fords) And 240-33 Ohm (Aftermarket Senders Such As The Autometer 3262). Our Patented Air Core Meter Movement Receives Extra Dampening To Help Combat The Effects Fuel Slosh In Non-Baffled Tanks. |
| Description_SHO | 2-5/8" FUEL LEVEL, 0 |
| Description_SHO | 2-5/8in.FUEL;0-90;E; |
| Electric Or Mechanical | Electric |
| Face Color | White |
| Fuel Line Adapter Included | No |
| Gauge Adapter Included | No |
| Gauge Size | 2.625 in. |
| Gauge Size | 66.7mm |
| Gauge Type | Fuel Level |
| height | 5.5 |
| Hole Size | 2.625 in. |
| Hole Size | 66.7mm |
| Illuminated | Yes |
| length | 5.0 |
| Lens | Flat Clear |
| Lighting Color | White Incandescent |
| Lighting Type | Incandescent |
| Liquid Filled | No |
| LTL | N |
| Mounting Bracket Number | 3245 |
| Movement Type | Electric Air-Core |
| Number Color | Black |
| Outer Bezel Diameter | 2.875 in. |
| Pointer Color | Fluorescent Red |
| Size | 2.625 in. |
| Sweep | Short |
| Voltage | 8-18 V |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov. |
| weight | 0.7 |
| width | 5.5 |
