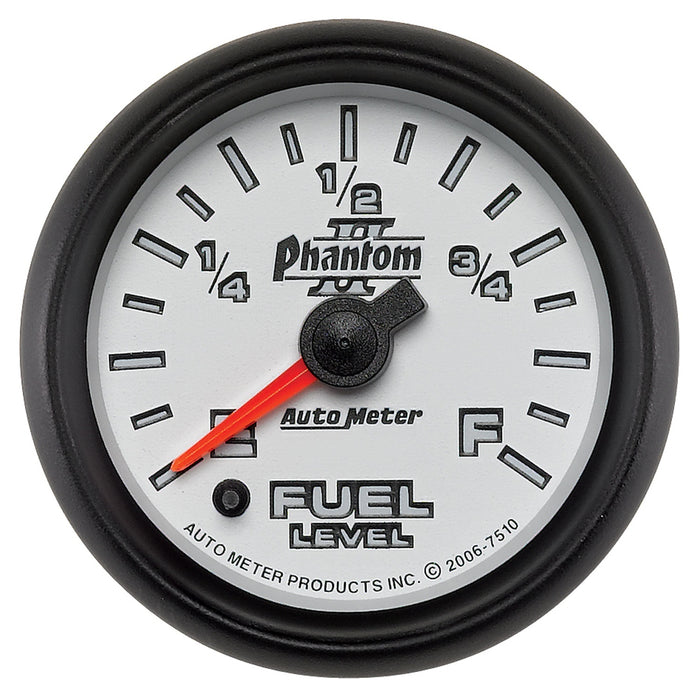

Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it's easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our "snapshot" programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn't an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.
Resources
Installation Instructions| Add-On | N/A |
| Analog Or Digital | Analog |
| Bezel Color | Black |
| Bezel Style | Super Bezel |
| Block Adapter Included | No |
| Bulb Technology | LED |
| Description_ASC | PHANTOM II |
| Description_DEF | Fuel Level Gauge |
| Description_DES | GAUGE, FUEL LEVEL, 2 1/16" , 0-280O PROGRAMMABLE, PHANTOM II |
| Description_DES | GAUGE; FUEL LEVEL; 2 1/16in.; 0-280O PROGRAMMABLE; PHANTOM II |
| Description_EXT | 2-1/16in. FUEL LEVEL; PROGRAMMABLE 0-280 O; PHANTOM II |
| Description_EXT | Modern white LED through-the-dial lighting provides clear visibility during nighttime use |
| Description_FAB | 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system |
| Description_FAB | 12 And 16V Compatible |
| Description_FAB | Adjustable Scale w/ 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F) |
| Description_FAB | Autometers Race Proven Digital Stepper Motor Electric Instruments Provide Unmatched Accuracy Which Is Further Increased By Utilizing A Self Calibration Sequence During Power Up |
| Description_FAB | Digital Stepper Motor Provides Unmatched Accuracy |
| Description_FAB | Gauge kit includes 20 ft. wiring harness, mounting hardware, and detailed instructions for installation |
| Description_FAB | Incl. 20 ft. Wiring Harness |
| Description_FAB | Incl. Mounting Hardware/Instructions |

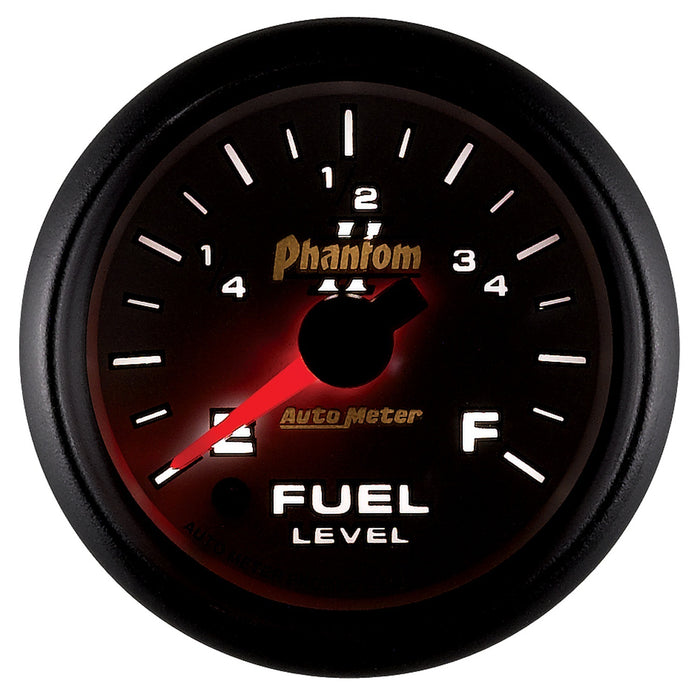

| Description_FAB | Modern White LED Through-The-Dial Lighting |
| Description_FAB | Modern white LED through-the-dial lighting provides clear visibility during nighttime use |
| Description_FAB | User Definable Resistance Between 0-280 |
| Description_FAB | User definable resistance setting programmable anywhere between 0-280 ohms |
| Description_INV | 2-1/16" FUEL LEVEL, UNIV STEPPER, PHANTO |
| Description_INV | 2-1/16in. FUEL LEVEL; UNIV STEPPER; PHAN |
| Description_LAB | Made In Logo |
| Description_LAB | Proposition 65 |
| Description_MKT | Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it's easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our "snapshot" programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn't an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation. |
| Description_MKT | Traditionally, Paring The Proper Fuel Level Level Gauge To The Application Could Be A More Difficult Task Than It Needed To Be. The Autometer Digital Stepper Motor Fuel Level Gauge Drastically Simplifies The Process With Its Easily Configurable Resistance Range. With 7 Common Configurations Stored In Memory From The Factory, The Vast Majority Of All Applications Are Covered. In The Instance Your Fuel Level Sender Is Not Included In These Preconfigured Ranges, An Innovative Custom Calibration Mode Allows Any Sending Unit That Operates Between 0 And 280 Ohms, Empty Or Full, To Be Easily Paired. Our Snapshot" Programming Method Will Allow You To Capture The Empty And Full Readings And The Gauge Does The Rest. No Matter Your Application, There Simply Isnt An Easier Solution For Fuel Level Monitoring Available On The Market. A Direct Plug In Wiring Harness Is Included For Ease Of Installation. |
| Description_SHO | 2-1/16" FUEL LEVEL, |
| Description_SHO | 2-1/16in. FUEL LEVEL |
| Electric Or Mechanical | Electric |
| Face Color | White |
| Fuel Line Adapter Included | No |
| Gauge Adapter Included | No |
| Gauge Size | 2.0625 in. |
| Gauge Size | 52.4mm |
| Gauge Type | Fuel Level |
| height | 4.5 |
| Hole Size | 0.0625 in. |
| Hole Size | 52.4mm |
| Illuminated | Yes |
| length | 4.75 |
| Lens | Flat Clear |
| Lighting Color | White |
| Lighting Type | LED |
| Liquid Filled | No |
| LTL | N |
| Mounting Bracket Number | 2230 |
| Movement Type | Electric Digital Stepper Motor |
| Number Color | Black |
| Outer Bezel Diameter | 2.250 in. |
| Pointer Color | Fluorescent Red |
| Size | 2.3125 in. |
| Sweep | Full |
| Title | 2-1/16 in. FUEL LEVEL, PROGRAMMABLE 0-280 O, PHANTOM II |
| Voltage | 8-18 V |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov. |
| weight | 0.5 |
| width | 4.5 |
| Wire Harness Number | 5233 |
