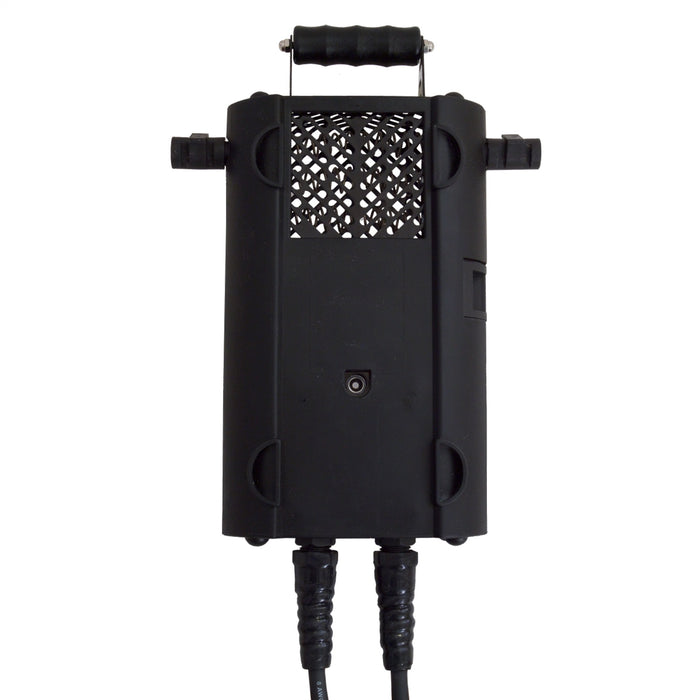

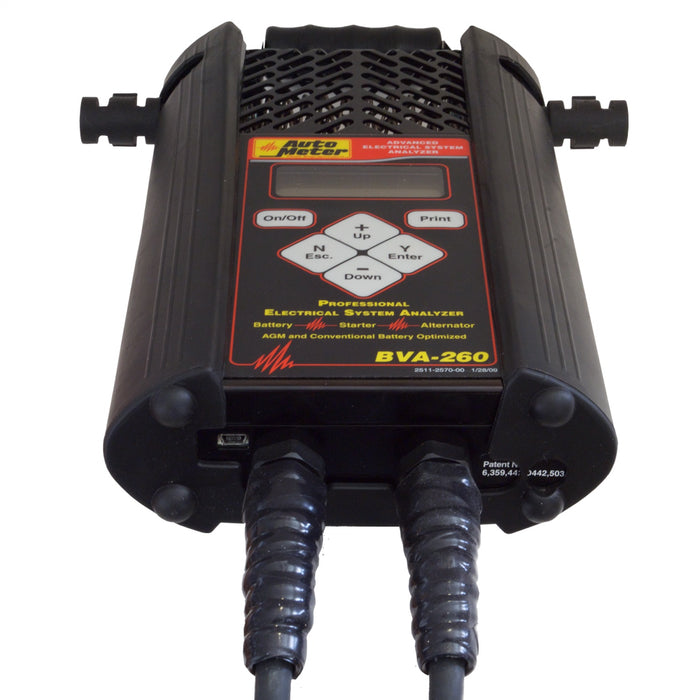

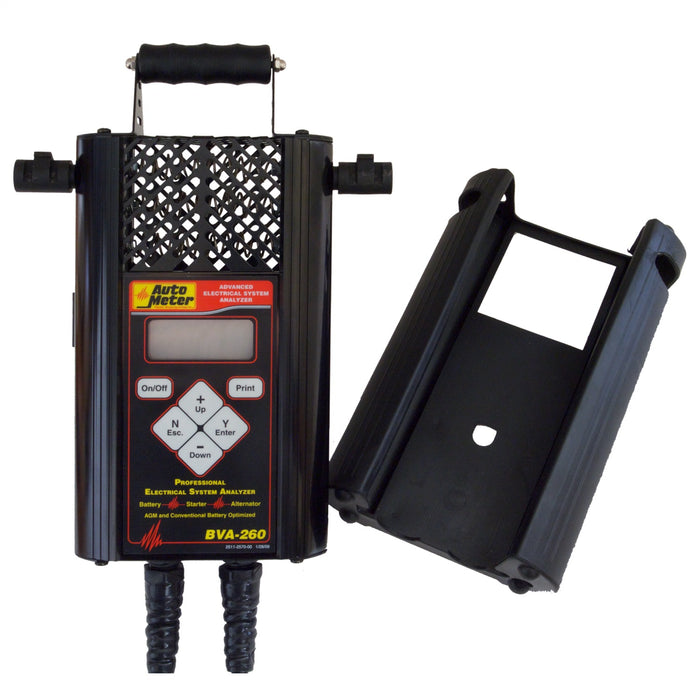

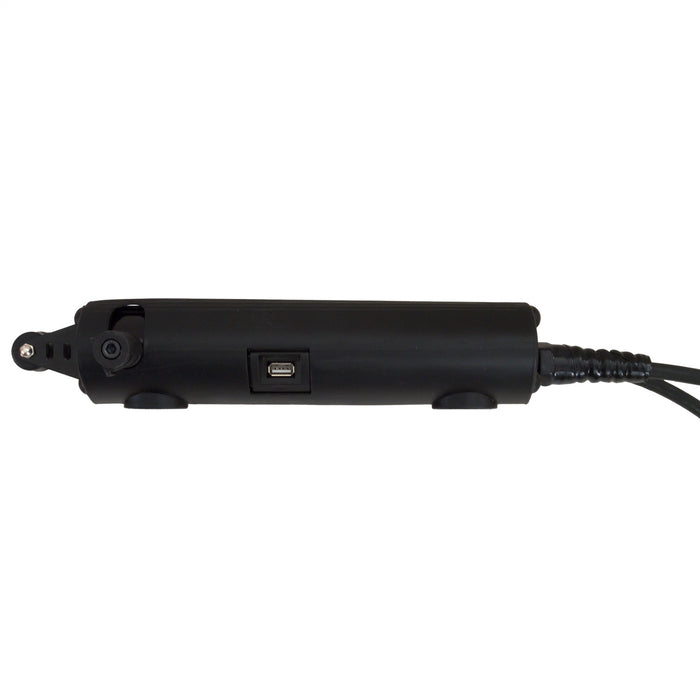

AutoMeter BVA-260 HANDHELD ELECTRICAL SYS ANALYZER W/120 AMP LOAD
by AutoMeter
SKU ds_BDHZ_BVA-260
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,740.57
-
Original price
$2,740.57
Original price
$2,740.57
$2,740.57
$2,740.57
-
$2,740.57
Current price
$2,740.57
Description
One of the most technologically advanced handheld testers currently available, the BVA-260 sets the bar for accuracy, speed and ease of use. Using our patented Digital Pulse Load(TM) technology to deliver a BCI compliant true load test, the BVA-260 can precisely diagnose the battery, starting and charging system in under 82 seconds! Includes a built in infrared battery temperature sensor to improve testing accuracy. Features Bite Rite Clamp design to enable easy connection to top post batteries. Smart USB port for easier, more efficient data retrieval and software upgrades.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Add-On | AC-12;PR-12 |
| Description_ASC | TEST EQUIPMENT |
| Description_DEF | Battery Tester |
| Description_DES | HANDHELD ELECTRICAL SYS ANALYZER W/120 AMP LOAD |
| Description_EXT | BVA-260; Professional Grade Intelligent Hand Held Electrical System Analyzer For 6V/12 Applications |
| Description_EXT | Tests 6V and 12V flooded and AGM batteries rated between 100-1600 CCA or 10-265 AH. Tests starting/charging circuits, discharged batteries, and detects bad cells. |
| Description_FAB | 16 Gauge, 20" leads with professional grade Bite Rite clamps that are easily field serviceable |
| Description_FAB | 16 Gauge; 20 in. Leads w/Professional Grade Clamps |
| Description_FAB | Advanced Digital Pulse Load (DPL) technology |
| Description_FAB | Advanced Digital Pulse Load Technology |
| Description_FAB | Automatically Stores Results Of Last 150 Completed Tests |
| Description_FAB | Automatically stores results of last 150 completed tests for easy review. Wirelessly communicates to optional test results printer via infrared or outputs to PC via AC-12 cable. |
| Description_FAB | Charging system test results measure alternator current output, voltage regulation, and diode ripple delivering a pass or fail result. |
| Description_FAB | Easily Upgraded |
| Description_FAB | Easily Upgraded For Future Tech Enhancements Using Autometers Exclusive Amp Link Software. |
| Description_FAB | English and Spanish language menus and test results. |
| Description_FAB | English And Spanish Language Menus/Test Results |
| Description_FAB | Intuitive Menu Driven Operation |
| Description_FAB | Intuitive menu driven operation, transmitted via backlit LCD screen for ease of use. |
| Description_FAB | Measures Alternator Current Output/Voltage Regulation |
| Description_FAB | Measures Diode Ripple Delivering A Pass/Fail Result |
| Description_FAB | Patented Test Process And Algorithm Allowing Operators Of This Product To Rapidly Measure A Batterys Ability To Provide Adequate Cranking Power To Start The Vehicle Without The Need For Time Consuming Manual Electrical System Load Tests. |
| Description_FAB | Requires Only A Single Technician |
| Description_FAB | Tests 6V And 12V Flooded And AGM Batteries Rated 100-1600 CCA |
| Description_FAB | Tests 6V and 12V flooded and AGM batteries rated between 100-1600 CCA or 10-265 AH. Tests starting/charging circuits, discharged batteries, and detects bad cells. |
| Description_FAB | Tests Starting/Charging Circuits/Discharged Batteries/Bad Cells |
| Description_FAB | This eliminates the need to apply inconsistent loads, such as headlights, fans, etc. |
| Description_FAB | This Provides The Ultimate In Accurate High-Speed Battery Testing When Paired With Autometers Advanced Digital Pulse Load Technology Process, Reducing The Margin Of Operator Error And Workload During The Diagnosis. |
| Description_FAB | This Tester Has The Ability To Apply A Known Significant Load (True-Load) Directly Through The Tester Connections Allowing For A More Rapid And Accurate Test Of The Vehicles Battery, Starter, And Charging System By The Operator |
| Description_FAB | True-Load - This AutoMeter equipment is unique compared with other products on the market |
| Description_FAB | Unlike competitor models, AutoMeter testers only require a single technician to run a full electrical system test due to our on-board 120 amp True Load cell. |
| Description_FAB | which makes our products easier to use and more accurate. |
| Description_FAB | Wirelessly Communicates To Optional Test Results Printer |
| Description_INV | HANDHELD ELECTRICAL SYS ANALYZER W/120 A |
| Description_INV | HNDHLD ELTRCAL SYS ANLYZR W/120 AMP LOAD |
| Description_KEY | Hand Held Electrical System Analyzer, handheld battery tester, tester, handheld tester, battery tester, bva260s, bva-260, bva-260, bva260, auto meter, autometer, auto meter test equipment, test equipment, autometer test, autometer test equipment, |
| Description_KEY | Hand Held Electrical System Analyzer; handheld battery tester; tester; handheld tester; battery tester; bva260s; bva-260; bva-260; bva260; auto meter; autometer; auto meter test equipment; test equipment; autometer test; autometer test equipment; |
| Description_LAB | Proposition 65 |
| Description_MKT | One of the most technologically advanced handheld testers currently available, the BVA-260 sets the bar for accuracy, speed and ease of use. Using our patented Digital Pulse Load" technology to deliver a BCI compliant true load test, the BVA-260 can precisely diagnose the battery, starting and charging system in under 82 seconds! Includes a built in infrared battery temperature sensor to improve testing accuracy. Features Bite Rite Clamp design to enable easy connection to top post batteries. Smart USB port for easier, more efficient data retrieval and software upgrades. |
| Description_MKT | One of the most technologically advanced handheld testers currently available, the BVA-260 sets the bar for accuracy, speed and ease of use. Using our patented Digital Pulse Load(TM) technology to deliver a BCI compliant true load test, the BVA-260 can precisely diagnose the battery, starting and charging system in under 82 seconds! Includes a built in infrared battery temperature sensor to improve testing accuracy. Features Bite Rite Clamp design to enable easy connection to top post batteries. Smart USB port for easier, more efficient data retrieval and software upgrades. |
| Description_SHO | HD TESTER 120A LOAD |
| height | 7.5 |
| length | 18.0 |
| LTL | N |
| Title | BVA-260; Professional Grade Intelligent Hand Held Electrical System Analyzer For 6V & 12 Applications |
| weight | 8.0 |
| width | 11.125 |
