AutoMeter P73020 DIESEL GAUGE KIT; A-PILLR; GM 01-07; BST/EGT/TRANS; 35PSI/2Kdeg.F/300deg.F; BLK;
by AutoMeter
SKU ds_BDHZ_P73020
Availability:
Only 1 left!
Original price
$1,196.14
-
Original price
$1,196.14
Original price
$1,196.14
$1,196.14
$1,196.14
-
$1,196.14
Current price
$1,196.14
Description

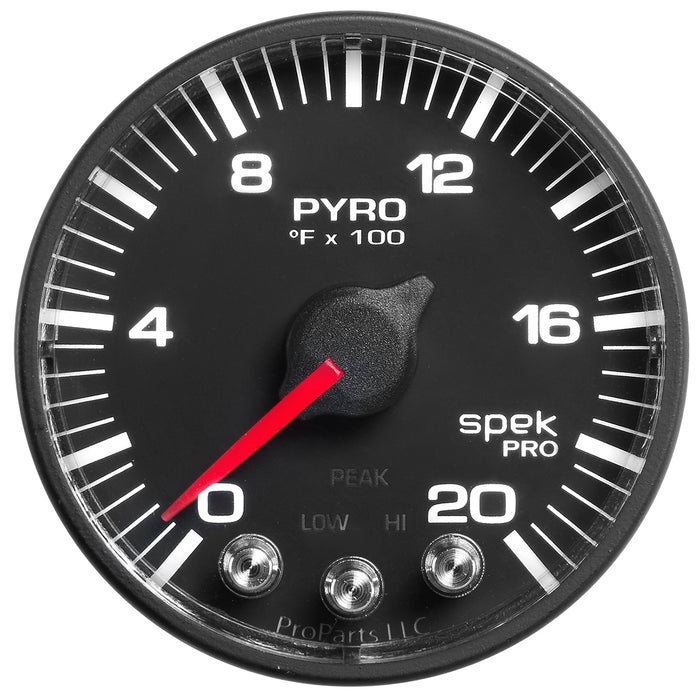

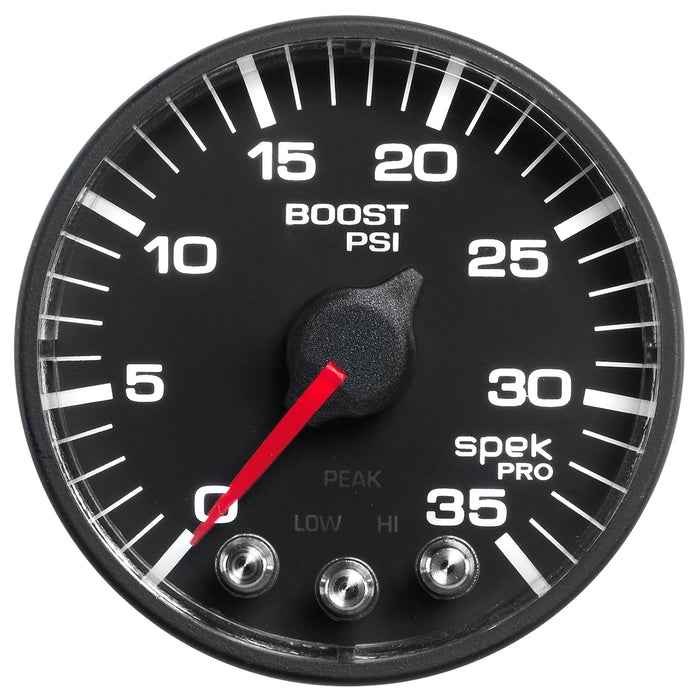

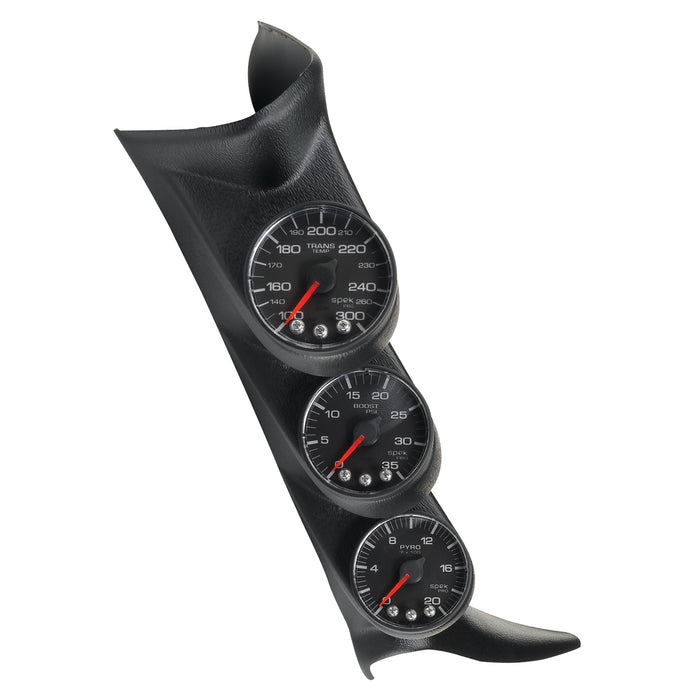

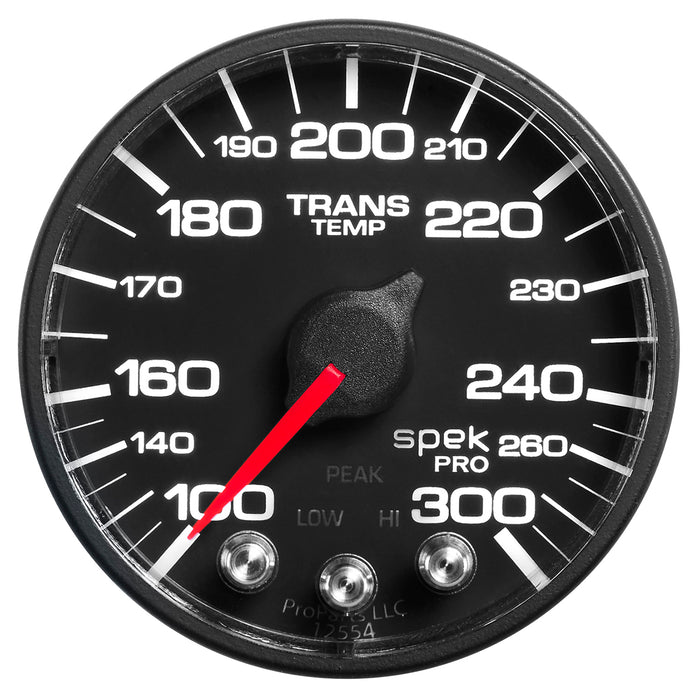

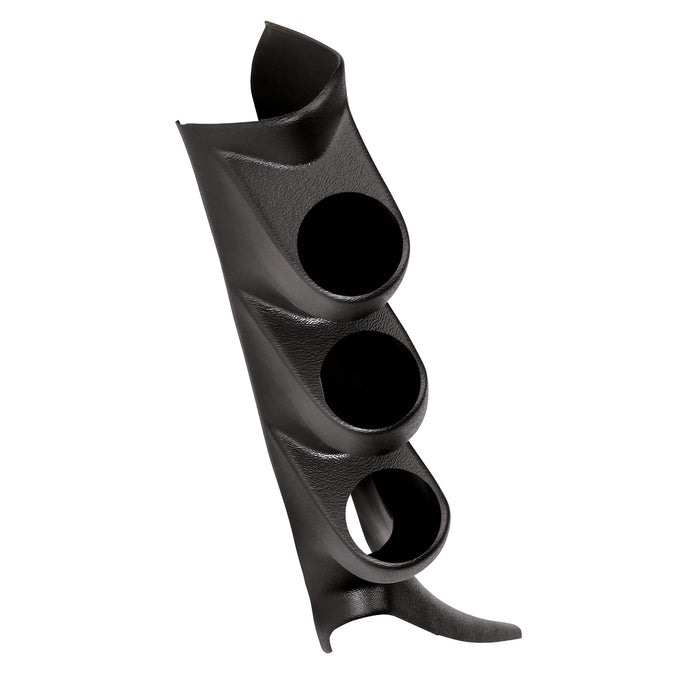

AutoMeter has brought together the most popular diesel gauges into a complete, ready to install pillar kit. The kit includes a pyrometer (EGT), boost, transmission temperature gauge, and gauge pillar mount.
Resources
Installation InstructionsResources
Installation InstructionsResources
Installation InstructionsResources
Installation InstructionsResources
Installation InstructionsSpecifications
| Bezel Color | Black |
| Bezel Style | Spek Square Shoulder |
| Bulb Technology | LED |
| Description_ASC | SPEK-PRO |
| Description_DEF | Gauge Set |
| Description_DES | DIESEL GAUGE KIT, A-PILLR, GM 01-07, BST/EGT/TRANS, 35PSI/2K?F/300?F, BLK, SPEK |
| Description_DES | DIESEL GAUGE KIT; A-PILLR; GM 01-07; BST/EGT/TRANS; 35PSI/2Kdeg.F/300deg.F; BLK; |
| Description_EXT | 7 color user-selectable background illuminations (red, blue, green, white, yellow, orange, and violet) with adjustable brightness for day and night - with independent dimming of dial and pointer. |
| Description_EXT | PILLAR KIT; 0-35 PSI/0-2000 deg.F/100-300 deg.F; 01-07 GM FULL-SIZE TRUCK; W/O SPEAKER; SPEK-PRO; BLACK DIAL; BLACK BEZEL; FLAT ANTIGLARE LENS |
| Description_FAB | 7 Color User Selectable |
| Description_FAB | 7 color user-selectable background illuminations (red, blue, green, white, yellow, orange, and violet) with adjustable brightness for day and night - with independent dimming of dial and pointer. |
| Description_FAB | Configurable" High" and" Low" warnings using three on-instrument-face buttons |
| Description_FAB | Features a peak recall function, which enables the user to review high gauge readings. The highest reading will be stored by the gauge until it is cleared. |
| Description_FAB | High And Low Warning Settings |
| Description_FAB | Includes patented light-weight, spin-on bracket and pre-wired harness for simplified installation. |
| Description_FAB | Independent Dimming For Dial And Pointer |
| Description_FAB | Patented Wide Angle dial design provides the largest viewable dial available in a 2-1/16" gauge. |
| Description_FAB | Precision 280 Brushless Stepper Motor |
| Description_FAB | Precision 280 Degrees brushless stepper motor movement provides a quiet, fluid, and accurate pointer movement with superior dial resolution. |
| Description_FAB | Pro-Control output enables a 1.5 amp load to activate a relay and trigger your choice of warning lights, external buzzers, fans, pumps, or features such as water/meth/nitrous injection. |
| Description_FAB | Provides The Largest Viewable Dial Programmable |
| Description_FAB | Thread On Bracket/Plug In Harness Included |
| Description_INV | CHEVY DURAMAX, 99-07, TRPL A-PLLR GA KT |
| Description_INV | CHEVY DURAMAX; 99-07; TRIPLE A-PILLAR GA |
| Description_KEY | auto meter; autometer; spek; spek-pro; spekpro; transmission; trans; transmission temperature; trans temp, temp; temperature; pyrometer; EGT; boost; psi; pressure; diesel; gauge; gage; instrument; pillar; pod; kit; gauge kit; electric; mechanical; |
| Description_KEY | auto meter; autometer; spek; spek-pro; spekpro; transmission; trans; transmission temperature; trans temp; temp; temperature; pyrometer; EGT; boost; psi; pressure; diesel; gauge; gage; instrument; pillar; pod; kit; gauge kit; electric; mechanical; |
| Description_LAB | Made In Logo |
| Description_LAB | Proposition 65 |
| Description_MKT | AutoMeter has brought together the most popular diesel gauges into a complete, ready to install pillar kit. The kit includes a pyrometer (EGT), boost, transmission temperature gauge, and gauge pillar mount. |
| Description_SHO | 3 GA KIT GM DSL TRK |
| Face Color | Black |
| Gauge Type | Pillar Kit |
| height | 5.0 |
| Hole Size | 0.0625 in. |
| Hole Size | 52.4mm |
| length | 34.0 |
| Lens | Flat Clear |
| Lighting Color | 7 User Selectable Colors |
| Lighting Type | LED |
| LTL | N |
| Mounting Bracket Included | Yes |
| Movement Type | Electric Digital Stepper Motor |
| Number of Gauges | 3 |
| Pointer Color | Fluorescent Red |
| Sending Unit Included | Yes |
| Size | N/A |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov. |
| weight | 3.74 |
| width | 7.0 |
| Wiring Harness Included | Yes |
