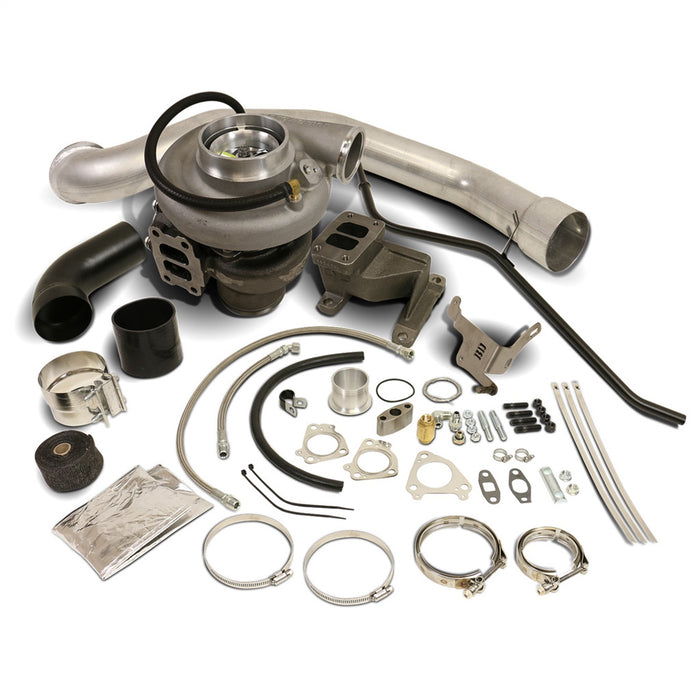

BD Diesel 1046221 Super Max S366 SX-E Turbo Kit - 2001-2004 Chev Duramax LB7
by BD Diesel
SKU ds_BKJX_1046221
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Sold out
Original price
$4,598.57
-
Original price
$4,598.57
Original price
$4,598.57
$4,598.57
$4,598.57
-
$4,598.57
Current price
$4,598.57
Description
Take your LB7 Duramax to the next level with BD's SuperMax SX-E turbo systems. Using BorgWarner SX-E cartridges and BD housings, the SuperMax creates enough airflow for more power, response and reliability. The SX-E was designed for performance with a 360 thrust bearing and the larger compressor blade surface of the high strength Forged Milled Wheels (FMW). New technology allows the smaller inducer to flow more and spool faster. BD exclusive adjustable waste-gated T3 turbine housing with heavy duty waste gate and bracket holds the boost, and, prevents over speed damage.
Specifications
| Description_DEF | Turbocharger Kit |
| Description_DES | Super Max S366 SX-E Turbo Kit - 2001-2004 Chev Duramax LB7 |
| Description_EXT | Super Max S366 SX-E Turbo Kit - 2001-2004 Chev Duramax LB7 |
| Description_FAB | A/R Ratio: 0.80 |
| Description_FAB | Approximate rated 650hp (depending on truck configuration) |
| Description_FAB | BD exclusive feature of a heavy sprung waste-gated T3 turbine housing |
| Description_FAB | BD Single Turbo kits cover a range of turbos that are an easy complete bolt-on performance replacement for your OEM turbo, providing enough air for more power, response and reliability |
| Description_FAB | BD's HD Waste gate and bracket holds boost and prevents over speed damage |
| Description_FAB | Comp Wheel: 66mm 2.60in |
| Description_FAB | Flow: 87 Lb/min |
| Description_FAB | Larger compressor blade surface but with a smaller inducer results in quicker spooling, more flow than similar sized wheels |
| Description_FAB | The high strength FMW Forged Milled Wheels are lighter and stronger and withstand higher wheel speeds |
| Description_FAB | The SX-E turbo was designed for performance with a 360 thrust bearing and enhanced compressor wheel and housing |
| Description_FAB | Turbine Wheel: 80mm 3.15in |
| Description_FAB | Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning |
| Description_INV | SUPER MAX TURBO KIT CHEVY LB7 S366SX-E |
| Description_MKT | Take your LB7 Duramax to the next level with BD's SuperMax SX-E turbo systems. Using BorgWarner SX-E cartridges and BD housings, the SuperMax creates enough airflow for more power, response and reliability. The SX-E was designed for performance with a 360 thrust bearing and the larger compressor blade surface of the high strength Forged Milled Wheels (FMW). New technology allows the smaller inducer to flow more and spool faster. BD exclusive adjustable waste-gated T3 turbine housing with heavy duty waste gate and bracket holds the boost, and, prevents over speed damage. |
| Description_SHO | SUPER MAX TURBO KIT |
| height | 12.0 |
| length | 64.0 |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Short Label | bddiesel_prop65_warning.png |
| Prop 65 Warning | WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Title | Super Max S366 SX-E Turbo Kit - 2001-2004 Chev Duramax LB7 |
| weight | 69.0 |
| width | 12.0 |
