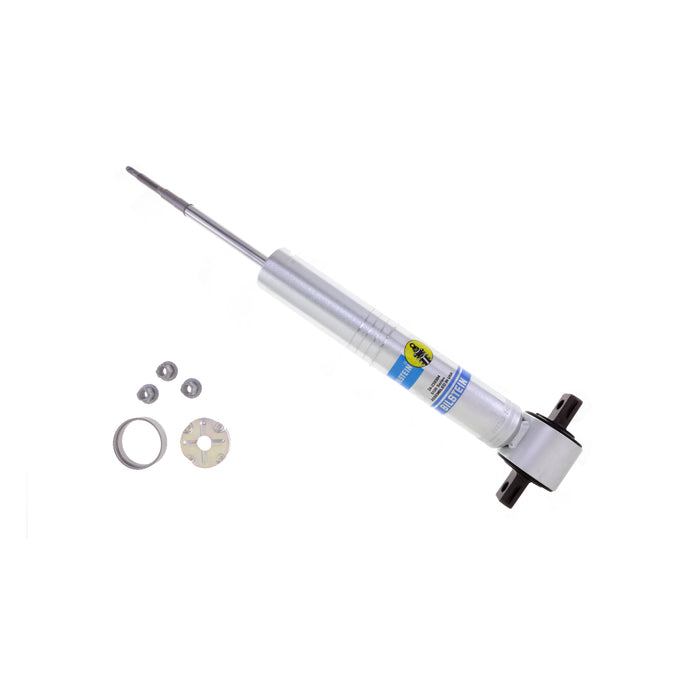

Bilstein 24-238304 B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber
by Bilstein
SKU ds_BBGL_24-238304
Availability:
6 in stock
Original price
$257.54
-
Original price
$257.54
Original price
$257.54
$257.54
$257.54
-
$257.54
Current price
$257.54
Description
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Specifications
| Adjustable Damping | Non-Adjustable |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 46mm |
| Boot Included | No |
| California Proposition 65 | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length (IN) | 15.00 |
| Collapsed Length (MM) | 381.0 |
| Description_ASM | Chevrolet Silverado 1500 2018-2014, Silverado 1500 LD 2019, GMC Sierra 1500 2018-2014, Sierra 1500 Limited 2019 |
| Description_DEF | Suspension Shock Absorber |
| Description_DES | B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber |
| Description_EXT | 46mm Monotube Shock Absorber |
| Description_INV | GMC 1500 2/4WD; '14+; F; B8 5100; 0-1.85 |
| Description_LAB | B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber |
| Description_MKT | Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle. |
| Description_SHO | Shock |
| Extended Length (IN) | 18.86 |
| Extended Length (MM) | 479.0 |
| finish | Zinc Plated |
| height | 4.15 |
| Internal Design | Monotube |
| length | 26.8 |
| Lower Mount Type | Bar Pin |
| LTL | N |
| Reservoir | No |
| Series | B8 5100 (Ride Height Adjustable) |
| Title | Bilstein Shock Absorbers |
| Upper Mount Type | Stem |
| weight | 6.9 |
| width | 4.15 |
