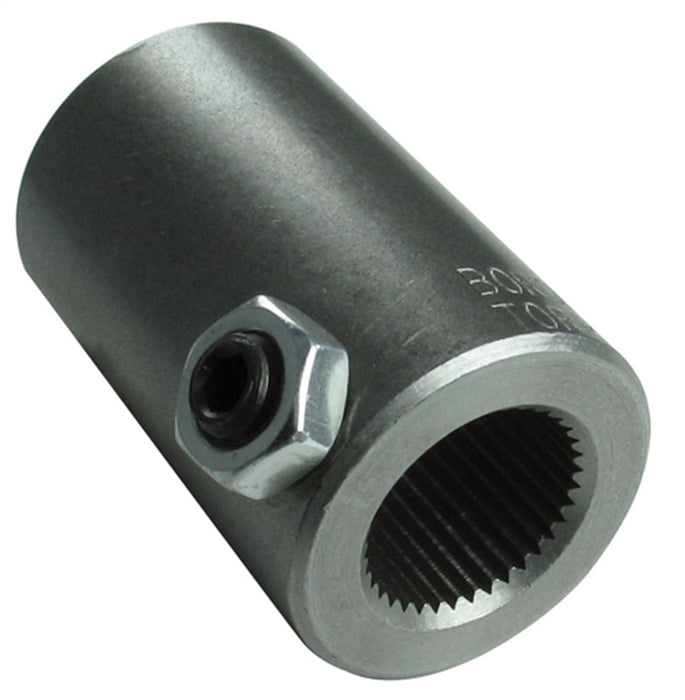

Borgeson 312500 Steel steering coupler. Fits 11/16in.-36 Spline X 3/4in. Smooth bore.
by Borgeson
SKU ds_BLCC_312500
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$59.79
-
Original price
$59.79
Original price
$59.79
$59.79
$59.79
-
$59.79
Current price
$59.79
Description
Using a 2" straight extension, called a coupler, to extend the steering box, R&P shaft or the column shaft, can sometimes eliminate a universal joint. The coupler can be welded or pinned to the un-splined end of a shaft. The 1"- 48 and 1" DD couplers have a 1-1?4" hole that will accept either an adapter to reduce inside diameter to 3/4" smooth or another splined or 3/4" DD coupler. The coupler assembly would have to be pinned and/or welded together. Welding the coupler is acceptable because there are no moving parts to damage, and the coupler's steel is less susceptible to heat damage from welding. Couplers are available in the same spline and Double D sizes as our universal joints. Couplers and adapters are available in steel and stainless steel only.
Resources
Installation InstructionsResources
Installation InstructionsResources
Installation InstructionsSpecifications
| Color | Natural Steel |
| Description_ASC | Steering Coupler. |
| Description_DES | Steering Coupler; Steel; 11/16-36 X 3/4 Smooth Bore |
| Description_EXT | Steel steering coupler. Fits 11/16in.-36 Spline X 3/4in. Smooth bore. |
| Description_FAB | Steering Coupler |
| Description_INV | Borgeson Straight Steel Coupler |
| Description_KEY | Borgeson Universal Steering Coupler Adapter |
| Description_LAB | Proposition 65 |
| Description_MKT | Using a 2" straight extension, called a coupler, to extend the steering box, R&P shaft or the column shaft, can sometimes eliminate a universal joint. The coupler can be welded or pinned to the un-splined end of a shaft. The 1"- 48 and 1" DD couplers have a 1-1?4" hole that will accept either an adapter to reduce inside diameter to 3/4" smooth or another splined or 3/4" DD coupler. The coupler assembly would have to be pinned and/or welded together. Welding the coupler is acceptable because there are no moving parts to damage, and the coupler's steel is less susceptible to heat damage from welding. Couplers are available in the same spline and Double D sizes as our universal joints. Couplers and adapters are available in steel and stainless steel only. |
| Description_SHO | Steering Coupler |
| End 1 Connector Gender | Female |
| End 1 Diameter | 36.000 in. |
| End 2 Connector Gender | Female |
| height | 5.75 |
| length | 1.75 |
| length | 2.000 in. |
| LTL | N |
| Shaft End 1 | 0.6875 in. 36-spline |
| Shaft End 2 | 0.750 in. without splines |
| Title | Borgeson - Steering Coupler - P/N: 312500 - Steel steering coupler. Fits 11/16 in.-36 Spline X 3/4 in. Smooth bore. |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to chemicals including Nickel and Chromium (hexavalent compounds) which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit: www.P65Warnings.ca.gov |
| weight | 0.28 |
| width | 3.75 |
