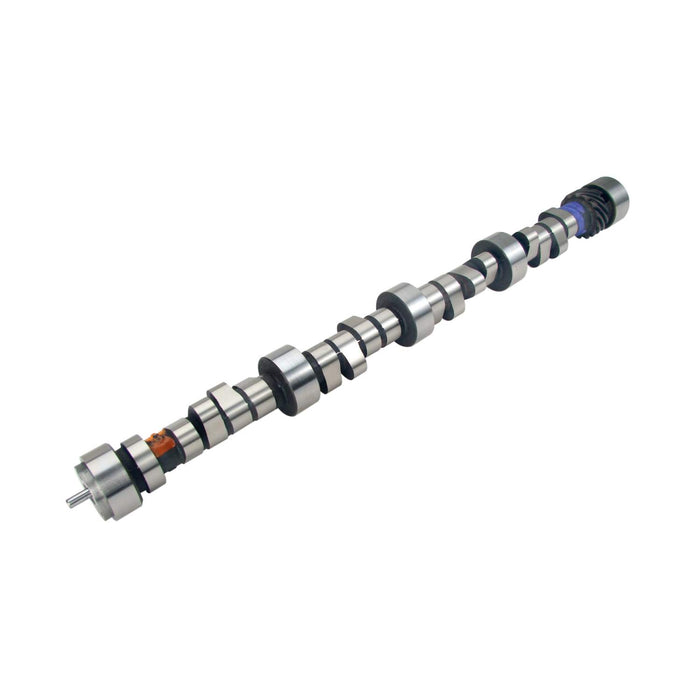

COMP Cams 07-305-8 Xtreme Energy 220/230 Hydraulic Roller Cam for GM LT1/LT4
by COMP Cams
SKU ds_BDQQ_07-305-8
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$803.08
-
Original price
$803.08
Original price
$803.08
$803.08
$803.08
-
$803.08
Current price
$803.08
Description
Featuring a quicker valve opening, the Xtreme Energy camshaft profile provides increased responsiveness and more area under the lift curve than older, slower grinds. Designed to increase performance without sacrificing driveability and creature comforts, the Xtreme Energy grind family offers gains in torque and horsepower while still delivering adequate vacuum for power brakes and other vacuum dependent accessories. Xtreme Energy camshafts work great in carbureted applications, but offer the best performance with aftermarket intake manifolds, lower gear ratios, headers and free flowing exhaust.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 290 |
| Advertised Intake Duration | 276 |
| Amazon ASIN | N/A |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 1,500-5,500 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Austempered Ductile Iron |
| Camshaft Series | Xtreme Energy |
| Description_ASM | Buick: Commercial Chassis 94 - 96 5.7 L Engine, Buick: Roadmaster 94 - 96 5.7 L Engine, Cadillac: Commercial Chassis 94 - 96 5.7 L Engine, Cadillac: Fleetwood 94 - 96 5.7 L Engine, Chevrolet: Camaro 92 - 97 5.7 L Engine, Chevrolet: Caprice 94 - 96 4.3 L Engine, Chevrolet: Caprice 94 - 96 5.7 L Engine, Chevrolet: Commercial Chassis 94 - 94 5.7 L Engine, Chevrolet: Corvette 92 - 96 5.7 L Engine, Chevrolet: Impala 94 - 96 5.7 L Engine, Excalibur: Limited 93 - 93 5.7 L Engine, Pontiac: Firebird 92 - 97 5.7 L Engine |
| Description_DEF | Engine Camshaft |
| Description_DES | Xtreme Energy 220/230 Hydraulic Roller Cam for GM LT1/LT4 |
| Description_EXT | For use in LT1, with custom tuning. |
| Description_INV | XE 220/230 Hyd Roller Cam GM LT1/LT4 |
| Description_KEY | 305 |
| Description_KEY | 350 |
| Description_KEY | Bel Air |
| Description_KEY | Blazer |
| Description_KEY | C10 |
| Description_KEY | C20 |
| Description_KEY | Camaro |
| Description_KEY | Caprice |
| Description_KEY | Chevelle |
| Description_KEY | Chevrolet |
| Description_KEY | Chevy Small Block |
| Description_KEY | Corvette |
| Description_KEY | Duntov |
| Description_KEY | El Camino |
| Description_KEY | Firebird |
| Description_KEY | K10 |
| Description_KEY | LT1 |
| Description_KEY | LT4 |
| Description_KEY | Malibu |
| Description_KEY | Monaro |
| Description_KEY | Monte Carlo |
| Description_KEY | Monza |
| Description_KEY | Nova |
| Description_KEY | Pontac |
| Description_KEY | S10 |
| Description_KEY | SBC |
| Description_KEY | Small Block Chevrolet |
| Description_KEY | SS |
| Description_KEY | Swap |
| Description_KEY | Trans-Am |
| Description_KEY | Ventura |
| Description_KEY | Vortec |
| Description_KEY | Z2/8 |
| Description_KEY | Z28 |
| Description_MKT | Featuring a quicker valve opening, the Xtreme Energy camshaft profile provides increased responsiveness and more area under the lift curve than older, slower grinds. Designed to increase performance without sacrificing driveability and creature comforts, the Xtreme Energy grind family offers gains in torque and horsepower while still delivering adequate vacuum for power brakes and other vacuum dependent accessories. Xtreme Energy camshafts work great in carbureted applications, but offer the best performance with aftermarket intake manifolds, lower gear ratios, headers and free flowing exhaust. |
| Description_SHO | XE 220/230 HRlrLT1/4 |
| Description_SHP | None |
| Engine Family | GM LT1 and LT4 350 c.i. 8 Cylinder (1995-1997) |
| Exhaust Duration at .050 inch Lift | 230 |
| Exhaust Valve Lift | 0.51 |
| Grind Number | 276HR-14 |
| height | 2.6 |
| Intake Duration at .050 Inch Lift | 220 |
| Intake Valve Lift | 0.51 |
| length | 23.3 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | No |
| Lobe Separation | 114 |
| LTL | N |
| Title | Xtreme Energy 220/230 Hydraulic Roller Cam for GM LT1/LT4 |
| Valve Springs Required | Yes |
| weight | 8.75 |
| width | 2.9 |
