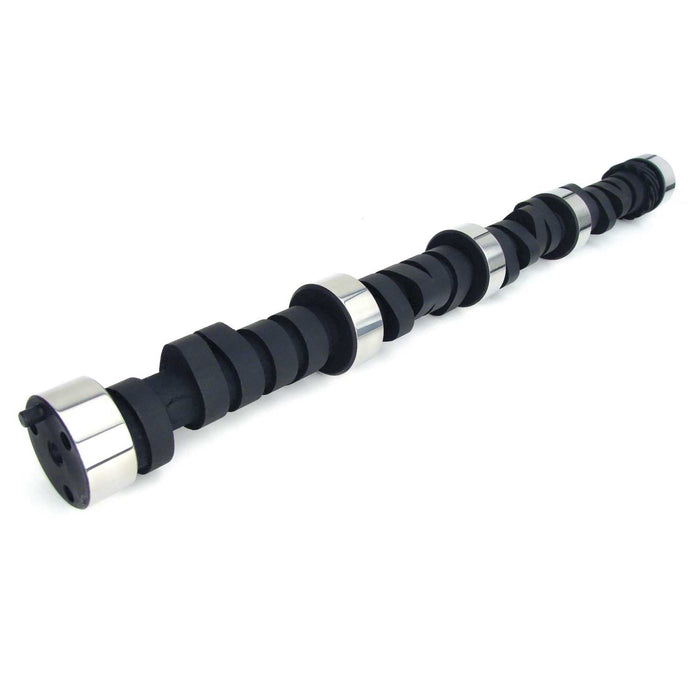

COMP Cams 11-238-3 Xtreme Energy 218/224 Hydraulic Flat Cam for Chevrolet Big Block 396-454
by COMP Cams
SKU ds_BDQQ_11-238-3
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$402.70
-
Original price
$402.70
Original price
$402.70
$402.70
$402.70
-
$402.70
Current price
$402.70
Description
Xtreme Energy 218/224 Hydraulic Flat Cam for Chevrolet Big Block 396-454
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 270 |
| Advertised Intake Duration | 262 |
| Amazon ASIN | B000CEO76M |
| Assembly Lubricant Included | Yes |
| Basic Operating RPM Range | 1,300-5,600 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam and Lifter Kit Upgrade | CL11-238-3 |
| Cam Type | Hydraulic Flat Tappet |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Cast Iron |
| Camshaft Series | Xtreme Energy |
| Description_ASM | Chevrolet GEN IV 396-454 Big Block Engines Originally Equipped with Flat Tappet Camshafts |
| Description_DEF | Engine Camshaft |
| Description_DES | Xtreme Energy 218/224 Hydraulic Flat Cam for Chevrolet Big Block 396-454 |
| Description_EXT | Strong torque. Excellent response, heavy towing in 454 with 4.10 gear. |
| Description_INV | XE 218/224 Hyd Flat Cam BBC 396-454 |
| Description_KEY | Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572 |
| Description_SHO | XE 218/224 HFTBBC |
| Description_SHP | None |
| Engine Family | Chevrolet 396-454 c.i. 8 Cylinder (1967-1996) |
| Exhaust Duration at .050 inch Lift | 224 |
| Exhaust Valve Lift | 0.51 |
| Grind Number | XE262H |
| height | 2.67 |
| Intake Duration at .050 Inch Lift | 218 |
| Intake Valve Lift | 0.504 |
| K-Kit Upgrade | K11-238-3 |
| length | 23.93 |
| Lifter Type | Hydraulic Flat Tappet |
| Lifters Included | No |
| Lobe Separation | 110 |
| LTL | N |
| SK-Kit Upgrade | SK11-238-3 |
| Title | Xtreme Energy 218/224 Hydraulic Flat Cam for Chevrolet Big Block 396-454 |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| weight | 10.6 |
| width | 2.99 |
