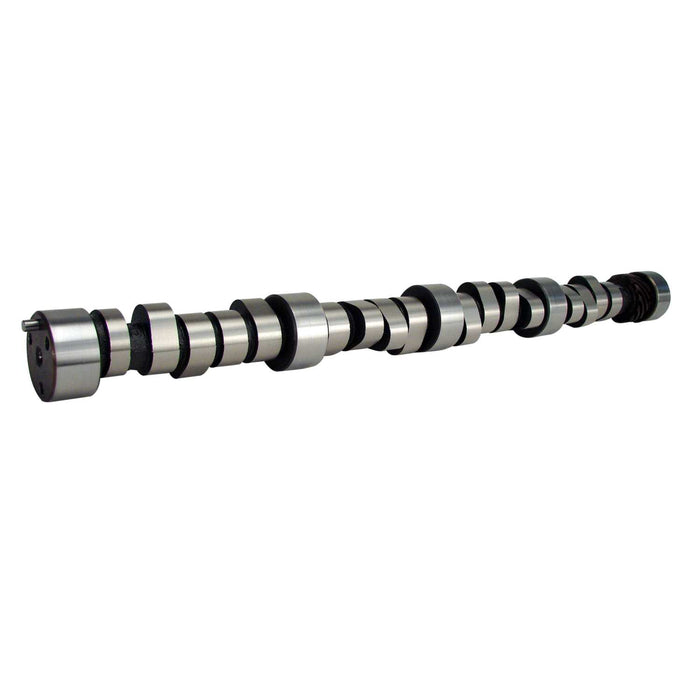

COMP Cams 11-423-8 Xtreme Energy 224/230 Hydraulic Roller Cam for Chevrolet Big Block 396-454
by COMP Cams
SKU ds_BDQQ_11-423-8
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$803.08
-
Original price
$803.08
Original price
$803.08
$803.08
$803.08
-
$803.08
Current price
$803.08
Description
Xtreme Energy 224/230 Hydraulic Roller Cam for Chevrolet Big Block 396-454
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 282 |
| Advertised Intake Duration | 276 |
| Amazon ASIN | B000P592QS |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 1,900-5,600 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam and Lifter Kit Upgrade | CL11-423-8 |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Austempered Ductile Iron |
| Camshaft Series | Xtreme Energy |
| Description_ASM | Chevrolet GEN IV 396-454 Big Block Engines Originally Equipped with Flat Tappet Camshafts |
| Description_DEF | Engine Camshaft |
| Description_DES | Xtreme Energy 224/230 Hydraulic Roller Cam for Chevrolet Big Block 396-454 |
| Description_EXT | Great for street machines, needs intake, headers, 2000+ stall and gears. |
| Description_INV | XE 224/230 Hyd Roller Cam BBC 396-454 |
| Description_KEY | Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572 |
| Description_SHO | XE 224/230 HRlrBBC |
| Description_SHP | None |
| Engine Family | Chevrolet 396-454 c.i. 8 Cylinder (1967-1996) |
| Exhaust Duration at .050 inch Lift | 230 |
| Exhaust Valve Lift | 0.51 |
| Grind Number | XR276HR |
| height | 2.67 |
| Intake Duration at .050 Inch Lift | 224 |
| Intake Valve Lift | 0.51 |
| K-Kit Upgrade | K11-423-8 |
| length | 23.22 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | No |
| Lobe Separation | 110 |
| LTL | N |
| SK-Kit Upgrade | SK11-423-8 |
| Title | Xtreme Energy 224/230 Hydraulic Roller Cam for Chevrolet Big Block 396-454 |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| weight | 10.85 |
| width | 2.91 |
