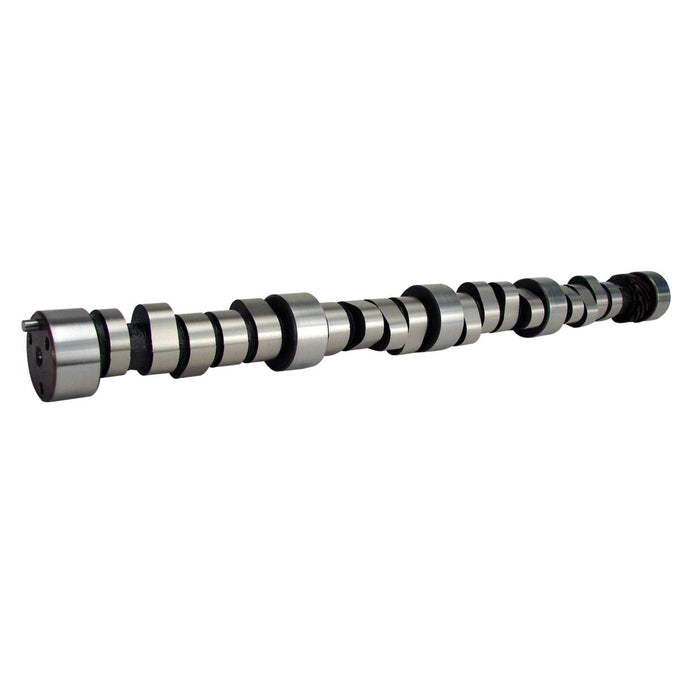

COMP Cams 11-772-8 Xtreme Energy 248/254 Solid Roller Cam for Chevrolet Big Block 396-454
by COMP Cams
SKU ds_BDQQ_11-772-8
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$857.76
-
Original price
$857.76
Original price
$857.76
$857.76
$857.76
-
$857.76
Current price
$857.76
Description
Featuring a quicker valve opening, the Xtreme Energy camshaft profile provides increased responsiveness and more area under the lift curve than older, slower grinds. Designed to increase performance without sacrificing driveability and creature comforts, the Xtreme Energy grind family offers gains in torque and horsepower while still delivering adequate vacuum for power brakes and other vacuum dependent accessories. Xtreme Energy camshafts work great in carbureted applications, but offer the best performance with aftermarket intake manifolds, lower gear ratios, headers and free flowing exhaust.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 292 |
| Advertised Intake Duration | 286 |
| Amazon ASIN | B000V9GBW6 |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 3,000-7000 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam and Lifter Kit Upgrade | CL11-772-8 |
| Cam Type | Solid Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Austempered Ductile Iron |
| Camshaft Series | Xtreme Energy |
| Description_ASM | Chevrolet GEN IV 396-454 Big Block Engines Originally Equipped with Flat Tappet Camshafts |
| Description_DEF | Engine Camshaft |
| Description_DES | Xtreme Energy 248/254 Solid Roller Cam for Chevrolet Big Block 396-454 |
| Description_EXT | Good in weekend warrior with 3000+ stall. Needs good intake and exhaust with low gears. |
| Description_INV | XE 248/254 Solid Roller Cam BBC 396-454 |
| Description_KEY | Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572 |
| Description_MKT | Featuring a quicker valve opening, the Xtreme Energy camshaft profile provides increased responsiveness and more area under the lift curve than older, slower grinds. Designed to increase performance without sacrificing driveability and creature comforts, the Xtreme Energy grind family offers gains in torque and horsepower while still delivering adequate vacuum for power brakes and other vacuum dependent accessories. Xtreme Energy camshafts work great in carbureted applications, but offer the best performance with aftermarket intake manifolds, lower gear ratios, headers and free flowing exhaust. |
| Description_SHO | XE 248/254 SRlrBBC |
| Description_SHP | None |
| Description_TRA | Warning: Camshaft Optimized for use with a Melanized or Nitrided distributor gear. Not compatible with cast or steel gears without similar surface treatments. Failure to utilize the proper distributor gear will void all warranties and/or return policies |
| Engine Family | Chevrolet 396-454 c.i. 8 Cylinder (1967-1996) |
| Exhaust Duration at .050 inch Lift | 254 |
| Exhaust Valve Lift | 0.66 |
| Grind Number | XR286R |
| height | 2.67 |
| Intake Duration at .050 Inch Lift | 248 |
| Intake Valve Lift | 0.653 |
| K-Kit Upgrade | K11-772-8 |
| length | 23.93 |
| Lifter Type | Solid Roller |
| Lifters Included | No |
| Lobe Separation | 110 |
| LTL | N |
| SK-Kit Upgrade | SK11-772-8 |
| Title | Xtreme Energy 248/254 Solid Roller Cam for Chevrolet Big Block 396-454 |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| weight | 10.3 |
| width | 2.91 |
