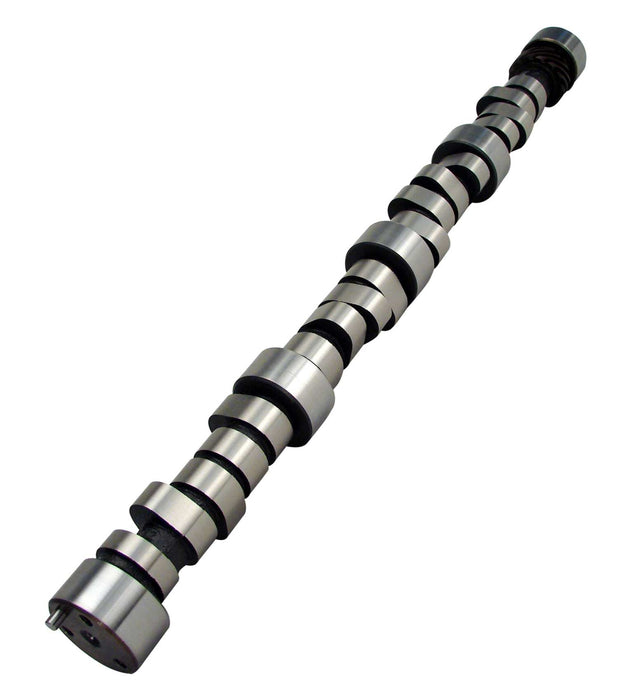

COMP Cams 12-430-8 Magnum 224/224 Hydraulic Roller Cam for Chevrolet Small Block
by COMP Cams
SKU ds_BDQQ_12-430-8
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$857.76
-
Original price
$857.76
Original price
$857.76
$857.76
$857.76
-
$857.76
Current price
$857.76
Description
Limited high performance street. Aftermarket intake, headers, 2200+ stall, and 3.40 to 410 gears. Mild rough idle.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 280 |
| Advertised Intake Duration | 280 |
| Amazon ASIN | B000V9HYMM |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 2,000-5,500 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam and Lifter Kit Upgrade | CL12-430-8 |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Austempered Ductile Iron |
| Camshaft Series | Magnum |
| Description_ASM | Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information. |
| Description_DEF | Engine Camshaft |
| Description_DES | Magnum 224/224 Hydraulic Roller Cam for Chevrolet Small Block |
| Description_EXT | Limited high performance street. Aftermarket intake, headers, 2200+ stall, and 3.40 to 410 gears. Mild rough idle. |
| Description_INV | Magnum 224/224 Hydraulic Roller Cam SBC |
| Description_KEY | 265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10 |
| Description_SHO | Mag 224/224 HRlr SBC |
| Description_SHP | None |
| Description_TRA | Warning: Camshaft Optimized for use with a Melanized or Nitrided distributor gear. Not compatible with cast or steel gears without similar surface treatments. Failure to utilize the proper distributor gear will void all warranties and/or return policies |
| Engine Family | Chevrolet 262-400 c.i. 8 Cylinder (1958-1998) |
| Exhaust Duration at .050 inch Lift | 224 |
| Exhaust Valve Lift | 0.525 |
| Grind Number | 280HR |
| height | 2.6 |
| Intake Duration at .050 Inch Lift | 224 |
| Intake Valve Lift | 0.525 |
| K-Kit Upgrade | K12-430-8 |
| length | 24.2 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | No |
| Lobe Separation | 110 |
| LTL | N |
| SK-Kit Upgrade | SK12-430-8 |
| Title | Magnum 224/224 Hydraulic Roller Cam for Chevrolet Small Block |
| Usage | Street/Strip |
| Valve Springs Required | Yes |
| weight | 8.774 |
| width | 3.0 |
