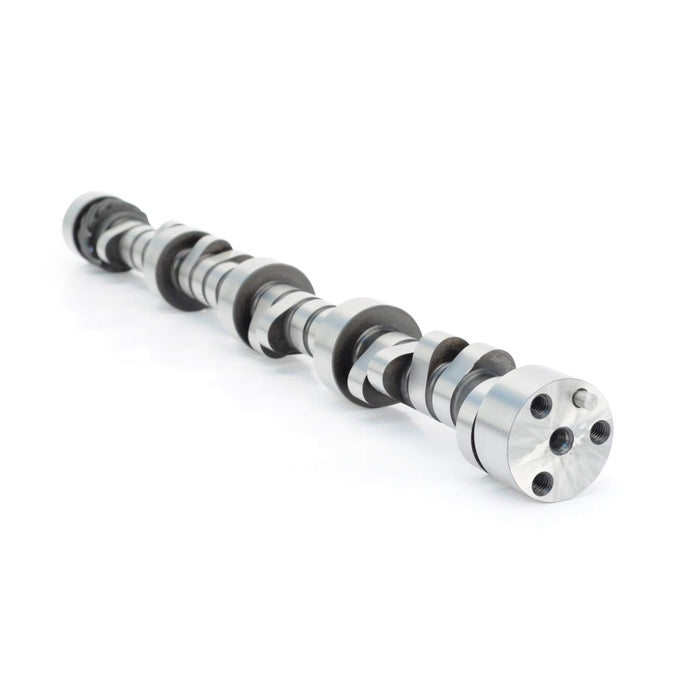

COMP Cams 12-473-44 4-Pattern 234/244 IB, 236/246 OB Hydraulic Roller Cam for Chevrolet Small Block
by COMP Cams
SKU ds_BDQQ_12-473-44
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$972.47
-
Original price
$972.47
Original price
$972.47
$972.47
$972.47
-
$972.47
Current price
$972.47
Description
Best choice for street 383 stroker engines with good cylinder heads. Very wide power range. 2600+ Stall.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Amazon ASIN | B00CWZW2B6 |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 2,400-6,700 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | 4-Pattern Small Base Circle |
| Description_ASM | Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information. |
| Description_DEF | Engine Camshaft |
| Description_DES | 4-Pattern 234/244 IB, 236/246 OB Hydraulic Roller Cam for Chevrolet Small Block |
| Description_EXT | Best choice for street 383 stroker engines with good cylinder heads. Very wide power range. 2600+ Stall. |
| Description_INV | 4-Pattern 234/244 IB H-Roller Cam SBC |
| Description_KEY | 265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10 |
| Description_SHO | 4Pt 234/244 HRlr SBC |
| Description_SHP | None |
| Description_TRA | Warning: Camshaft Optimized for use with a Melanized or Nitrided distributor gear. Not compatible with cast or steel gears without similar surface treatments. Failure to utilize the proper distributor gear will void all warranties and/or return policies |
| Engine Family | Chevrolet 262-400 c.i. 8 Cylinder (1958-1998) |
| Grind Number | 287QS9 |
| height | 2.75 |
| length | 12.0 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | No |
| LTL | N |
| Title | 4-Pattern 234/244 IB, 236/246 OB Hydraulic Roller Cam for Chevrolet Small Block |
| Usage | Street/Strip |
| Valve Springs Required | Yes |
| weight | 9.15 |
| width | 6.5 |
