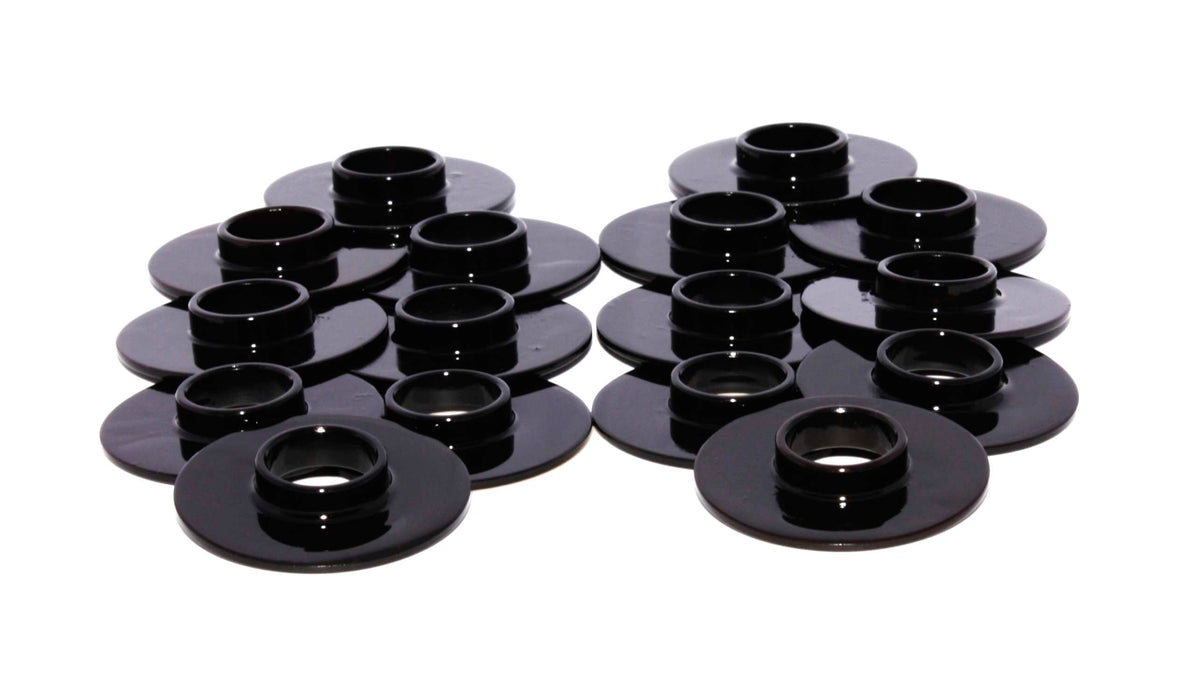

COMP Cams 4781-16 ID Spring Locator Set of 16 - 1.550" OD, .570" ID, .060" Thickness
by COMP Cams
SKU ds_BDQQ_4781-16
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$126.87
-
Original price
$126.87
Original price
$126.87
$126.87
$126.87
-
$126.87
Current price
$126.87
Description
Made from hardened steel, these locators use a shoulder to center the seat and hold the spring in place. The 4781 has a 1.550" OD and a .570" ID that works well with our 950, 954, 26955, 26956, 26957, 999, 26097, 929, 26115 and 933 springs.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Amazon ASIN | B000CEM56Q |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | No impact on pollution output of vehicle. |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Description_DEF | Engine Valve Spring Seat |
| Description_DES | ID Spring Locator - 1.550" OD, .570" ID, .060" Thickness |
| Description_DES | ID Spring Locator Set of 16 - 1.550" OD, .570" ID, .060" Thickness |
| Description_EXT | Made from hardened steel, these locators use a shoulder to center the seat and hold the spring in place. The 4781 has a 1.550" OD and a .570" ID that works well with our 950, 954, 26955, 26956, 26957, 999, 26097, 929, 26115 and 933 springs. |
| Description_INV | Locators 1.55" OD .570" .060 Thick |
| Description_SHO | EngValve Spring Seat |
| Description_SHP | None |
| height | 1.4 |
| Inside Diameter | .570" |
| length | 8.3 |
| Locator Inner Diameter | 0.57 |
| Locator Outer Diameter | 1.55 |
| Locator Thickness | .060" |
| LTL | N |
| Outside Diameter | 1.55 |
| Spring Inner Diameter | 0.715 |
| Spring Inside Diameter | .715" |
| Title | ID Spring Locator Set of 16 - 1.550" OD, .570" ID, .060" Thickness |
| weight | 0.706 |
| width | 5.5 |
