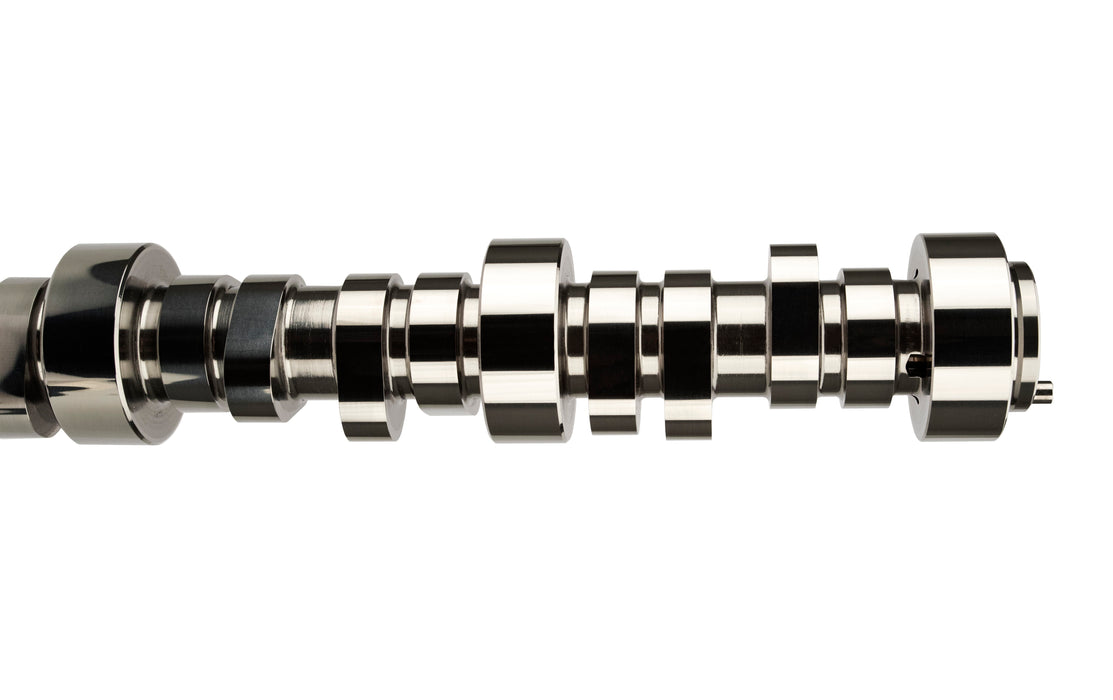

COMP Cams 54-454-11 LSR Rectangular Port 227/243 Hydraulic Roller Cam for GM LS GEN III/IV
by COMP Cams
SKU ds_BDQQ_54-454-11
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$801.55
-
Original price
$801.55
Original price
$801.55
$801.55
$801.55
-
$801.55
Current price
$801.55
Description
LSR Rectangular Port 227/243 Hydraulic Roller Cam for GM LS GEN III/IV
Resources
Installation InstructionsSpecifications
| Advertised Exhaust Duration | 293 |
| Advertised Intake Duration | 277 |
| Amazon ASIN | B005H89URE |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 1,900-7,000 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | LSR Rectangular Port All Out Power |
| Description_ASM | Fits 4.8, 5.3, 5.7, 6.0, 6.2 and 7.0 Liter LS1, LS2, LS3, LS4, LS6, LS7 plus SUV and Truck Engines (Grinds are specific to displacement and cylinder head design) |
| Description_DEF | Engine Camshaft |
| Description_DES | LSR Rectangular Port 227/243 Hydraulic Roller Cam for GM LS GEN III/IV |
| Description_EXT | Good street/strip camshaft with very wide range. |
| Description_INV | LSR Rect Port 227/243 H-Rlr Cam GM LS |
| Description_KEY | GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed |
| Description_SHO | LSR 3-Bolt Cam |
| Description_SHP | None |
| Engine Family | GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015) |
| Exhaust Duration at .050 inch Lift | 243 |
| Exhaust Valve Lift | 0.624 |
| Grind Number | 277LRR HR-13 |
| height | 2.59 |
| Intake Duration at .050 Inch Lift | 227 |
| Intake Valve Lift | 0.614 |
| length | 23.46 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | No |
| Lobe Separation | 113 |
| LTL | N |
| Title | LSR Rectangular Port 227/243 Hydraulic Roller Cam for GM LS GEN III/IV |
| Usage | Street/Strip |
| Valve Springs Required | Yes |
| weight | 9.7 |
| width | 2.91 |
