CURT 11543 Class 1 Fixed-Tongue Trailer Hitch with 3/4in. Trailer Ball Hole

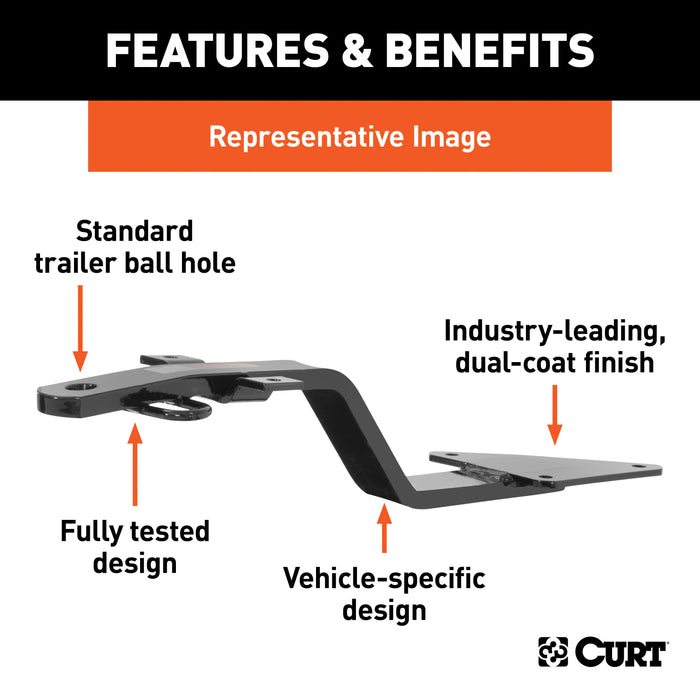

CURT class 1 trailer hitches are the lightest-duty hitches of our rear mount lineup. They are engineered for reliability, welded together with quality steel and blasted clean for a smooth finish. Tested to meet the strict demands of the industry, this CURT class 1 hitch has a capacity to tow up to 1,500 lbs. of gross trailer weight and 150 lbs. of tongue weight. This means it can handle a variety of small trailers such as single-axle utility trailers, canoe and kayak trailers, dirt bike trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This class 1 hitch is a fixed-tongue hitch, having a fixed draw bar to accept a trailer ball rather than a receiver tube to accept a ball mount. Class 1 hitches are typically mounted on compact cars, full-size cars and some smaller crossover SUVs, minivans and compact SUVs. This particular hitch is designed to be a custom-fit trailer hitch for certain years of the Nissan Pulsar coupe (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It comes with all necessary installation hardware. Each CURT class 1 hitch is co-cured with a liquid Bonderite coating and a high-gloss black powder coat that provide a lasting defense against rust, wear and harmful UV rays.

Resources

Installation Instructions

Box Height in Inches - XA	10
Box Length in Inches - XA	31
Box Width in Inches - XA	15
Class ID	1
Description_ABR	CL 1
Description_ASC	Class 1 Fixed-Tongue Trailer Hitch with 3/4" Trailer Ball Hole

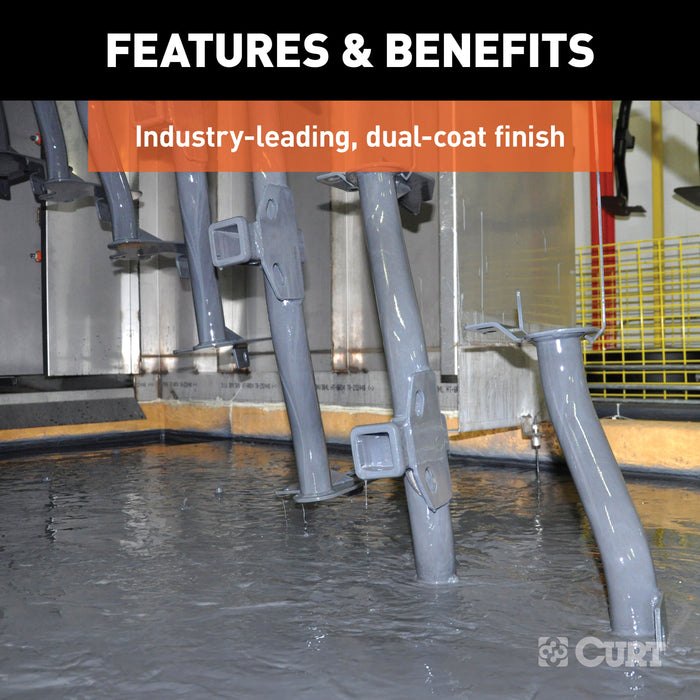

Description_ASC	Co-cured in a rust-resistant liquid A-coat, inside and out
Description_ASC	Concealed main body for OE look and seamless integration with the vehicle
Description_ASC	Engineered with a vehicle-specific design for a custom fit
Description_ASC	Fixed drawbar readily accepts a 3/4" trailer ball shank
Description_ASC	Limited lifetime warranty (one-year finish, one-year parts)
Description_ASC	Made in USA (may include imported hardware)
Description_ASC	Precisely welded for superior strength and fit
Description_ASC	Protected by a durable high-gloss black powder coat finish
Description_ASC	Rated to 1,500 lbs. gross trailer weight and 150 lbs. tongue weight

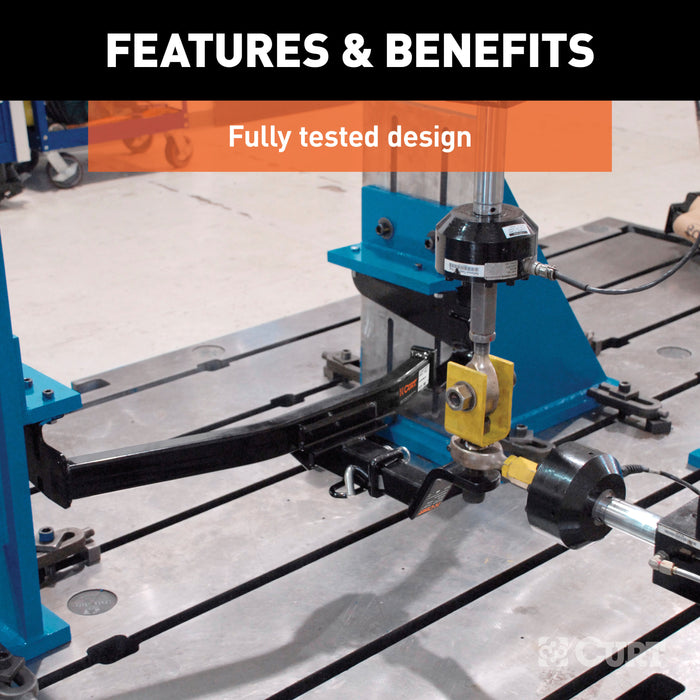

Description_ASC	Tested for safety in accordance with SAE J684
Description_ASM	CURT 11543 Class 1 Fixed-Tongue Trailer Hitch with 3/4-Inch Trailer Ball Hole for Select Nissan Pulsar
Description_DEF	Trailer Hitch
Description_DES	Class 1 Fixed-Tongue Trailer Hitch with 3/4" Trailer Ball Hole
Description_DES	Class 1 Fixed-Tongue Trailer Hitch with 3/4in. Trailer Ball Hole
Description_EXT	CURT 11543 Class 1 Fixed-Tongue Trailer Hitch with 3/4-Inch Trailer Ball Hole for Select Nissan Pulsar
Description_FAB	Backed By A Limited Lifetime Warranty
Description_FAB	Co-Cured In A Rust-Resistant Liquid Bonderite Coating
Description_FAB	Fixed Drawbar Readily Accepts A 3/4 In. Trailer Ball Shank
Description_FAB	Made in USA [may include imported hardware]
Description_FAB	Made w/A Vehicle-Specific Design For A Custom Fit
Description_FAB	Precisely Welded For Superior Strength And Fit
Description_FAB	Protected By A Durable High-Gloss Black Powder Coat Finish
Description_FAB	Tested For Safety In Accordance w/SAE J684
Description_INV	Class 1 Fixed-Tongue Trailer Hitch
Description_KEY	4 hidden hitchs box drawbar draw hauler bumper hole bar replacement adaptor cars 2000 2000lb class-1 insert reciver oem auto coupler one i max weld bolt
Description_LAB	Made In Logo
Description_MKT	CURT class 1 trailer hitches are the lightest-duty hitches of our rear mount lineup. They are engineered for reliability, welded together with quality steel and blasted clean for a smooth finish. Tested to meet the strict demands of the industry, this CURT class 1 hitch has a capacity to tow up to 1,500 lbs. of gross trailer weight and 150 lbs. of tongue weight. This means it can handle a variety of small trailers such as single-axle utility trailers, canoe and kayak trailers, dirt bike trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This class 1 hitch is a fixed-tongue hitch, having a fixed draw bar to accept a trailer ball rather than a receiver tube to accept a ball mount. Class 1 hitches are typically mounted on compact cars, full-size cars and some smaller crossover SUVs, minivans and compact SUVs. This particular hitch is designed to be a custom-fit trailer hitch for certain years of the Nissan Pulsar coupe (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It comes with all necessary installation hardware. Each CURT class 1 hitch is co-cured with a liquid A-coat and a high-gloss black powder coat that provide a lasting defense against rust, wear and harmful UV rays.
Description_MKT	CURT class 1 trailer hitches are the lightest-duty hitches of our rear mount lineup. They are engineered for reliability, welded together with quality steel and blasted clean for a smooth finish. Tested to meet the strict demands of the industry, this CURT class 1 hitch has a capacity to tow up to 1,500 lbs. of gross trailer weight and 150 lbs. of tongue weight. This means it can handle a variety of small trailers such as single-axle utility trailers, canoe and kayak trailers, dirt bike trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This class 1 hitch is a fixed-tongue hitch, having a fixed draw bar to accept a trailer ball rather than a receiver tube to accept a ball mount. Class 1 hitches are typically mounted on compact cars, full-size cars and some smaller crossover SUVs, minivans and compact SUVs. This particular hitch is designed to be a custom-fit trailer hitch for certain years of the Nissan Pulsar coupe (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It comes with all necessary installation hardware. Each CURT class 1 hitch is co-cured with a liquid Bonderite coating and a high-gloss black powder coat that provide a lasting defense against rust, wear and harmful UV rays.
Description_SHO	Class 1 Fixed-Tongue
Description_SHO	Class 1 Hitch
Description_SLA	CURT class 1 trailer hitches are the lightest-duty hitches of our rear mount lineup. They are engineered for reliability, welded together with quality steel and blasted clean for a smooth finish. Tested to meet the strict demands of the industry, this CURT class 1 hitch has a capacity to tow up to 1,500 lbs. of gross trailer weight and 150 lbs. of tongue weight. This means it can handle a variety of small trailers such as single-axle utility trailers, canoe and kayak trailers, dirt bike trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This class 1 hitch is a fixed-tongue hitch, having a fixed draw bar to accept a trailer ball rather than a receiver tube to accept a ball mount. Class 1 hitches are typically mounted on compact cars, full-size cars and some smaller crossover SUVs, minivans and compact SUVs. This particular hitch is designed to be a custom-fit trailer hitch for certain years of the Nissan Pulsar coupe (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It comes with all necessary installation hardware. Each CURT class 1 hitch is co-cured with a liquid A-coat and a high-gloss black powder coat that provide a lasting defense against rust, wear and harmful UV rays.
Finish - XA	GLOSS BLACK POWDER COAT
height	12.0
Item Class - XA	MFH
Item Height - XA	5.940
Item Length - XA	18.720
Item Width - XA	17.000
length	33.0
LTL	N
Main Body Shape	Flat
Parcel Allowed - XA	Yes
Product Weight - XA	11.000
Rate Class - XA	70.0
Receiver Tube Size	No Receiver Tube
Retail Height - XA	12.000
Retail Length - XA	33.000
Retail Width - XA	18.000
Shipping Weight - XA	15.750
Tariff 301 - XA	No
Title	Class 1 Fixed-Tongue Trailer Hitch with 3/4" Trailer Ball Hole
Tongue Weight (TW)	150 LB
Warranty	Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
weight	15.75
Weight Carrying Capacity (WC)	1,500 LB
Weight Distribution (WD)	n/a
Weight Distribution Tongue Weight (WDTW)	n/a
width	18.0
