CURT 13016 Class 3 Trailer Hitch; 2in. Receiver; Select Chevrolet; GMC G-Series Vans

Whatever your task at hand -- whether its launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Chevy G10, G20 or G30 and GMC G15, G1500, G25, G2500, G35 or G3500 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 6,000 lbs. GTW and 600 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 10,000 lbs. WD and 1,000 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid Bonderite and black powder coat for superior resistance to rust, chipping and UV damage.

Resources

Installation Instructions

Body Shape	Square
Box Height in Inches - XA	22
Box Length in Inches - XA	48
Box Width in Inches - XA	10
Class ID	3
Description_ABR	CL 3
Description_ASC	Class 3 Trailer Hitch, 2" Receiver, Select Chevrolet, GMC G-Series Vans

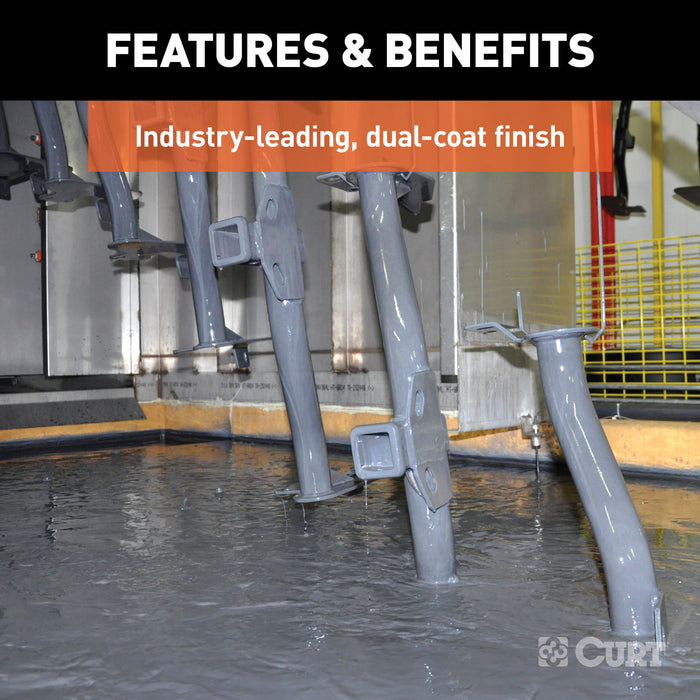

Description_ASC	Co-cured in a rust-resistant liquid A-coat, inside and out
Description_ASC	Compatible with weight distribution hitch (10,000 lbs. WD / 1,000 lbs. WDTW)
Description_ASC	Concealed main body for OE look and seamless integration with the vehicle
Description_ASC	Engineered with a vehicle-specific design for a custom fit

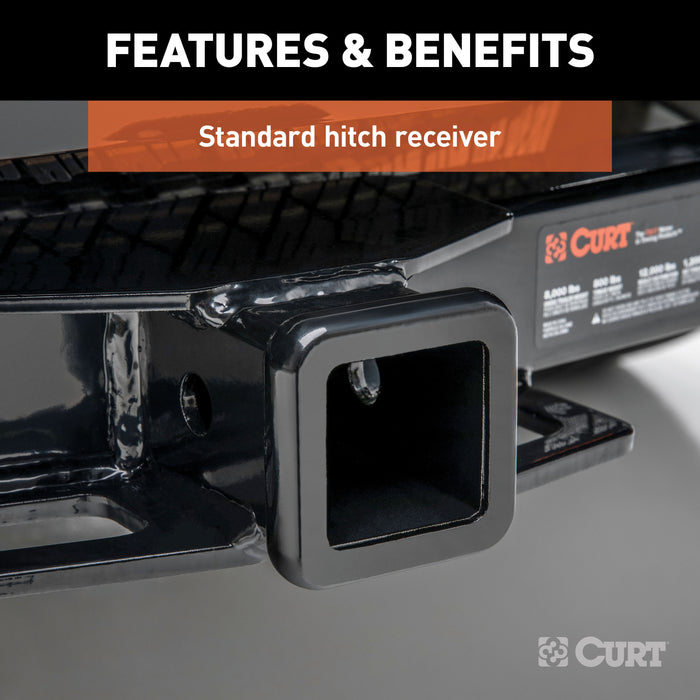

Description_ASC	Equipped with an open-back receiver for easy cleaning
Description_ASC	Limited lifetime warranty (one-year finish, one-year parts)
Description_ASC	Made in USA (may include imported hardware)
Description_ASC	Precisely welded for superior strength and fit
Description_ASC	Protected by a durable high-gloss black powder coat finish
Description_ASC	Rated to 6,000 lbs. gross trailer weight and 600 lbs. tongue weight

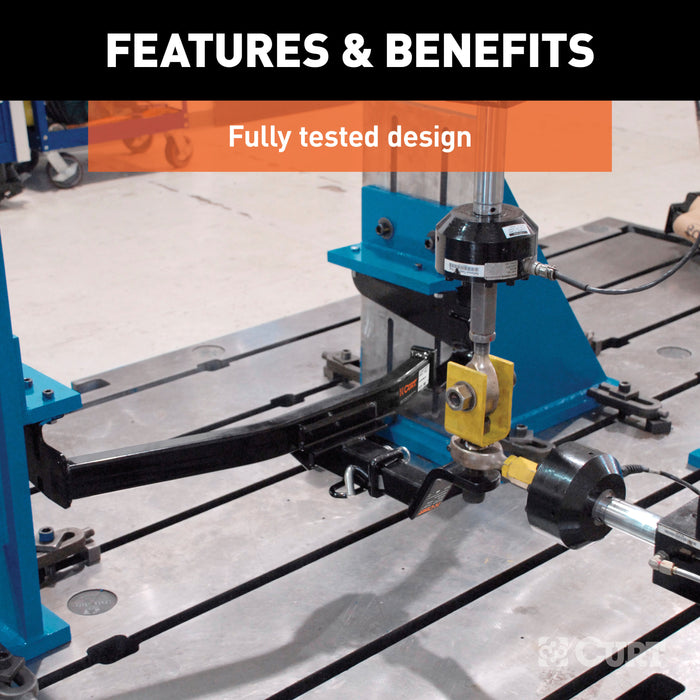

Description_ASC	Tested for safety in accordance with SAE J684
Description_ASM	CURT 13016 Class 3 Trailer Hitch, 2-Inch Receiver, Fits Select Chevrolet, GMC G-Series Vans
Description_DEF	Trailer Hitch
Description_DES	Class 3 Trailer Hitch, 2" Receiver, Select Chevrolet, GMC G-Series Vans
Description_DES	Class 3 Trailer Hitch; 2in. Receiver; Select Chevrolet; GMC G-Series Vans
Description_EXT	CURT 13016 Class 3 Trailer Hitch, 2-Inch Receiver, Fits Select Chevrolet, GMC G-Series Vans
Description_EXT	CURT 13016 Class 3 Trailer Hitch; 2-Inch Receiver; Fits Select Chevrolet; GMC G-Series Vans
Description_FAB	Backed By A Limited Lifetime Warranty
Description_FAB	Co-Cured In A Rust-Resistant Liquid Bonderite Coating
Description_FAB	Equipped w/An Open-Back Receiver For Easy Cleaning
Description_FAB	Made in USA [may include imported hardware]
Description_FAB	Made w/A Vehicle-Specific Design For A Custom Fit
Description_FAB	Precisely Welded For Superior Strength And Fit
Description_FAB	Protected By A Durable High-Gloss Black Powder Coat Finish
Description_FAB	Strengthened w/A Cast Welded Seamless Collar
Description_FAB	Tested For Safety In Accordance w/SAE J684
Description_INV	Class 3 Trailer Hitch
Description_KEY	draw bumper hidden iii rigid rv hitchs series max e reciever bar universal 2inch bolton truck connector tite replacement w bracket oem trailor reciver bolt-on pro racks hicth b 2in 1978 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996
Description_LAB	Made In Logo
Description_MKT	Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Chevy G10, G20 or G30 and GMC G15, G1500, G25, G2500, G35 or G3500 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 6,000 lbs. GTW and 600 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 10,000 lbs. WD and 1,000 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Description_MKT	Whatever your task at hand -- whether its launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Chevy G10, G20 or G30 and GMC G15, G1500, G25, G2500, G35 or G3500 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 6,000 lbs. GTW and 600 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 10,000 lbs. WD and 1,000 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid Bonderite and black powder coat for superior resistance to rust, chipping and UV damage.
Description_SHO	Class 3 Hitch
Description_SHO	Class 3 Trailer Hitc
Description_SLA	Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Chevy G10, G20 or G30 and GMC G15, G1500, G25, G2500, G35 or G3500 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 6,000 lbs. GTW and 600 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 10,000 lbs. WD and 1,000 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Drilling Required	No
finish	Gloss Black Powder Coat
Finish - XA	GLOSS BLACK POWDER COAT
Gross Trailer Weight	6000 lbs.
height	11.0
Install Time	40 Minutes
Item Class - XA	MFH
Item Height - XA	10.200
Item Length - XA	43.880
Item Width - XA	22.000
length	49.0
LTL	N
Main Body Shape	Square
Parcel Allowed - XA	Yes
Position	Rear
Product Weight - XA	44.000
Rate Class - XA	70.0
Receiver Tube Size	2 IN
Receiver Tube Size	2.000 in.
Retail Height - XA	11.000
Retail Length - XA	49.000
Retail Width - XA	24.000
Shipping Weight - XA	52.000
Tariff 301 - XA	No
Title	Class 3 Trailer Hitch, 2" Receiver, Select Chevrolet, GMC G-Series Vans
Tongue Weight (TW)	600 LB
WARNING CA Proposition 65	No
Warranty	Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
weight	52.0
Weight Carrying Capacity (WC)	6,000 LB
Weight Distribution (WD)	10,000 LB
Weight Distribution Tongue Weight (WDTW)	1,000 LB
width	24.0
