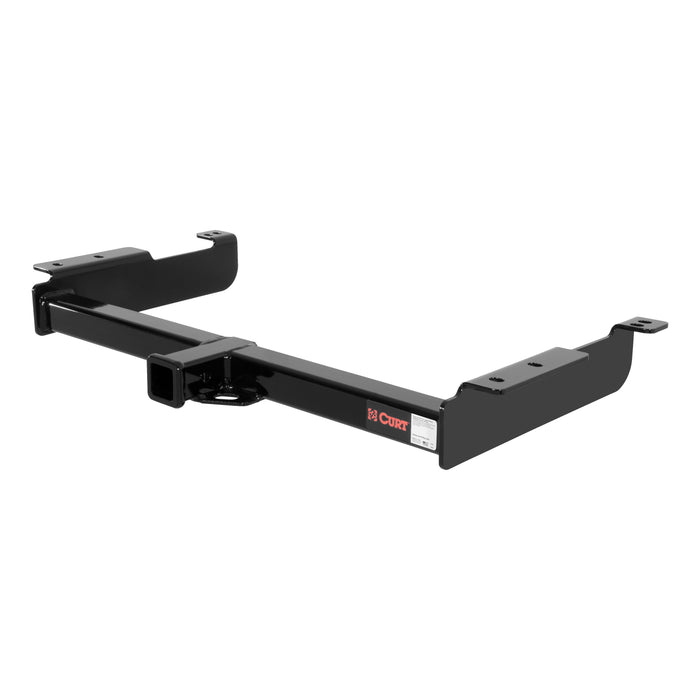

CURT 14090 Class 4 Trailer Hitch; 2in. Receiver; Select Chevrolet Express; GMC Savana
by CURT
SKU ds_BKDK_14090
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$408.49
-
Original price
$408.49
Original price
$408.49
$408.49
$408.49
-
$408.49
Current price
$408.49
Description
Whatever the next item is on your to-do list -- whether its arriving at the jobsite before dawn or getting your travel trailer set up in time to see the sunset -- CURT class 4 trailer hitches offer greater towing power to let you Bring It. These custom receiver hitches are built to tackle bigger jobs and bolder adventures, all while giving you a custom fit for your vehicle. Class 4 hitches are available for a variety of makes and models, from pickup trucks and SUVs to full-size and commercial vans. This particular class 4 hitch fits certain years of the Chevy Express 1500, 2500 or 3500 and GMC Savana 1500, 2500 or 3500 (to verify vehicle compatibility, see application info). It provides a weight carrying capacity of 10,000 lbs. GTW and 1,000 lbs. TW. It can also accept a weight distributing hitch, offering a maximum WD capacity of 12,000 lbs. and a WDTW of 1,200 lbs. CURT class 4 tow hitches are as much suited for work as they are for play. With their high load capacities, they are typically used for towing larger trailers, including everything from a double-axle utility trailer or livestock trailer to a full-length camper or large boat trailer (NOTE: Never exceed the lowest weight capacity of any towing component). All CURT class 4 receiver hitches come with a 2" receiver tube opening and all the necessary hardware for a complete installation. From light-duty to heavy-duty, every CURT custom hitch is engineered to be vehicle-specific, using actual vehicles to create the optimal design. We then combine high-strength steel, precise welding and a co-cured finish of liquid Bonderite and durable black powder coat to provide you with a hitch you can depend on. To prove it, we test all our hitches in accordance with SAE J684 for safety.
Resources
Installation InstructionsSpecifications
| Body Shape | Square |
| Box Height in Inches - XA | 26 |
| Box Length in Inches - XA | 43 |
| Box Width in Inches - XA | 7 |
| Class ID | 4 |
| Description_ABR | CL 4 |
| Description_ASC | Class 4 Trailer Hitch, 2" Receiver, Select Chevrolet Express, GMC Savana |
| Description_ASC | Co-cured in a rust-resistant liquid A-coat, inside and out |
| Description_ASC | Compatible with weight distribution hitch (12,000 lbs. WD / 1,200 lbs. WDTW) |
| Description_ASC | Engineered with a vehicle-specific design for a custom fit |

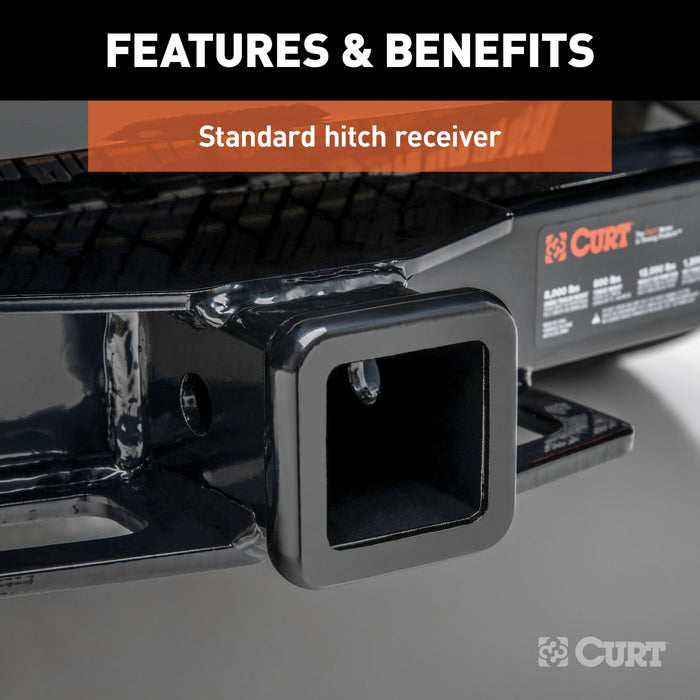

| Description_ASC | Equipped with an open-back receiver for easy cleaning |
| Description_ASC | Limited lifetime warranty (one-year finish, one-year parts) |
| Description_ASC | Made in USA (may include imported hardware) |
| Description_ASC | Precisely welded for superior strength and fit |
| Description_ASC | Protected by a durable high-gloss black powder coat finish |
| Description_ASC | Rated to 10,000 lbs. gross trailer weight and 1,000 lbs. tongue weight |
| Description_ASC | Tested for safety in accordance with SAE J684 |
| Description_ASM | CURT 14090 Class 4 Trailer Hitch, 2-Inch Receiver, Fits Select Chevrolet Express, GMC Savana |
| Description_DEF | Trailer Hitch |
| Description_DES | Class 4 Trailer Hitch, 2" Receiver, Select Chevrolet Express, GMC Savana |
| Description_DES | Class 4 Trailer Hitch; 2in. Receiver; Select Chevrolet Express; GMC Savana |
| Description_EXT | CURT 14090 Class 4 Trailer Hitch, 2-Inch Receiver, Fits Select Chevrolet Express, GMC Savana |
| Description_EXT | CURT 14090 Class 4 Trailer Hitch; 2-Inch Receiver; Fits Select Chevrolet Express; GMC Savana |
| Description_FAB | Backed By A Limited Lifetime Warranty |
| Description_FAB | Co-Cured In A Rust-Resistant Liquid Bonderite Coating |
| Description_FAB | Equipped w/An Open-Back Receiver For Easy Cleaning |
| Description_FAB | Made in USA [may include imported hardware] |

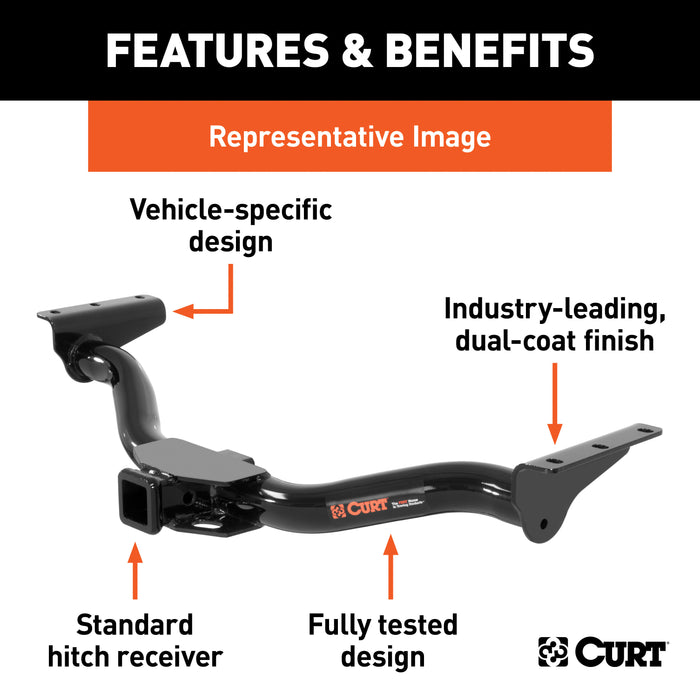

| Description_FAB | Made w/A Vehicle-Specific Design For A Custom Fit |
| Description_FAB | Precisely Welded For Superior Strength And Fit |
| Description_FAB | Protected By A Durable High-Gloss Black Powder Coat Finish |
| Description_FAB | Strengthened w/A Cast Welded Seamless Collar |
| Description_FAB | Tested For Safety In Accordance w/SAE J684 |
| Description_INV | Class 4 Trailer Hitch |
| Description_KEY | iv hauler 10000lb 12000 lb factory 2 inch rear 10000 12000lb conector rv step four square tite starter kit draw package bolt reciever recievers welded bolt-on 2in bolts 10000lbs oem aftermarket 1996 2012 2013 2014 2015 2016 2017 2018 2019 2020 |
| Description_LAB | Made In Logo |
| Description_MKT | Whatever the next item is on your to-do list -- whether it's arriving at the jobsite before dawn or getting your travel trailer set up in time to see the sunset -- CURT class 4 trailer hitches offer greater towing power to let you Bring It. These custom receiver hitches are built to tackle bigger jobs and bolder adventures, all while giving you a custom fit for your vehicle. Class 4 hitches are available for a variety of makes and models, from pickup trucks and SUVs to full-size and commercial vans. This particular class 4 hitch fits certain years of the Chevy Express 1500, 2500 or 3500 and GMC Savana 1500, 2500 or 3500 (to verify vehicle compatibility, see application info). It provides a weight carrying capacity of 10,000 lbs. GTW and 1,000 lbs. TW. It can also accept a weight distributing hitch, offering a maximum WD capacity of 12,000 lbs. and a WDTW of 1,200 lbs. CURT class 4 tow hitches are as much suited for work as they are for play. With their high load capacities, they are typically used for towing larger trailers, including everything from a double-axle utility trailer or livestock trailer to a full-length camper or large boat trailer (NOTE: Never exceed the lowest weight capacity of any towing component). All CURT class 4 receiver hitches come with a 2" receiver tube opening and all the necessary hardware for a complete installation. From light-duty to heavy-duty, every CURT custom hitch is engineered to be vehicle-specific, using actual vehicles to create the optimal design. We then combine high-strength steel, precise welding and a co-cured finish of liquid A-coat and durable black powder coat to provide you with a hitch you can depend on. To prove it, we test all our hitches in accordance with SAE J684 for safety. |
| Description_MKT | Whatever the next item is on your to-do list -- whether its arriving at the jobsite before dawn or getting your travel trailer set up in time to see the sunset -- CURT class 4 trailer hitches offer greater towing power to let you Bring It. These custom receiver hitches are built to tackle bigger jobs and bolder adventures, all while giving you a custom fit for your vehicle. Class 4 hitches are available for a variety of makes and models, from pickup trucks and SUVs to full-size and commercial vans. This particular class 4 hitch fits certain years of the Chevy Express 1500, 2500 or 3500 and GMC Savana 1500, 2500 or 3500 (to verify vehicle compatibility, see application info). It provides a weight carrying capacity of 10,000 lbs. GTW and 1,000 lbs. TW. It can also accept a weight distributing hitch, offering a maximum WD capacity of 12,000 lbs. and a WDTW of 1,200 lbs. CURT class 4 tow hitches are as much suited for work as they are for play. With their high load capacities, they are typically used for towing larger trailers, including everything from a double-axle utility trailer or livestock trailer to a full-length camper or large boat trailer (NOTE: Never exceed the lowest weight capacity of any towing component). All CURT class 4 receiver hitches come with a 2" receiver tube opening and all the necessary hardware for a complete installation. From light-duty to heavy-duty, every CURT custom hitch is engineered to be vehicle-specific, using actual vehicles to create the optimal design. We then combine high-strength steel, precise welding and a co-cured finish of liquid Bonderite and durable black powder coat to provide you with a hitch you can depend on. To prove it, we test all our hitches in accordance with SAE J684 for safety. |
| Description_SHO | Class 4 Hitch |
| Description_SHO | Class 4 Trailer Hitc |
| Description_SLA | Whatever the next item is on your to-do list -- whether it's arriving at the jobsite before dawn or getting your travel trailer set up in time to see the sunset -- CURT class 4 trailer hitches offer greater towing power to let you Bring It. These custom receiver hitches are built to tackle bigger jobs and bolder adventures, all while giving you a custom fit for your vehicle. Class 4 hitches are available for a variety of makes and models, from pickup trucks and SUVs to full-size and commercial vans. This particular class 4 hitch fits certain years of the Chevy Express 1500, 2500 or 3500 and GMC Savana 1500, 2500 or 3500 (to verify vehicle compatibility, see application info). It provides a weight carrying capacity of 10,000 lbs. GTW and 1,000 lbs. TW. It can also accept a weight distributing hitch, offering a maximum WD capacity of 12,000 lbs. and a WDTW of 1,200 lbs. CURT class 4 tow hitches are as much suited for work as they are for play. With their high load capacities, they are typically used for towing larger trailers, including everything from a double-axle utility trailer or livestock trailer to a full-length camper or large boat trailer (NOTE: Never exceed the lowest weight capacity of any towing component). All CURT class 4 receiver hitches come with a 2" receiver tube opening and all the necessary hardware for a complete installation. From light-duty to heavy-duty, every CURT custom hitch is engineered to be vehicle-specific, using actual vehicles to create the optimal design. We then combine high-strength steel, precise welding and a co-cured finish of liquid A-coat and durable black powder coat to provide you with a hitch you can depend on. To prove it, we test all our hitches in accordance with SAE J684 for safety. |
| Drilling Required | No |
| finish | Gloss Black Powder Coat |
| Finish - XA | GLOSS BLACK POWDER COAT |
| Gross Trailer Weight | 10000 lbs. |
| height | 8.0 |
| Install Time | 20 Minutes |
| Item Class - XA | MFH |
| Item Height - XA | 4.810 |
| Item Length - XA | 42.500 |
| Item Width - XA | 24.000 |
| length | 44.0 |
| LTL | N |
| Main Body Shape | Square |
| Parcel Allowed - XA | Yes |
| Position | Rear |
| Product Weight - XA | 48.000 |
| Rate Class - XA | 70.0 |
| Receiver Tube Size | 2 IN |
| Receiver Tube Size | 2.000 in. |
| Retail Height - XA | 8.000 |
| Retail Length - XA | 44.000 |
| Retail Width - XA | 28.000 |
| Shipping Weight - XA | 54.000 |
| Tariff 301 - XA | No |
| Title | Class 4 Trailer Hitch, 2" Receiver, Select Chevrolet Express, GMC Savana |
| Tongue Weight (TW) | 1,000 LB |
| WARNING CA Proposition 65 | No |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| weight | 54.0 |
| Weight Carrying Capacity (WC) | 10,000 LB |
| Weight Distribution (WD) | 12,000 LB |
| Weight Distribution Tongue Weight (WDTW) | 1,200 LB |
| width | 28.0 |
