The CURT Q25 5th wheel hitch offers superior towing power and a quiet ride to be the ultimate in RV towing. The Q25 excels in quiet towing operation. Its spherical axial bearing offers free movement of the head, allowing it to tilt in any direction. Once coupled to the kingpin, the head pivots and angles with your 5th wheel trailer. It also uses a pair of dual-locking jaws to completely wrap the kingpin and ensure a secure vehicle-trailer connection. To make the Q25 even quieter, it comes with three grease fittings and a polyethylene lube plate for optimum lubrication. Constructed from strong carbon steel and rigorously tested for safety in accordance with SAE J2638, this 5th wheel hitch offers a gross trailer weight capacity of 25,000 lbs. and a vertical load limit of 6,250 lbs. It is the ideal extension for your full-size 1/2-ton, 3/4-ton or 1-ton pickup truck. To ensure good functionality and a long life under the most strenuous towing conditions, the Q25 is also coated in a black carbide powder coat finish, giving it highly durable protection against rust and wear. Like our other Q-series 5th wheel hitches, the Q25 features a three-position coupling indicator that is visible from the truck cab and tells you the exact coupling status of your trailer. It also comes with a wide, self-aligning head for easier coupling and a variety of mounting options to accommodate your specific pickup. This 25K 5th wheel comes with base rails #16200 to be mounted in the bed of your truck, using a 5th wheel bracket kit (brackets sold separately). To let you Bring It with complete confidence, the Q25 comes backed with a limited lifetime warranty and all the credibility of the CURT name. Certain turret-style pin boxes, such as Sidewinder, are not compatible with CURT Q-series hitches and should not be used as they may create vehicle / trailer handling hazards.
Resources
Installation Instructions| Box Height in Inches - XA | 0 |
| Box Length in Inches - XA | 0 |
| Box Width in Inches - XA | 0 |
| capacity | 25,000 LB |
| capacity | 25000 lbs. |
| Class ID | 0 |
| Description_ABR | 25K |

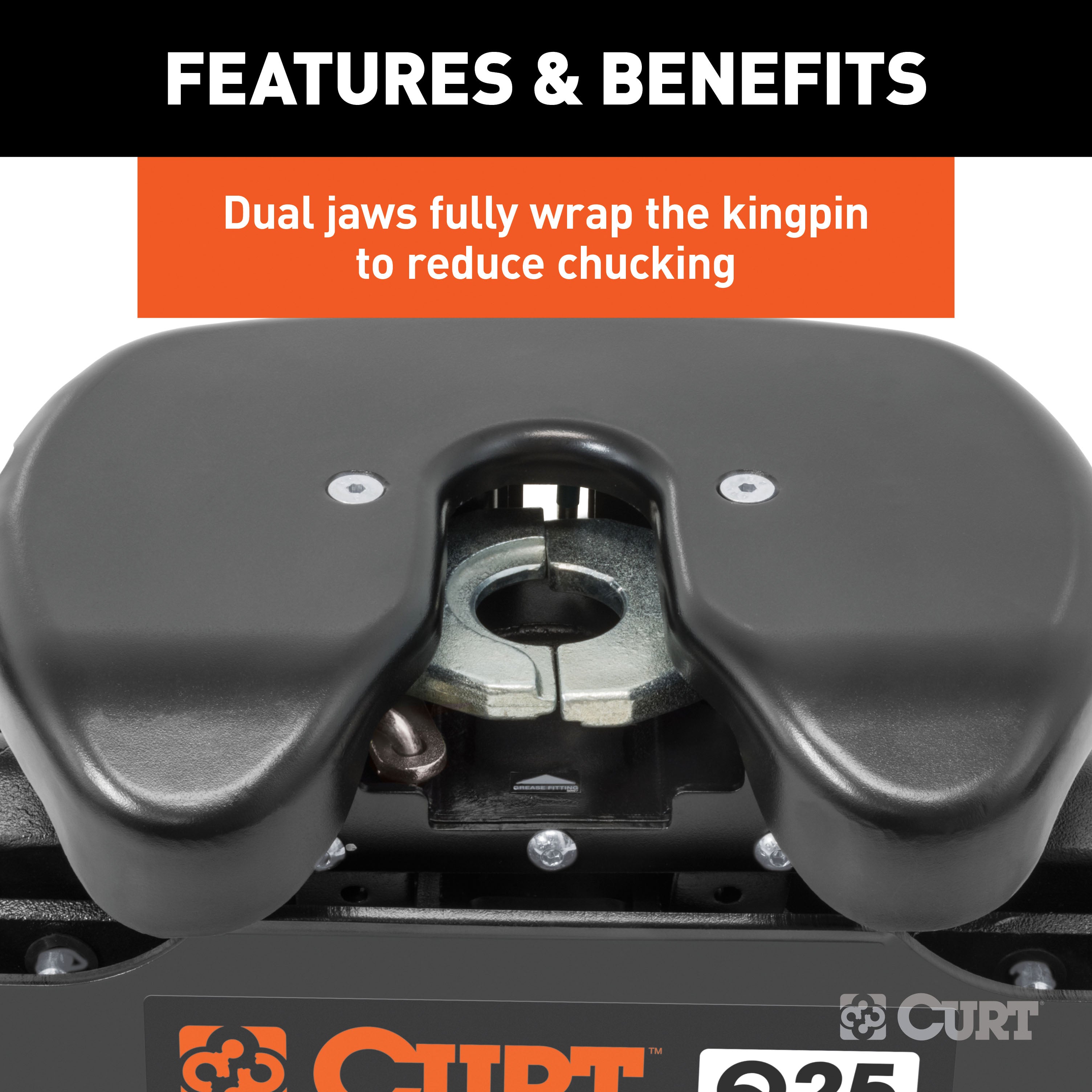

| Description_ASC | Dual jaws fully wrap the kingpin to reduce chucking and increase security |
| Description_ASC | Includes a polyethylene lube plate to eliminate messy grease deposits |
| Description_ASC | Limited lifetime warranty (one-year finish, one-year parts) |
| Description_ASC | Lockable, short-throw handle automatically engages with the kingpin |
| Description_ASC | Offers three height adjustment positions to adapt to each unique truck bed |
| Description_ASC | Protected by a highly durable carbide powder coat finish |

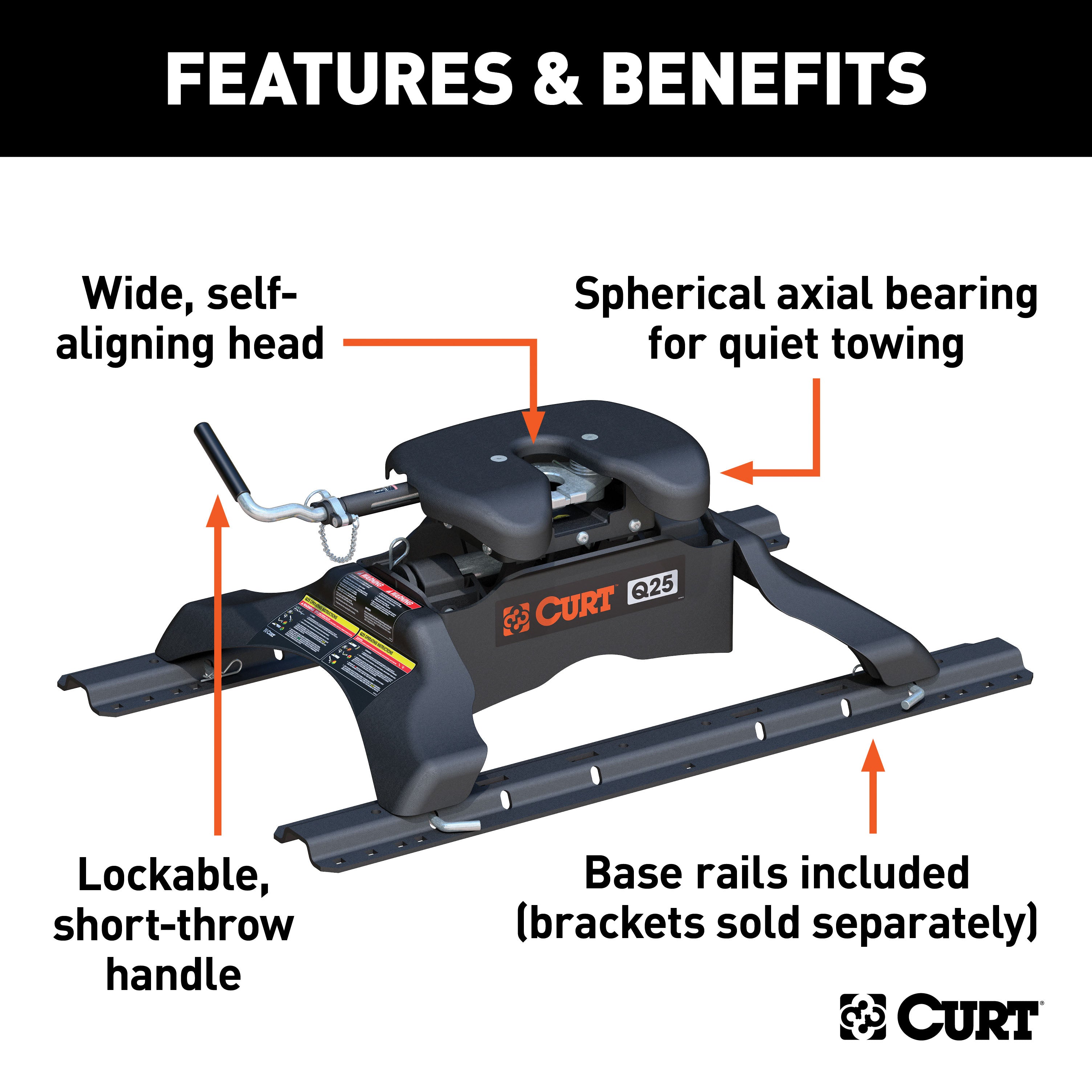

| Description_ASC | Q25 5th Wheel Hitch with Rails |

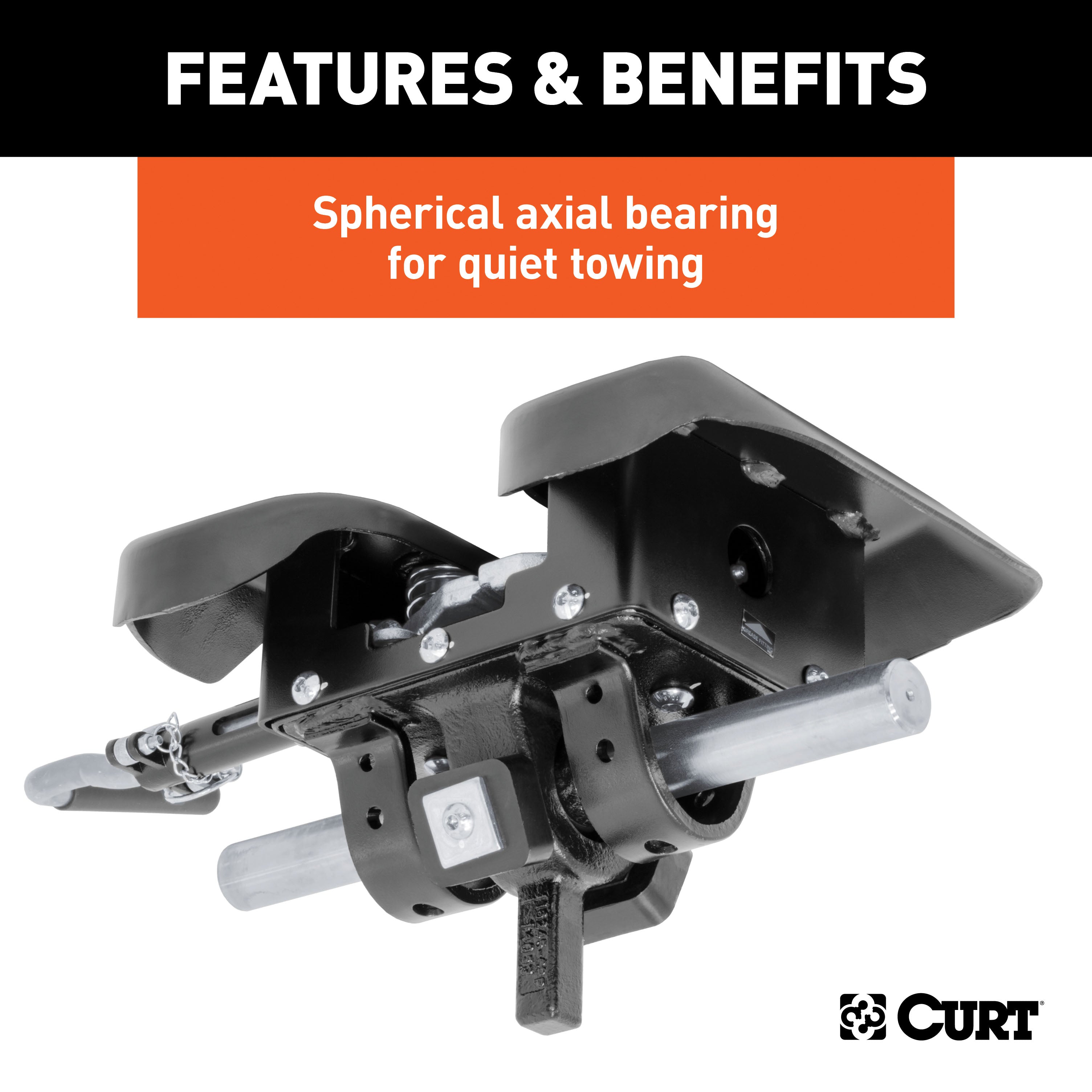

| Description_ASC | Spherical axial bearing tilts head in any direction for a smooth, quiet ride |
| Description_ASC | Tested for safety in accordance with SAE J2638 |

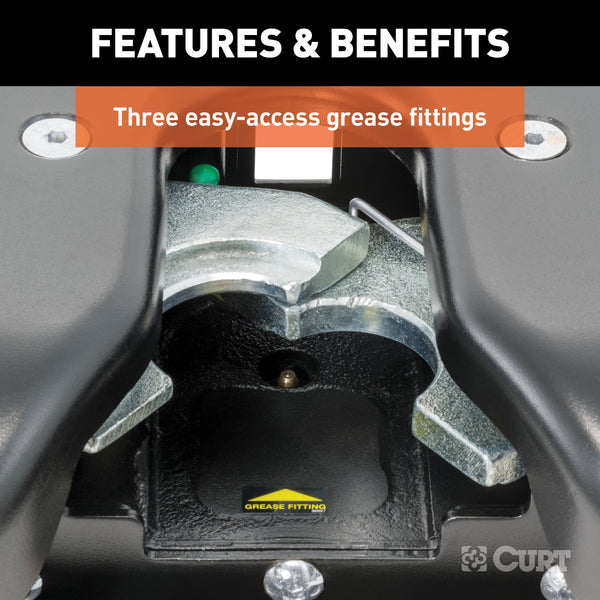

| Description_ASC | Three easy-access grease fittings for lubrication |
| Description_ASC | Three-position coupling indicator clearly shows coupling status |
| Description_ASC | Wide, self-aligning head helps eliminate errors when backing up to the trailer |
| Description_ASM | CURT 16266 Q25 5th Wheel Hitch with Base Rails, 25,000 lbs |
| Description_DEF | Fifth Wheel Trailer Hitch Head Unit |
| Description_DES | Q25 5th Wheel Hitch with Rails |
| Description_EXT | CURT 16266 Q25 5th Wheel Hitch with Base Rails, 25,000 lbs |
| Description_EXT | CURT 16266 Q25 5th Wheel Hitch with Base Rails; 25;000 lbs |
| Description_FAB | Backed By A 10-Year Limited Warranty |
| Description_FAB | Dual Jaws Provide 360-Degree Kingpin Contact |
| Description_FAB | Incl. A Polyethylene Lube Plate To Eliminate Messy Grease Deposit |
| Description_FAB | Incl. Q25 5Th Wheel #16265 And Base Rails #16200 |
| Description_FAB | Operates Using A Short Lockable Single-Throw Handle |
| Description_FAB | Protected By A Highly Durable Carbide Powder Coat Finish |
| Description_FAB | Self-Aligning Head Offers A Wide Opening For Easy Coupling |
| Description_FAB | Spherical Axial Bearing For Unimpeded Movement And Quiet Towing |
| Description_FAB | Three Grease Fittings For Easy Lubrication |
| Description_FAB | Three-Position Coupling Indicator Is Clearly Visible From Truck |
| Description_INV | Q25 5th Wheel Hitch with Rails |
| Description_KEY | fifth 5 puck system kingpin head receiver articulating cam trailer pivoting bushing factory tow wheels rv gooseneck release handle rails towing hitches back heavy duty 25000 |
| Description_MKT | The CURT Q25 5th wheel hitch offers superior towing power and a quiet ride to be the ultimate in RV towing. The Q25 excels in quiet towing operation. Its spherical axial bearing offers free movement of the head, allowing it to tilt in any direction. Once coupled to the kingpin, the head pivots and angles with your 5th wheel trailer. It also uses a pair of dual-locking jaws to completely wrap the kingpin and ensure a secure vehicle-trailer connection. To make the Q25 even quieter, it comes with three grease fittings and a polyethylene lube plate for optimum lubrication. Constructed from strong carbon steel and rigorously tested for safety in accordance with SAE J2638, this 5th wheel hitch offers a gross trailer weight capacity of 25,000 lbs. and a vertical load limit of 6,250 lbs. It is the ideal extension for your full-size 1/2-ton, 3/4-ton or 1-ton pickup truck. To ensure good functionality and a long life under the most strenuous towing conditions, the Q25 is also coated in a black carbide powder coat finish, giving it highly durable protection against rust and wear. Like our other Q-series 5th wheel hitches, the Q25 features a three-position coupling indicator that is visible from the truck cab and tells you the exact coupling status of your trailer. It also comes with a wide, self-aligning head for easier coupling and a variety of mounting options to accommodate your specific pickup. This 25K 5th wheel comes with base rails #16200 to be mounted in the bed of your truck, using a 5th wheel bracket kit (brackets sold separately). To let you Bring It with complete confidence, the Q25 comes backed with a limited lifetime warranty and all the credibility of the CURT name. Certain turret-style pin boxes, such as Sidewinder, are not compatible with CURT Q-series hitches and should not be used as they may create vehicle / trailer handling hazards. |
| Description_SHO | Q25 5th Wheel Hitch |
| Description_SLA | The CURT Q25 5th wheel hitch offers superior towing power and a quiet ride to be the ultimate in RV towing. The Q25 excels in quiet towing operation. Its spherical axial bearing offers free movement of the head, allowing it to tilt in any direction. Once coupled to the kingpin, the head pivots and angles with your 5th wheel trailer. It also uses a pair of dual-locking jaws to completely wrap the kingpin and ensure a secure vehicle-trailer connection. To make the Q25 even quieter, it comes with three grease fittings and a polyethylene lube plate for optimum lubrication. Constructed from strong carbon steel and rigorously tested for safety in accordance with SAE J2638, this 5th wheel hitch offers a gross trailer weight capacity of 25,000 lbs. and a vertical load limit of 6,250 lbs. It is the ideal extension for your full-size 1/2-ton, 3/4-ton or 1-ton pickup truck. To ensure good functionality and a long life under the most strenuous towing conditions, the Q25 is also coated in a black carbide powder coat finish, giving it highly durable protection against rust and wear. Like our other Q-series 5th wheel hitches, the Q25 features a three-position coupling indicator that is visible from the truck cab and tells you the exact coupling status of your trailer. It also comes with a wide, self-aligning head for easier coupling and a variety of mounting options to accommodate your specific pickup. This 25K 5th wheel comes with base rails #16200 to be mounted in the bed of your truck, using a 5th wheel bracket kit (brackets sold separately). To let you Bring It with complete confidence, the Q25 comes backed with a limited lifetime warranty and all the credibility of the CURT name. Certain turret-style pin boxes, such as Sidewinder, are not compatible with CURT Q-series hitches and should not be used as they may create vehicle / trailer handling hazards. |
| finish | Carbide Black Powder Coat |
| Finish - XA | CARBIDE BLACK POWDER COAT |
| Gross Trailer Weight | 25000 lbs. |
| height | 15.0 |
| Item Class - XA | OBS |
| Item Height - XA | 0.000 |
| Item Length - XA | 0.000 |
| Item Width - XA | 0.000 |
| length | 48.0 |
| LTL | N |
| Parcel Allowed - XA | No |
| Product Weight - XA | 0.000 |
| Rate Class - XA | 70.0 |
| Retail Height - XA | 15.000 |
| Retail Length - XA | 48.000 |
| Retail Width - XA | 17.000 |
| Shipping Weight - XA | 189.000 |
| Tariff 301 - XA | Yes |
| Title | Q25 5th Wheel Hitch with Rails |
| Vertical Load | 6,250 LB |
| Vertical Load | 6250 |
| WARNING CA Proposition 65 | No |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| weight | 189.0 |
| width | 17.0 |
