Availability:
4+ in stock
CURT 16310 X5 Gooseneck-to-5th-Wheel Adapter Plate with Square Shank
by CURT
SKU ds_BKDK_16310
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$897.35
-
Original price
$897.35
Original price
$897.35
$897.35
$897.35
-
$897.35
Current price
$897.35
Description

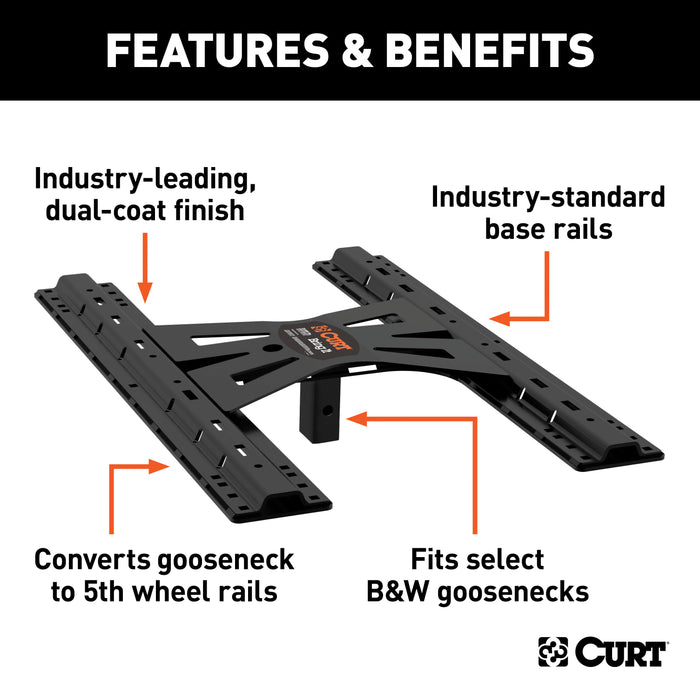

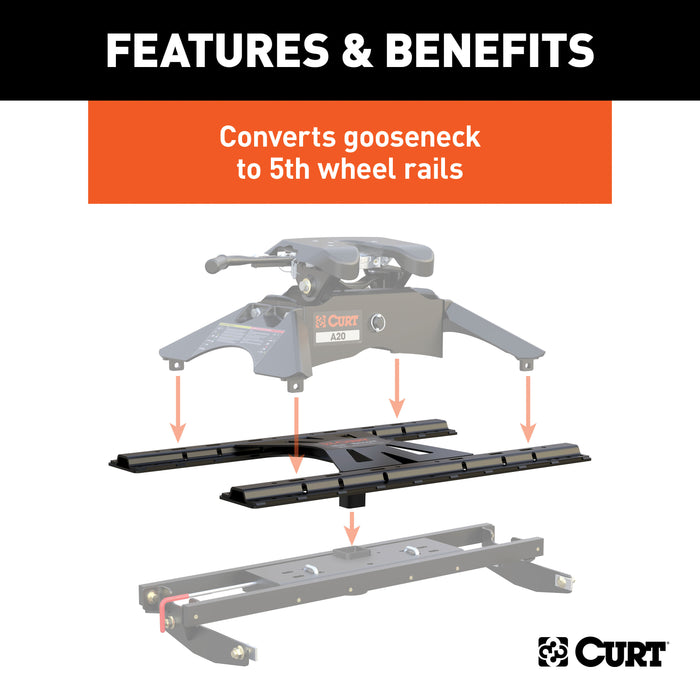

CURT 5th wheel adapter plates are a fast, dependable way to convert your gooseneck trailer hitch into a set of 5th wheel rails to accept a 5th wheel hitch and switch back again. With gooseneck installation brackets and a gooseneck hitch already mounted, the adapter plate post simply mounts into the gooseneck trailer ball hole using a solid shank and is secured with the locking mechanism provided by the gooseneck hitch. One of the most attractive features about CURT 5th wheel adapter plates is that they are practically instantaneous: insert the shank, apply the locking mechanism and just like that you have a sturdy pair of 5th wheel rails. This CURT 5th wheel adapter plate features a square shank and is compatible with B & W Turnoverball gooseneck hitches with a square shank removable ball. It features a gross trailer weight capacity of 20,000 lbs., allowing it to adapt and accept a number of 5th wheel hitches. This 5th wheel adapter plate offers a simple pin-and-clip conversion for gooseneck hitches and has multiple mounting points to accept either 5th wheel legs or a 5th wheel roller.
Resources
Installation InstructionsSpecifications
| Box Height in Inches - XA | 0 |
| Box Length in Inches - XA | 0 |
| Box Width in Inches - XA | 0 |
| Class ID | 0 |
| Description_ABR | ADAP2 |
| Description_ASC | Co-cured in a rust-resistant liquid A-coat |
| Description_ASC | Converts B&W gooseneck hitches to 5th wheel base rails |
| Description_ASC | For use with CURT and competitive 5th wheels up to 20,000 lbs. |

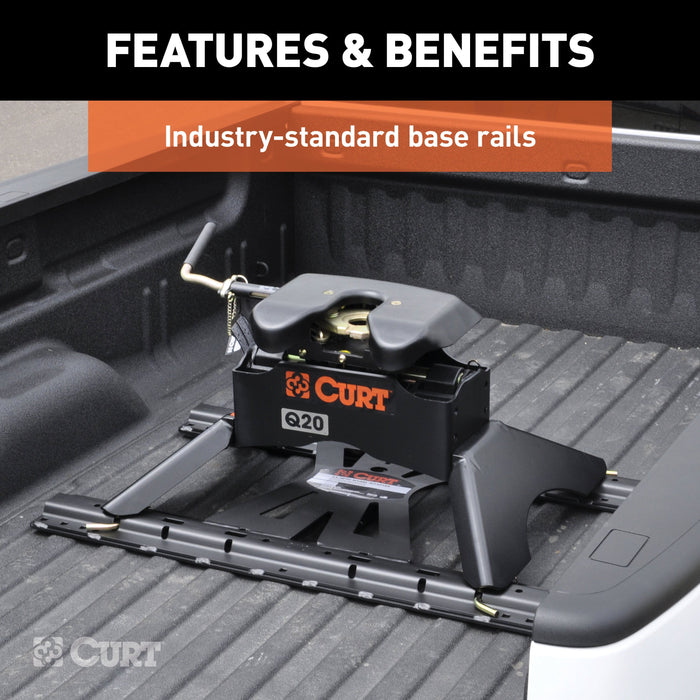

| Description_ASC | Industry-standard base rails accept 5th wheel hitches and rollers |
| Description_ASC | Limited lifetime warranty (one-year finish, one-year parts) |
| Description_ASC | No assembly or tools required – just drop it in, lock it and go |
| Description_ASC | Protected by a highly durable carbide powder coat finish |

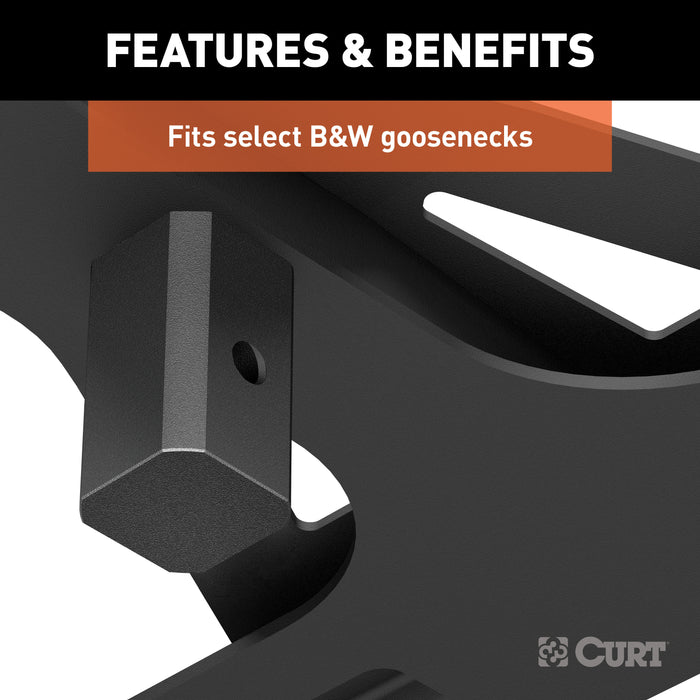

| Description_ASC | Square shank for use with gooseneck hitches with square ball hole |
| Description_ASC | X5 Gooseneck-to-5th-Wheel Adapter Plate with Square Shank |
| Description_ASM | CURT 16310 X5 Gooseneck to 5th Wheel Adapter for B&W Hitches, Industry-Standard Base Rails, 20,000 lbs |
| Description_DEF | Fifth Wheel Trailer Hitch Mount Kit |
| Description_DES | X5 Gooseneck-to-5th-Wheel Adapter Plate with Square Shank |
| Description_EXT | CURT 16310 X5 Gooseneck to 5th Wheel Adapter for B&W Hitches, Industry-Standard Base Rails, 20,000 lbs |
| Description_EXT | CURT 16310 X5 Gooseneck to 5th Wheel Adapter for B/W Hitches; Industry-Standard Base Rails; 20;000 lbs |
| Description_FAB | Co-Cured In A Rust-Resistant Liquid Bonderite Coating |
| Description_FAB | Converts Competitive Gooseneck Hitches To 5Th Wheel Rails |
| Description_FAB | For Use w/Curt And Competitive 5Th Wheels Up To 20000 Lbs. |
| Description_FAB | Industry-Standard Base Rails Accept 5Th Wheel Hitches And Rollers |
| Description_FAB | Made In USA |
| Description_FAB | Protected By A Highly Durable Carbide Powder Coat Finish |
| Description_FAB | Square Shank For Use w/Gooseneck Hitches w/Square Ball Hole |
| Description_INV | X5 Gooseneck-to-5th-Wheel Adapter Plate |
| Description_KEY | adaptor factory w coupler fifthwheel fithwheel extension b adapters adaptors 5thwheel converters trucks hooked bw fith 20000lb convertor tripod kit puller hook connection companion stand swivel bracket hookup connector beds goosenck combo inbed |
| Description_LAB | Made In Logo |
| Description_MKT | CURT 5th wheel adapter plates are a fast, dependable way to convert your gooseneck trailer hitch into a set of 5th wheel rails to accept a 5th wheel hitch and switch back again. With gooseneck installation brackets and a gooseneck hitch already mounted, the adapter plate post simply mounts into the gooseneck trailer ball hole using a solid shank and is secured with the locking mechanism provided by the gooseneck hitch. One of the most attractive features about CURT 5th wheel adapter plates is that they are practically instantaneous: insert the shank, apply the locking mechanism and just like that you have a sturdy pair of 5th wheel rails. This CURT 5th wheel adapter plate features a square shank and is compatible with B & W Turnoverball gooseneck hitches with a square shank removable ball. It features a gross trailer weight capacity of 20,000 lbs., allowing it to adapt and accept a number of 5th wheel hitches up to 20K. This 5th wheel adapter plate offers a simple pin-and-clip conversion for gooseneck hitches and has multiple mounting points to accept either 5th wheel legs or a 5th wheel roller. |
| Description_MKT | CURT 5th wheel adapter plates are a fast, dependable way to convert your gooseneck trailer hitch into a set of 5th wheel rails to accept a 5th wheel hitch and switch back again. With gooseneck installation brackets and a gooseneck hitch already mounted, the adapter plate post simply mounts into the gooseneck trailer ball hole using a solid shank and is secured with the locking mechanism provided by the gooseneck hitch. One of the most attractive features about CURT 5th wheel adapter plates is that they are practically instantaneous: insert the shank, apply the locking mechanism and just like that you have a sturdy pair of 5th wheel rails. This CURT 5th wheel adapter plate features a square shank and is compatible with B & W Turnoverball gooseneck hitches with a square shank removable ball. It features a gross trailer weight capacity of 20,000 lbs., allowing it to adapt and accept a number of 5th wheel hitches. This 5th wheel adapter plate offers a simple pin-and-clip conversion for gooseneck hitches and has multiple mounting points to accept either 5th wheel legs or a 5th wheel roller. |
| Description_SHO | X5 Adapter Plate |
| Description_SHO | X5 Gooseneck-to-5th- |
| Description_SLA | CURT 5th wheel adapter plates are a fast, dependable way to convert your gooseneck trailer hitch into a set of 5th wheel rails to accept a 5th wheel hitch and switch back again. With gooseneck installation brackets and a gooseneck hitch already mounted, the adapter plate post simply mounts into the gooseneck trailer ball hole using a solid shank and is secured with the locking mechanism provided by the gooseneck hitch. One of the most attractive features about CURT 5th wheel adapter plates is that they are practically instantaneous: insert the shank, apply the locking mechanism and just like that you have a sturdy pair of 5th wheel rails. This CURT 5th wheel adapter plate features a square shank and is compatible with B & W Turnoverball gooseneck hitches with a square shank removable ball. It features a gross trailer weight capacity of 20,000 lbs., allowing it to adapt and accept a number of 5th wheel hitches up to 20K. This 5th wheel adapter plate offers a simple pin-and-clip conversion for gooseneck hitches and has multiple mounting points to accept either 5th wheel legs or a 5th wheel roller. |
| finish | Carbide Black Powder Coat |
| Finish - XA | CARBIDE BLACK POWDER COAT |
| Gross Trailer Weight | 20000 lbs. |
| Gross Trailer Weight (GTW) | 20,000 LB |
| height | 7.5 |
| Item Class - XA | OMF |
| Item Height - XA | 6.481 |
| Item Length - XA | 42.500 |
| Item Width - XA | 28.200 |
| length | 46.0 |
| LTL | N |
| Parcel Allowed - XA | Yes |
| Product Weight - XA | 0.000 |
| Rate Class - XA | 70.0 |
| Retail Height - XA | 7.500 |
| Retail Length - XA | 46.000 |
| Retail Width - XA | 29.250 |
| Shipping Weight - XA | 105.650 |
| Tariff 301 - XA | No |
| Title | X5 Gooseneck-to-5th-Wheel Adapter Plate with Square Shank |
| WARNING CA Proposition 65 | No |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| weight | 105.65 |
| width | 29.25 |
