CURT 16515 CURT 16515 E16 5th Wheel Hitch Head Only; Legs or Roller Required; 16;000 lbs
by CURT
SKU ds_BKDK_16515
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Save $43.47
Original price
$456.84
Original price
$456.84
-
Original price
$456.84
Original price
$456.84
Current price
$413.37
$413.37
-
$413.37
Current price
$413.37
Description
The CURT E16 5th wheel trailer hitch is an economical choice that offers many of the same features found in our Q-Series 5th wheel hitches. The E16 has a gross trailer weight rating of 16,000 lbs. and can withstand a vertical load up to 4,000 lbs. It comes with a dual-pivoting head, 10 degrees of lateral movement and an anti-rattle skid plate to provide a smoother, quieter ride. The E16 also comes with easy, single-handle operation and a durable carbide powder coat for long-lasting protection against the elements. With four height adjustment settings, the E16 is quick and simple to install, and it is backed by a limited lifetime warranty. This 16K 5th wheel hitch head comes ready to be attached to the CURT R16 5th wheel roller.
Resources
Installation InstructionsSpecifications
| Box Height in Inches - XA | 0 |
| Box Length in Inches - XA | 0 |
| Box Width in Inches - XA | 0 |
| capacity | 16000 lbs. |
| Class ID | 0 |
| Description_ABR | 16K |
| Description_ASC | Automatically locks for easy, secure coupling |
| Description_ASC | Compatible with kingpin extension boxes, including common pivoting pin boxes |
| Description_ASC | E16 5th Wheel Hitch Head |

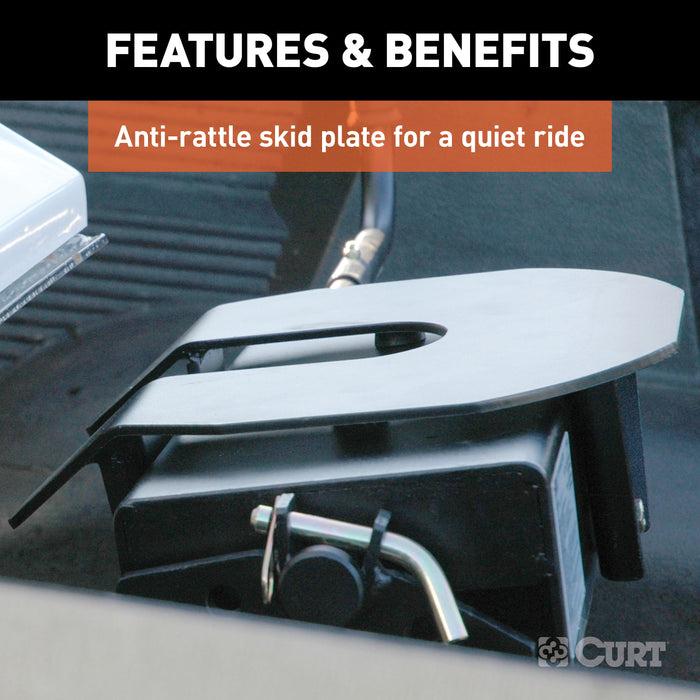

| Description_ASC | Features an anti-rattle skid plate to help reduce noise |
| Description_ASC | Limited lifetime warranty (one-year finish, one-year parts) |
| Description_ASC | Offers four height adjustment positions to adapt to each unique truck bed |
| Description_ASC | Operates using a single handle with few moving parts |

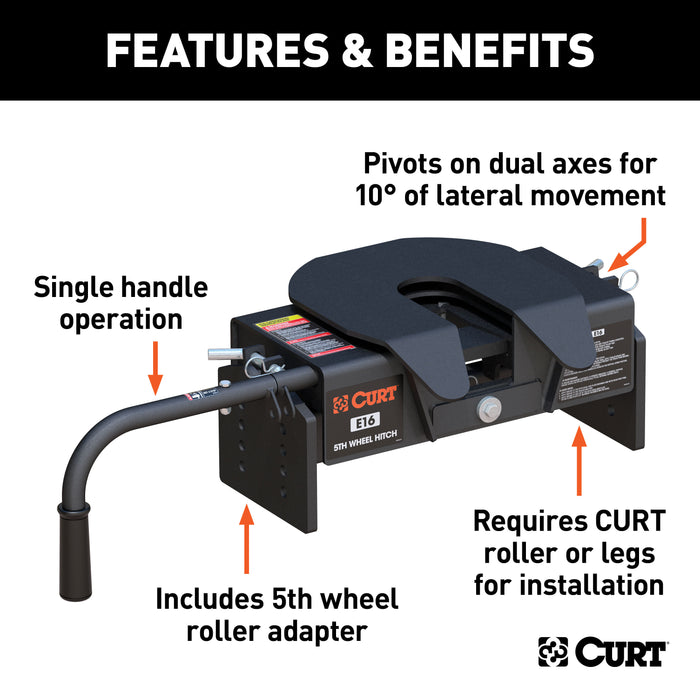

| Description_ASC | Pivots on dual axes for 10 degrees of lateral movement |
| Description_ASC | Protected by a highly durable carbide powder coat finish |

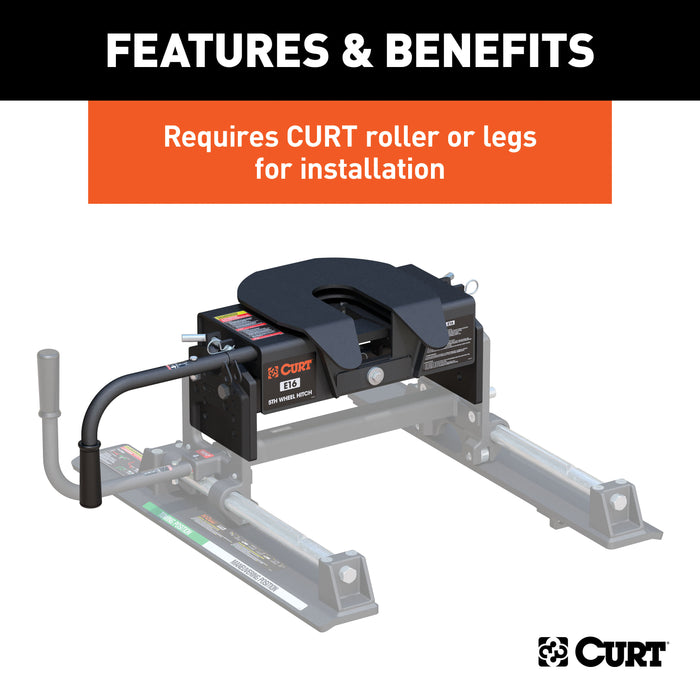

| Description_ASC | Requires CURT 5th wheel roller or legs for installation |
| Description_ASC | Tested for safety in accordance with SAE J2638 |
| Description_ASM | CURT 16515 E16 5th Wheel Hitch Head Only, Legs or Roller Required, 16,000 lbs |
| Description_DEF | Fifth Wheel Trailer Hitch Head Unit |
| Description_DES | E16 5th Wheel Hitch Head |
| Description_EXT | CURT 16515 E16 5th Wheel Hitch Head Only, Legs or Roller Required, 16,000 lbs |
| Description_EXT | CURT 16515 E16 5th Wheel Hitch Head Only; Legs or Roller Required; 16;000 lbs |
| Description_FAB | Automatically Locks For Easy Secure Coupling |
| Description_FAB | Features An Anti-Rattle Skid Plate |
| Description_FAB | Four Height Adjustment Position To Adapt To Your Unique Truck Bed |
| Description_FAB | Meets Proposed SEA J2638 Testing Standards |

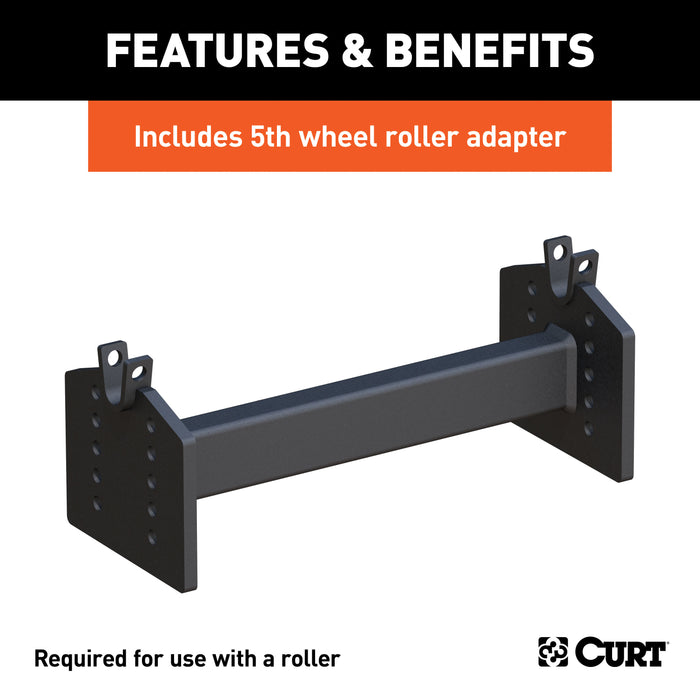

| Description_FAB | Mounts On The R16 Roller PN[16560] And Tow Up To 16000 Lbs. |
| Description_FAB | Operates Using A Single Handle |
| Description_FAB | Pivots On Dual Axles For 10 Degrees Of Lateral Movement |
| Description_FAB | Protected By A Highly Durable Carbide Powder Coat Finish |
| Description_INV | E16 5th Wheel Hitch Head |
| Description_KEY | wheel tripod th camper rv fifth hitch kit fith stabilizer gooseneck adapter puck f system slider flatbed replacement head fithwheel accessories 16000 |
| Description_MKT | The CURT E16 5th wheel trailer hitch is an economical choice that offers many of the same features found in our Q-Series 5th wheel hitches. The E16 has a gross trailer weight rating of 16,000 lbs. and can withstand a vertical load up to 4,000 lbs. It comes with a dual-pivoting head, 10 degrees of lateral movement and an anti-rattle skid plate to provide a smoother, quieter ride. The E16 also comes with easy, single-handle operation and a durable carbide powder coat for long-lasting protection against the elements. With four height adjustment settings, the E16 is quick and simple to install, and it is backed by a limited lifetime warranty. This 16K 5th wheel hitch head comes ready to be attached to the CURT R16 5th wheel roller. |
| Description_SHO | E16 5th Wheel Head |
| Description_SHO | E16 5th Wheel Hitch |
| Description_SLA | The CURT E16 5th wheel trailer hitch is an economical choice that offers many of the same features found in our Q-Series 5th wheel hitches. The E16 has a gross trailer weight rating of 16,000 lbs. and can withstand a vertical load up to 4,000 lbs. It comes with a dual-pivoting head, 10 degrees of lateral movement and an anti-rattle skid plate to provide a smoother, quieter ride. The E16 also comes with easy, single-handle operation and a durable carbide powder coat for long-lasting protection against the elements. With four height adjustment settings, the E16 is quick and simple to install, and it is backed by a limited lifetime warranty. This 16K 5th wheel hitch head comes ready to be attached to the CURT R16 5th wheel roller. |
| finish | Carbide Black Powder Coat |
| Finish - XA | CARBIDE BLACK POWDER COAT |
| Gross Trailer Weight (GTW) | 16,000 LB |
| height | 11.0 |
| Item Class - XA | OBS |
| Item Height - XA | 0.000 |
| Item Length - XA | 0.000 |
| Item Width - XA | 0.000 |
| length | 24.0 |
| LTL | N |
| Parcel Allowed - XA | Yes |
| Product Weight - XA | 0.000 |
| Rate Class - XA | 70.0 |
| Retail Height - XA | 11.000 |
| Retail Length - XA | 24.000 |
| Retail Width - XA | 15.000 |
| Shipping Weight - XA | 61.361 |
| Tariff 301 - XA | Yes |
| Title | E16 5th Wheel Hitch Head |
| Vertical Load | 4,000 LB |
| WARNING CA Proposition 65 | No |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| weight | 61.361 |
| width | 15.0 |
