The CURT Q20 features a gross trailer weight capacity of 20,000 lbs. and can accept a vertical load limit of 5,000 lbs., giving it the capability to tow most large RVs, campers and many other 5th wheel trailers. Also like the Q24, the Q20 5th wheel has a superior hitch head, pivoting on a spherical axial bearing. This ensures smooth, quiet towing and allows unimpeded head movement and a wide turning radius for your trailer. The self-aligning head and dual-locking jaws make coupling easier, and the three-position coupling mechanism indicates when it safe to couple and when it is safe to tow. The Q20 comes with a durable carbide powder coat finish to give this hitch the best possible defense against corrosion, scratching, UV damage and whatever else you throw its way. It is tested in accordance with SAE J2638 for safety and is also backed by a limited lifetime warranty to give you peace of mind. This 20K 5th wheel hitch head comes attached to the CURT R20 slider. Our 5th wheel sliders mount easily onto a set of 5th wheel rails or a gooseneck adapter already installed in the bed of your pickup truck. CURT 5th wheel sliders feature solid construction and offer a sturdy mounting place for your 5th wheel hitch, ensuring that none of its towing strength is lost. CURT 5th wheel sliders are also true rolling units, meaning they actually roll on wheels that bear the weight of the trailer rather than simply sliding on hollow rods as seen in competitive models. With a thick operating handle, the roller smoothly rolls the 5th wheel head forward and back, locking securely into each position as desired. CURT sliders also provide up to 12" of displacement as well, unlike the more common 10", to give you a wide range of motion and plenty of space to get your RV or other 5th wheel trailer around any turn. Certain turret-style pin boxes, such as Sidewinder, are not compatible with CURT Q-series hitches and should not be used as they may create vehicle / trailer handling hazards.
| capacity | 20000 lbs. |
| Description_ABR | 20K |

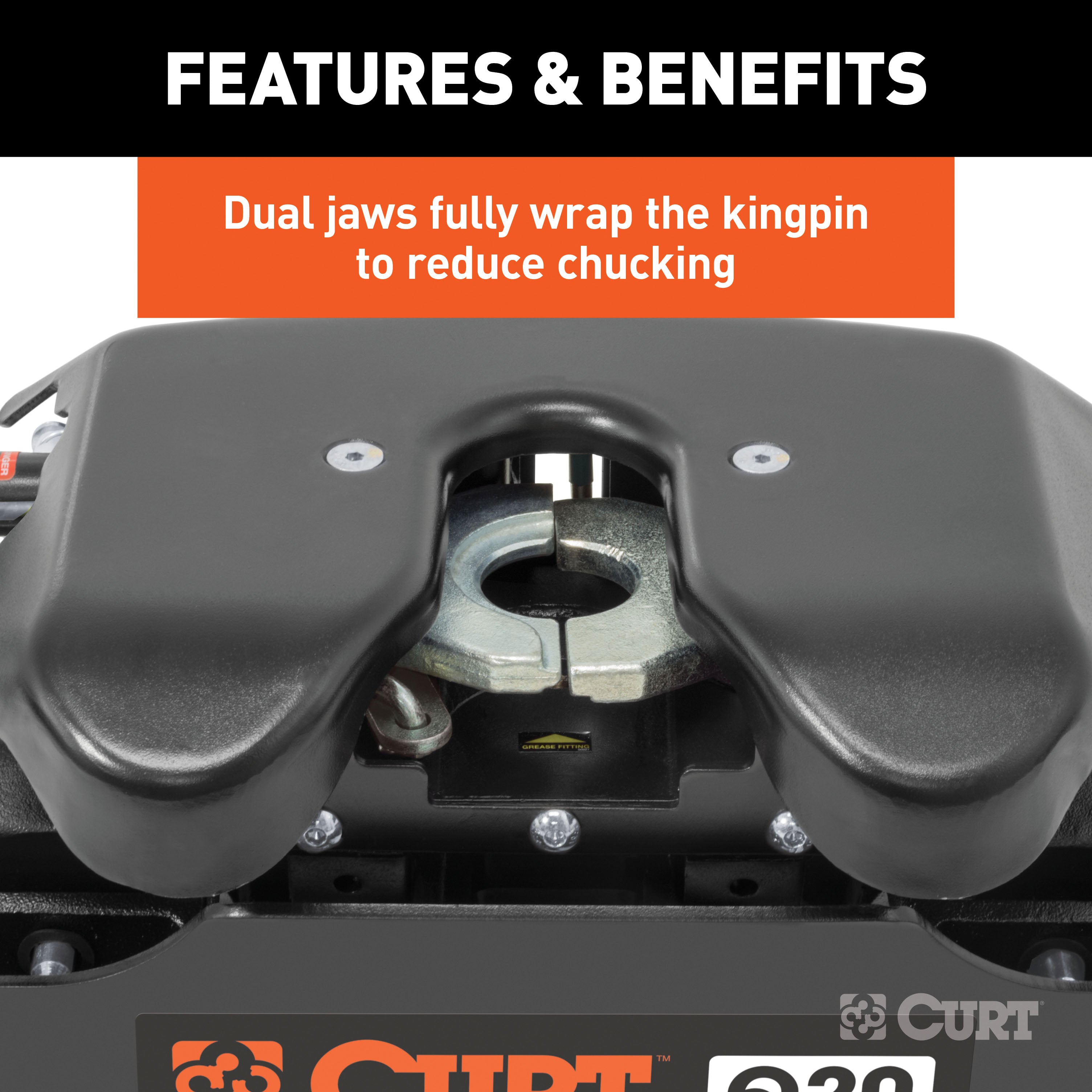

| Description_ASC | Dual jaws fully wrap the kingpin to reduce chucking and increase security |
| Description_ASC | Includes a polyethylene lube plate to eliminate messy grease deposits |
| Description_ASC | Limited lifetime warranty (one-year finish, one-year parts) |
| Description_ASC | Lockable, short-throw handle automatically engages with the kingpin |
| Description_ASC | Mounts to all industry-standard base rails |
| Description_ASC | Offers three height adjustment positions to adapt to each unique truck bed |
| Description_ASC | Protected by a highly durable carbide powder coat finish |
| Description_ASC | Q20 Sliding 5th Wheel Hitch, 20,000 lbs. |

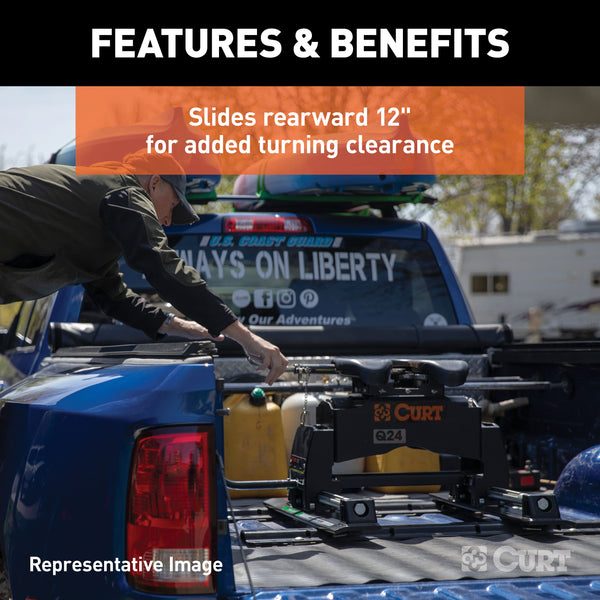

| Description_ASC | R20 5th wheel slider #16550 provides 12" of travel in the truck bed |
| Description_ASC | Rolls on wheels and solid, non-binding rods to be a true rolling unit |
| Description_ASC | Spherical axial bearing tilts head in any direction for a smooth, quiet ride |
| Description_ASC | Tested for safety in accordance with SAE J2638 |
| Description_ASC | Three easy-access grease fittings for lubrication |

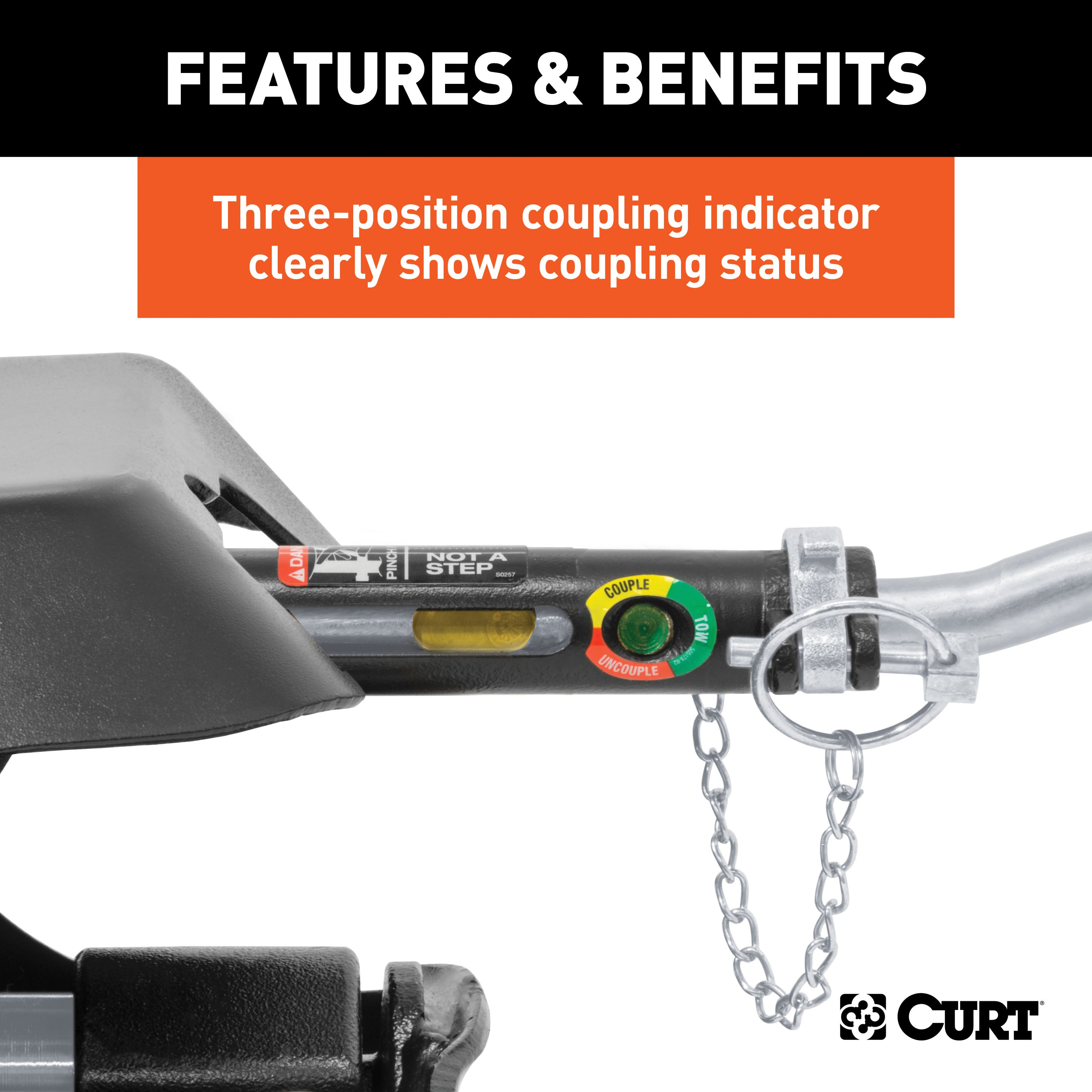

| Description_ASC | Three-position coupling indicator clearly shows coupling status |
| Description_ASC | Wide, self-aligning head helps eliminate errors when backing up to the trailer |
| Description_ASM | CURT 16536 Q20 5th Wheel Slider Hitch for Short Bed Trucks, 20,000 lbs |
| Description_DEF | Fifth Wheel Trailer Hitch Head Unit |
| Description_DES | Q20 Sliding 5th Wheel Hitch, 20,000 lbs. |
| Description_DES | Q20 Sliding 5th Wheel Hitch; 20;000 lbs. |
| Description_EXT | CURT 16536 Q20 5th Wheel Slider Hitch for Short Bed Trucks, 20,000 lbs |
| Description_EXT | CURT 16536 Q20 5th Wheel Slider Hitch for Short Bed Trucks; 20;000 lbs |
| Description_FAB | Dual Jaws Provide 360-Degree Kingpin Contact |
| Description_FAB | Ideal For Towing 5Th Wheel Trailers Up To 20000 Lbs. |
| Description_FAB | Incl. A Polyethylene Lube Plate To Eliminate Messy Grease Deposit |
| Description_FAB | Meets Proposed SEA J2638 Testing Standards |
| Description_FAB | Operates Using A Short Lockable Single-Throw Handle |
| Description_FAB | Protected By A Highly Durable Carbide Powder Coat Finish |
| Description_FAB | Q20 Spherical Axial Bearing For Unimpeded Movement |
| Description_FAB | R20 5Th Wheel Roller PN[16550] Provides 12 In. Of Travel |
| Description_FAB | Rolls On Wheels And Solid Rods To Be A True Rolling Unit |
| Description_FAB | Self-Aligning Head Offers A Wide Opening For Easy Coupling |
| Description_FAB | Three-Position Coupling Indicator Is Clearly Visible From Truck |
| Description_INV | Q20 Sliding 5th Wheel Hitch |
| Description_KEY | fifth 5 w receiver articulating cam trailer bushing pull factory tow rv gooseneck release rails towing super back ultimate funnel glide king adapter isr mounts driver ball lite 20 k base 20000 siding |
| Description_MKT | The CURT Q20 features a gross trailer weight capacity of 20,000 lbs. and can accept a vertical load limit of 5,000 lbs., giving it the capability to tow most large RVs, campers and many other 5th wheel trailers. Also like the Q24, the Q20 5th wheel has a superior hitch head, pivoting on a spherical axial bearing. This ensures smooth, quiet towing and allows unimpeded head movement and a wide turning radius for your trailer. The self-aligning head and dual-locking jaws make coupling easier, and the three-position coupling mechanism indicates when it safe to couple and when it is safe to tow. The Q20 comes with a durable carbide powder coat finish to give this hitch the best possible defense against corrosion, scratching, UV damage and whatever else you throw its way. It is tested in accordance with SAE J2638 for safety and is also backed by a limited lifetime warranty to give you peace of mind. This 20K 5th wheel hitch head comes attached to the CURT R20 slider. Our 5th wheel sliders mount easily onto a set of 5th wheel rails or a gooseneck adapter already installed in the bed of your pickup truck. CURT 5th wheel sliders feature solid construction and offer a sturdy mounting place for your 5th wheel hitch, ensuring that none of its towing strength is lost. CURT 5th wheel sliders are also true rolling units, meaning they actually roll on wheels that bear the weight of the trailer rather than simply sliding on hollow rods as seen in competitive models. With a thick operating handle, the roller smoothly rolls the 5th wheel head forward and back, locking securely into each position as desired. CURT sliders also provide up to 12" of displacement as well, unlike the more common 10", to give you a wide range of motion and plenty of space to get your RV or other 5th wheel trailer around any turn. Certain turret-style pin boxes, such as Sidewinder, are not compatible with CURT Q-series hitches and should not be used as they may create vehicle / trailer handling hazards. |
| Description_SHO | Q20 5th Wheel Hitch |
| Description_SHO | Q20 Sliding 5th Whee |
| Description_SLA | The CURT Q20 features a gross trailer weight capacity of 20,000 lbs. and can accept a vertical load limit of 5,000 lbs., giving it the capability to tow most large RVs, campers and many other 5th wheel trailers. Also like the Q24, the Q20 5th wheel has a superior hitch head, pivoting on a spherical axial bearing. This ensures smooth, quiet towing and allows unimpeded head movement and a wide turning radius for your trailer. The self-aligning head and dual-locking jaws make coupling easier, and the three-position coupling mechanism indicates when it safe to couple and when it is safe to tow. The Q20 comes with a durable carbide powder coat finish to give this hitch the best possible defense against corrosion, scratching, UV damage and whatever else you throw its way. It is tested in accordance with SAE J2638 for safety and is also backed by a limited lifetime warranty to give you peace of mind. This 20K 5th wheel hitch head comes attached to the CURT R20 slider. Our 5th wheel sliders mount easily onto a set of 5th wheel rails or a gooseneck adapter already installed in the bed of your pickup truck. CURT 5th wheel sliders feature solid construction and offer a sturdy mounting place for your 5th wheel hitch, ensuring that none of its towing strength is lost. CURT 5th wheel sliders are also true rolling units, meaning they actually roll on wheels that bear the weight of the trailer rather than simply sliding on hollow rods as seen in competitive models. With a thick operating handle, the roller smoothly rolls the 5th wheel head forward and back, locking securely into each position as desired. CURT sliders also provide up to 12" of displacement as well, unlike the more common 10", to give you a wide range of motion and plenty of space to get your RV or other 5th wheel trailer around any turn. Certain turret-style pin boxes, such as Sidewinder, are not compatible with CURT Q-series hitches and should not be used as they may create vehicle / trailer handling hazards. |
| finish | Carbide Black Powder Coat |
| height | 15.0 |
| length | 33.0 |
| WARNING CA Proposition 65 | No |
| weight | 204.6 |
| width | 18.13 |
