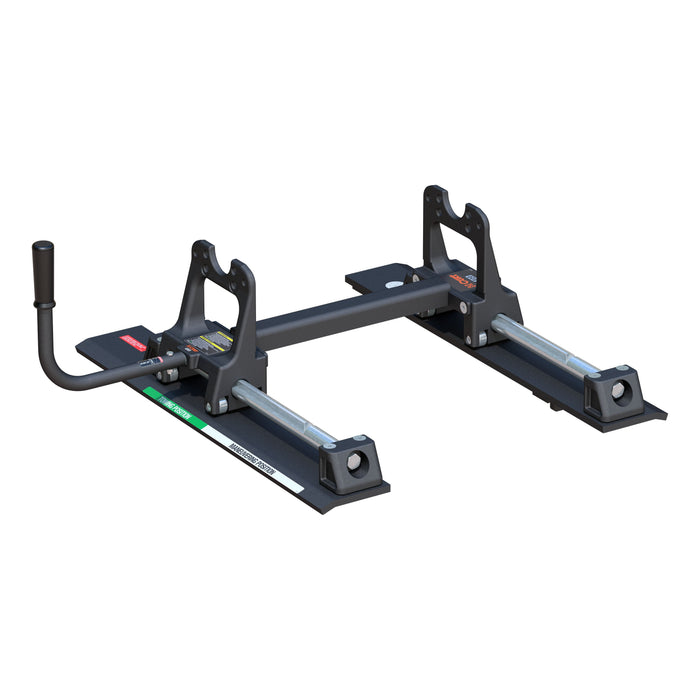

CURT 16550 CURT 16550 R20 5th Wheel Roller for Short Bed Trucks; 20;000 lbs

A CURT 5th wheel trailer hitch is the ultimate combination of towing power and smooth driving, but a CURT 5th wheel mounted on a 5th wheel slider turns this gentle giant into the ultimate in mobility too. If you have a short-bed truck, it can be difficult towing a large RV trailer, especially one with an extended front overhang. When you are towing a 5th wheel with a 6-foot truck bed, give yourself a little breathing room with a CURT 5th wheel slider. Our 5th wheel sliders mount easily onto a set of 5th wheel rails or a gooseneck adapter already installed in the bed of your pickup truck. CURT 5th wheel sliders feature solid construction and offer a sturdy mounting place for your 5th wheel hitch, ensuring that none of its towing strength is lost. CURT 5th wheel sliders are also true rolling units, meaning they actually roll on wheels that bear the weight of the trailer rather than simply sliding on hollow rods as seen in competitive models. With a thick operating handle, the roller smoothly rolls the 5th wheel head forward and back, locking securely into each position as desired. CURT sliders also provide up to 12" of displacement as well, unlike the more common 10", to give you a wide range of motion and plenty of space to get your RV or other 5th wheel trailer around any turn. This 20K 5th wheel slider comes with a durable carbide powder coat to ensure the best possibly protection against scratching, chipping, rusting and UV damage. It has a towing capacity of 20,000 lbs. and is compatible with select CURT 5th wheel hitches and some competitive 5th wheel hitches.

Resources

Installation Instructions

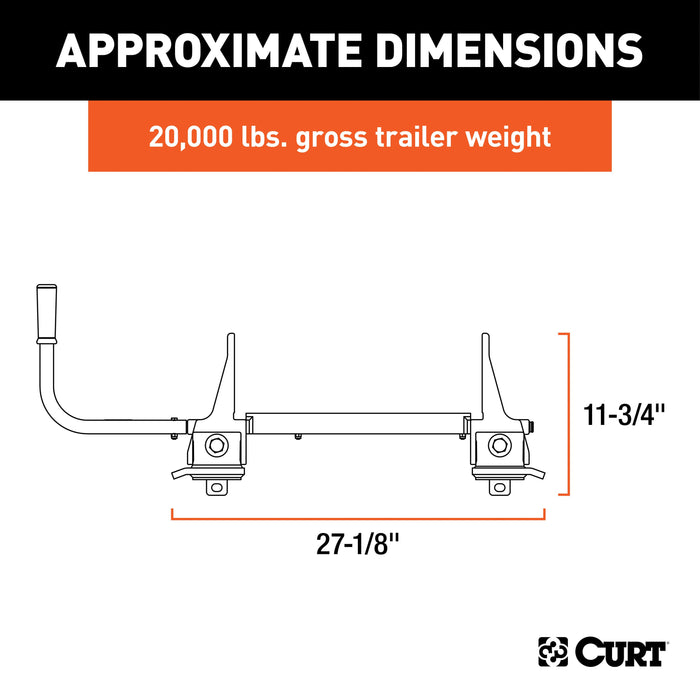

Box Height in Inches - XA	7
Box Length in Inches - XA	38
Box Width in Inches - XA	18
capacity	20,000 LB
capacity	20000 lbs.
Class ID	0
Description_ABR	ROLL

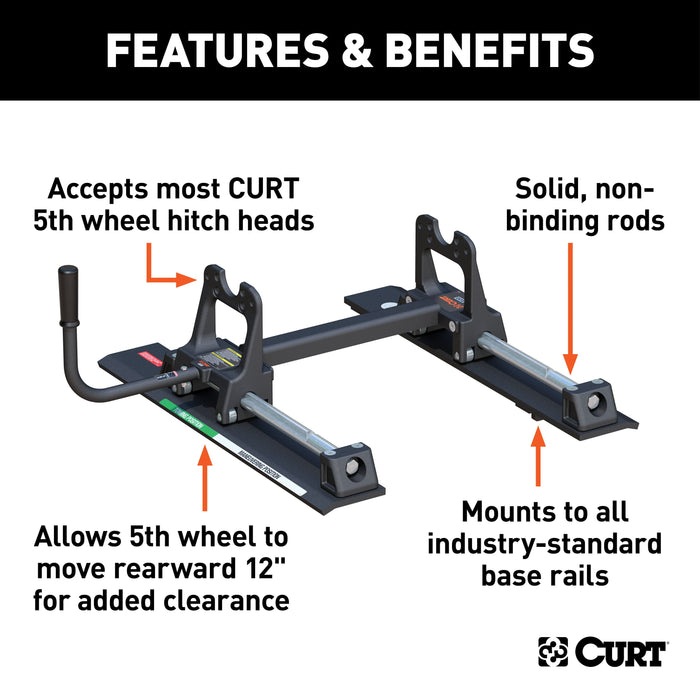

Description_ASC	Allows for forward and rearward movement of 5th wheel hitch for added clearance

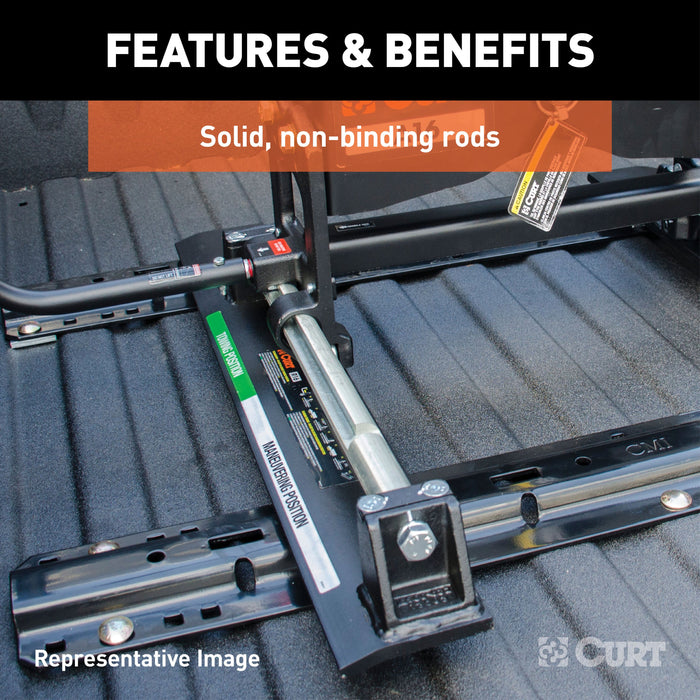

Description_ASC	Constructed with solid, non-binding rods that lock the hitch into position

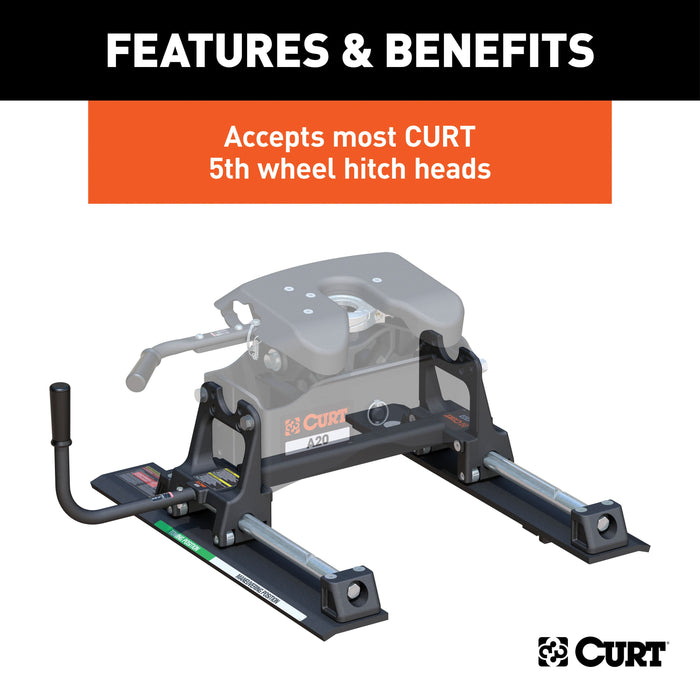

Description_ASC	For use with CURT A20 5th wheel hitch head #16540 or Q20 head #16530
Description_ASC	Limited lifetime warranty (one-year finish, one-year parts)

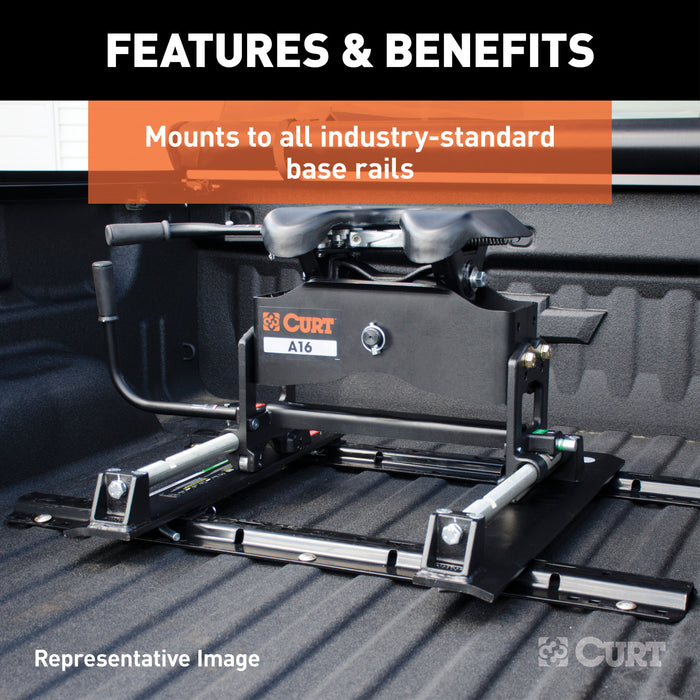

Description_ASC	Mounts to all industry-standard base rails
Description_ASC	Protected by a highly durable carbide powder coat finish
Description_ASC	Provides 12" of travel while most competitive models only offer 10"
Description_ASC	R20 5th Wheel Roller, 20,000 lbs.
Description_ASC	Tested for safety in accordance with SAE J2638
Description_ASC	Uses wheels to bear the weight, instead of hollow rods like competition
Description_ASM	CURT 16550 R20 5th Wheel Roller for Short Bed Trucks, 20,000 lbs
Description_DEF	Fifth Wheel Trailer Hitch Roller
Description_DES	R20 5th Wheel Roller, 20,000 lbs.
Description_DES	R20 5th Wheel Roller; 20;000 lbs.
Description_EXT	CURT 16550 R20 5th Wheel Roller for Short Bed Trucks, 20,000 lbs
Description_EXT	CURT 16550 R20 5th Wheel Roller for Short Bed Trucks; 20;000 lbs

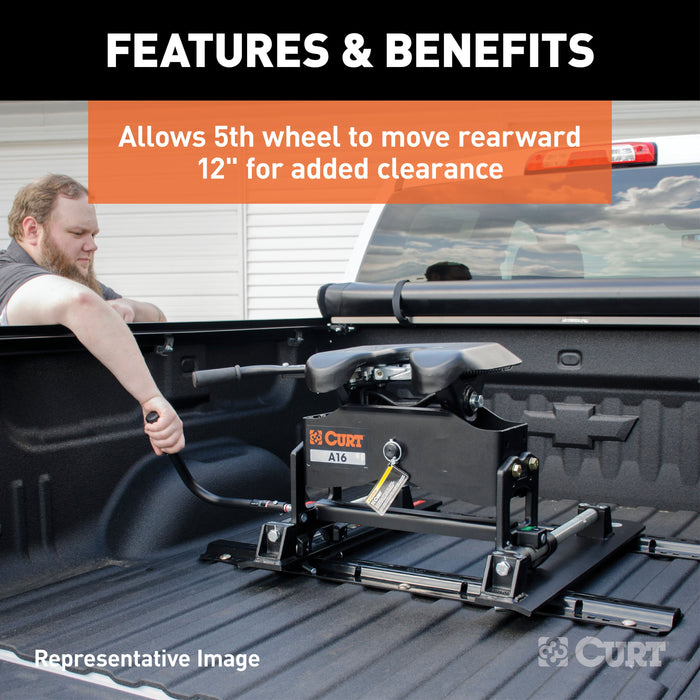

Description_FAB	12 In. Of Travel While Most Competitive Models Only Offer 10 In.
Description_FAB	Allows For Forward And Rearward Movement Of 5Th Wheel Hitch
Description_FAB	Backed By A 10-Year Limited Warranty
Description_FAB	Constructed w/Solid Rods That Lock The Hitch Into Position
Description_FAB	Designed To Be A True Rolling Unit Not Just A Slider
Description_FAB	For Use w/The Curt Q20 5Th Wheel Hitch Head #16530
Description_FAB	Ideal For Towing Trailers w/Large Overhangs Up To 20000 Lbs.
Description_FAB	Meets Or Exceeds Current And Proposed Industry Standards
Description_FAB	Protected By A Highly Durable Carbide Powder Coat Finish
Description_FAB	Uses Wheels To Bear The Weight Instead Of Hollow Rods
Description_INV	R20 5th Wheel Roller
Description_MKT	A CURT 5th wheel trailer hitch is the ultimate combination of towing power and smooth driving, but a CURT 5th wheel mounted on a 5th wheel roller turns this gentle giant into the ultimate in mobility too. If you have a short-bed truck, it can be difficult towing a large RV trailer, especially one with an extended front overhang. When you are towing a 5th wheel with a 6-foot truck bed, give yourself a little breathing room with a CURT 5th wheel roller. Our 5th wheel rollers mount easily onto a set of 5th wheel rails or a gooseneck adapter already installed in the bed of your pickup truck. CURT 5th wheel rollers feature solid construction and offer a sturdy mounting place for your 5th wheel hitch, ensuring that none of its towing strength is lost. CURT 5th wheel rollers are also true rolling units, meaning they actually roll on wheels that bear the weight of the trailer rather than simply moving on hollow rods as seen in competitive models. With a thick operating handle, the roller smoothly rolls the 5th wheel head forward and back, locking securely into each position as desired. CURT rollers also provide up to 12" of displacement as well, unlike the more common 10", to give you a wide range of motion and plenty of space to get your RV or other 5th wheel trailer around any turn. This 20K 5th wheel roller comes with a durable carbide powder coat to ensure the best possibly protection against scratching, chipping, rusting and UV damage. It has a towing capacity of 20,000 lbs. and is compatible with select CURT 5th wheel hitches and some competitive 5th wheel hitches.
Description_MKT	A CURT 5th wheel trailer hitch is the ultimate combination of towing power and smooth driving, but a CURT 5th wheel mounted on a 5th wheel slider turns this gentle giant into the ultimate in mobility too. If you have a short-bed truck, it can be difficult towing a large RV trailer, especially one with an extended front overhang. When you are towing a 5th wheel with a 6-foot truck bed, give yourself a little breathing room with a CURT 5th wheel slider. Our 5th wheel sliders mount easily onto a set of 5th wheel rails or a gooseneck adapter already installed in the bed of your pickup truck. CURT 5th wheel sliders feature solid construction and offer a sturdy mounting place for your 5th wheel hitch, ensuring that none of its towing strength is lost. CURT 5th wheel sliders are also true rolling units, meaning they actually roll on wheels that bear the weight of the trailer rather than simply sliding on hollow rods as seen in competitive models. With a thick operating handle, the roller smoothly rolls the 5th wheel head forward and back, locking securely into each position as desired. CURT sliders also provide up to 12" of displacement as well, unlike the more common 10", to give you a wide range of motion and plenty of space to get your RV or other 5th wheel trailer around any turn. This 20K 5th wheel slider comes with a durable carbide powder coat to ensure the best possibly protection against scratching, chipping, rusting and UV damage. It has a towing capacity of 20,000 lbs. and is compatible with select CURT 5th wheel hitches and some competitive 5th wheel hitches.
Description_SHO	R20 5th Wheel Roller
Description_SLA	A CURT 5th wheel trailer hitch is the ultimate combination of towing power and smooth driving, but a CURT 5th wheel mounted on a 5th wheel roller turns this gentle giant into the ultimate in mobility too. If you have a short-bed truck, it can be difficult towing a large RV trailer, especially one with an extended front overhang. When you are towing a 5th wheel with a 6-foot truck bed, give yourself a little breathing room with a CURT 5th wheel roller. Our 5th wheel rollers mount easily onto a set of 5th wheel rails or a gooseneck adapter already installed in the bed of your pickup truck. CURT 5th wheel rollers feature solid construction and offer a sturdy mounting place for your 5th wheel hitch, ensuring that none of its towing strength is lost. CURT 5th wheel rollers are also true rolling units, meaning they actually roll on wheels that bear the weight of the trailer rather than simply moving on hollow rods as seen in competitive models. With a thick operating handle, the roller smoothly rolls the 5th wheel head forward and back, locking securely into each position as desired. CURT rollers also provide up to 12" of displacement as well, unlike the more common 10", to give you a wide range of motion and plenty of space to get your RV or other 5th wheel trailer around any turn. This 20K 5th wheel roller comes with a durable carbide powder coat to ensure the best possibly protection against scratching, chipping, rusting and UV damage. It has a towing capacity of 20,000 lbs. and is compatible with select CURT 5th wheel hitches and some competitive 5th wheel hitches.
finish	Carbide Black Powder Coat
Finish - XA	CARBIDE BLACK POWDER COAT
height	7.0
Item Class - XA	OBS
Item Height - XA	0.000
Item Length - XA	0.000
Item Width - XA	0.000
length	33.0
Parcel Allowed - XA	Yes
Product Weight - XA	0.000
Rate Class - XA	70.0
Retail Height - XA	7.000
Retail Length - XA	33.000
Retail Width - XA	18.130
Shipping Weight - XA	126.000
Tariff 301 - XA	Yes
Title	R20 5th Wheel Roller, 20,000 lbs.
WARNING CA Proposition 65	No
Warranty	Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
weight	139.5
width	18.13
