CURT 17333 CURT 17333 Short Trunnion Bar Weight Distribution Hitch; Up to 15K; 2-Inch Shank

The CURT weight distribution hitch is a specialized towing system that provides improved vehicle and trailer control by leveling the trailer and more evenly distributing its tongue weight across the trailers and vehicles axles. Weight distribution hitches are commonly used on travel trailers and campers but can also be applied to other large loads. CURT WD hitches come with a 2" x 2" shank and are compatible with class 3, 4 and most 5 trailer hitches, including Xtra Duty and Commercial Duty (2-1/2" replacement WD shank may be required), as well as some RV trailer hitches. While a weight distribution hitch will increase the gross trailer weight capacity of most trailer hitches, the vehicles weight carrying capacity must be taken into consideration before towing a heavier trailer (NOTE: Never exceed the lowest weight capacity of any towing component).This trunnion bar weight distribution hitch features a heavy-duty formed head and square spring bars constructed from forged steel. It offers a gross trailer weight capacity up to 15,000 lbs. and a tongue weight capacity of 1,500 lbs. It also includes hook-up brackets, spring bar safety chains and a pin and clip. To protect this hitch from scratching, chipping, rust and UV damage, it also comes with a durable black powder coat finish. A trailer ball must be purchased separately.

Resources

Installation Instructions

Box Height in Inches - XA	8
Box Length in Inches - XA	34
Box Width in Inches - XA	12
Class ID	0
Color	Black
Description_ABR	TRUNN

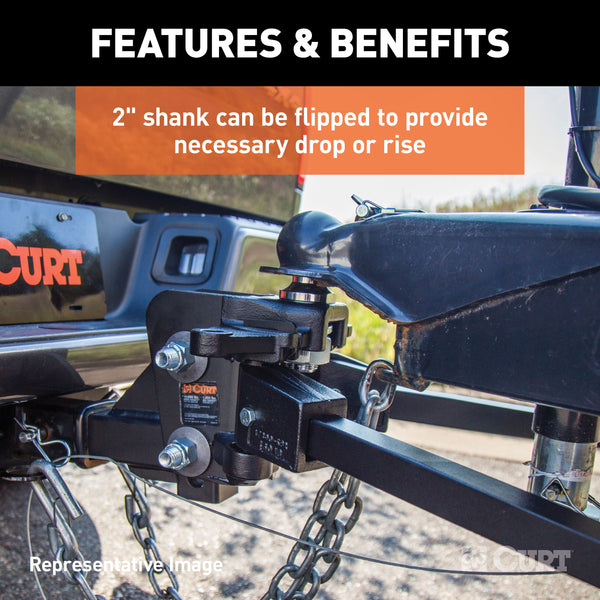

Description_ASC	2" shank can be flipped to provide necessary drop or rise
Description_ASC	2-1/2" x 2-1/2" WD replacement shank also available

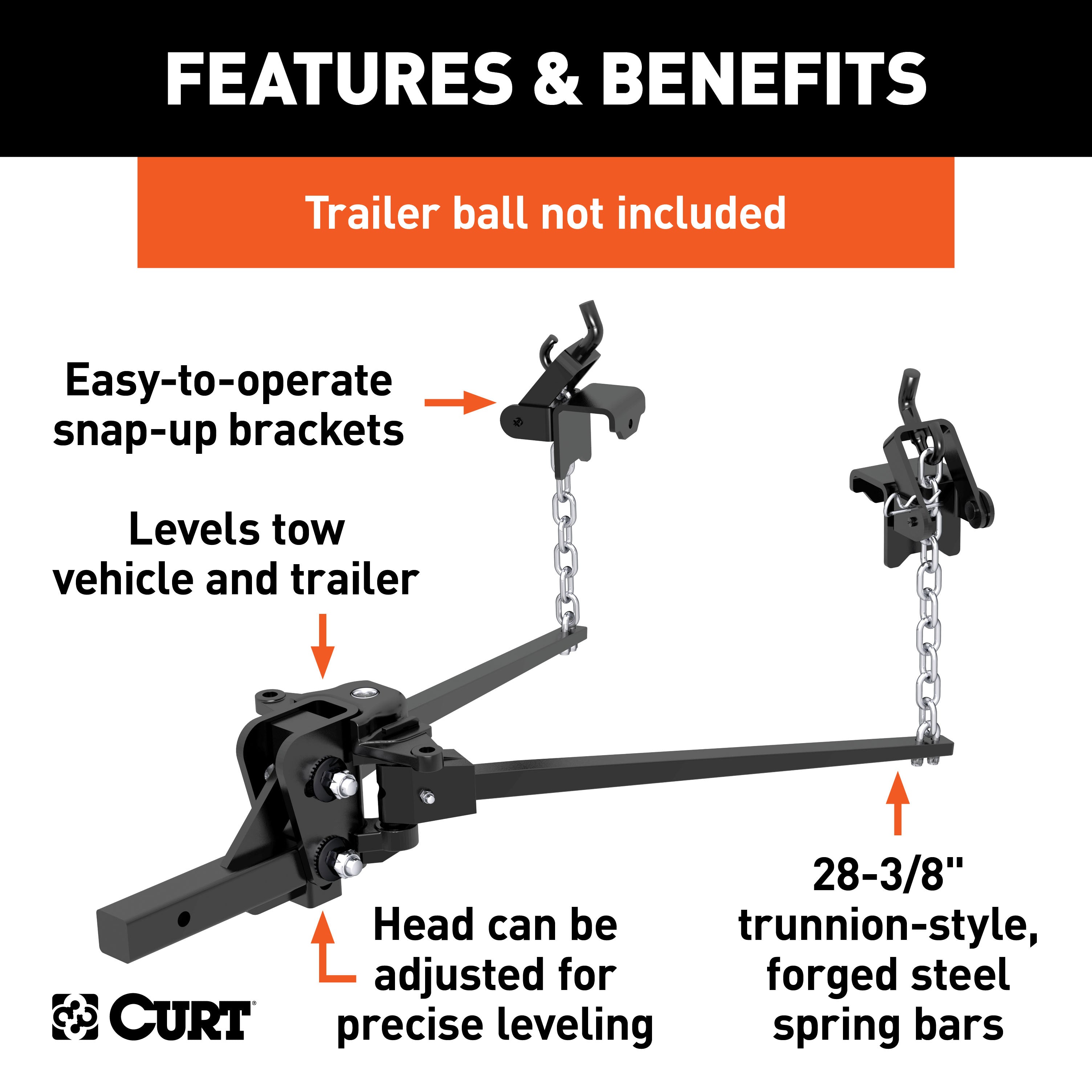

Description_ASC	Equipped with 28-3/8" trunnion-style, forged steel spring bars
Description_ASC	Features built-in sway control attachment tabs
Description_ASC	Heavy-duty, formed head can be adjusted for precise leveling
Description_ASC	Hookup brackets and lift handle allow for easy leveraging of spring bars

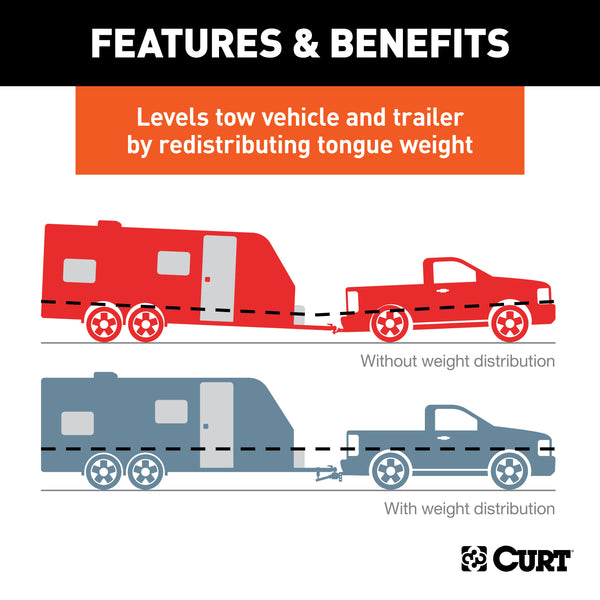

Description_ASC	Levels tow vehicle and trailer by redistributing a portion of the tongue weight
Description_ASC	Limited lifetime warranty (one-year finish, one-year parts)
Description_ASC	Protected by a highly durable carbide powder coat finish
Description_ASC	Short Trunnion Bar Weight Distribution Hitch (10K - 15K lbs., 28-3/8" Bars)
Description_ASM	CURT 17333 Short Trunnion Bar Weight Distribution Hitch, Up to 15K, 2-Inch Shank
Description_DEF	Trailer Hitch
Description_DES	Short Trunnion Bar Weight Distribution Hitch (10K - 15K lbs., 28-3/8" Bars)
Description_DES	Short Trunnion Bar Weight Distribution Hitch (10K-15K lbs.; 28-3/8in. Bars)
Description_EXT	CURT 17333 Short Trunnion Bar Weight Distribution Hitch, Up to 15K, 2-Inch Shank
Description_EXT	CURT 17333 Short Trunnion Bar Weight Distribution Hitch; Up to 15K; 2-Inch Shank
Description_FAB	12 In. Adjustable Shank Fits 2 In. X 2 In. Receiver Tube Openings
Description_FAB	2 1/2 In. X 2 1/2 In. Wd Replacement Shank Also Available
Description_FAB	Equipped w/28 3/8 In. Trunnion-Style Forged Steel Spring Bars
Description_FAB	Features Built-In Sway Control Attachment Tabs
Description_FAB	Heavy-Duty Formed Head Can Be Adjusted For Precise Leveling
Description_FAB	Levels Tow Vehicle/Trailer By Distribution Of The Tongue Weight
Description_FAB	Protected By A Highly Durable Carbide Powder Coat Finish

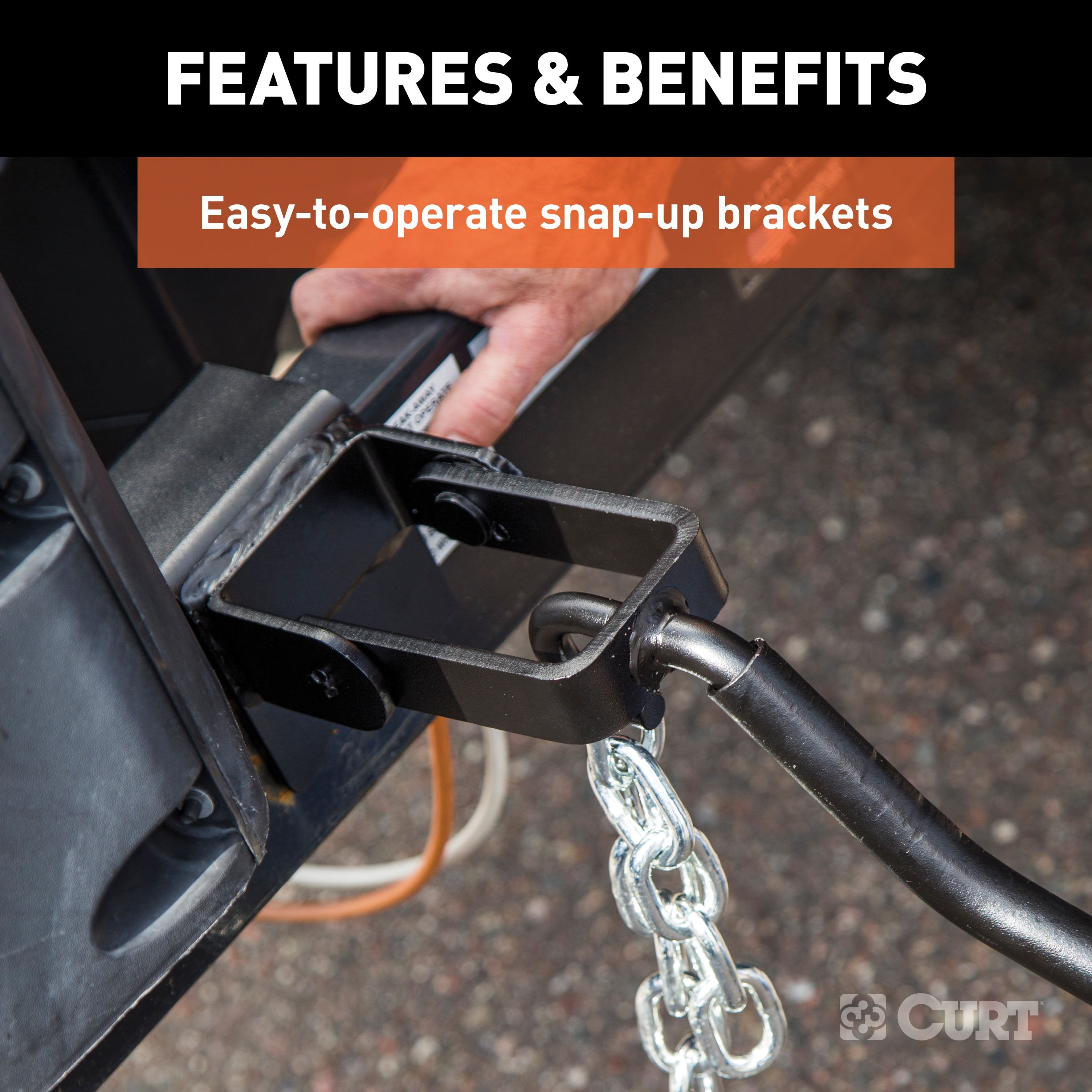

Description_FAB	Snap-Up Brackets And Lift Handle Allow For Easy Leveraging
Description_INV	Short Trunnion Bar WD Hitch
Description_KEY	kit rv safe camper ez parts leveler equalizing mount drop bracket rigid balancing vechile accessories stability assembly motor home bolt springs weightdistribution auto wd weigh hookup distrubution hd systems transfer unit chain-lift camping clamp truck
Description_MKT	The CURT weight distribution hitch is a specialized towing system that provides improved vehicle and trailer control by leveling the trailer and more evenly distributing its tongue weight across the trailer's and vehicle's axles. Weight distribution hitches are commonly used on travel trailers and campers but can also be applied to other large loads. CURT WD hitches come with a 2" x 2" shank and are compatible with class 3, 4 and most 5 trailer hitches, including Xtra Duty and Commercial Duty (2-1/2" replacement WD shank may be required), as well as some RV trailer hitches. While a weight distribution hitch will increase the gross trailer weight capacity of most trailer hitches, the vehicle's weight carrying capacity must be taken into consideration before towing a heavier trailer (NOTE: Never exceed the lowest weight capacity of any towing component).This trunnion bar weight distribution hitch features a heavy-duty formed head and square spring bars constructed from forged steel. It offers a gross trailer weight capacity up to 15,000 lbs. and a tongue weight capacity of 1,500 lbs. It also includes hook-up brackets, spring bar safety chains and a pin and clip. To protect this hitch from scratching, chipping, rust and UV damage, it also comes with a durable black powder coat finish. A trailer ball must be purchased separately.
Description_MKT	The CURT weight distribution hitch is a specialized towing system that provides improved vehicle and trailer control by leveling the trailer and more evenly distributing its tongue weight across the trailers and vehicles axles. Weight distribution hitches are commonly used on travel trailers and campers but can also be applied to other large loads. CURT WD hitches come with a 2" x 2" shank and are compatible with class 3, 4 and most 5 trailer hitches, including Xtra Duty and Commercial Duty (2-1/2" replacement WD shank may be required), as well as some RV trailer hitches. While a weight distribution hitch will increase the gross trailer weight capacity of most trailer hitches, the vehicles weight carrying capacity must be taken into consideration before towing a heavier trailer (NOTE: Never exceed the lowest weight capacity of any towing component).This trunnion bar weight distribution hitch features a heavy-duty formed head and square spring bars constructed from forged steel. It offers a gross trailer weight capacity up to 15,000 lbs. and a tongue weight capacity of 1,500 lbs. It also includes hook-up brackets, spring bar safety chains and a pin and clip. To protect this hitch from scratching, chipping, rust and UV damage, it also comes with a durable black powder coat finish. A trailer ball must be purchased separately.
Description_SHO	Short Trunnion Bar W
Description_SHO	Trunnion WD Hitch
Description_SLA	The CURT weight distribution hitch is a specialized towing system that provides improved vehicle and trailer control by leveling the trailer and more evenly distributing its tongue weight across the trailer's and vehicle's axles. Weight distribution hitches are commonly used on travel trailers and campers but can also be applied to other large loads. CURT WD hitches come with a 2" x 2" shank and are compatible with class 3, 4 and most 5 trailer hitches, including Xtra Duty and Commercial Duty (2-1/2" replacement WD shank may be required), as well as some RV trailer hitches. While a weight distribution hitch will increase the gross trailer weight capacity of most trailer hitches, the vehicle's weight carrying capacity must be taken into consideration before towing a heavier trailer (NOTE: Never exceed the lowest weight capacity of any towing component).This trunnion bar weight distribution hitch features a heavy-duty formed head and square spring bars constructed from forged steel. It offers a gross trailer weight capacity up to 15,000 lbs. and a tongue weight capacity of 1,500 lbs. It also includes hook-up brackets, spring bar safety chains and a pin and clip. To protect this hitch from scratching, chipping, rust and UV damage, it also comes with a durable black powder coat finish. A trailer ball must be purchased separately.
Finish - XA	CARBIDE BLACK POWDER COAT
Gross Trailer Weight (GTW)	15,000 LB
height	8.0
Item Class - XA	OBS
Item Height - XA	0.000
Item Length - XA	0.000
Item Width - XA	0.000
length	34.0
LTL	N
Parcel Allowed - XA	Yes
Product Weight - XA	0.000
Rate Class - XA	70.0
Retail Height - XA	0.000
Retail Length - XA	0.000
Retail Width - XA	0.000
Shipping Weight - XA	87.000
Tariff 301 - XA	Yes
Title	Short Trunnion Bar Weight Distribution Hitch (10K - 15K lbs., 28-3/8" Bars)
Tongue Weight (TW)	1,500 LB
Warranty	Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
weight	87.0
width	12.0
