CURT 17422 Short Trunnion Bar Weight Distribution Hitch with Sway Control (10-15K; 28-3/8in
by CURT
SKU ds_BKDK_17422
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Save $71.77
Original price
$724.99
Original price
$724.99
-
Original price
$724.99
Original price
$724.99
Current price
$653.22
$653.22
-
$653.22
Current price
$653.22
Description
The CURT weight distribution hitch is a specialized towing system that provides improved vehicle and trailer control by leveling the trailer and more evenly distributing its tongue weight across the trailers and vehicles axles. Weight distribution hitches are commonly used on travel trailers and campers but can also be applied to other large loads. CURT WD hitches come with a 2" x 2" shank and are compatible with class 3, 4 and most 5 trailer hitches, including Xtra Duty and Commercial Duty (2-1/2" replacement WD shank may be required), as well as some RV trailer hitches. While a weight distribution hitch will increase the gross trailer weight capacity of most trailer hitches, the vehicles weight carrying capacity must be taken into consideration before towing a heavier trailer (NOTE: Never exceed the lowest weight capacity of any towing component).This trunnion bar weight distribution hitch features a heavy-duty formed head and square spring bars constructed from forged steel. It offers a gross trailer weight capacity up to 15,000 lbs. and a tongue weight capacity of 1,500 lbs. It also includes hook-up brackets, spring bar safety chains, a trailer ball and a pin and clip. To protect this hitch from scratching, chipping, rust and UV damage, it also comes with a durable black powder coat finish. For added sway control, this weight distribution hitch includes a sway control unit. While weight distribution hitches are an effective solution for stabilizing and leveling out your towing rig, they should not be considered a sway control. However, when combined with a CURT sway control kit, the WD hitch maximizes its effectiveness in controlling sway. The sway control kit includes a sway control unit, trailer balls to attach to the trailer and hitch, a reinforcement plate and attachment clips.
Resources
Installation InstructionsSpecifications
| Box Height in Inches - XA | 0 |
| Box Length in Inches - XA | 0 |
| Box Width in Inches - XA | 0 |
| Class ID | 0 |
| Color | Black |
| Description_ABR | TRUNN |

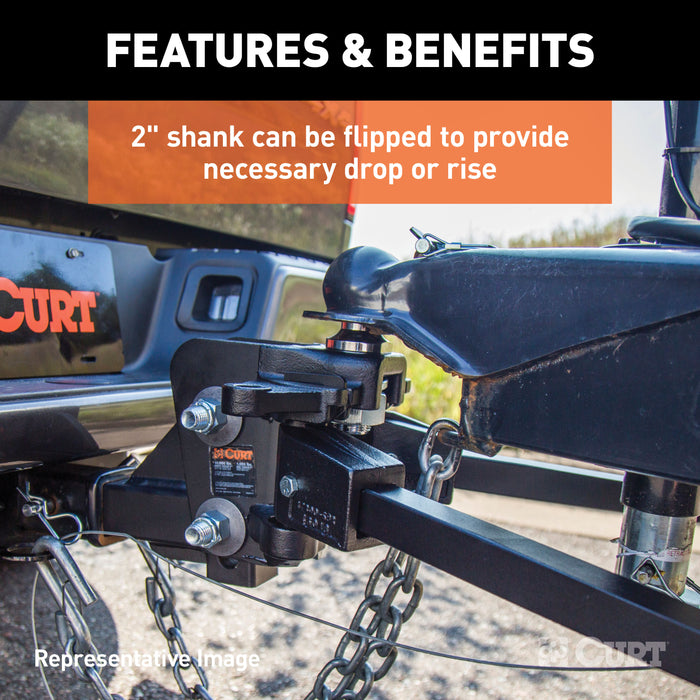

| Description_ASC | 2" shank can be flipped to provide necessary drop or rise |
| Description_ASC | 2-1/2" x 2-1/2" WD replacement shank also available |

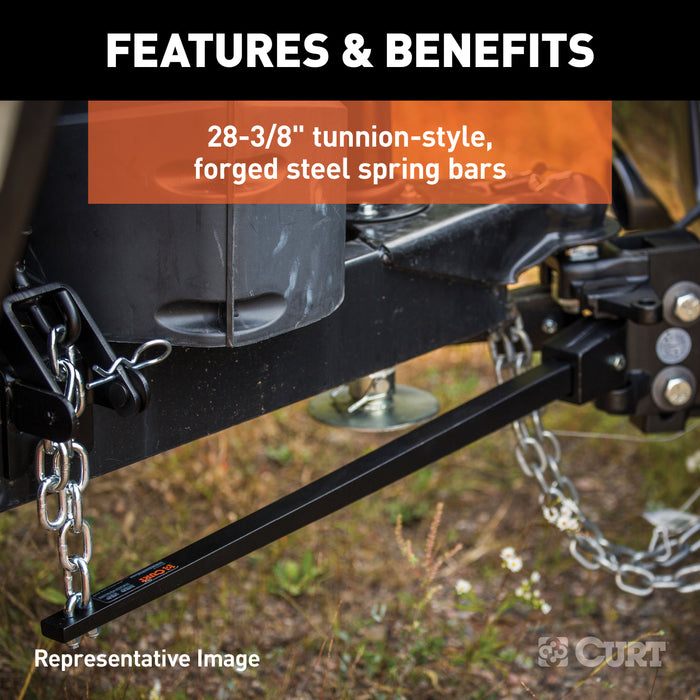

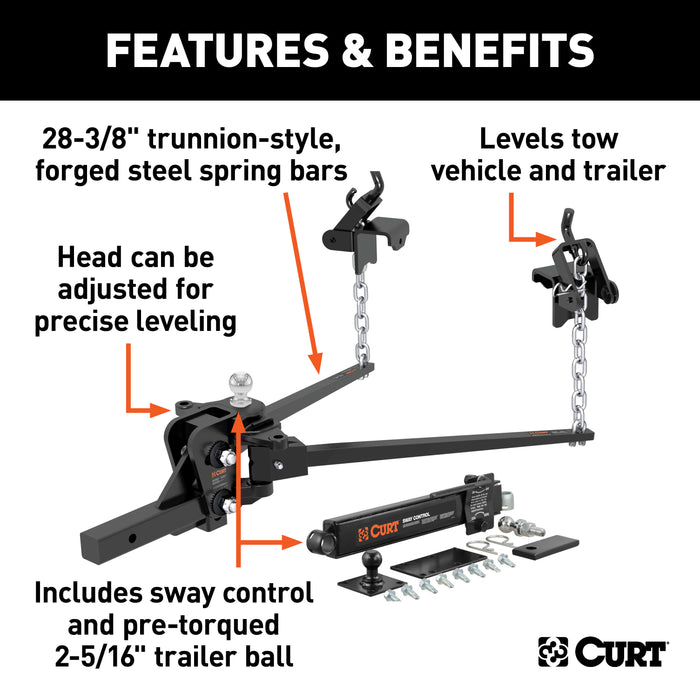

| Description_ASC | Equipped with 28-3/8" trunnion-style, forged steel spring bars |

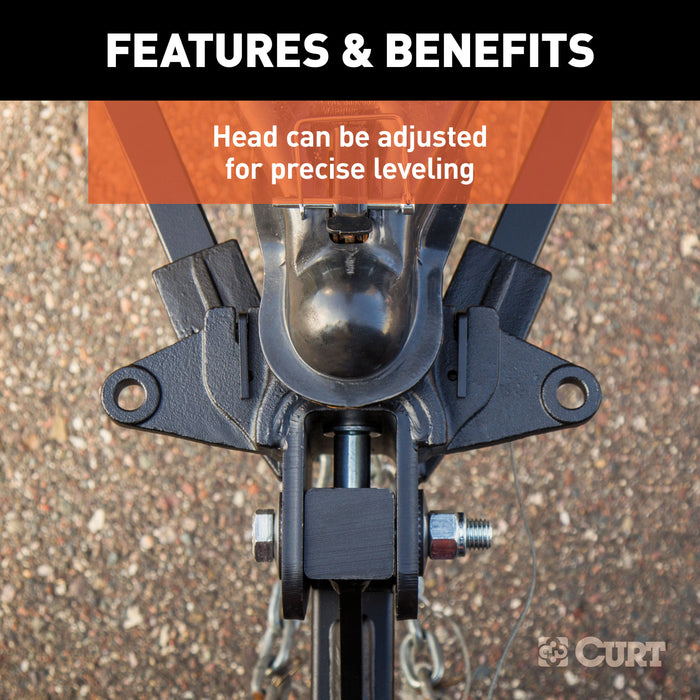

| Description_ASC | Heavy-duty, formed head can be adjusted for precise leveling |

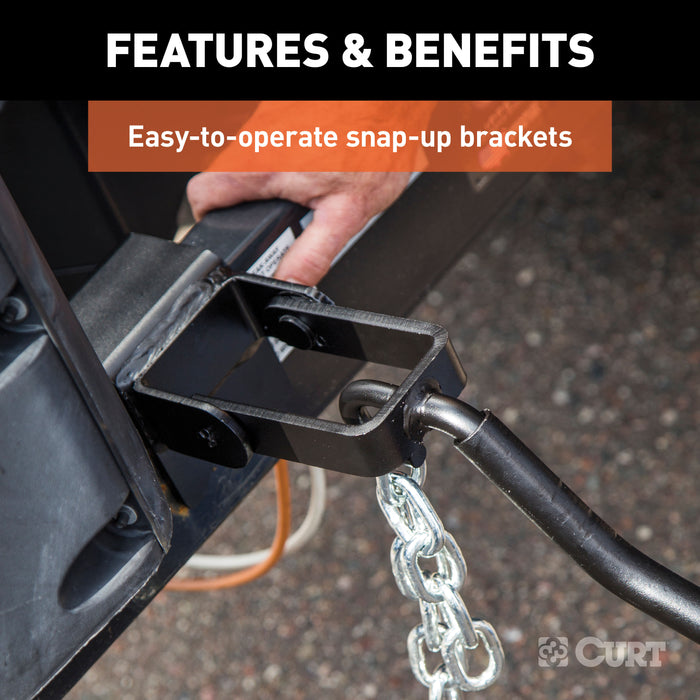

| Description_ASC | Hookup brackets and lift handle allow for easy leveraging of spring bars |
| Description_ASC | Includes a pre-torqued 2-5/16" trailer ball |

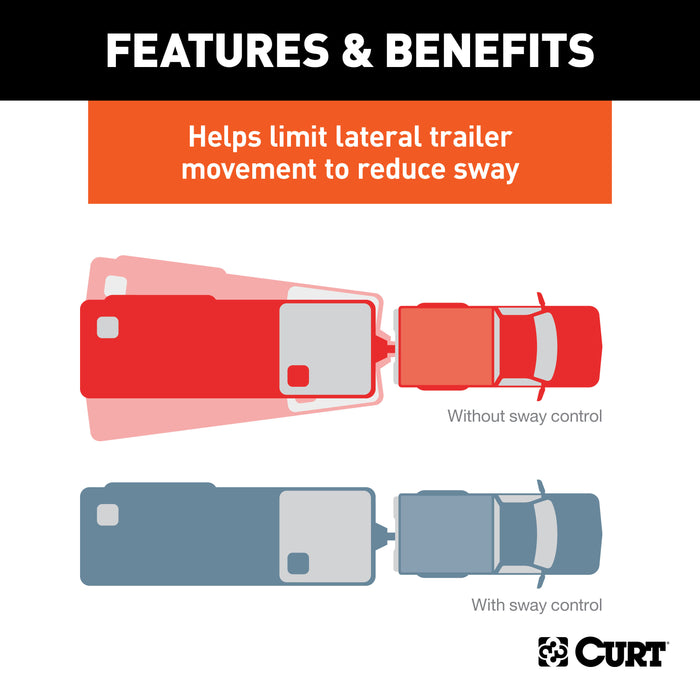

| Description_ASC | Includes sway control kit #17200 to help reduce trailer sway |

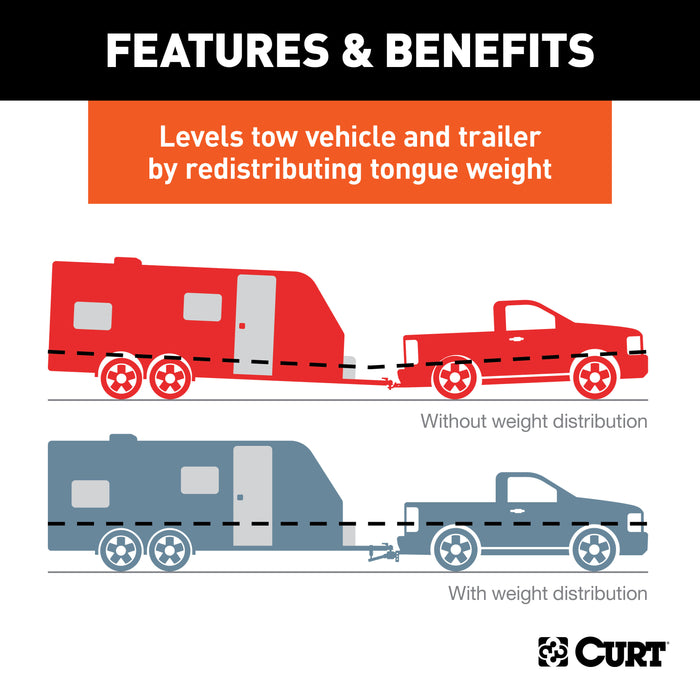

| Description_ASC | Levels tow vehicle and trailer by redistributing a portion of the tongue weight |
| Description_ASC | Limited lifetime warranty (one-year finish, one-year parts) |
| Description_ASC | Protected by a highly durable carbide powder coat finish |
| Description_ASC | Short Trunnion Bar Weight Distribution Hitch with Sway Control (10-15K, 28-3/8") |
| Description_ASC | Sway control easily mounts on built-in sway control attachment tabs |
| Description_ASM | CURT 17422 Short Trunnion Bar Weight Distribution Hitch with Sway Control, Up to 15K, 2-In Shank, 2-5/16-Inch Ball |
| Description_DEF | Trailer Hitch |
| Description_DES | Short Trunnion Bar Weight Distribution Hitch with Sway Control (10-15K, 28-3/8") |
| Description_DES | Short Trunnion Bar Weight Distribution Hitch with Sway Control (10-15K; 28-3/8in |
| Description_EXT | CURT 17422 Short Trunnion Bar Weight Distribution Hitch with Sway Control, Up to 15K, 2-In Shank, 2-5/16-Inch Ball |
| Description_EXT | CURT 17422 Short Trunnion Bar Weight Distribution Hitch with Sway Control; Up to 15K; 2-In Shank; 2-5/16-Inch Ball |
| Description_FAB | Adjustable Shank Fits 2 In. X 2 In. Receiver Tube Openings |
| Description_FAB | Equipped w/28 3/8 In. Trunnion-Style Forged Steel Spring Bars |
| Description_FAB | Heavy-Duty Formed Head Can Be Adjusted For Precise Leveling |
| Description_FAB | Incl. A Sway Control Kit #17200 To Help Reduce Trailer Sway |
| Description_FAB | Levels Tow Vehicle/Trailer By Distribution Of The Tongue Weight |
| Description_FAB | Protected By A Highly Durable Carbide Powder Coat Finish |
| Description_FAB | Snap-Up Brackets And Lift Handle Allow For Easy Leveraging |
| Description_FAB | Sway Control Easily Mounts On Built-In Sway Control Tabs |
| Description_INV | Short Trunnion Bar WD Hitch Kit |
| Description_KEY | base rv lift lb camper weighted friction truck mount holder right dual travel kit parts equal load leveling ez leveler accessories pins pro equalizing tab plate slide weights interchangeable arm stabilizing pin hoist swaybar lifts systems balancing kits |
| Description_MKT | The CURT weight distribution hitch is a specialized towing system that provides improved vehicle and trailer control by leveling the trailer and more evenly distributing its tongue weight across the trailer's and vehicle's axles. Weight distribution hitches are commonly used on travel trailers and campers but can also be applied to other large loads. CURT WD hitches come with a 2" x 2" shank and are compatible with class 3, 4 and most 5 trailer hitches, including Xtra Duty and Commercial Duty (2-1/2" replacement WD shank may be required), as well as some RV trailer hitches. While a weight distribution hitch will increase the gross trailer weight capacity of most trailer hitches, the vehicle's weight carrying capacity must be taken into consideration before towing a heavier trailer (NOTE: Never exceed the lowest weight capacity of any towing component).This trunnion bar weight distribution hitch features a heavy-duty formed head and square spring bars constructed from forged steel. It offers a gross trailer weight capacity up to 15,000 lbs. and a tongue weight capacity of 1,500 lbs. It also includes hook-up brackets, spring bar safety chains, a trailer ball and a pin and clip. To protect this hitch from scratching, chipping, rust and UV damage, it also comes with a durable black powder coat finish. For added sway control, this weight distribution hitch includes a sway control unit. While weight distribution hitches are an effective solution for stabilizing and leveling out your towing rig, they should not be considered a sway control. However, when combined with a CURT sway control kit, the WD hitch maximizes its effectiveness in controlling sway. The sway control kit includes a sway control unit, trailer balls to attach to the trailer and hitch, a reinforcement plate and attachment clips. |
| Description_MKT | The CURT weight distribution hitch is a specialized towing system that provides improved vehicle and trailer control by leveling the trailer and more evenly distributing its tongue weight across the trailers and vehicles axles. Weight distribution hitches are commonly used on travel trailers and campers but can also be applied to other large loads. CURT WD hitches come with a 2" x 2" shank and are compatible with class 3, 4 and most 5 trailer hitches, including Xtra Duty and Commercial Duty (2-1/2" replacement WD shank may be required), as well as some RV trailer hitches. While a weight distribution hitch will increase the gross trailer weight capacity of most trailer hitches, the vehicles weight carrying capacity must be taken into consideration before towing a heavier trailer (NOTE: Never exceed the lowest weight capacity of any towing component).This trunnion bar weight distribution hitch features a heavy-duty formed head and square spring bars constructed from forged steel. It offers a gross trailer weight capacity up to 15,000 lbs. and a tongue weight capacity of 1,500 lbs. It also includes hook-up brackets, spring bar safety chains, a trailer ball and a pin and clip. To protect this hitch from scratching, chipping, rust and UV damage, it also comes with a durable black powder coat finish. For added sway control, this weight distribution hitch includes a sway control unit. While weight distribution hitches are an effective solution for stabilizing and leveling out your towing rig, they should not be considered a sway control. However, when combined with a CURT sway control kit, the WD hitch maximizes its effectiveness in controlling sway. The sway control kit includes a sway control unit, trailer balls to attach to the trailer and hitch, a reinforcement plate and attachment clips. |
| Description_SHO | Short Trunnion Bar W |
| Description_SHO | Trunnion WD Hitch |
| Description_SLA | The CURT weight distribution hitch is a specialized towing system that provides improved vehicle and trailer control by leveling the trailer and more evenly distributing its tongue weight across the trailer's and vehicle's axles. Weight distribution hitches are commonly used on travel trailers and campers but can also be applied to other large loads. CURT WD hitches come with a 2" x 2" shank and are compatible with class 3, 4 and most 5 trailer hitches, including Xtra Duty and Commercial Duty (2-1/2" replacement WD shank may be required), as well as some RV trailer hitches. While a weight distribution hitch will increase the gross trailer weight capacity of most trailer hitches, the vehicle's weight carrying capacity must be taken into consideration before towing a heavier trailer (NOTE: Never exceed the lowest weight capacity of any towing component).This trunnion bar weight distribution hitch features a heavy-duty formed head and square spring bars constructed from forged steel. It offers a gross trailer weight capacity up to 15,000 lbs. and a tongue weight capacity of 1,500 lbs. It also includes hook-up brackets, spring bar safety chains, a trailer ball and a pin and clip. To protect this hitch from scratching, chipping, rust and UV damage, it also comes with a durable black powder coat finish. For added sway control, this weight distribution hitch includes a sway control unit. While weight distribution hitches are an effective solution for stabilizing and leveling out your towing rig, they should not be considered a sway control. However, when combined with a CURT sway control kit, the WD hitch maximizes its effectiveness in controlling sway. The sway control kit includes a sway control unit, trailer balls to attach to the trailer and hitch, a reinforcement plate and attachment clips. |
| finish | Carbide Black Powder Coat |
| Finish - XA | CARBIDE BLACK POWDER COAT |
| Gross Trailer Weight | 15000 lbs. |
| Gross Trailer Weight (GTW) | 15,000 LB |
| height | 10.5 |
| Item Class - XA | OBS |
| Item Height - XA | 0.000 |
| Item Length - XA | 0.000 |
| Item Width - XA | 0.000 |
| length | 33.0 |
| LTL | N |
| Parcel Allowed - XA | Yes |
| Product Weight - XA | 105.000 |
| Rate Class - XA | 70.0 |
| Retail Height - XA | 10.500 |
| Retail Length - XA | 33.000 |
| Retail Width - XA | 12.000 |
| Shipping Weight - XA | 107.800 |
| Tariff 301 - XA | Yes |
| Title | Short Trunnion Bar Weight Distribution Hitch with Sway Control (10-15K, 28-3/8") |
| Tongue Weight | 1400 lbs. |
| Tongue Weight (TW) | 1,500 LB |
| WARNING CA Proposition 65 | No |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| weight | 107.8 |
| width | 12.0 |
