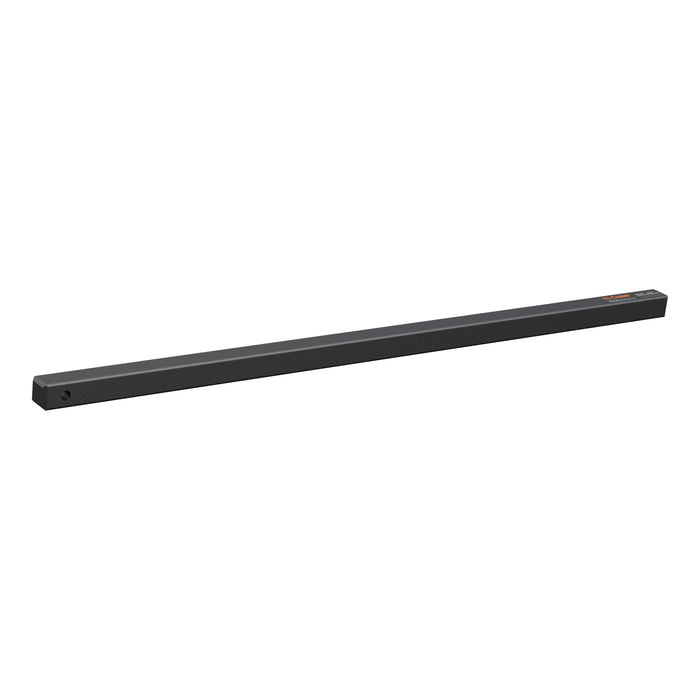

CURT 17535 Replacement Light-Duty TruTrack Weight Distribution Spring Bar
by CURT
SKU ds_BKDK_17535
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$97.92
-
Original price
$97.92
Original price
$97.92
$97.92
$97.92
-
$97.92
Current price
$97.92
Description

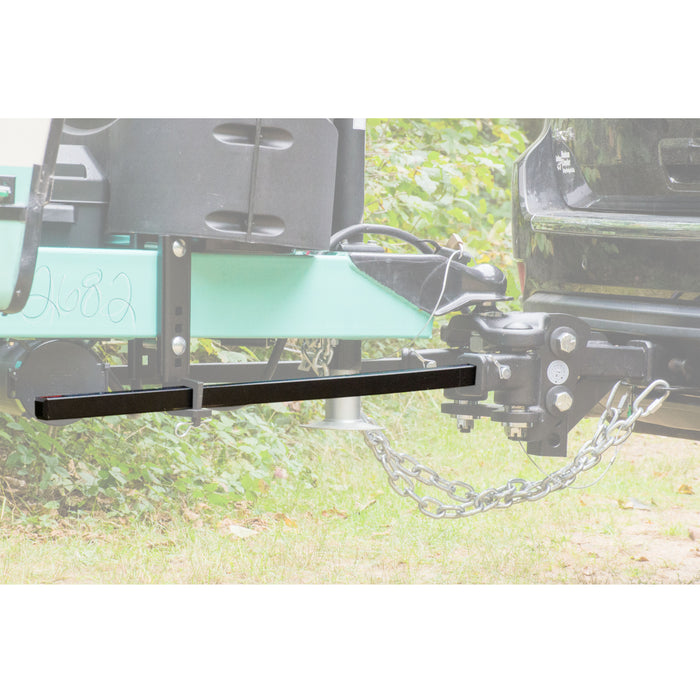

While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT light-duty TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with integrated sway control to deliver the smoothest, safest ride possible. Like all WD hitches, the light-duty TruTrack uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. This replacement light-duty TruTrack spring bar for #17499 features forged steel construction and a durable powder coat finish for long-lasting use. It offers a gross trailer weight capacity of 5,000 - 8,000 lbs. and a tongue weight capacity of 500 - 800 lbs. One spring bar is included in this package.
Specifications
| Box Height in Inches - XA | 0 |
| Box Length in Inches - XA | 0 |
| Box Width in Inches - XA | 0 |
| Class ID | 0 |
| Description_ABR | REPLC |
| Description_ASC | Constructed from forged steel for optimum strength |
| Description_ASC | Mounts to the #17499 TruTrack hitch to help level the trailer and tow vehicle |
| Description_ASC | Protected by a highly durable carbide powder coat finish |
| Description_ASC | Replacement Light-Duty TruTrack Weight Distribution Spring Bar |
| Description_ASM | CURT 17535 Replacement Light-Duty TruTrack Weight Distribution Hitch Spring Bar, 8K |
| Description_DEF | Trailer Weight Distribution Kit |
| Description_DES | Replacement Light-Duty TruTrack Weight Distribution Spring Bar |
| Description_EXT | CURT 17535 Replacement Light-Duty TruTrack Weight Distribution Hitch Spring Bar, 8K |
| Description_EXT | CURT 17535 Replacement Light-Duty TruTrack Weight Distribution Hitch Spring Bar; 8K |
| Description_FAB | Replacement Orbital Pad And Bushings |
| Description_INV | Replacement LD TruTrack WD Spring Bar |
| Description_MKT | While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT light-duty TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with integrated sway control to deliver the smoothest, safest ride possible. Like all WD hitches, the light-duty TruTrack uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. This replacement light-duty TruTrack spring bar for #17499 features forged steel construction and a durable powder coat finish for long-lasting use. It offers a gross trailer weight capacity of 5,000 - 8,000 lbs. and a tongue weight capacity of 500 - 800 lbs. One spring bar is included in this package. |
| Description_SHO | Replacement Light-Du |
| Description_SHO | TruTrack Spring Bar |
| Description_SLA | While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT light-duty TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with integrated sway control to deliver the smoothest, safest ride possible. Like all WD hitches, the light-duty TruTrack uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. This replacement light-duty TruTrack spring bar for #17499 features forged steel construction and a durable powder coat finish for long-lasting use. It offers a gross trailer weight capacity of 5,000 - 8,000 lbs. and a tongue weight capacity of 500 - 800 lbs. One spring bar is included in this package. |
| finish | Clear Zinc |
| Finish - XA | CLEAR ZINC |
| Gross Trailer Weight | 5000 lbs. - 8000 lbs. |
| Gross Trailer Weight (GTW) | 5,000 - 8,000 LB |
| height | 3.0 |
| Item Class - XA | OBS |
| Item Height - XA | 0.000 |
| Item Length - XA | 0.000 |
| Item Width - XA | 0.000 |
| length | 36.0 |
| LTL | N |
| Parcel Allowed - XA | Yes |
| Product Weight - XA | 13.250 |
| Rate Class - XA | 70.0 |
| Retail Height - XA | 3.000 |
| Retail Length - XA | 36.000 |
| Retail Width - XA | 3.500 |
| Shipping Weight - XA | 13.250 |
| Tariff 301 - XA | Yes |
| Title | Replacement Light-Duty TruTrack Weight Distribution Spring Bar |
| Tongue Weight (TW) | 500 - 800 LB |
| WARNING CA Proposition 65 | No |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| weight | 13.25 |
| width | 3.5 |
