CURT 48340 CURT 48340 Pintle Mount for 2-1/2-Inch Hitch Receiver; 20;000 lbs; 8-Inch Length

In agriculture, construction and even military applications, pintle hitches are the trusted product of specialized towing. They are notorious for their high weight capacity and simple design. The basic pintle hitch is essentially a hook and loop, with the hook attached to the vehicle and the loop mounted on the trailer. Because of their simple design, pintle hitches are able to have thicker metal construction and more secure coupling. CURT has a wide variety of pintle hitches and pintle-style products to give you a complete solution for your heavy-duty towing needs. This adjustable pintle mount is designed to accept a bolt-on pintle hook or combination ball and pintle. It can be mounted in any 2-1/2" x 2-1/2" receiver tube opening, offers a gross trailer weight capacity up to 20,000 lbs. and features a total plate height of 3-1/2" (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).The heavyweight towing done with pintle hitches implies a certain amount of wear and tear on your towing equipment, and to prepare for this, CURT uses a quality finish on all our pintle mounts, lunette eyes and combination pintle hitches. This pintle mount is coated in a tough black carbide powder coat finish to provide the perfect amount of rust and scratch resistance needed to face the heavy-duty towing you do every day.

Box Height in Inches - XA	0
Box Length in Inches - XA	0
Box Width in Inches - XA	0
Class ID	0
Description_ABR	PINTL

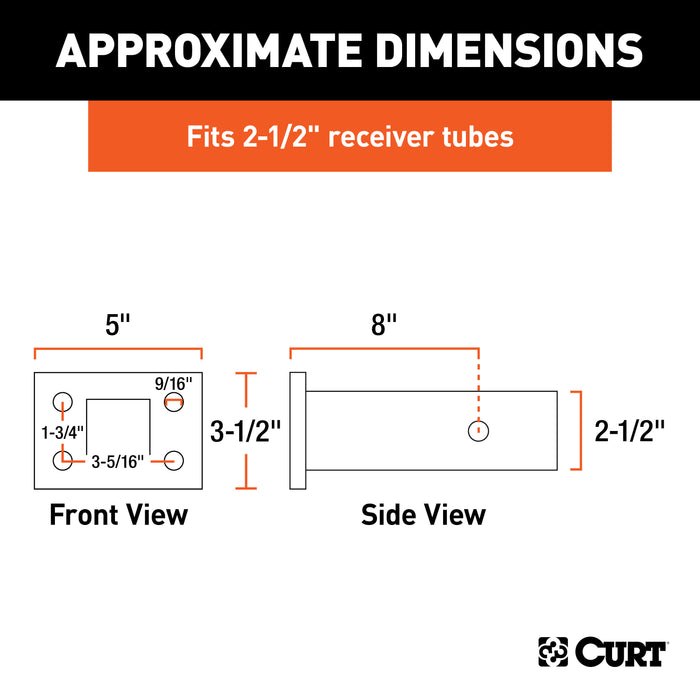

Description_ASC	Face plate holes spaced apart 1-3/4" high x 3-5/16" wide
Description_ASC	Fits trailer hitches with a 2-1/2" x 2-1/2" receiver tube opening
Description_ASC	Limited lifetime warranty (one-year finish, one-year parts)

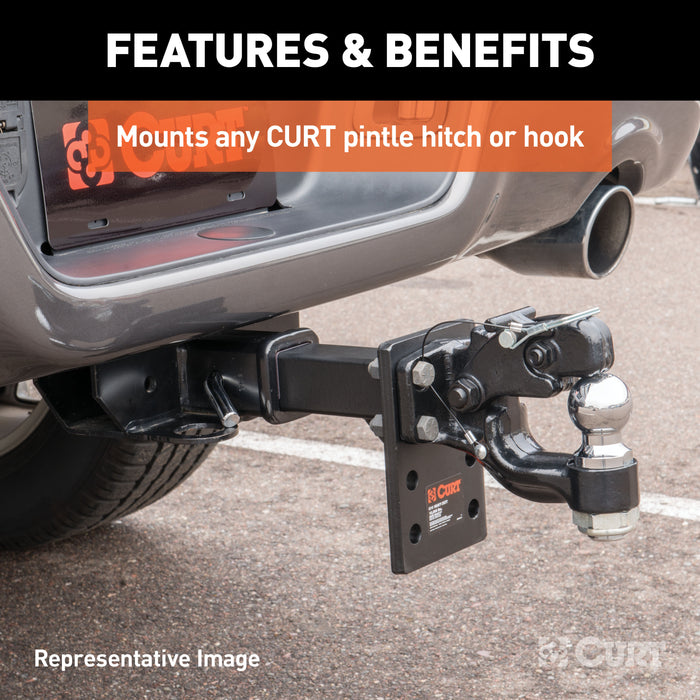

Description_ASC	Mounts any CURT adjustable pintle hook or ball & pintle combination

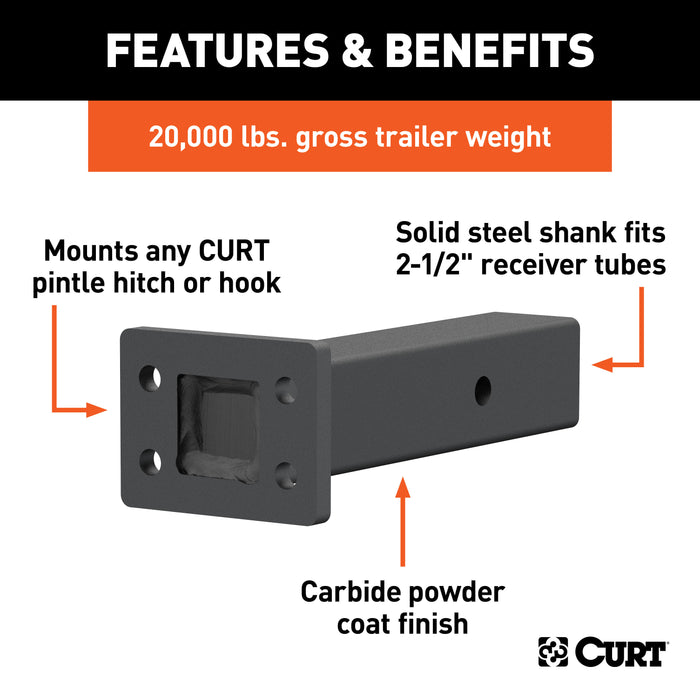

Description_ASC	Pintle Mount (2-1/2" Shank, 20,000 lbs., 8" Long)
Description_ASC	Protected by a highly durable carbide powder coat finish
Description_ASC	Shank constructed from solid steel for optimum strength
Description_ASM	CURT 48340 Pintle Mount for 2-1/2-Inch Hitch Receiver, 20,000 lbs, 8-Inch Length
Description_DEF	Trailer Hitch Pintle Hook Mount
Description_DES	Pintle Mount (2-1/2" Shank, 20,000 lbs., 8" Long)
Description_DES	Pintle Mount (2-1/2in. Shank; 20;000 lbs.; 8in. Long)
Description_EXT	CURT 48340 Pintle Mount for 2-1/2-Inch Hitch Receiver, 20,000 lbs, 8-Inch Length
Description_EXT	CURT 48340 Pintle Mount for 2-1/2-Inch Hitch Receiver; 20;000 lbs; 8-Inch Length
Description_FAB	Fits Trailer Hitches w/A 2 1/2 In. X 2 1/2 In. Receiver Tube
Description_FAB	Mounts Any Curt Adj. Pintle Hook Or Ball And Pintle Combination
Description_FAB	Protected By A Highly Durable Carbide Powder Coat Finish
Description_FAB	Shank Constructed From Solid Steel For Optimum Strength
Description_INV	Pintle Mount
Description_KEY	2 inch 3 rigid on adapter hooks weld tow d in lb parts accessory pintel truck pindle trucks reciever pintal pindal manufacturing k pentle pentel pm automotive zone vise
Description_LAB	Made In Logo
Description_MKT	In agriculture, construction and even military applications, pintle hitches are the trusted product of specialized towing. They are notorious for their high weight capacity and simple design. The basic pintle hitch is essentially a hook and loop, with the hook attached to the vehicle and the loop mounted on the trailer. Because of their simple design, pintle hitches are able to have thicker metal construction and more secure coupling. CURT has a wide variety of pintle hitches and pintle-style products to give you a complete solution for your heavy-duty towing needs. This adjustable pintle mount is designed to accept a bolt-on pintle hook or combination ball and pintle. It can be mounted in any 2-1/2" x 2-1/2" receiver tube opening, offers a gross trailer weight capacity up to 20,000 lbs. and features a total plate height of 3-1/2" (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).The heavyweight towing done with pintle hitches implies a certain amount of wear and tear on your towing equipment, and to prepare for this, CURT uses a quality finish on all our pintle mounts, lunette eyes and combination pintle hitches. This pintle mount is coated in a tough black carbide powder coat finish to provide the perfect amount of rust and scratch resistance needed to face the heavy-duty towing you do every day.
Description_SHO	Pintle Mount
Description_SHO	Pintle Mount (2-1/2i
Description_SLA	In agriculture, construction and even military applications, pintle hitches are the trusted product of specialized towing. They are notorious for their high weight capacity and simple design. The basic pintle hitch is essentially a hook and loop, with the hook attached to the vehicle and the loop mounted on the trailer. Because of their simple design, pintle hitches are able to have thicker metal construction and more secure coupling. CURT has a wide variety of pintle hitches and pintle-style products to give you a complete solution for your heavy-duty towing needs. This adjustable pintle mount is designed to accept a bolt-on pintle hook or combination ball and pintle. It can be mounted in any 2-1/2" x 2-1/2" receiver tube opening, offers a gross trailer weight capacity up to 20,000 lbs. and features a total plate height of 3-1/2" (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).The heavyweight towing done with pintle hitches implies a certain amount of wear and tear on your towing equipment, and to prepare for this, CURT uses a quality finish on all our pintle mounts, lunette eyes and combination pintle hitches. This pintle mount is coated in a tough black carbide powder coat finish to provide the perfect amount of rust and scratch resistance needed to face the heavy-duty towing you do every day.
Finish - XA	Carbide Black Powder Coat
Gross Trailer Weight (GTW)	20,000 LB
height	4.0
Item Class - XA	OMF
Item Height - XA	3.750
Item Length - XA	12.125
Item Width - XA	5.000
length	12.25
LTL	N
Max Drop	3 IN
Parcel Allowed - XA	Yes
Plate Height	3.5
Product Weight - XA	0.000
Rate Class - XA	70.0
Receiver Tube Size	2-1/2 IN
Retail Height - XA	4.000
Retail Length - XA	12.250
Retail Width - XA	5.250
Shank Length	12 1/2 IN
Shipping Weight - XA	22.300
Tariff 301 - XA	No
Title	Pintle Mount (2-1/2" Shank, 20,000 lbs., 8" Long)
Warranty	Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
weight	22.3
width	5.25
