CURT 48411 SecureLatch Ball/Pintle Hitch (2in. Ball; 20;000 lbs.)

Enjoy automatic trailer coupling with the unique auto-locking mechanism of this SecureLatch pintle hitch. Just back up to the trailer tongue -- the integrated striker plate helps stop and center the lunette ring. Drop the ring onto the ball and hook, and the SecureLatch mechanism automatically engages the primary lock. Just insert the secondary safety pin and youre ready to tow. This unique pintle ball hitch also has a cupped design to hold the lunette eyelet more tightly and deter chucking noises. This ball and pintle combo is rated for 20,000 pounds gross trailer weight, 10,000 pounds ball capacity and is constructed from austempered cast iron for superior strength and wear resistance. It has a standard 2-inch ball and fits 2-1/2-inch or 3-inch lunette rings. NOTE: SecureLatch slotted pintle mount required for installation (sold separately).

Resources

Installation Instructions

Ball Capacity	10,000 LBS
Ball Diameter	2 IN
Box Height in Inches - XA	0
Box Length in Inches - XA	0
Box Width in Inches - XA	0
Description_ABR	PINTL

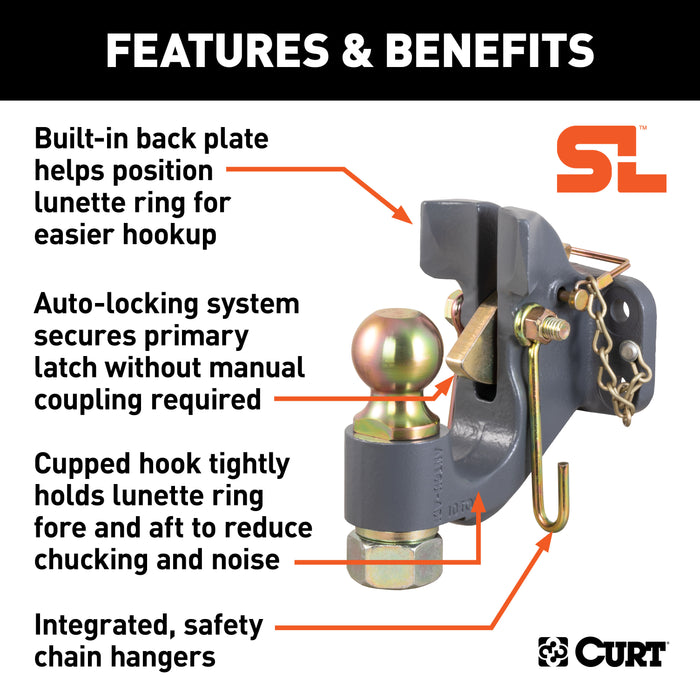

Description_ASC	Auto-locking system secures primary latch without manual coupling required
Description_ASC	Bright zinc-plated hardware for corrosion resistance (mount bolts not included)
Description_ASC	Built-in back plate helps position coupler or lunette ring for easier hookup
Description_ASC	Cast iron construction is austempered for superior strength and wear resistance
Description_ASC	Couples to 2" couplers or lunette eyes with a 2-1/2" or 3" inside diameter
Description_ASC	Cupped hook tightly holds lunette ring fore and aft to reduce chucking and noise
Description_ASC	Fits SecureLatch pintle mounts with slotted plate (sold separately)
Description_ASC	Integrated, intermediate safety chain hangers keep chains off the ground
Description_ASC	Latch can be pinned in open position to clear standard trailer coupler
Description_ASC	Limited lifetime warranty (one-year finish, one-year parts)
Description_ASC	Quick, easy, one-tool height adjustments -- no disassembly required
Description_ASC	Rated for 20,000 lbs. gross trailer weight and 10,000 lbs. ball capacity
Description_ASC	SecureLatch Ball & Pintle Hitch (2" Ball, 20,000 lbs.)
Description_ASC	Textured, dark grey teridium powder coat for a premium finish
Description_ASM	CURT 48411 SecureLatch 2-Inch Ball and Pintle Hitch Hook Combination, 20,000 Pounds, Mount Required
Description_DEF	Trailer Hitch Pintle Hook Mount
Description_DES	SecureLatch Ball & Pintle Hitch (2" Ball, 20,000 lbs.)
Description_DES	SecureLatch Ball/Pintle Hitch (2in. Ball; 20;000 lbs.)
Description_EXT	CURT 48411 SecureLatch 2-Inch Ball and Pintle Hitch Hook Combination, 20,000 Pounds, Mount Required
Description_EXT	CURT 48411 SecureLatch 2-Inch Ball and Pintle Hitch Hook Combination; 20;000 Pounds; Mount Required
Description_FAB	Built-In Back Plate Helps Position Coupler Or Lunette Ring
Description_FAB	Cast Iron Construction Is Austempered For Superior Strength
Description_FAB	Couples To 2In. Couplers/Lunette Rings w/A 2.5/3 in. Inside Dia.
Description_FAB	Cupped Hook Tightly Holds Lunette Ring Fore And Aft
Description_FAB	Fits SecureLatch Pintle Mounts With Slotted Plate
Description_FAB	Gold Zinc-Plated Hardware For Long-Lasting Corrosion Resistance
Description_FAB	Integrated Safety Chain Hangers Keep Chains Off The Ground
Description_FAB	Limited Lifetime Warranty
Description_FAB	Quick Easy One-Tool Height Adjustments No Disassembly Required
Description_FAB	Rated For 20000 Lbs. GTW And 10000 Lbs. Ball Capacity
Description_FAB	Textured Dark Grey Teridium Finish For A Premium Look
Description_FAB	Torqued Bolt Plates Provide 48000 lbs. Total Clamp Load
Description_INV	SecureLatch Ball & Pintle Hitch, 20K
Description_KEY	ball pintle curt pintel hitch truck adjustable hitches trucks pentle combo pentel pinto receiver manufacturing towing trailer with mount combination raised pintal bolt ton hook products bh kit product inch pindle military lbs black automotive length fit
Description_MKT	Enjoy automatic trailer coupling with the unique auto-locking mechanism of this SecureLatch pintle hitch. Just back up to the trailer tongue -- the integrated striker plate helps stop and center the lunette ring. Drop the ring onto the ball and hook, and the SecureLatch mechanism automatically engages the primary lock. Just insert the secondary safety pin and you're ready to tow. This unique pintle ball hitch also has a cupped design to hold the lunette eyelet more tightly and deter chucking noises. This ball and pintle combo is rated for 20,000 pounds gross trailer weight, 10,000 pounds ball capacity and is constructed from austempered cast iron for superior strength and wear resistance. It has a standard 2-inch ball and fits 2-1/2-inch or 3-inch lunette rings. NOTE: SecureLatch slotted pintle mount required for installation (pintle mount and bolts sold separately).
Description_MKT	Enjoy automatic trailer coupling with the unique auto-locking mechanism of this SecureLatch pintle hitch. Just back up to the trailer tongue -- the integrated striker plate helps stop and center the lunette ring. Drop the ring onto the ball and hook, and the SecureLatch mechanism automatically engages the primary lock. Just insert the secondary safety pin and youre ready to tow. This unique pintle ball hitch also has a cupped design to hold the lunette eyelet more tightly and deter chucking noises. This ball and pintle combo is rated for 20,000 pounds gross trailer weight, 10,000 pounds ball capacity and is constructed from austempered cast iron for superior strength and wear resistance. It has a standard 2-inch ball and fits 2-1/2-inch or 3-inch lunette rings. NOTE: SecureLatch slotted pintle mount required for installation (sold separately).
Description_SHO	SecureLatch Ball/Pin
Description_SHO	SecureLatch Pintle
Description_SLA	Enjoy automatic trailer coupling with the unique auto-locking mechanism of this SecureLatch pintle hitch. Just back up to the trailer tongue -- the integrated striker plate helps stop and center the lunette ring. Drop the ring onto the ball and hook, and the SecureLatch mechanism automatically engages the primary lock. Just insert the secondary safety pin and you're ready to tow. This unique pintle ball hitch also has a cupped design to hold the lunette eyelet more tightly and deter chucking noises. This ball and pintle combo is rated for 20,000 pounds gross trailer weight, 10,000 pounds ball capacity and is constructed from austempered cast iron for superior strength and wear resistance. It has a standard 2-inch ball and fits 2-1/2-inch or 3-inch lunette rings. NOTE: SecureLatch slotted pintle mount required for installation (pintle mount and bolts sold separately).
Finish - XA	DARK GREY TERIDIUM
Gross Trailer Weight (GTW)	20,000 LBS
height	3.23
Item Class - XA	OBS
Item Height - XA	8.373
Item Length - XA	7.700
Item Width - XA	3.230
length	8.373
LTL	N
Parcel Allowed - XA	Yes
Product Weight - XA	14.500
Rate Class - XA	70.0
Retail Height - XA	3.230
Retail Length - XA	8.373
Retail Width - XA	7.700
Shipping Weight - XA	15.500
Tariff 301 - XA	Yes
Title	SecureLatch Ball & Pintle Hitch (2" Ball, 20,000 lbs.)
Warranty	Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
weight	15.5
width	7.7
