CURT 51142 CURT 51142 TriFlex Electric Trailer Brake Controllers; Proportional; 6-Pack
by CURT
SKU ds_BKDK_51142
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$770.57
-
Original price
$770.57
Original price
$770.57
$770.57
$770.57
-
$770.57
Current price
$770.57
Description
The TriFlex proportion-based brake controller features a compact size, a digital display and the ability to manage up to eight brakes at a time. The feature that sets the TriFlex apart from many others is its triple-axis motion-sensing accelerometer. This integrated circuit component allows the TriFlex to detect every motion of your vehicle and trailer with exact precision and to then apply the perfect amount of braking power for every situation. The TriFlex also automatically adjusts brake output when going up or down a hill and is compatible with anti-lock brakes and cruise control. It comes with a mounting bracket and hardware and can be mounted at various angles on your vehicles dash. Best of all, like other CURT brake controllers, the TriFlex is protected by a limited lifetime warranty. These CURT trailer brake controllers are designed to work with quick plugs so that they can readily plug into your vehicles original equipment socket. They also include mounting brackets and hardware for easy installation. A brake controller should be mounted somewhere on the dash of your vehicle, and we recommend putting it below the steering wheel, either on the right or left side of the steering column. This way the control will not block your view when driving, but it will remain accessible and visible when adjustment is needed.
Specifications
| Description_ABR | CNTRL |
| Description_ASC | Auto sleep mode prevents battery drain after five minutes of idle time |
| Description_ASC | Automatic leveling and calibration eliminate setup requirements |
| Description_ASC | Built-in reverse-polarity and short-circuit protection |
| Description_ASC | Compact size: 3-1/4" wide, 4" deep, 7/8" tall |
| Description_ASC | Compatible with low-volt, PWM, ABS, cruise control and electric over hydraulic |

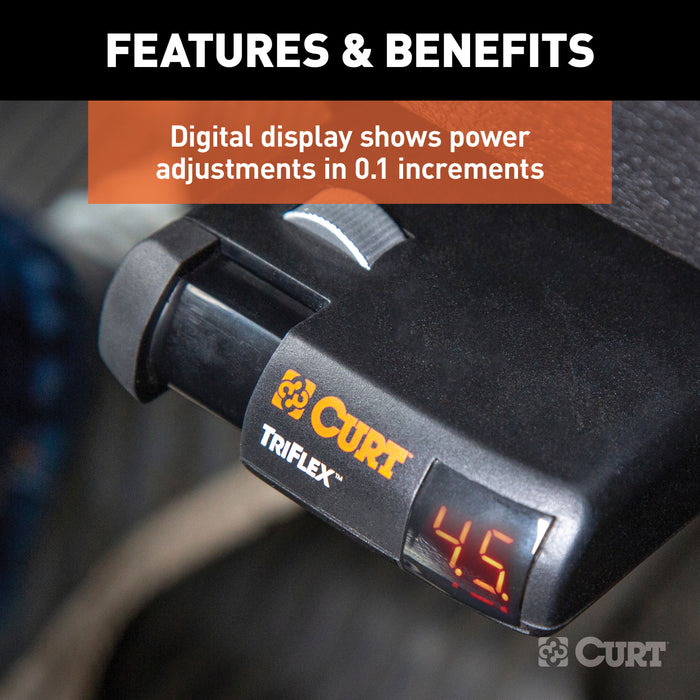

| Description_ASC | Digital display shows power adjustments in 0.1 increments |
| Description_ASC | Limited lifetime warranty |

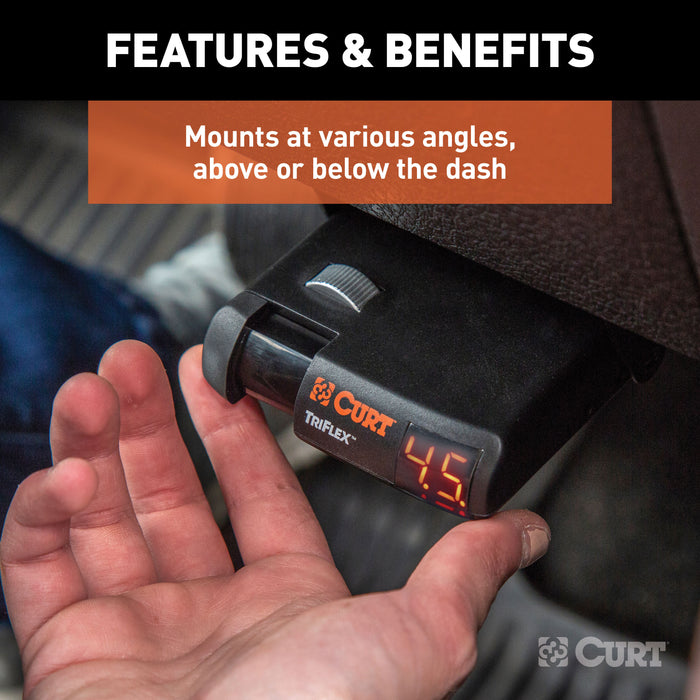

| Description_ASC | Mounts at various angles, above or below the dash, to increase usability |
| Description_ASC | Nine levels of sensitivity adjustment for varying loads or driving conditions |
| Description_ASC | Operates 2-8 trailer brakes at a time (1-4 axles) |

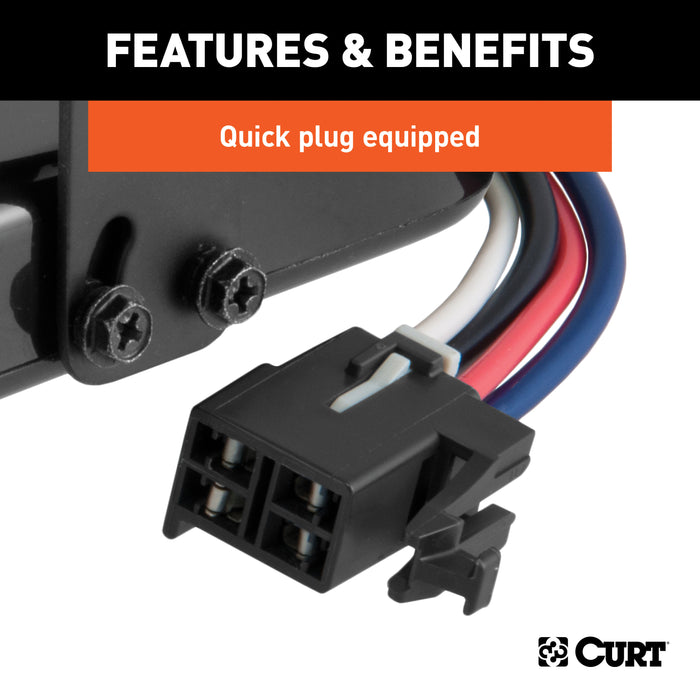

| Description_ASC | Plug-and-play install with vehicle-specific quick plug harness (sold separately) |

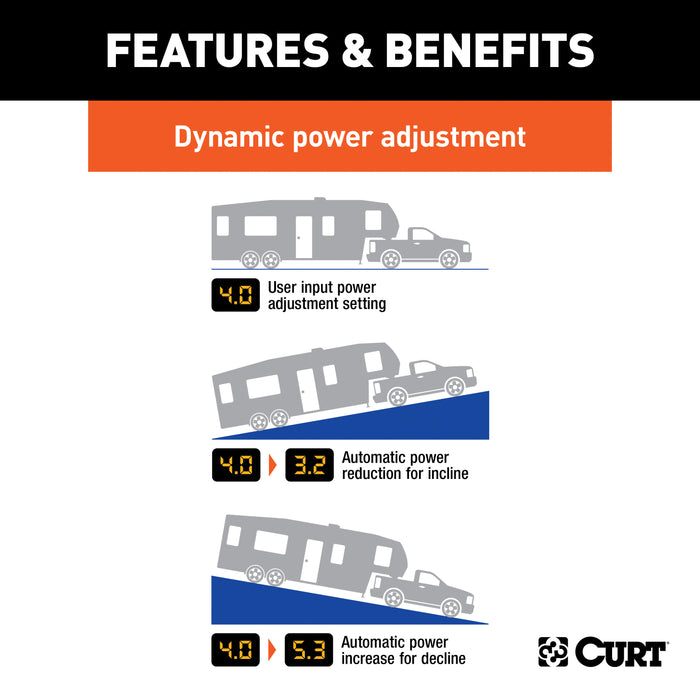

| Description_ASC | Third axis provides dynamic power adjustments when going up or down a hill |
| Description_ASC | Tow vehicle 'low voltage' and trailer disconnect indicators |
| Description_ASC | TriFlex Proportional Trailer Brake Controllers (6-Pack) |

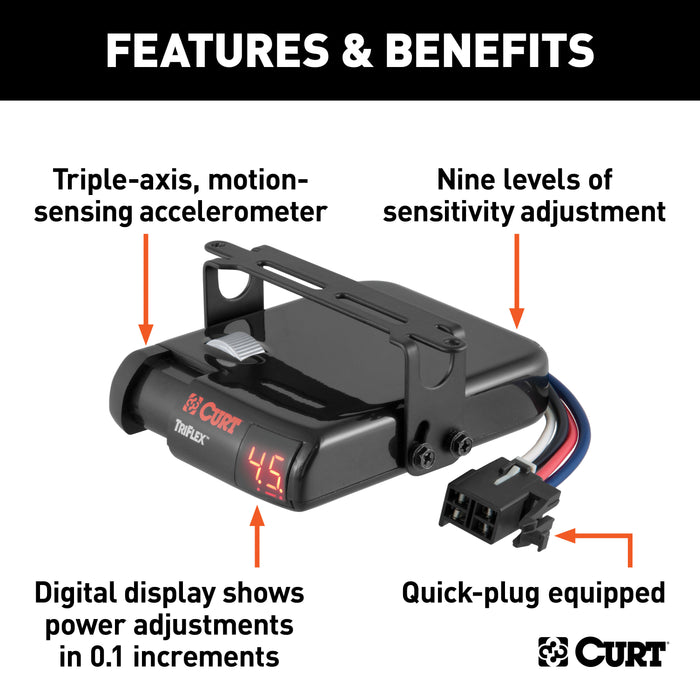

| Description_ASC | Triple-axis, motion-sensing accelerometer for highly responsive, smooth stops |
| Description_ASC | User-selectable power output and trailer brake light activation |
| Description_ASM | CURT 51142 TriFlex Electric Trailer Brake Controllers, Proportional, 6-Pack |
| Description_DEF | Trailer Brake Control |
| Description_DES | TriFlex Proportional Trailer Brake Controllers (6-Pack) |
| Description_EXT | CURT 51142 TriFlex Electric Trailer Brake Controllers, Proportional, 6-Pack |
| Description_EXT | CURT 51142 TriFlex Electric Trailer Brake Controllers; Proportional; 6-Pack |
| Description_FAB | Automatic Leveling And Calibration Eliminate Setup Requirements |
| Description_FAB | Built-In Dual-Polarity And Short-Circuit Protection |
| Description_FAB | Compact Size: 3 1/4 In. Wide 4 In. Deep 7/8 In. Tall |
| Description_FAB | Compatible w/Low Voltage Or Pulse Width Modulation (Pwm) Systems |
| Description_FAB | Digital Display Shows Power Adjustments In 0.1 Increments |
| Description_FAB | Mounts At Various Angles To The Dash To Increase Usability |
| Description_FAB | Nine Levels Of Sensitivity Adj. For Varying Loads |
| Description_FAB | Operates 2-8 Trailer Brakes At A Time (1-4 Axles) |
| Description_FAB | Third Axis Provides Dynamic Power Adj. When Going Up/Down A Hill |
| Description_FAB | Triple-Axis Motion-Sensing Accelerometer For Smooth Stops |
| Description_FAB | User-Selectable Power Output And Trailer Brake Light Activation |
| Description_INV | TriFlex Brake Controllers (6-Pack) |
| Description_KEY | axle parts camper wire kit kits towing farming pickup truck electronic e ram wiring ford tow module break electronics battery box actuator pro dodge system hydraulic aftermarket mopar drive alert tek pod assist gm controls custom user mechanism |
| Description_LAB | Proposition 65 |
| Description_MKT | The TriFlex proportion-based brake controller features a compact size, a digital display and the ability to manage up to eight brakes at a time. The feature that sets the TriFlex apart from many others is its triple-axis motion-sensing accelerometer. This integrated circuit component allows the TriFlex to detect every motion of your vehicle and trailer with exact precision and to then apply the perfect amount of braking power for every situation. The TriFlex also automatically adjusts brake output when going up or down a hill and is compatible with anti-lock brakes and cruise control. It comes with a mounting bracket and hardware and can be mounted at various angles on your vehicle's dash. Best of all, like other CURT brake controllers, the TriFlex is protected by a limited lifetime warranty. These CURT trailer brake controllers are designed to work with quick plugs so that they can readily plug into your vehicle's original equipment socket. They also include mounting brackets and hardware for easy installation. A brake controller should be mounted somewhere on the dash of your vehicle, and we recommend putting it below the steering wheel, either on the right or left side of the steering column. This way the control will not block your view when driving, but it will remain accessible and visible when adjustment is needed. |
| Description_MKT | The TriFlex proportion-based brake controller features a compact size, a digital display and the ability to manage up to eight brakes at a time. The feature that sets the TriFlex apart from many others is its triple-axis motion-sensing accelerometer. This integrated circuit component allows the TriFlex to detect every motion of your vehicle and trailer with exact precision and to then apply the perfect amount of braking power for every situation. The TriFlex also automatically adjusts brake output when going up or down a hill and is compatible with anti-lock brakes and cruise control. It comes with a mounting bracket and hardware and can be mounted at various angles on your vehicles dash. Best of all, like other CURT brake controllers, the TriFlex is protected by a limited lifetime warranty. These CURT trailer brake controllers are designed to work with quick plugs so that they can readily plug into your vehicles original equipment socket. They also include mounting brackets and hardware for easy installation. A brake controller should be mounted somewhere on the dash of your vehicle, and we recommend putting it below the steering wheel, either on the right or left side of the steering column. This way the control will not block your view when driving, but it will remain accessible and visible when adjustment is needed. |
| Description_SHO | TriFlex (6-Pack) |
| Description_SHO | TriFlex Proportional |
| Description_SLA | The TriFlex proportion-based brake controller features a compact size, a digital display and the ability to manage up to eight brakes at a time. The feature that sets the TriFlex apart from many others is its triple-axis motion-sensing accelerometer. This integrated circuit component allows the TriFlex to detect every motion of your vehicle and trailer with exact precision and to then apply the perfect amount of braking power for every situation. The TriFlex also automatically adjusts brake output when going up or down a hill and is compatible with anti-lock brakes and cruise control. It comes with a mounting bracket and hardware and can be mounted at various angles on your vehicle's dash. Best of all, like other CURT brake controllers, the TriFlex is protected by a limited lifetime warranty. These CURT trailer brake controllers are designed to work with quick plugs so that they can readily plug into your vehicle's original equipment socket. They also include mounting brackets and hardware for easy installation. A brake controller should be mounted somewhere on the dash of your vehicle, and we recommend putting it below the steering wheel, either on the right or left side of the steering column. This way the control will not block your view when driving, but it will remain accessible and visible when adjustment is needed. |
| height | 6.5 |
| length | 8.38 |
| LTL | N |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to chemicals including Di(2-ethylhexyl) phthalate; which is known to the State of California to cause cancer; and Di-n-butyl phthalate; which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| weight | 3.0 |
| width | 6.5 |
