CURT 56236 CURT 56236 Multi-Function Splice-in Tail Light Converter; 4-Pin Wiring Harness

Rain, road grime and salt can deal a vicious blow to your trailer wiring, and it takes electrical components with an extra-thick shell to stand up to the elements. The CURT multi-function electrical converter is an advanced taillight converter that offers the ultimate in vehicle compatibility and weather resistance, giving you a reliable wiring connection any season of the year. The potted design seals the internal electrical components in a watertight enclosure and is filled with a solid compound to protect against impacts, vibrations and moisture for long-lasting use, even on the exterior of the vehicle. The converter also features our advanced surface mount technology (SMT), using smaller components mounted directly to the surface of the circuit board. This produces lower resistance, reduced heat generation, longer life cycles and higher reliability. The CURT multi-function electrical converter comes with pigtail wires that are able to be spliced into two-wire, three-wire or PWM wiring system with combined stop and taillights. It converts any of these systems to a simple two-wire system, using a standard 4-way flat output, to be compatible with most trailer wiring. The converter is controlled using a microcontroller that is able to sense the current passing through it, allowing for quick reaction to dangerous conditions such as overload and short circuits. It also filters unwanted input signals to protect your wiring systems and uses a mere seven volts for low-voltage operation. The CURT multi-function taillight converter is a heavy-duty electrical converter for virtually any vehicle-trailer combination. It comes with color-coded wires and an easy-to-read wiring guide, as well as a dust cover to protect the 4-way flat connector. This package also includes four snap locks for faster, more secure splicing. A powered converter wiring kit #55152 is also required for installation.

Resources

Installation Instructions

Description_ABR	CNVRT

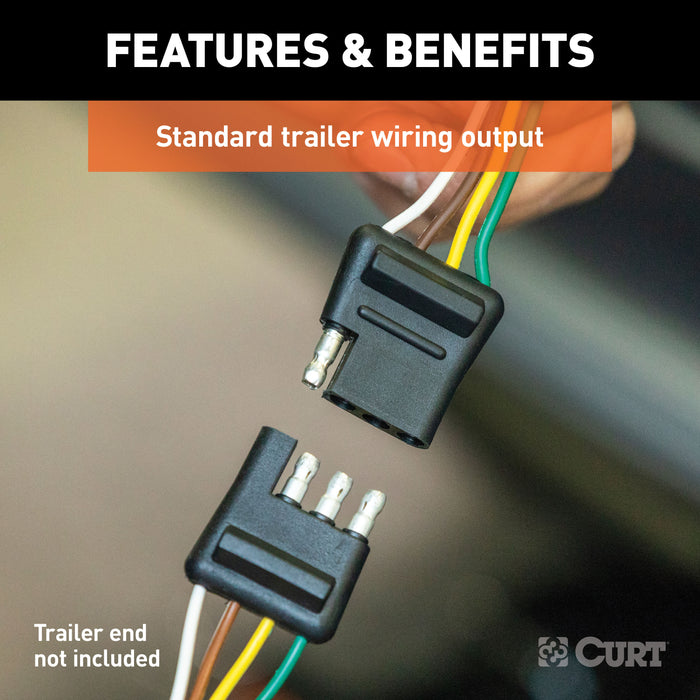

Description_ASC	4-way flat output connects tail lights, brake lights and turn signals
Description_ASC	Color-coded wires with wiring guide for easier installation
Description_ASC	Constructed with SMT circuitry for better performance and durability

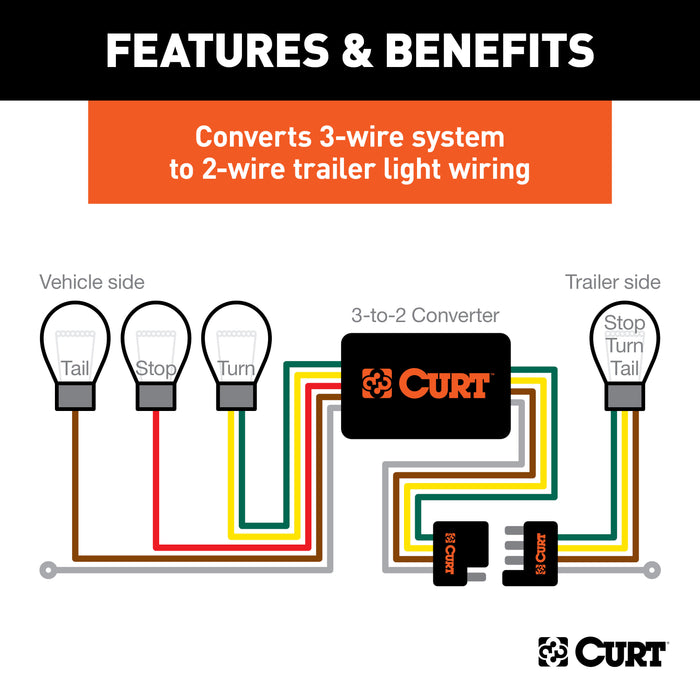

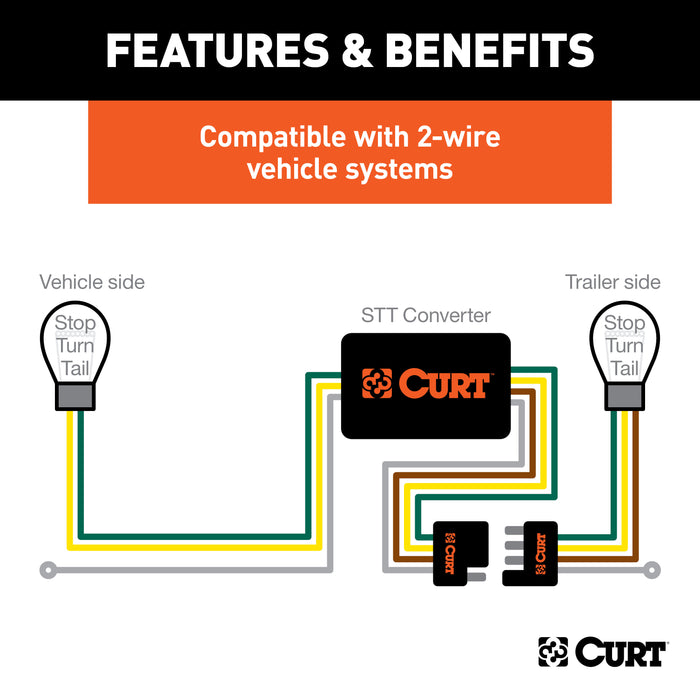

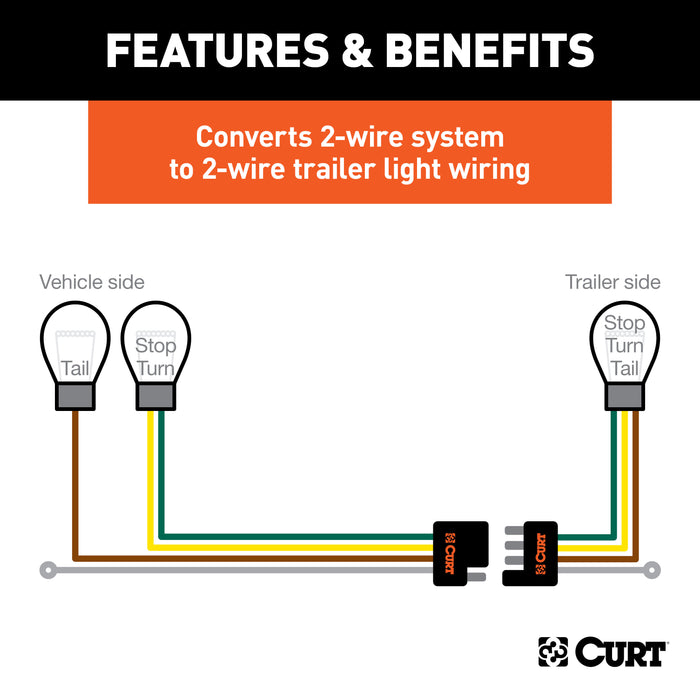

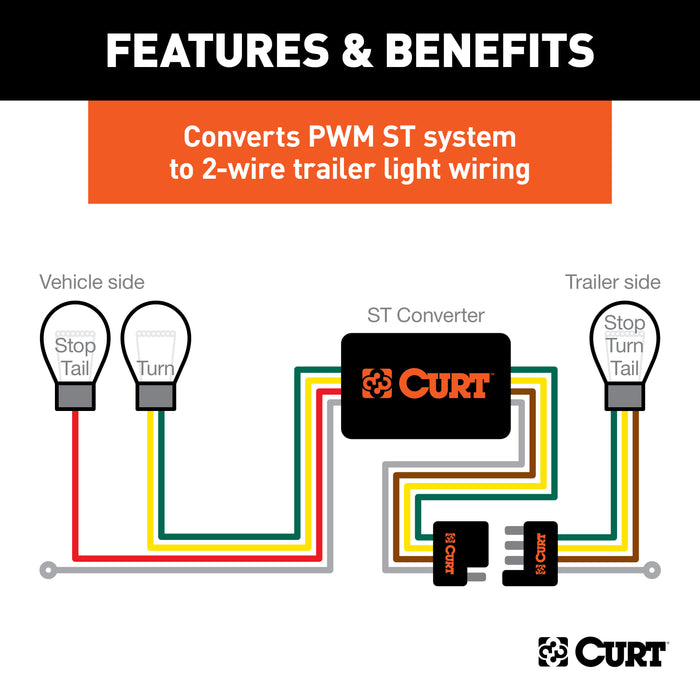

Description_ASC	Converts 2-wire, 3-wire or PWM ST system to 2-wire trailer light wiring

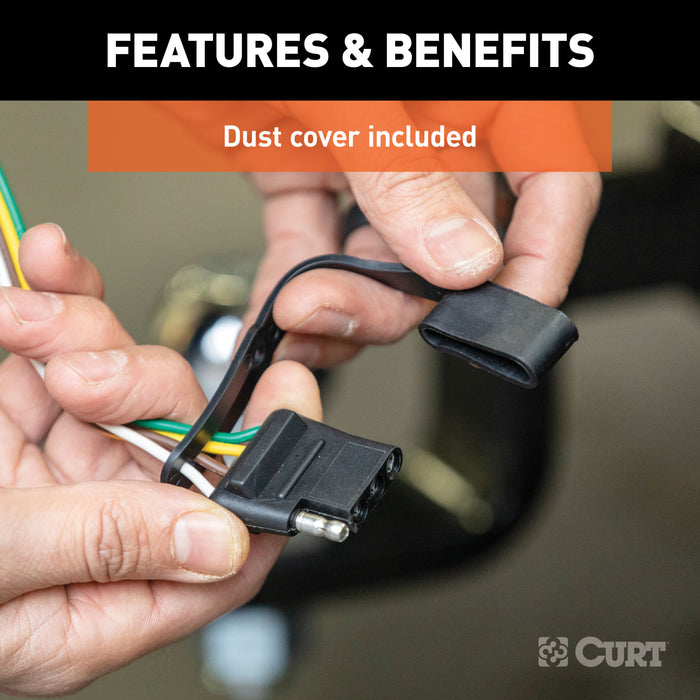

Description_ASC	Dust cover included to keep connector clean when not in use
Description_ASC	Low-voltage operation allows function down to seven volts

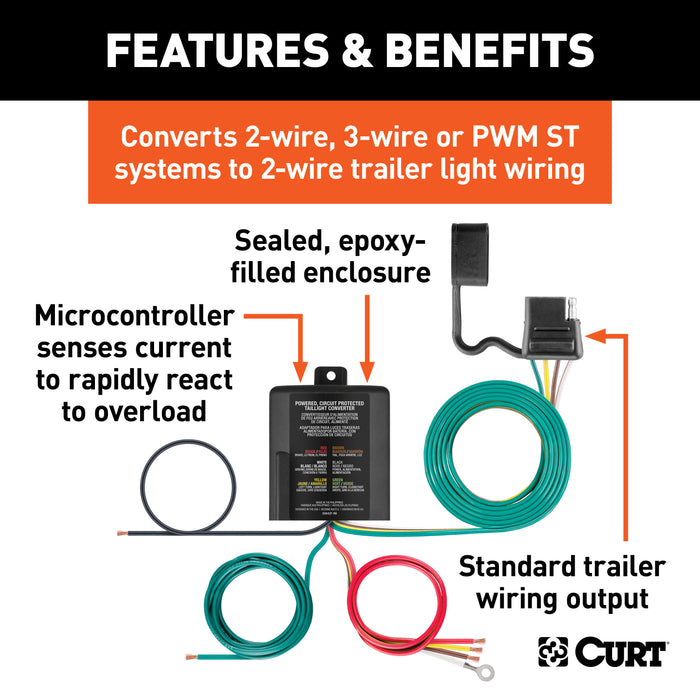

Description_ASC	Microcontroller senses current to rapidly react to overload
Description_ASC	Multi-Function Taillight Converter
Description_ASC	Potted enclosure significantly increases water and vibration resistance
Description_ASC	Provides improved overload, short-circuit and thermal protection
Description_ASC	Snap locks included for fast, secure splicing
Description_ASM	CURT 56236 Multi-Function Splice-in Tail Light Converter, 4-Pin Wiring Harness
Description_DEF	Trailer Wire Converter
Description_DES	Multi-Function Taillight Converter
Description_EXT	CURT 56236 Multi-Function Splice-in Tail Light Converter, 4-Pin Wiring Harness
Description_EXT	CURT 56236 Multi-Function Splice-in Tail Light Converter; 4-Pin Wiring Harness
Description_FAB	4-Way Flat Connects Tail Lights Brake Lights And Turn Signals
Description_FAB	Color-Coded Wires w/Wiring Guide For Easier Installation
Description_FAB	Constructed w/Smt Circuitry For Better Performance And Durability
Description_FAB	Converts 2-Wire 3-Wire Or Pwm St System To 2-Wire Trailer Light
Description_FAB	Dust Cover Included To Keep Connector Clean When Not In Use
Description_FAB	Enclosure Significantly Increases Water And Vibration Resistance
Description_FAB	Low-Voltage Operation Allows Function Down To Seven Volts
Description_FAB	Made In USA
Description_FAB	Microcontroller Senses Current To Rapidly React To Overload
Description_FAB	Provides Improved Overload Short-Circuit And Thermal Protection
Description_INV	Multi-Function Taillight Converter
Description_KEY	adapter solutions kit camper rv accessories hitch replacement 4 four jeep parts ford honda bulbs car road truck ram chevy brakes extension van pickup connectors tailights tail/brake towed
Description_LAB	Proposition 65
Description_MKT	Rain, road grime and salt can deal a vicious blow to your trailer wiring, and it takes electrical components with an extra-thick shell to stand up to the elements. The CURT multi-function electrical converter is an advanced taillight converter that offers the ultimate in vehicle compatibility and weather resistance, giving you a reliable wiring connection any season of the year. The potted design seals the internal electrical components in a watertight enclosure and is filled with a solid compound to protect against impacts, vibrations and moisture for long-lasting use, even on the exterior of the vehicle. The converter also features our advanced surface mount technology (SMT), using smaller components mounted directly to the surface of the circuit board. This produces lower resistance, reduced heat generation, longer life cycles and higher reliability. The CURT multi-function electrical converter comes with pigtail wires that are able to be spliced into two-wire, three-wire or PWM wiring system with combined stop and taillights. It converts any of these systems to a simple two-wire system, using a standard 4-way flat output, to be compatible with most trailer wiring. The converter is controlled using a microcontroller that is able to sense the current passing through it, allowing for quick reaction to dangerous conditions such as overload and short circuits. It also filters unwanted input signals to protect your wiring systems and uses a mere seven volts for low-voltage operation. The CURT multi-function taillight converter is a heavy-duty electrical converter for virtually any vehicle-trailer combination. It comes with color-coded wires and an easy-to-read wiring guide, as well as a dust cover to protect the 4-way flat connector. This package also includes four snap locks for faster, more secure splicing. A powered converter wiring kit #55152 is also required for installation.
Description_SHO	Multi-Function Taill
Description_SHO	Taillight Converter
Description_SLA	Rain, road grime and salt can deal a vicious blow to your trailer wiring, and it takes electrical components with an extra-thick shell to stand up to the elements. The CURT multi-function electrical converter is an advanced taillight converter that offers the ultimate in vehicle compatibility and weather resistance, giving you a reliable wiring connection any season of the year. The potted design seals the internal electrical components in a watertight enclosure and is filled with a solid compound to protect against impacts, vibrations and moisture for long-lasting use, even on the exterior of the vehicle. The converter also features our advanced surface mount technology (SMT), using smaller components mounted directly to the surface of the circuit board. This produces lower resistance, reduced heat generation, longer life cycles and higher reliability. The CURT multi-function electrical converter comes with pigtail wires that are able to be spliced into two-wire, three-wire or PWM wiring system with combined stop and taillights. It converts any of these systems to a simple two-wire system, using a standard 4-way flat output, to be compatible with most trailer wiring. The converter is controlled using a microcontroller that is able to sense the current passing through it, allowing for quick reaction to dangerous conditions such as overload and short circuits. It also filters unwanted input signals to protect your wiring systems and uses a mere seven volts for low-voltage operation. The CURT multi-function taillight converter is a heavy-duty electrical converter for virtually any vehicle-trailer combination. It comes with color-coded wires and an easy-to-read wiring guide, as well as a dust cover to protect the 4-way flat connector. This package also includes four snap locks for faster, more secure splicing. A powered converter wiring kit #55152 is also required for installation.
height	2.0
length	9.0
LTL	N
Output Type	4-Way Flat
WARNING CA Proposition 65	Yes
WARNING CA Proposition 65 Message	WARNING: This product can expose you to chemicals including Di(2-ethylhexyl) phthalate; which is known to the State of California to cause cancer; and Di-n-butyl phthalate; which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
weight	0.813
width	4.0
