CURT 60611 Double Lock EZr Gooseneck Hitch; 2-5/16in. Ball; 30K (Brackets Required)

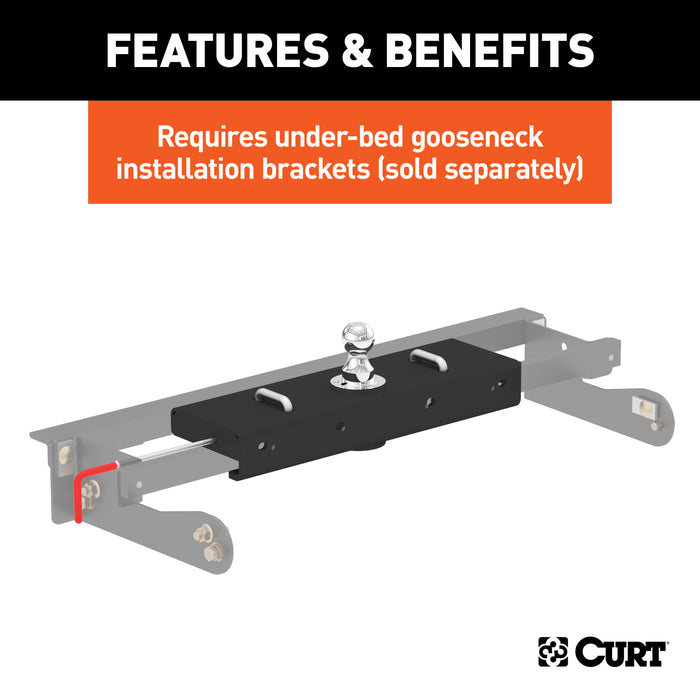

A CURT gooseneck hitch is more than a necessary tool for towing; it is an integrated extension of your truck that allows you turn your 4x4 into the workhorse it was designed to be. Gooseneck hitches are stronger, tougher and more subtle than any other, and when quality craftsmanship and intelligent design become the fuel that drives a gooseneck hitch, you get a towing solution that leaves others lost for words. The CURT under-bed Double Lock EZr gooseneck hitch is strong, fast and easy to operate. It gets its name from the two locking pins that engage the trailer ball and hold it in place, giving you twice the security when towing especially heavy trailers. The Double Lock EZr mounts underneath your truck bed with compatible gooseneck installation brackets and provides a removable 2-5/16" gooseneck trailer ball with a gross trailer weight capacity up to 30,000 lbs. and a tongue weight capacity of 7,500 lbs. Using the heavy-duty operating handle, the trailer ball can be unlocked and flipped over whenever necessary to allow full use of the truck bed. For easy one-person installation, the Double Lock EZr comes with the CURT-exclusive center locator. This simple installation tool inserts into the gooseneck trailer ball hole during installation and shows exactly where to drill in the truck bed, eliminating errors and the need for meticulous measuring. The Double Lock EZr also comes with solid safety chain hookups, an attractive chrome trim ring, a durable carbide powder coat finish and a limited lifetime warranty.

Resources

Installation Instructions

Ball Diameter	2.3125 in.
Description_ABR	HITCH

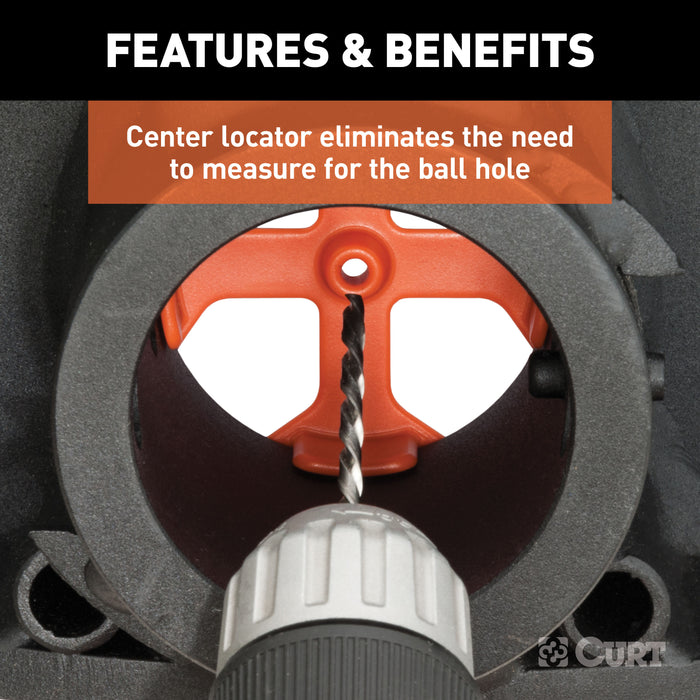

Description_ASC	Center locator eliminates the need to measure where the ball hole should be
Description_ASC	Chrome-plated trim ring provides a finished look
Description_ASC	Double Lock EZr Gooseneck Hitch, 2-5/16" Ball, 30K (Brackets Required)

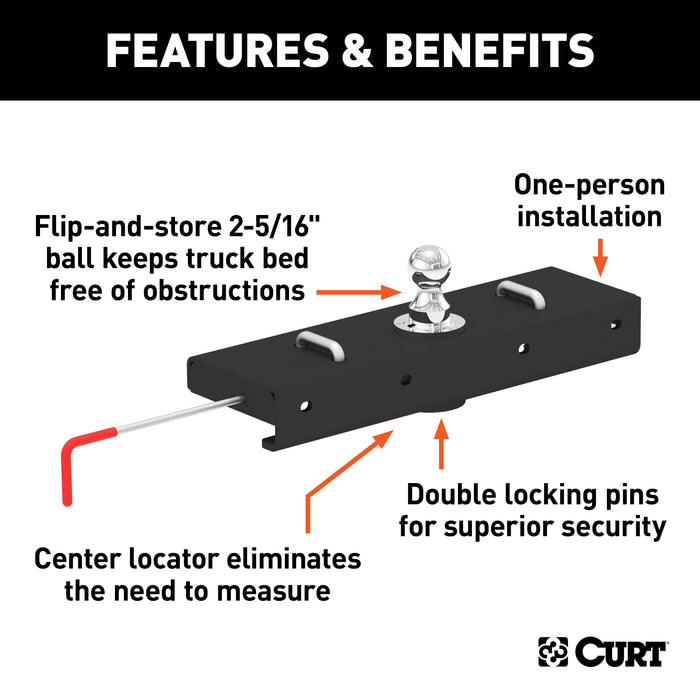

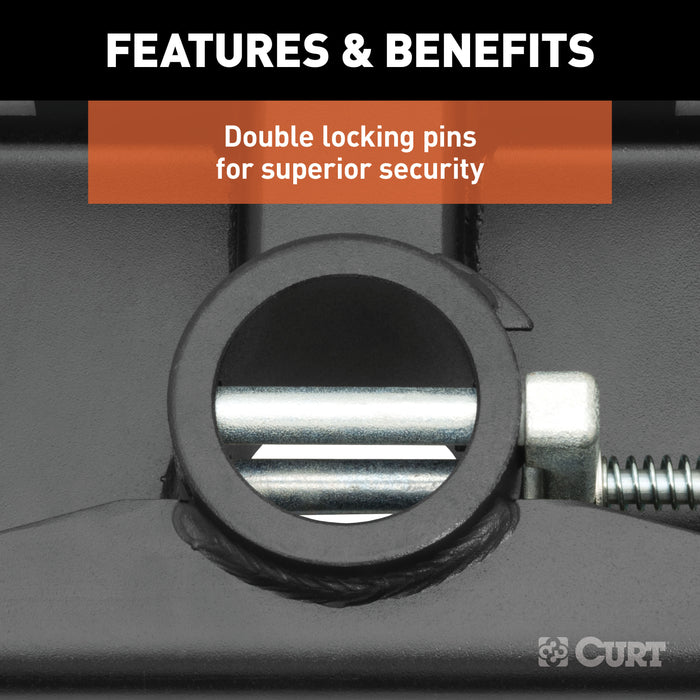

Description_ASC	Double locking pins for superior trailer and trailer ball security

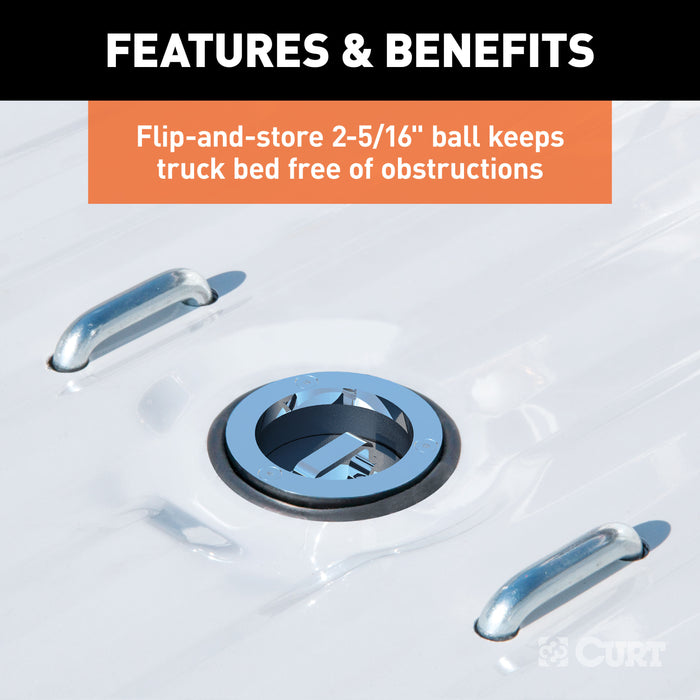

Description_ASC	Flip-and-store ball keeps truck bed free of obstructions
Description_ASC	Heavy-duty 3/8" diameter handle for solid operation
Description_ASC	Includes strong 5/8" safety chain loops and grade-8 hardware
Description_ASC	Limited lifetime warranty (one-year finish, one-year parts)

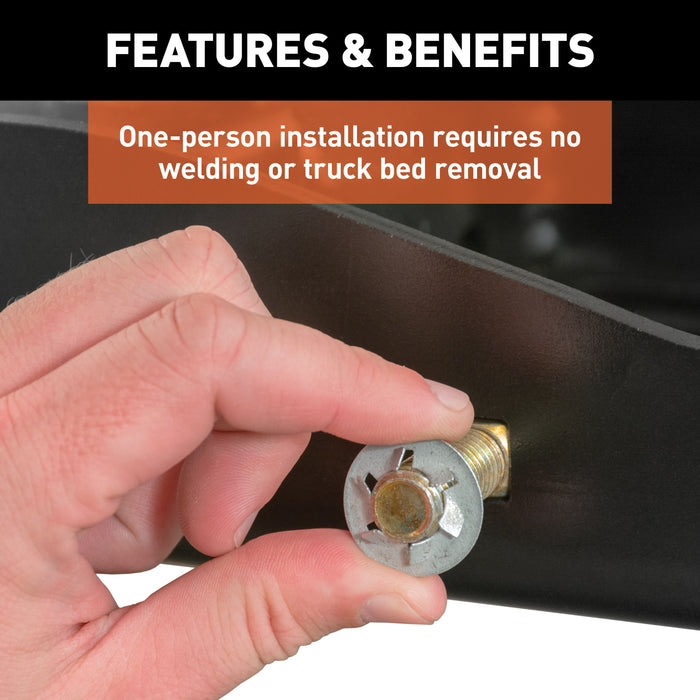

Description_ASC	One-person installation requires no welding or truck bed removal
Description_ASC	Protected by a durable A-coat finish
Description_ASC	Removable chrome-plated 2-5/16" trailer ball fits most gooseneck trailers
Description_ASC	Rubber hole cover helps prevent corrosion in trailer ball hole
Description_ASC	Tested for safety in accordance with SAE J2638
Description_ASM	CURT 60611 Double Lock EZr Gooseneck Hitch with 2-5/16-Inch Flip-and-Store Ball, 30,000 lbs
Description_DEF	Gooseneck Trailer Hitch
Description_DES	Double Lock EZr Gooseneck Hitch, 2-5/16" Ball, 30K (Brackets Required)
Description_DES	Double Lock EZr Gooseneck Hitch; 2-5/16in. Ball; 30K (Brackets Required)
Description_EXT	CURT 60611 Double Lock EZr Gooseneck Hitch with 2-5/16-Inch Flip-and-Store Ball, 30,000 lbs
Description_EXT	CURT 60611 Double Lock EZr Gooseneck Hitch with 2-5/16-Inch Flip-and-Store Ball; 30;000 lbs
Description_FAB	Accepts Up To 30000 Lbs. Tw And 7500 Lbs. Vertical Load Limit
Description_FAB	Chrome-Plated Trim Ring Provides A Finished Look
Description_FAB	Double Locking Pin For Superior Trailer/Trailer Ball Security
Description_FAB	Flip-And-Store Ball Keeps Truck Bed Free Of Obstruction
Description_FAB	Heavy-Duty 3/8 In. Diameter Handle For Solid Operation
Description_FAB	Incl. Strong 5/8 In. Safety Chain Loops And Grade 8 Hardware
Description_FAB	Meets Proposed SEA J2638 Testing Standards
Description_FAB	One-Person Installation Requires No Welding Or Truck Bed Removal
Description_FAB	Patented Center Locator Eliminates Errors Caused When Drilling
Description_FAB	Protected By A Highly Durable Carbide Powder Coat Finish
Description_FAB	Removable Chrome-Plated 2 5/16 In. Trailer Ball
Description_INV	Double Lock EZr Gooseneck Hitch
Description_KEY	hitches chain kits factory fifth wheel system hide oem plate tow bed goose neck rail folding goosneck livestock gm mount removable pickups hookup set fold trucks connection 5 mounted attachment base mounts gooseball equipment
Description_MKT	A CURT gooseneck hitch is more than a necessary tool for towing; it is an integrated extension of your truck that allows you turn your 4x4 into the workhorse it was designed to be. Gooseneck hitches are stronger, tougher and more subtle than any other, and when quality craftsmanship and intelligent design become the fuel that drives a gooseneck hitch, you get a towing solution that leaves others lost for words. The CURT under-bed Double Lock EZr gooseneck hitch is strong, fast and easy to operate. It gets its name from the two locking pins that engage the trailer ball and hold it in place, giving you twice the security when towing especially heavy trailers. The Double Lock EZr mounts underneath your truck bed with compatible gooseneck installation brackets and provides a removable 2-5/16" gooseneck trailer ball with a gross trailer weight capacity up to 30,000 lbs. and a tongue weight capacity of 7,500 lbs. Using the heavy-duty operating handle, the trailer ball can be unlocked and flipped over whenever necessary to allow full use of the truck bed. For easy one-person installation, the Double Lock EZr comes with the CURT-exclusive center locator. This simple installation tool inserts into the gooseneck trailer ball hole during installation and shows exactly where to drill in the truck bed, eliminating errors and the need for meticulous measuring. The Double Lock EZr also comes with solid safety chain hookups, an attractive chrome trim ring, a durable A-coat finish and a limited lifetime warranty.
Description_MKT	A CURT gooseneck hitch is more than a necessary tool for towing; it is an integrated extension of your truck that allows you turn your 4x4 into the workhorse it was designed to be. Gooseneck hitches are stronger, tougher and more subtle than any other, and when quality craftsmanship and intelligent design become the fuel that drives a gooseneck hitch, you get a towing solution that leaves others lost for words. The CURT under-bed Double Lock EZr gooseneck hitch is strong, fast and easy to operate. It gets its name from the two locking pins that engage the trailer ball and hold it in place, giving you twice the security when towing especially heavy trailers. The Double Lock EZr mounts underneath your truck bed with compatible gooseneck installation brackets and provides a removable 2-5/16" gooseneck trailer ball with a gross trailer weight capacity up to 30,000 lbs. and a tongue weight capacity of 7,500 lbs. Using the heavy-duty operating handle, the trailer ball can be unlocked and flipped over whenever necessary to allow full use of the truck bed. For easy one-person installation, the Double Lock EZr comes with the CURT-exclusive center locator. This simple installation tool inserts into the gooseneck trailer ball hole during installation and shows exactly where to drill in the truck bed, eliminating errors and the need for meticulous measuring. The Double Lock EZr also comes with solid safety chain hookups, an attractive chrome trim ring, a durable carbide powder coat finish and a limited lifetime warranty.
Description_SHO	Double Lock EZr
Description_SHO	Double Lock EZr Goos
Description_SLA	A CURT gooseneck hitch is more than a necessary tool for towing; it is an integrated extension of your truck that allows you turn your 4x4 into the workhorse it was designed to be. Gooseneck hitches are stronger, tougher and more subtle than any other, and when quality craftsmanship and intelligent design become the fuel that drives a gooseneck hitch, you get a towing solution that leaves others lost for words. The CURT under-bed Double Lock EZr gooseneck hitch is strong, fast and easy to operate. It gets its name from the two locking pins that engage the trailer ball and hold it in place, giving you twice the security when towing especially heavy trailers. The Double Lock EZr mounts underneath your truck bed with compatible gooseneck installation brackets and provides a removable 2-5/16" gooseneck trailer ball with a gross trailer weight capacity up to 30,000 lbs. and a tongue weight capacity of 7,500 lbs. Using the heavy-duty operating handle, the trailer ball can be unlocked and flipped over whenever necessary to allow full use of the truck bed. For easy one-person installation, the Double Lock EZr comes with the CURT-exclusive center locator. This simple installation tool inserts into the gooseneck trailer ball hole during installation and shows exactly where to drill in the truck bed, eliminating errors and the need for meticulous measuring. The Double Lock EZr also comes with solid safety chain hookups, an attractive chrome trim ring, a durable A-coat finish and a limited lifetime warranty.
Drilling Required	Yes
finish	Carbide Black Powder Coat
Gross Trailer Weight	30000 lbs.
height	4.25
length	25.63
LTL	N
Vertical Load	7500
WARNING CA Proposition 65	No
weight	51.3
width	8.0
