Description

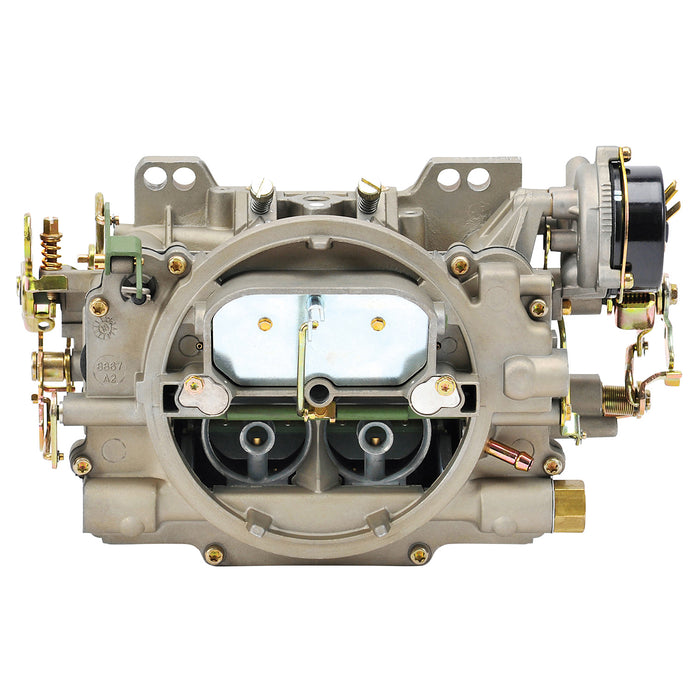

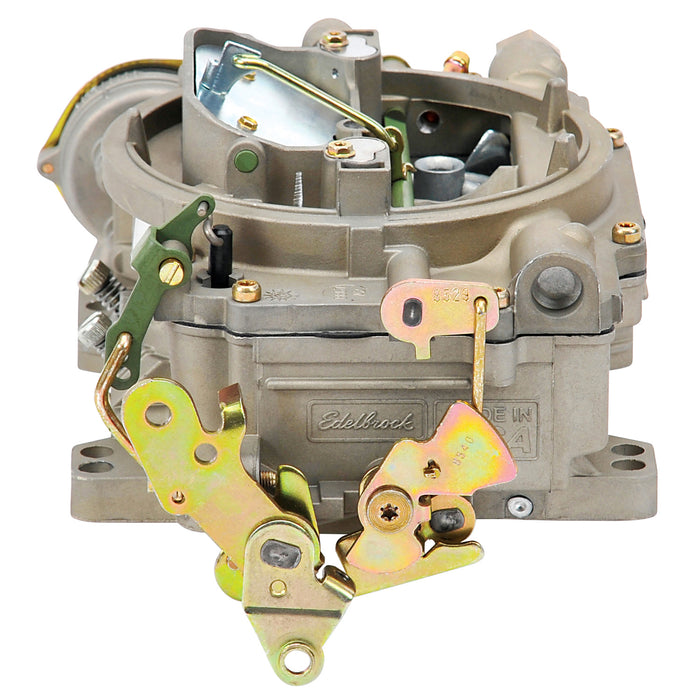

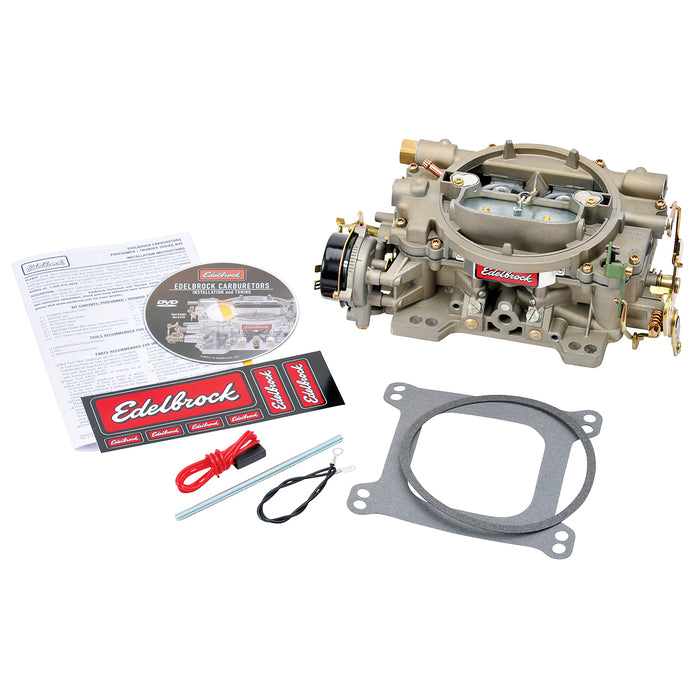

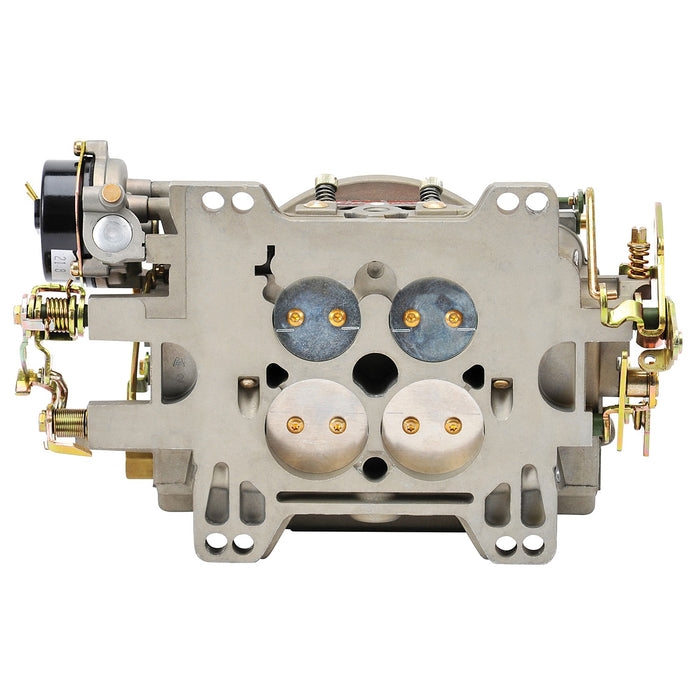

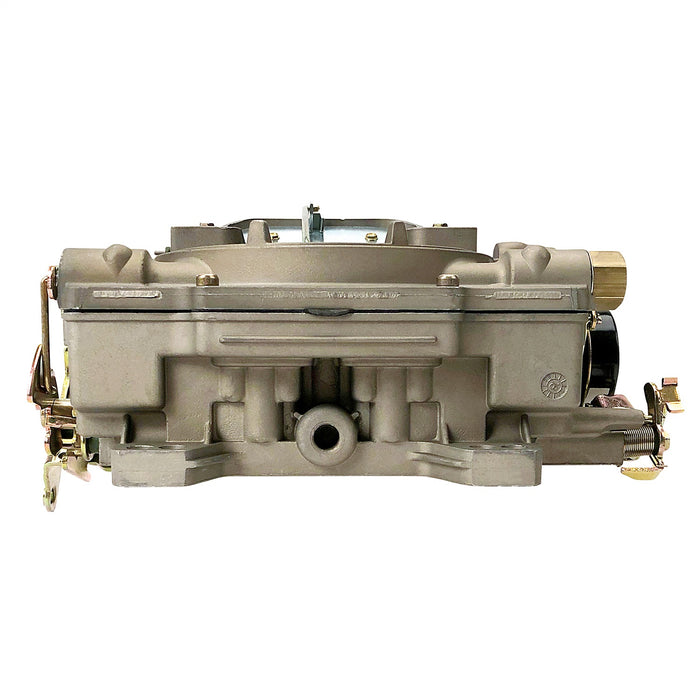

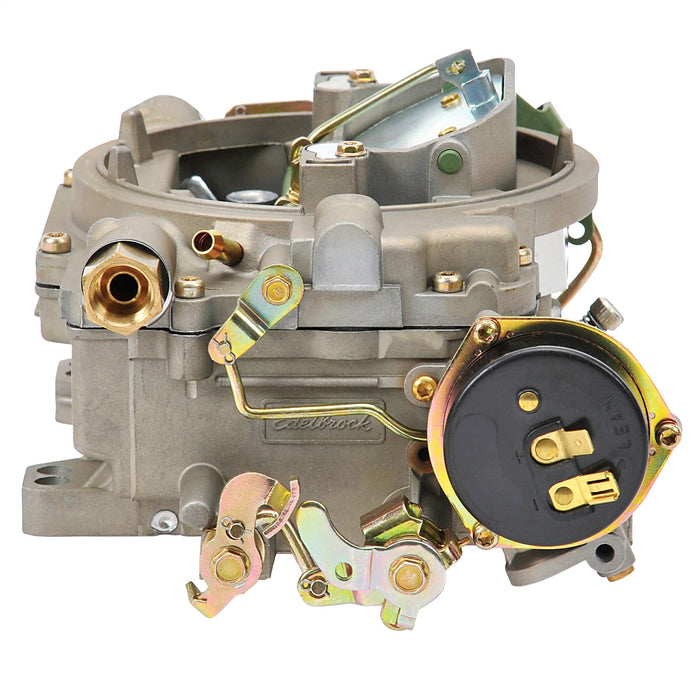

The Edelbrock 1410 Marine Series 750 CFM electric choke carburetor is a precisely tuned, quality-built carburetor that can handle the harsh abuse only a marine environment can inflict. Several characteristics make the 1410 Marine Series 750 CFM electric choke carburetor an outstanding marine performer. The first one is that metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfires, which means that there are no power valves to blow out, and the rods can be changed in seconds without carburetor removal or fuel draining. Secondly, the carburetor has the unique ability to "hold a tune", so once it is tuned, the carburetor stay's tuned. What this means to you is that compared to other carburetors, the performance remains consistent and the calibration stays unchanged. The lightweight all-aluminum body features a two-piece body that is iridited and assembled with PTFE-coated shafts and pump arm for maximum protection. The simple tub-type bowls and rear-pivot floats all contribute to a carburetor that's reliable, user-friendly and is easily tunable for trouble-free operation.
Specifications
| Barrel | Four |
| Barrel Quantity | 4 Barrel |
| Body Height | 3.25 |
| Booster Type | annular |
| Bore Diameter | Primary Bore 1.69; Secondary Bore 1.69 |
| CFM | 750 |
| Choke | Electrical |
| Choke Type | Electric |
| Condition | New |
| Description_ABR | CARB |
| Description_DEF | Carburetor |
| Description_DES | CARBURETOR |
| Description_EXT | Edelbrock Marine Series 750 cfm, Square-Flange, Electric Choke Carburetor (non-EGR) |
| Description_EXT | Edelbrock Marine Series 750 cfm; Square-Flange; Electric Choke Carburetor (non-EGR) |
| Description_FAB | 2-Piece Design Means No Gaskets Below The Fuel Level |
| Description_FAB | 3/8 in. Inverted Flare Fuel Inlet Fitting |
| Description_FAB | 5 1/8 in. Flame Arrestor Flange |
| Description_FAB | Accelerator Pump Seal |
| Description_FAB | Complies w/U.S. Coast Guard Safety Standards |
| Description_FAB | Dependable Marine Performance/Smooth Throttle Response |
| Description_FAB | Factory Set Float Levels/Adjustments Are Rarely Needed |
| Description_FAB | Modified Bowl Venting For Marine Compliance |
| Description_FAB | Revised Secondaries For Improved Transient Performance |
| Description_FAB | Specially Designed Throttle Shafts For Marine Use |
| Description_FAB | Tube In Airhorn For Fuel Pump Vent |
| Description_FAB | Universal Marine Throttle Lever |
| Description_INV | Edelbrock Marine 750 CFM Carburetor |
| Description_KEY | 1410; Edelbrock; carburetor; carb; Performer; Marine series; 4-barrel; square-bore; square flange; 750 cfm; 750 carb; 4150; EPS; leak free design; holds tune; electric choke; marine carb |
| Description_LAB | Marine Carb #1410 750 CFM With Electric Choke, Zinc-Dichromate Finish (Non-EGR) |
| Description_LAB | Marine Carb #1410 750 CFM With Electric Choke; Zinc-Dichromate Finish (Non-EGR) |
| Description_MKT | The Edelbrock 1410 Marine Series 750 CFM electric choke carburetor is a precisely tuned, quality-built carburetor that can handle the harsh abuse only a marine environment can inflict. Several characteristics make the 1410 Marine Series 750 CFM electric choke carburetor an outstanding marine performer. The first one is that metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfires, which means that there are no power valves to blow out, and the rods can be changed in seconds without carburetor removal or fuel draining. Secondly, the carburetor has the unique ability to "hold a tune", so once it is tuned, the carburetor stay's tuned. What this means to you is that compared to other carburetors, the performance remains consistent and the calibration stays unchanged. The lightweight all-aluminum body features a two-piece body that is iridited and assembled with PTFE-coated shafts and pump arm for maximum protection. The simple tub-type bowls and rear-pivot floats all contribute to a carburetor that's reliable, user-friendly and is easily tunable for trouble-free operation. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 3in.} |
| Description_TRA | Edelbrock carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty. These fuels can also damage other fuel system components, unless specifically designed for use with alcohol fuels |
| Description_TRA | Edelbrock Performer Series carburetors are not for computer-controlled applications. That includes some 1981 & later GM vehicles with Q-Jet carburetor and some 1981 & later Ford vehicles with automatic overdrive (AOD) transmissions |
| Description_TRA | The use of a new fuel filter between the fuel pump and carburetor is required. Failure to do so will void the manufacturer's warranty of the carburetor |
| Description_TRA | • Edelbrock carburetors are not calibrated for or compatible with alcohol; race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty. These fuels can also damage other fuel system components; unless specifically designed for use with alcohol fuels • The use of a new fuel filter between the fuel pump and carburetor is required. Failure to do so will void the manufacturer s warranty of the carburetor • Edelbrock Performer Series carburetors are not for computer-controlled applications. That includes some 1981 later GM vehicles with Q-Jet carburetor and some 1981 later Ford vehicles with automatic overdrive (AOD) transmissions |
| EGR Port | No |
| Emission | Without EGR |
| finish | Iridited Marine |
| finish | Zinc-Dichromate |
| Flange | Square Bore |
| Flange Shape | Square |
| Gasket Or Seal Included | Yes |
| height | 6.75 |
| length | 13.25 |
| LTL | N |
| Main Venturi Diameter | 1.44 |
| Material | Aluminum |
| Maximum Flow Rating | 750 |
| Metering Rod Size | .071 x .047 |
| Primary Jet Diameter | 0.113 |
| RGL | WARNING: This product can expose you to Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Secondary Jet Diameter | 0.107 |
| Series | Marine |
| Spring Force | 5" Hg (Orange) |
| Type | Marine |
| Usage | Marine |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 8.75 |
| width | 7.38 |
