Edelbrock 15172 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_15172
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Sold out
Original price
$14,164.30
-
Original price
$14,164.30
Original price
$14,164.30
$14,164.30
$14,164.30
-
$14,164.30
Current price
$14,164.30
Description

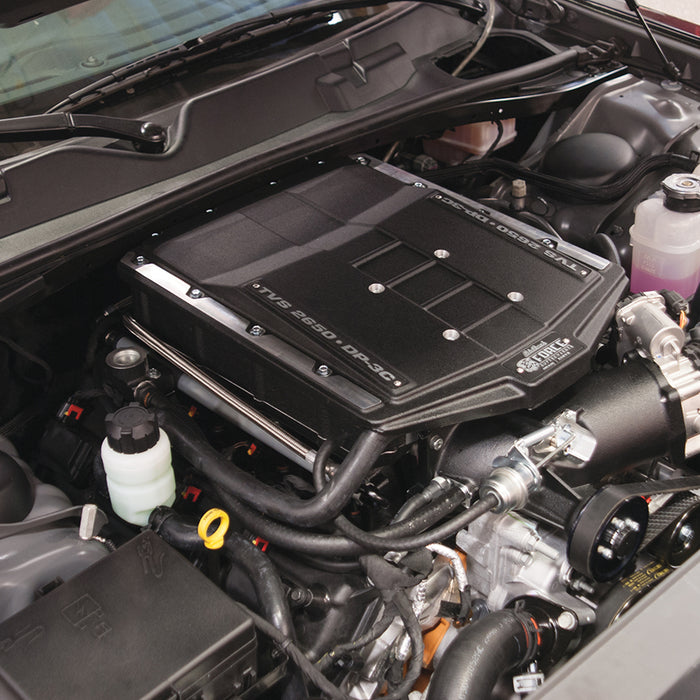

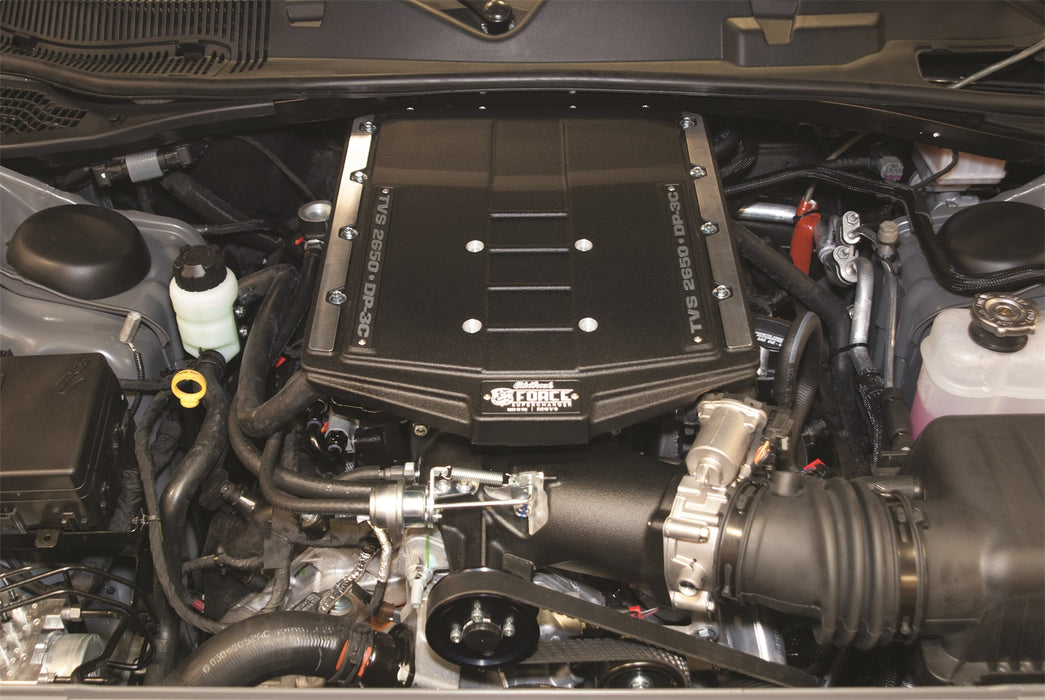

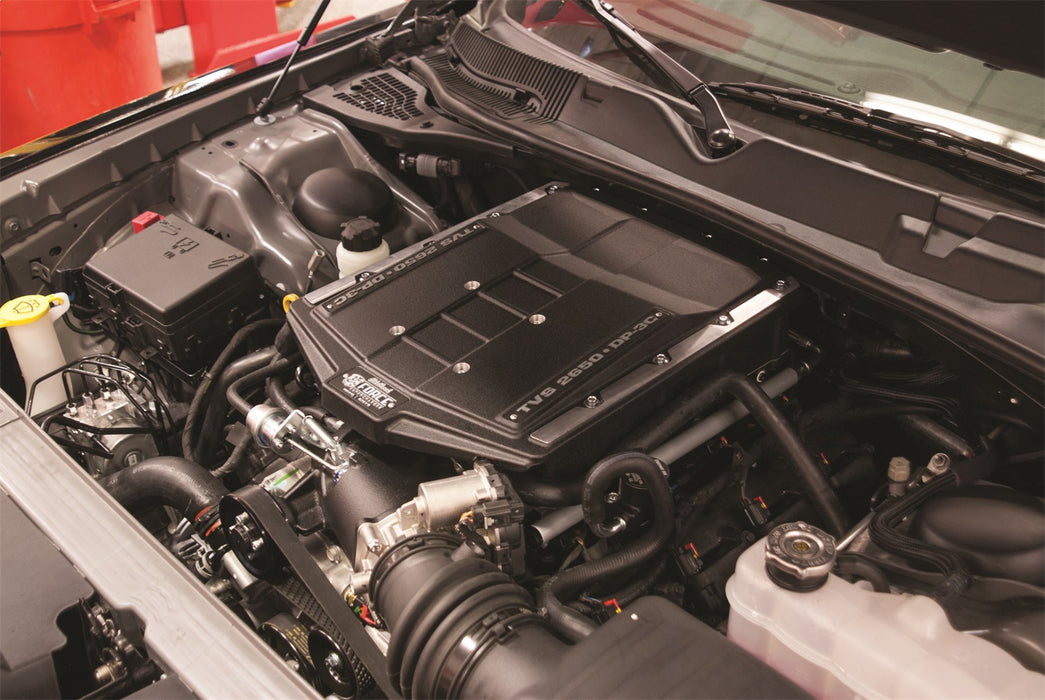

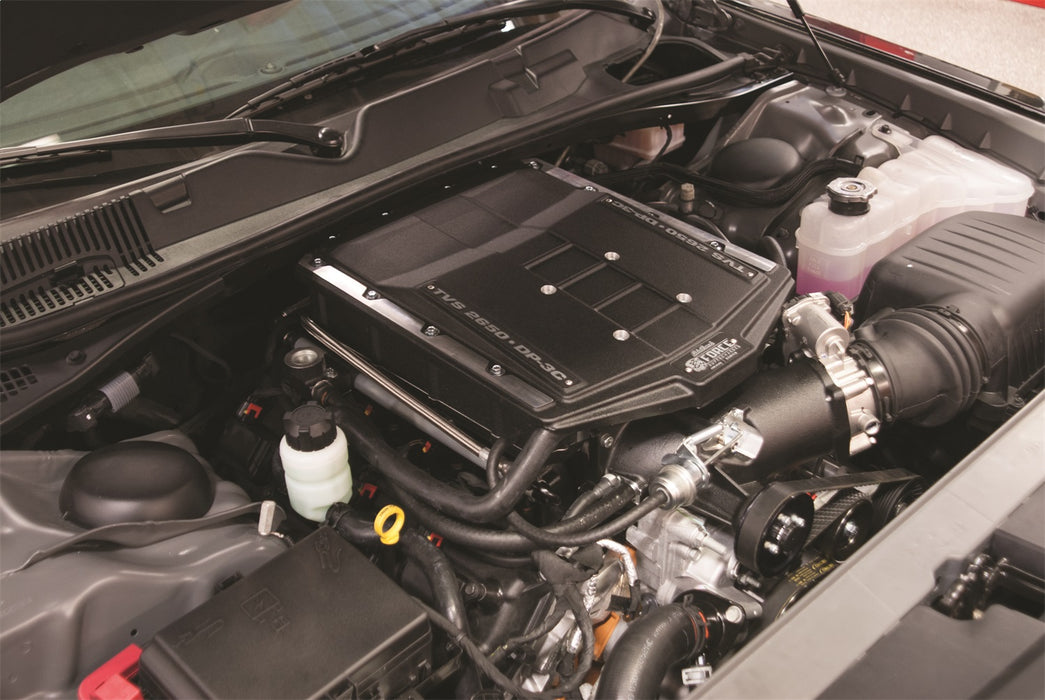

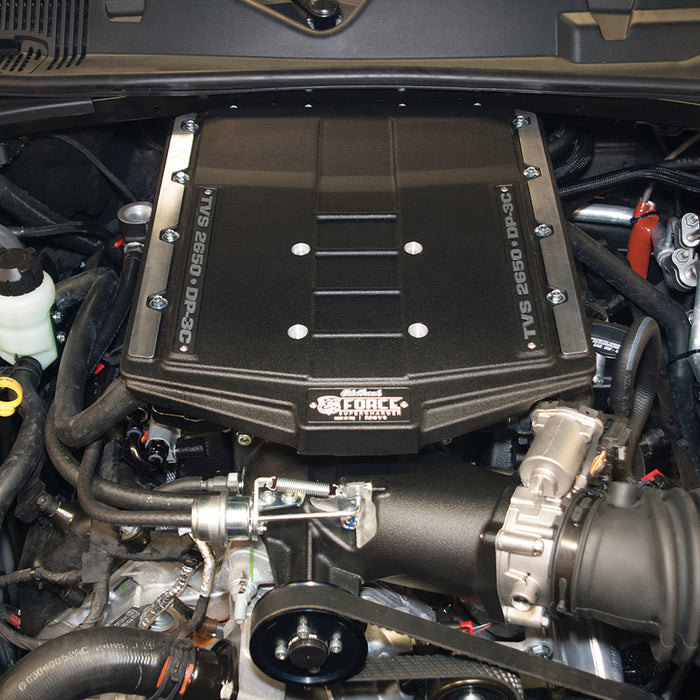

The Edelbrock Supercharger System part #15172 is designed for use with 2015-18 Dodge Charger and Challenger 6.4L cars. It delivers 572 horsepower and 531 ft-lbs of torque at the rear wheels. Featuring a unique design with minimal components makes it possible to fit an Edelbrock supercharger under the stock hood. The core of this system is the Eaton Gen VI R2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. ALL 2015-Later Chrysler/Dodge Supercharger Systems will require the ECM to be sent in for modification.. HANDHELD PROGRAMMER NOT INCLUDED. This is an 8-10 day process/waiting period from the time they are received! Every step of the process is handled with next day shipping. Supercharger systems without tuners are not eligible for supplemental warranty. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.
Specifications
| Air Filter Included | Yes |
| Calibration | Yes |
| Center Housing Cooling Type | Intercooler |
| Description_ABR | SuperchrgrKt |
| Description_ASM | Chrysler:Gen III HEMI:392 (6.4L) |
| Description_DEF | Supercharger Kit |
| Description_DES | SUPERCHARGER |
| Description_EXT | Edelbrock Supercharger System part #15172 2015-18 Chrysler 6.4 HEMI V8 R2650, features a unique design with minimal components and fits under the stock hood |
| Description_EXT | Edelbrock Supercharger System part #15172 2015-18 Chrysler 6.4 HEMI V8 R2650; features a unique design with minimal components and fits under the stock hood |
| Description_FAB | Available w/Free 3 Year 36000 Mile Powertrain Warranty |
| Description_FAB | Bolt On Installation |
| Description_FAB | Everything Fits Right Out Of The Box |
| Description_FAB | Exclusive Edelbrock Compact Design Fits Under Stock Hood |
| Description_FAB | Integrated Bypass Valve For Minimum Decrease In Fuel Economy |
| Description_FAB | Self Contained Oil System w/100000 Mile Service Interval |
| Description_INV | Edelbrock #15172 2015-18 6.4 HEMI |
| Description_KEY | Edelbrock; Supercharger; Engine; Boost; 15172; Chrysler; HEMI; 2015; 2016; 2017; 2018 |
| Description_LAB | Edelbrock Stg 1 Supercharger #15172, 15-18 Chrysler/Dodge 6.4L LX & LC W/ Tune |
| Description_LAB | Edelbrock Stg 1 Supercharger #15172; 15-18 Chrysler/Dodge 6.4L LX LC W/Tune |
| Description_MKT | The Edelbrock Supercharger System part #15172 is designed for use with 2015-18 Dodge Charger and Challenger 6.4L cars. It delivers 572 horsepower and 531 ft-lbs of torque at the rear wheels. Featuring a unique design with minimal components makes it possible to fit an Edelbrock supercharger under the stock hood. The core of this system is the Eaton Gen VI R2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. ALL 2015-Later Chrysler/Dodge Supercharger Systems will require the ECM to be sent in for modification.. HANDHELD PROGRAMMER NOT INCLUDED. This is an 8-10 day process/waiting period from the time they are received! Every step of the process is handled with next day shipping. Supercharger systems without tuners are not eligible for supplemental warranty. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 1in.; eo_carb_number : D-215-96in.; eo_carb_link : https:/ww3.arb.ca.gov/msprog/aftermkt/devices/eo/d-215-96.pdf } |
| Description_TRA | Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Description_TRA | Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA | Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety; the Edelbrock program retains the factory vehicle speed limiter setting. |
| finish | Black Powder Coated |
| Fuel Injector Type | 60 |
| Fuel Pump Included | Yes |
| Gasket Or Seal Included | Yes |
| Harmonic Balancer Diameter | Stock |
| height | 25.75 |
| Hose Included | Yes |
| Housing Material | Cast Aluminum |
| Internal Step Up | Yes |
| length | 41.75 |
| LTL | N |
| Maximum Boost Pressure | 14 |
| Maximum Horsepower | 572RW (With 91 Octane) |
| Maximum Pressure Reading | 14 |
| Maximum Torque | 531RW (With 91 Octane) |
| Mounting Bracket Included | Yes |
| Mounting Hardware Included | Yes |
| Oil Capacity | 150 |
| Outside Pulley Diameter | 3.25 |
| Pulley Belt Width | 6-Rib |
| Quantity | Kit |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Rotor Type | Eaton TVS 2650 |
| System Type | Stage 1 - Street System |
| Tensioner Included | Yes |
| Universal Or Specific Fit | Specific |
| Vehicle Model | Charger |
| weight | 150.0 |
| width | 33.25 |
