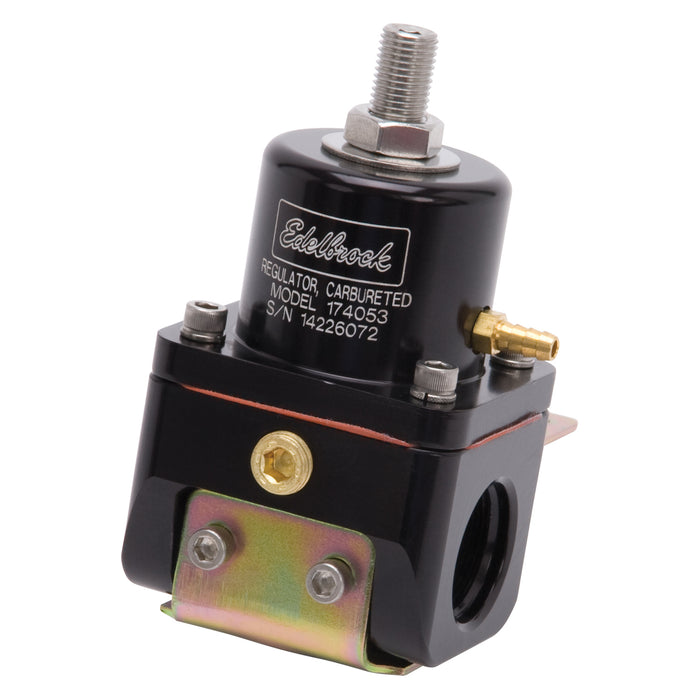

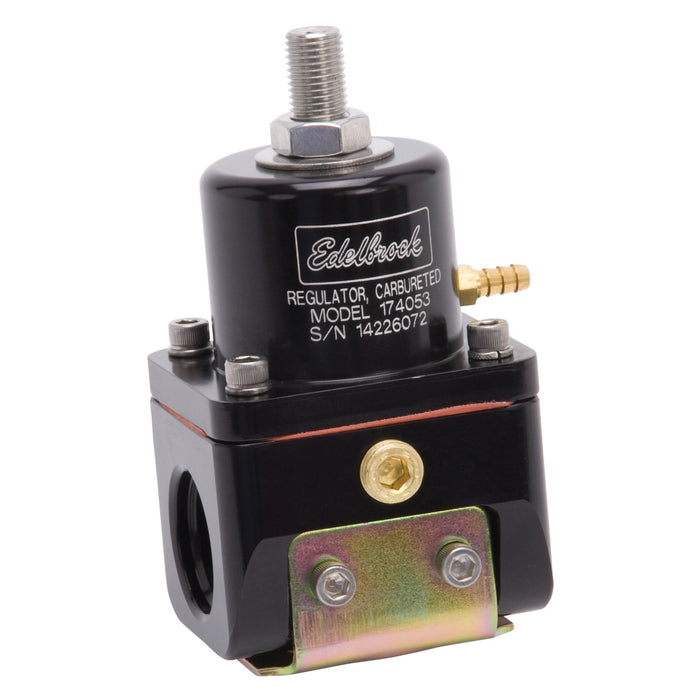

Edelbrock 174053 Edelbrock Carbureted Bypass Style Fuel Pressure Regulator; 180 GPH
by Edelbrock
SKU ds_BDVJ_174053
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$211.64
-
Original price
$211.64
Original price
$211.64
$211.64
$211.64
-
$211.64
Current price
$211.64
Description
This Edelbrock fuel pressure regulator #174053 is machined from aircraft quality aluminum for those who demand the best. This carbureted fuel pressure regulator has an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. This Edelbrock fuel pressure regulator #174053 is compatible with all grades of gasoline, ethanol, methanol and E85 fuels. Pressure regulation slope is 0.75 psi/gal of flow rate change. Will hold fuel system pressure for at least 20 minutes after pump shutdown. Developed for optimum compatibility with Edelbrock electric fuel pumps. This regulator is available with 1/8" NPT gauge port and a boost reference fitting for blow through or pressurized carburetor applications (even beyond 30 psi of boost).
Specifications
| Description_ABR | FU REG |
| Description_DEF | Fuel Pressure Regulator |
| Description_DES | REGULATOR |
| Description_EXT | Edelbrock Carbureted Bypass Style Fuel Pressure Regulator, 180 GPH |
| Description_EXT | Edelbrock Carbureted Bypass Style Fuel Pressure Regulator; 180 GPH |
| Description_FAB | Have Fluorosilicone Diaphragm Material |
| Description_FAB | Machined From Aircraft-Quality Aluminum |
| Description_FAB | Manufactured By Essex Industries |

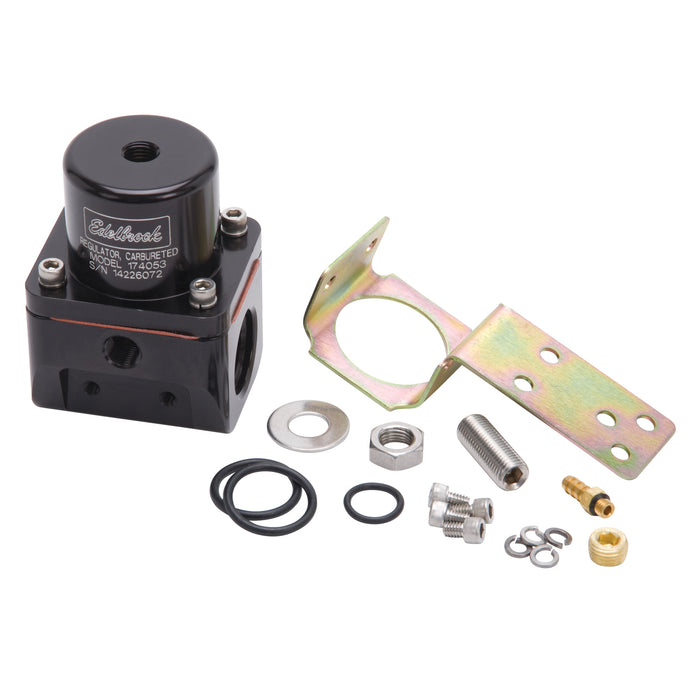

| Description_FAB | Mounting Bracket/Fittings/Hardware Included |
| Description_INV | Fuel Pressure Regulator |
| Description_KEY | 174053; Edelbrock; fuel pressure; Fuel pressure regulator; Regulator; Carburetor; Carb; pressure; adjustable; boost port; Vac port; vacuum port; gauge port; return port; bypass-style; 180GPH |
| Description_LAB | Carbureted Adjustable Bypass Fuel Pressure Regulator (180 GPH) in Black Finish |
| Description_MKT | This Edelbrock fuel pressure regulator #174053 is machined from aircraft quality aluminum for those who demand the best. This carbureted fuel pressure regulator has an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. This Edelbrock fuel pressure regulator #174053 is compatible with all grades of gasoline, ethanol, methanol and E85 fuels. Pressure regulation slope is 0.75 psi/gal of flow rate change. Will hold fuel system pressure for at least 20 minutes after pump shutdown. Developed for optimum compatibility with Edelbrock electric fuel pumps. This regulator is available with 1/8" NPT gauge port and a boost reference fitting for blow through or pressurized carburetor applications (even beyond 30 psi of boost). |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 0in.} |
| height | 3.0 |
| Inlet Port Diameter | -10 an |
| Inlet Type | Threaded |
| length | 4.0 |
| LTL | N |
| Mounting Type | Bracket |
| Outlet Port Diameter | -10 an |
| Outlet Type | Threaded |
| Port Quantity | 5 |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| weight | 1.05 |
| width | 4.5 |
