Edelbrock 21011 Edelbrock Performer Intake Manifold For Chevrolet 262-400 Small-Block V8
by Edelbrock
SKU ds_BDVJ_21011
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Sold out
Original price
$789.40
-
Original price
$789.40
Original price
$789.40
$789.40
$789.40
-
$789.40
Current price
$789.40
Description

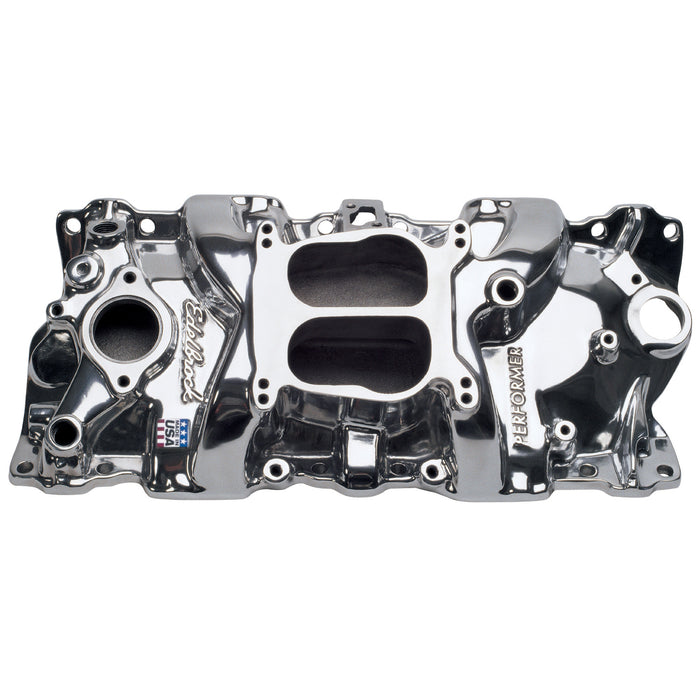

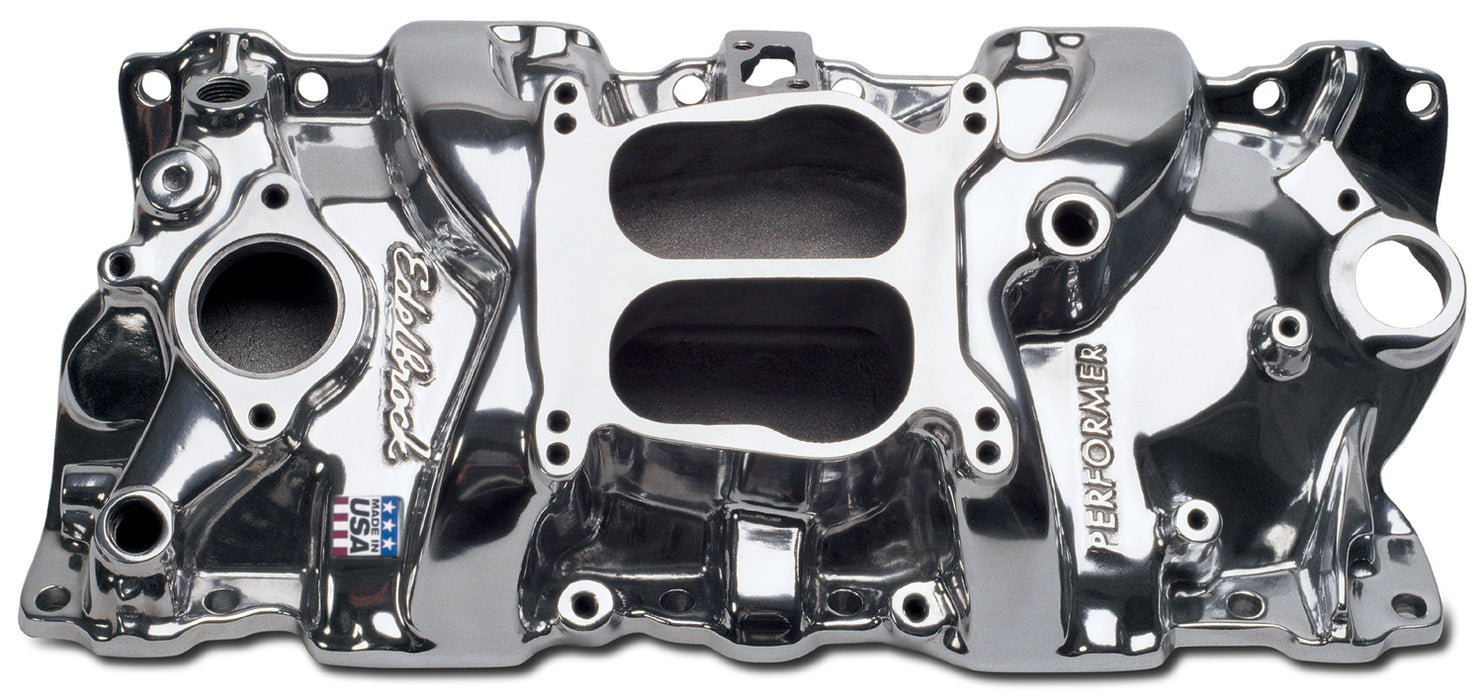

Edelbrock part #21011 Performer intake manifold is designed for street 1955-86 small-block Chevys. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. Not for 1987 and later cast iron or Chevy Bowtie heads. Will fit 1987 and later stock aluminum heads. This manifold offers a polished finish for a brilliant shine and classic look.
Specifications
| Basic Operating RPM Range | Idle-5500 |
| Center Maximum Height | 4.050 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block Gen I:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer Intake Manifold For Chevrolet 262-400 Small-Block V8 |
| Description_FAB | 50-State Street Legal if Correct Carburetor Used |
| Description_FAB | Accepts A/C And Alternator |
| Description_FAB | Accepts Late-Model Choke; Water Neck; And HEI |
| Description_FAB | Dual-Plane Low-Rise Intake w/180 Deg. Firing Order |
| Description_FAB | Excellent Throttle Response and Mid-Range Power |
| Description_FAB | Patented Runner Design Ensures Broad Torque Curve |
| Description_FAB | Polished Version of Edelbrock PN[2101] |
| Description_FAB | Produces Up to 37 more Horsepower at 5500 |
| Description_INV | Polish Per Dual Plane 1986 & Earlier SBC |
| Description_INV | Polish Per Dual Plane 1986 Earlier SBC |
| Description_KEY | 21011; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer; Polished |
| Description_LAB | Performer Intake Manifold for 1955-86 Small-Block Chevy, Polished Finish |
| Description_LAB | Performer Intake Manifold for 1955-86 Small-Block Chevy; Polished Finish |
| Description_MKT | Edelbrock part #21011 Performer intake manifold is designed for street 1955-86 small-block Chevys. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. Not for 1987 and later cast iron or Chevy Bowtie heads. Will fit 1987 and later stock aluminum heads. This manifold offers a polished finish for a brilliant shine and classic look. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 9in.} |
| Description_TRA | Carb pad height: 4.05" |
| Description_TRA | Carb recommendations: OEM 4-Bbl, Use choke rod #9171, bracket #8031 or #8036 for 1972-78. Edelbrock AVS2 or Performer Series 500-650 cfm. |
| Description_TRA | DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_TRA | Edelbrock choke plate #8901 included |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold ht: A-3.50", B-4.60" |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | Port exit dimensions: 1.14" x 1.88" |
| Description_TRA | Recommended intake gasket: Edelbrock #7201. |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Manifold ht: A-3.50in.; B-4.60in. • Carb pad height: 4.05in. • Carb recommendations: OEM 4-Bbl; Use choke rod # 9171; bracket # 8031 or # 8036 for 1972-78. Edelbrock AVS2 or Performer Series 500-650 cfm. • Port exit dimensions: 1.14in. x 1.88in. • Recommended intake gasket: Edelbrock # 7201. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. • NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. • DO NOT OVERTIGHTEN NPT/Pipe fittings; this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. • Edelbrock choke plate # 8901 included |
| EGR Port | No |
| finish | Polished |
| Flange Type | 4150 |
| Front Maximum Height | 3.500 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 5.5 |
| length | 22.5 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 4.600 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Performer |
| Single Or Dual Plane Type | Dual |
| Vehicle Model | Chevrolet |
| weight | 15.6 |
| width | 10.5 |
