Description
Specifications
Basic Operating RPM Range | Idle-5500 |
Center Maximum Height | 4.920 |
CNC Ported | No |
Description_ABR | Intake Mnfld |
Description_ASM | Ford:FE:332 (5.4L)/352 (5.8L)/360 (5.9L)/390 (6.4L)/406 (6.6L)/410 (6.7L)/427 (7.0L)/428 (7.0L) |
Description_DEF | Engine Intake Manifold |
Description_DES | INTAKE MANIFOLD |

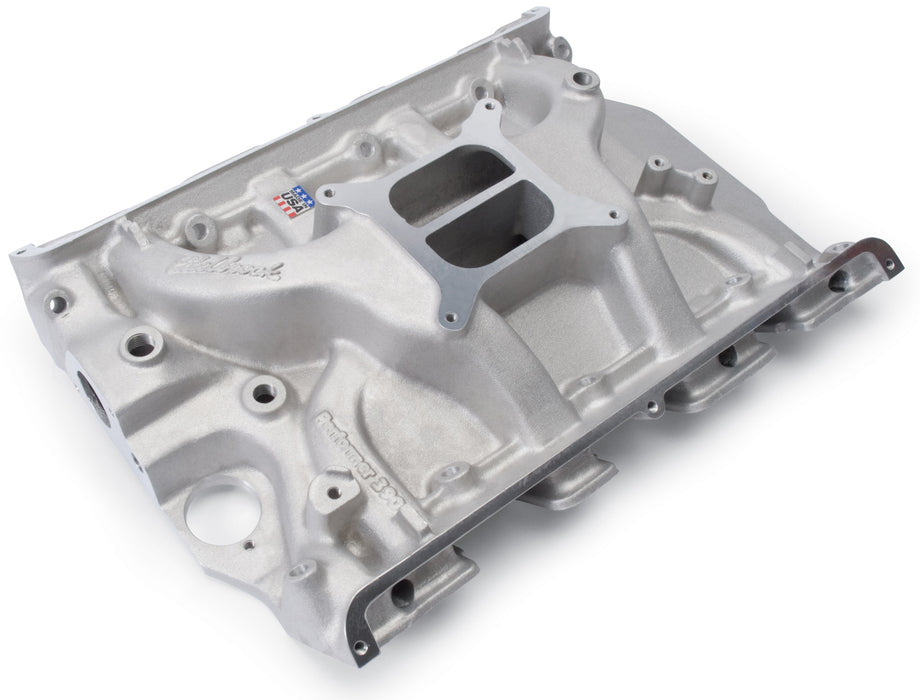

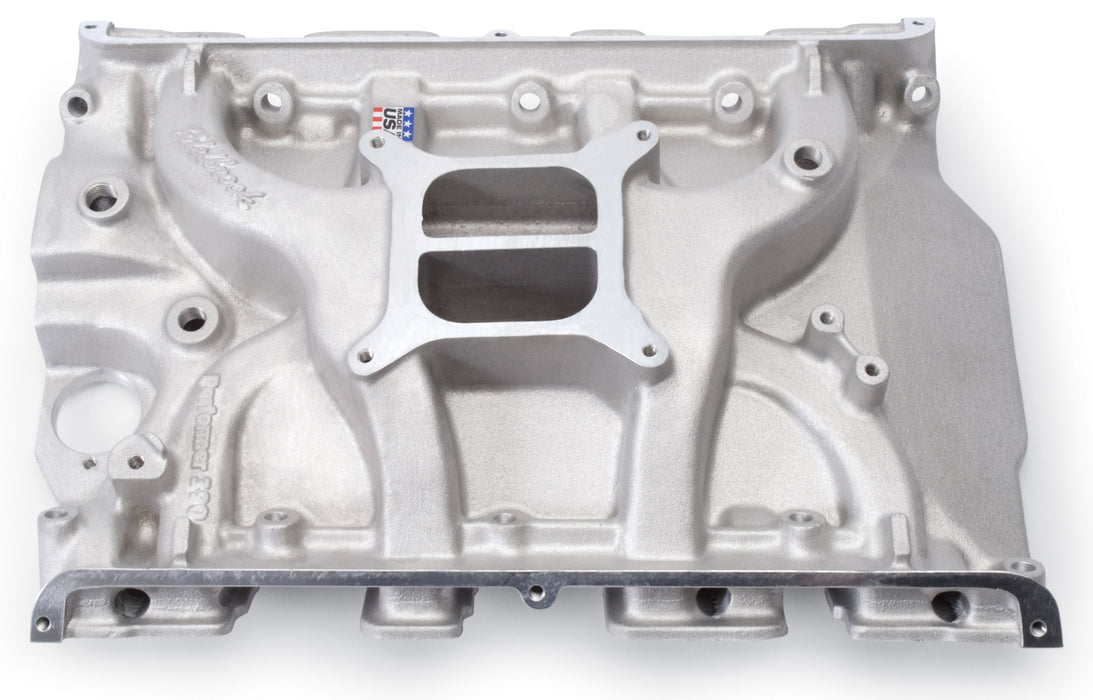

Description_EXT | Edelbrock Performer 390 Intake Manifold for 1958-1976 Ford FE Big-Block V-8 is Designed for Street 332-428 c.i.d. Engines with Medium or Low-Rise Cylinder Heads, Accepts (4150-Style) Edelbrock Carb. Non-EGR |
Description_EXT | Edelbrock Performer 390 Intake Manifold for 1958-1976 Ford FE Big-Block V-8 is Designed for Street 332-428 c.i.d. Engines with Medium or Low-Rise Cylinder Heads; Accepts (4150-Style) Edelbrock Carb. Non-EGR |
Description_FAB | 50-State Street Legal if Correct Carburetor Used |
Description_FAB | Dual-Plane Low-Rise Intake w/180 Deg. Firing Order |
Description_FAB | Excellent Throttle Response and Mid-Range Power |
Description_FAB | For Idle to 5500 RPM Street-Driven Performance |
Description_FAB | Patented Runner Design Ensures Broad Torque Curve |
Description_INV | Performer Manifld 1958-1976 FE 332-428 |
Description_KEY | 2105; Ford; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer; Satin |
Description_LAB | Performer 390 Intake Manifold for Ford FE, Satin Finish |
Description_LAB | Performer 390 Intake Manifold for Ford FE; Satin Finish |
Description_MKT | Edelbrock part #2105 Performer 390 intake manifold is designed for street 332-352-360-390-406-410-427-428 c.i.d. Ford V8's with medium- or low-rise cylinder heads. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. The Performer intake manifolds are ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs. Manifold not equipped with EGR |
Description_MKT | Edelbrock part #2105 Performer 390 intake manifold is designed for street 332-352-360-390-406-410-427-428 c.i.d. Ford V8's with medium- or low-rise cylinder heads. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. The Performer intake manifolds are ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs. Manifold not equipped with EGR; will not accept stock Motorcraft spread-bore carburetor or fit heavy-duty 361 c.i.d. and 391 c.i.d. Ford truck V8's. |
Description_MKT | will not accept stock Motorcraft spread-bore carburetor or fit heavy-duty 361 c.i.d. and 391 c.i.d. Ford truck V8's. |
Description_SHO | { Sellable : Yes } |
Description_SHP | { eo : 7in.} |
Description_TRA | Carb pad height: 4.92" |
Description_TRA | Carb recommendations: Edelbrock Thunder Series AVS or Performer Series Carb, 600-800cfm. For automatic transmissions use #1483 or #1844. |
Description_TRA | Due to the design of Performer manifolds, the throttle and kickdown bracket on some vehicles may require modification to fit. |
Description_TRA | Due to the possible lack of hood clearance, you may not be able to use the OEM water heater space block between the intake manifold and carburetor. |
Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
Description_TRA | Manifold height: A-4.35", B-5.50" (same as stock) |
Description_TRA | Port exit dimensions: 1.06" x 1.75" |
Description_TRA | Recommended intake gasket: Edelbrock #7224 or Fel-Pro #1247 |
Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
Description_TRA | Will not accept stock Motorcraft spread-bore carburetor or fit heavy-duty 361 & 391 c.i.d. Ford truck V8s. |
Description_TRA | • Recommended intake gasket: Edelbrock # 7224 or Fel-Pro # 1247 • Manifold height: A-4.35in.; B-5.50in. (same as stock) • Carb pad height: 4.92in. • Carb recommendations: Edelbrock Thunder Series AVS or Performer Series Carb; 600-800cfm. For automatic transmissions use # 1483 or # 1844. • Port exit dimensions: 1.06in. x 1.75in. • Will not accept stock Motorcraft spread-bore carburetor or fit heavy-duty 361 391 c.i.d. Ford truck V8s. • Due to the design of Performer manifolds; the throttle and kickdown bracket on some vehicles may require modification to fit. • Due to the possible lack of hood clearance; you may not be able to use the OEM water heater space block between the intake manifold and carburetor. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
EGR Port | No |
finish | Satin |
Flange Type | 4150 |
Front Maximum Height | 4.350 |
Gasket Or Seal Included | No |
Grade Type | Performance |
height | 6.9 |
length | 26.0 |
LTL | N |
Material | Aluminum |
Rear Maximum Height | 5.500 |
RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
Series | Performer |
Single Or Dual Plane Type | Dual |
Vehicle Model | Ford |
weight | 29.0 |
width | 17.0 |
