Availability:
Out of stock
Edelbrock 2194 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_2194
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Sold out
Original price
$647.42
-
Original price
$647.42
Original price
$647.42
$647.42
$647.42
-
$647.42
Current price
$647.42
Description

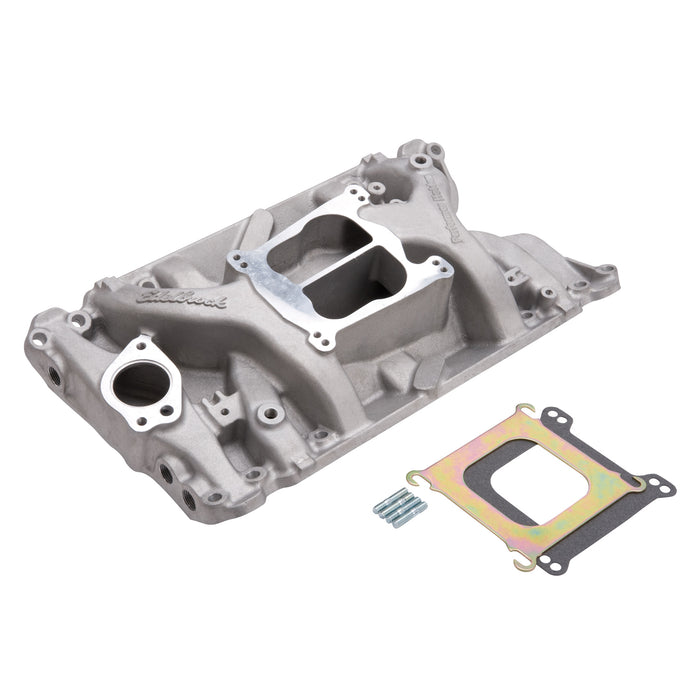

Edelbrock part #2194 Performer intake manifold is designed for street 253-304-308 c.i.d. Holden V8 engines. This Performer intake manifold is a dual-plane design that is tuned for excellent throttle response from idle to 5500 rpm. The Performer Holden manifold has been designed to fit both cylinder head bolt hole patterns. Pilot holes have been drilled on each side of the exhaust crossover for early or late model cylinder heads and will need to be drilled out depending on application. Will not fit EFI Heads (see #7594). Accepts both square-bore and spread-bore carbs. Fits Red/Blue/Black engines. Does not have a provision for external heat crossover. Includes Edelbrock square-bore carb adaptor plate #2732, carb gasket and carb studs.
Specifications
| Basic Operating RPM Range | Idle-5500 |
| Center Maximum Height | 3.960 |
| CNC Ported | No |
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_ASM | Holden:Small-Block:253 (4.1L)/304 (4.9L)/308 (5.0L)/355 (5.7L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer Intake Manifold for Holden 253-308 c.i.d Engines. Accepts Either OEM 4-bbl or 4150-Style Square-Bore Carburetors. |
| Description_FAB | 50-State Street Legal if Correct Carburetor Used |
| Description_FAB | Accepts A/C And Alternator |
| Description_FAB | Accepts Exhaust Heated Chokes |
| Description_FAB | Accepts Late-Model Choke; Water Neck; And HEI |
| Description_FAB | Excellent Throttle Response and Mid-Range Power |
| Description_FAB | For Idle to 5500 RPM Street-Driven Performance |
| Description_FAB | Pair Of Springs |
| Description_FAB | Patented Runner Design Ensures Broad Torque Curve |
| Description_INV | Performer Holden Intake Manifold 253-308 |
| Description_KEY | 2194; Holden; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer; Satin |
| Description_LAB | Performer Intake Manifold for Holden V8 253-308 CID Engines |
| Description_MKT | Edelbrock part #2194 Performer intake manifold is designed for street 253-304-308 c.i.d. Holden V8 engines. This Performer intake manifold is a dual-plane design that is tuned for excellent throttle response from idle to 5500 rpm. The Performer Holden manifold has been designed to fit both cylinder head bolt hole patterns. Pilot holes have been drilled on each side of the exhaust crossover for early or late model cylinder heads and will need to be drilled out depending on application. Will not fit EFI Heads (see #7594). Accepts both square-bore and spread-bore carbs. Fits Red/Blue/Black engines. Does not have a provision for external heat crossover. Includes Edelbrock square-bore carb adaptor plate #2732, carb gasket and carb studs. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | ? Recommended intake gasket HA265 ? Do not use high performance or competition type intake gaskets for street application. Due to material deterioration under street driving conditions; internal leakage of both vacuum and oil may occur. ? Manifold height: A-3.25?; B-4.67? ? Carb pad height: 3.96? ? Carb recommendations: OEM 4-Bbl; Edelbrock AVS2 or Performer Series 600-750 cfm. ? Port exit dimensions: 1.07? x 1.83? ? Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. ? Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Carb pad height: 3.96" |
| Description_TRA | Carb recommendations: OEM 4-Bbl, Edelbrock AVS2 or Performer Series 600-750 cfm. |
| Description_TRA | Do not use high performance or competition type intake gaskets for street application. Due to material deterioration under street driving conditions, internal leakage of both vacuum and oil may occur. Manifold height: A-3.25", B-4.67" |
| Description_TRA | Port exit dimensions: 1.07" x 1.83" |
| Description_TRA | Recommended intake gasket HA265 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Holden 253-308 |
| Engine Make/Size | Universal Engine |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 3.250 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | One |
| Position | N/A |
| Rear Maximum Height | 4.670 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | Idle -5500 |
| Series | Performer |
| Single Or Dual Plane Type | Dual |
| Usage | Street/Hi-Performance |
| Vehicle Model | Holden |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 20.35 |
| width | 14.75 |
