Edelbrock 22744 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_22744
Proudly Canadian
Albertan Owned
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$85.27
-
Original price
$85.27
Original price
$85.27
$85.27
$85.27
-
$85.27
Current price
$85.27
Description

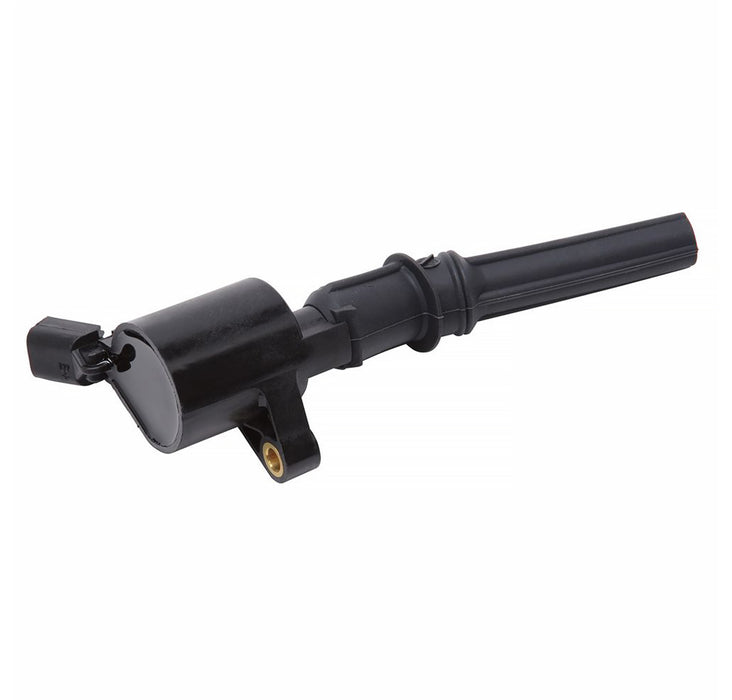

Edelbrock part #22744 Max-Fire Coil-On-Plug ignition coil pack is for use with 1997-2014 Ford 4.6L, 5.4L and 6.8L engines with 2-valve cylinder heads. It's a direct bolt-on with OEM DIS electronic controls and aftermarket high performance ignition systems. Edelbrock Max-Fire Coil On Plug ignition coils are designed with higher resistance for increased energy output at higher rpm, when compared to an OEM coil. The coils are sealed with a high temperature epoxy for shock and vibration resistance?as well as excellent thermal conductivity. The spark plug spring contact is made from stainless steel, with a ferrite lug to reduce EMI/RFI noise; while the boots are molded from a high temperature silicone compound for superior heat resistance up to 550 degrees F. Order the direct bolt-on OEM coil pack best suited for your vehicle. Fits 2-valve engines only. Sold Individually.
Specifications
| Coil Shape | Round |
| Coil Type | Ignition Coils |
| Coil Wire Included | No |
| Connector Gender | Female |
| Description_ABR | Igntion Coil |
| Description_ASM | Ford:Small-Block Modular 2V:281 (4.6L) |
| Description_DEF | Ignition Coil |
| Description_DES | COIL PLUG |
| Description_EXT | Edelbrock part #22744 Max-Fire Coil-On-Plug ignition coil pack is for use with 1997-2014 Ford 4.6L, 5.4L and 6.8L engines with 2-valve cylinder heads. It's a direct bolt-on with OEM DIS electronic controls |
| Description_EXT | Edelbrock part #22744 Max-Fire Coil-On-Plug ignition coil pack is for use with 1997-2014 Ford 4.6L; 5.4L and 6.8L engines with 2-valve cylinder heads. It s a direct bolt-on with OEM DIS electronic controls |
| Description_FAB | Designed With Higher Resistance For Increased Energy |
| Description_FAB | Ideal With Turbocharged And Supercharged Apps |
| Description_FAB | Seal w/High Temp Epoxy For Shock And Vib. Resistance |
| Description_INV | Ford Ignition Coil-On Plug 22744 |
| Description_KEY | Edelbrock; Max Fire; Coil; Coil on plug; Ignition Coil; 22744; coil pack; ford coil; ford ignition; ford; Lincoln; mercury; 2-valve; each; |
| Description_LAB | Edelbrock Max-Fire Coil-On-Plug ignition Ford 4.6L, 5.4L and 6.8L |
| Description_LAB | Edelbrock Max-Fire Coil-On-Plug ignition Ford 4.6L; 5.4L and 6.8L |
| Description_MKT | Edelbrock part #22744 Max-Fire Coil-On-Plug ignition coil pack is for use with 1997-2014 Ford 4.6L, 5.4L and 6.8L engines with 2-valve cylinder heads. It's a direct bolt-on with OEM DIS electronic controls and aftermarket high performance ignition systems. Edelbrock Max-Fire Coil On Plug ignition coils are designed with higher resistance for increased energy output at higher rpm, when compared to an OEM coil. The coils are sealed with a high temperature epoxy for shock and vibration resistance as well as excellent thermal conductivity. The spark plug spring contact is made from stainless steel, with a ferrite lug to reduce EMI/RFI noise |
| Description_MKT | Edelbrock part #22744 Max-Fire Coil-On-Plug ignition coil pack is for use with 1997-2014 Ford 4.6L, 5.4L and 6.8L engines with 2-valve cylinder heads. It's a direct bolt-on with OEM DIS electronic controls and aftermarket high performance ignition systems. Edelbrock Max-Fire Coil On Plug ignition coils are designed with higher resistance for increased energy output at higher rpm, when compared to an OEM coil. The coils are sealed with a high temperature epoxy for shock and vibration resistance?as well as excellent thermal conductivity. The spark plug spring contact is made from stainless steel, with a ferrite lug to reduce EMI/RFI noise; while the boots are molded from a high temperature silicone compound for superior heat resistance up to 550 degrees F. Order the direct bolt-on OEM coil pack best suited for your vehicle. Fits 2-valve engines only. Sold Individually. |
| Description_MKT | while the boots are molded from a high temperature silicone compound for superior heat resistance up to 550 degrees F. Order the direct bolt-on OEM coil pack best suited for your vehicle. Fits 2-valve engines only. Sold Individually. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 9in.} |
| Description_TRA | Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Description_TRA | • Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| height | 2.12 |
| height | 6.5 |
| Ignition Type | Distributorless |
| length | 6.5 |
| length | 7.81 |
| LTL | N |
| Mount Type | Plug |
| Mounting Bracket Included | No |
| Mounting Position | Cylinder Head |
| Oil Filled | No |
| Overall Height | 6.5 |
| Requires External Resistor | No |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Terminal Gender | Female |
| Terminal Quantity | 1 |
| Terminal Type | Blade Pin |
| Voltage | 12 |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 0.55 |
| width | 2.25 |
| width | 3.5 |
| Wire Quantity | 2 |
