Availability:
Out of stock
Edelbrock 2790 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_2790
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$810.92
-
Original price
$810.92
Original price
$810.92
$810.92
$810.92
-
$810.92
Current price
$810.92
Description

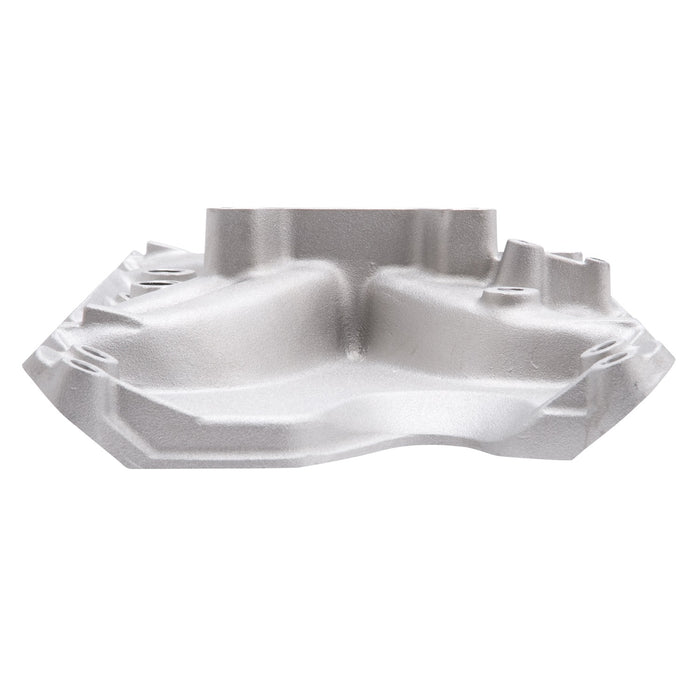

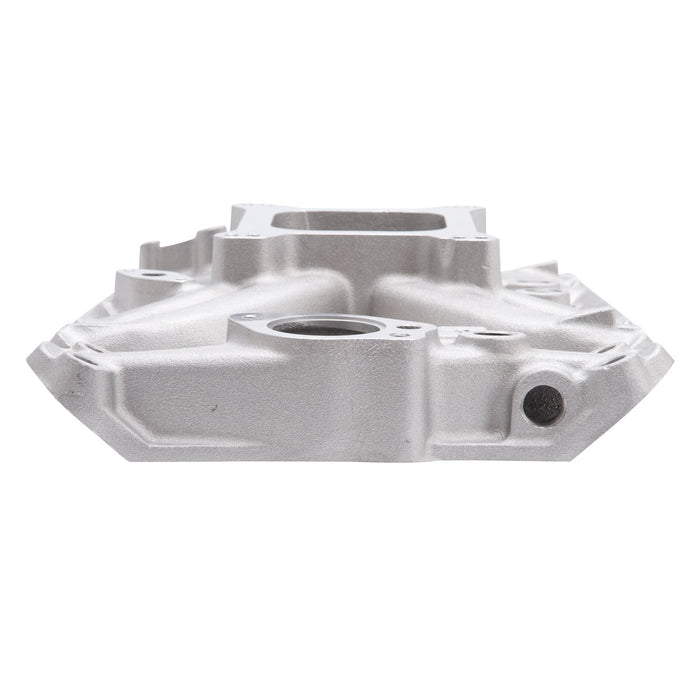

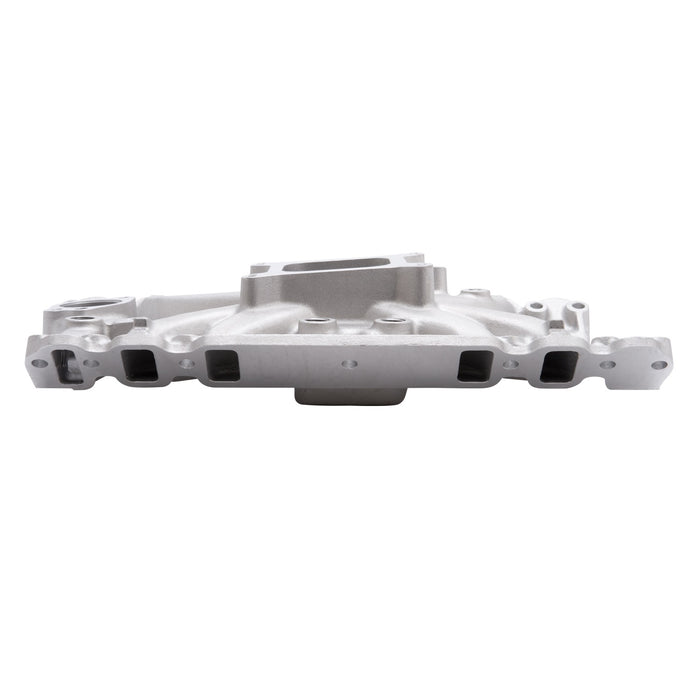

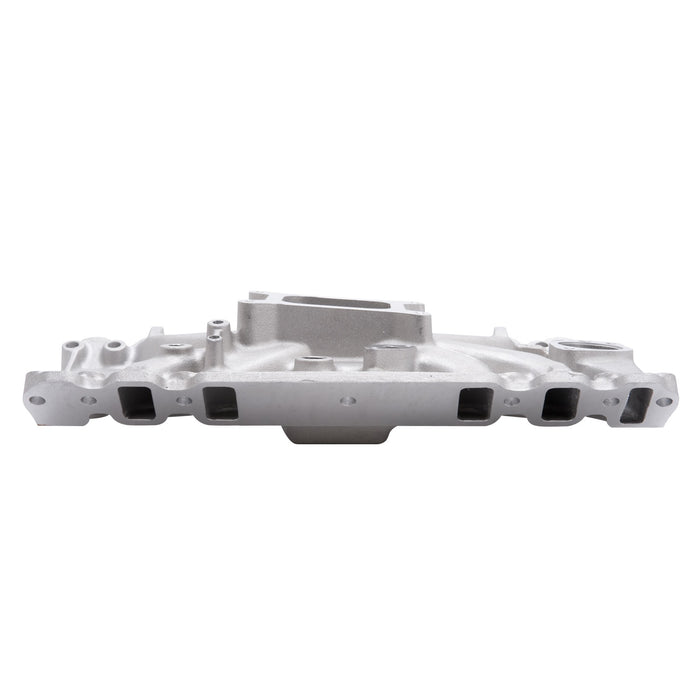

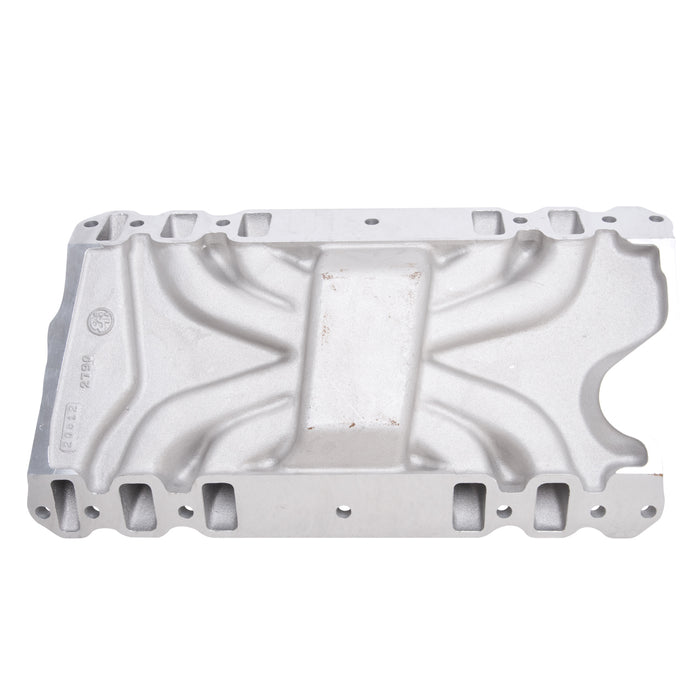

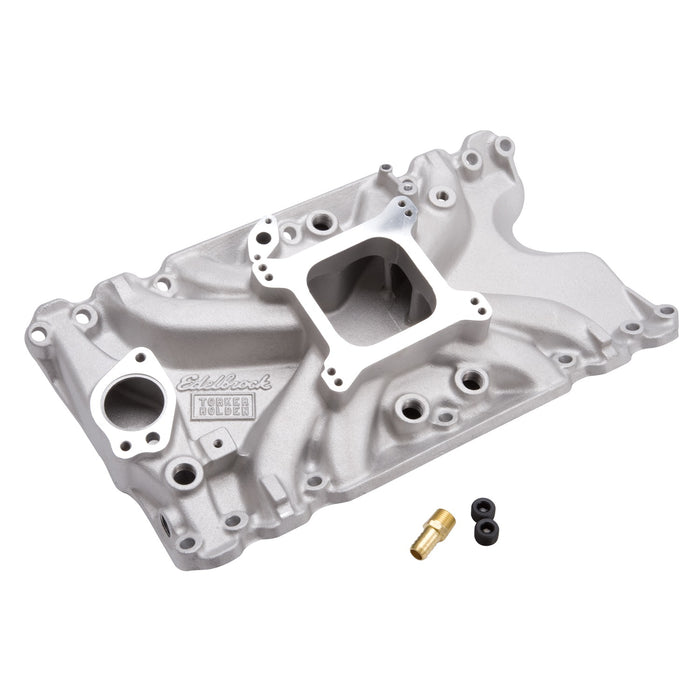

Edelbrock part #2790 Torker 308 intake manifold is designed for Holden 253-304-308 c.i.d. V8 engines with Red motor cylinder heads only (with single bolt in center of manifold), will not fit on Blue/Black cylinder head engines. The Torker 308 intake manifold is a single-plane design and is recommended for street high performance and race engines operating between the 2500 to 6500 rpm range where low-end torque is not required. Accepts square-bore carbs only.
Specifications
| Basic Operating RPM Range | 2500-6500 |
| Center Maximum Height | 3.730 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Holden:Small-Block VN:308 (5.0L)/355 (5.7)/383 (6.3L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Torker 308 Intake Manifold for Small-Block Holden Engines is Designed for 253-304-308 C.I.D. V8's with Red Motor Cylinder Heads. Will Not Fit Black/Blue Cylinder Heads. Accepts a 4150-Style Square-Bore Carburetor. Non-EGR. |
| Description_EXT | Edelbrock Torker 308 Intake Manifold for Small-Block Holden Engines is Designed for 253-304-308 C.I.D. V8ft.s with Red Motor Cylinder Heads. Will Not Fit Black/Blue Cylinder Heads. Accepts a 4150-Style Square-Bore Carburetor. Non-EGR. |
| Description_FAB | 2500 to 6500 RPM High Performance Street Engines |
| Description_FAB | Designed for Hi-Perf Street; Drag or Marine Use |
| Description_FAB | For Top-End HP and Adequate Throttle Response |
| Description_FAB | Ideal for Applications with Limited Hood Clearance |
| Description_FAB | Manifold Not Equipped with EGR |
| Description_FAB | Not for Mileage or Emissions Applications |
| Description_INV | Torker Holden Intake Mnaifold 253-308 |
| Description_KEY | 2790; Holden; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer; Satin |
| Description_LAB | Torker Holden 253-308 w/ Red Motor Cylinder Heads |
| Description_LAB | Torker Holden 253-308 w/Red Motor Cylinder Heads |
| Description_MKT | Edelbrock part #2790 Torker 308 intake manifold is designed for Holden 253-304-308 c.i.d. V8 engines with Red motor cylinder heads only (with single bolt in center of manifold), will not fit on Blue/Black cylinder head engines. The Torker 308 intake manifold is a single-plane design and is recommended for street high performance and race engines operating between the 2500 to 6500 rpm range where low-end torque is not required. Accepts square-bore carbs only. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Carb pad height: 3.73" |
| Description_TRA | Carb recommendations: OEM 4-Bbl, Edelbrock AVS2 or Performer Series 600-650 cfm |
| Description_TRA | Do not use competition style intake gaskets for this street manifold. Due to material deterioration over time, internal leakage of vacuum, oil, and coolant may occur. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-2.95", B-4.50" |
| Description_TRA | Port exit dimensions: 1.03" x 1.88" |
| Description_TRA | Recommended intake gasketHA265 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Do not use competition style intake gaskets for this street manifold. Due to material deterioration over time; internal leakage of vacuum; oil; and coolant may occur. • Recommended intake gasketHA265 • Manifold height: A-2.95in.; B-4.50in. • Carb pad height: 3.73in. • Carb recommendations: OEM 4-Bbl; Edelbrock AVS2 or Performer Series 600-650 cfm • Port exit dimensions: 1.03in. x 1.88in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 2.950 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 4.500 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Torker/Torker II |
| Single Or Dual Plane Type | Single |
| Vehicle Model | Holden |
| weight | 18.75 |
| width | 14.75 |
